Model #SHE68R56UC/63 Bosch dishwasher

Here are the diagrams and repair parts for Bosch SHE68R56UC-63 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

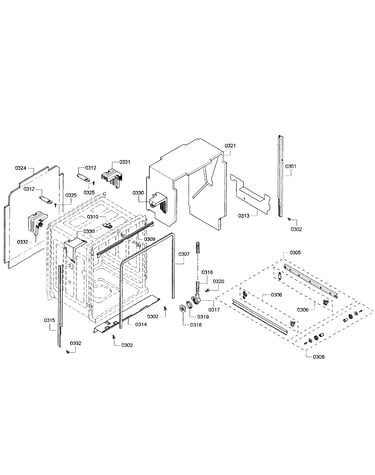

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideOwner’s manual

    Showing 10 of 159 parts

    Dishwasher Door Seal, Lower#207

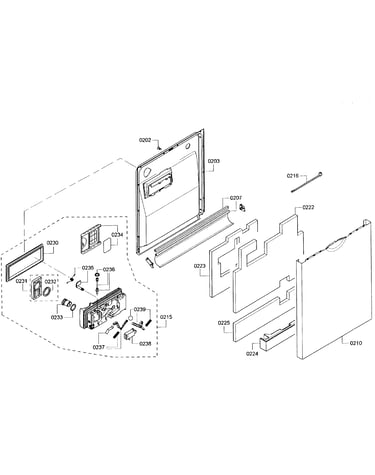

    Door assy Diagram

    Door seal

    Part #432490
    Replaced by #00432490
    ?
    Manufacturer substitution
    This part replaces 432490. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $34.39
    Dishwasher Drain Hose#434

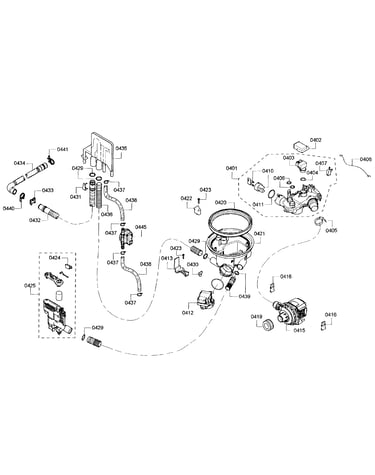

    Pump assy Diagram

    Dishwasher drain hose

    Part #668108
    Replaced by #00668108
    ?
    Manufacturer substitution
    This part replaces 668108. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $37.99
    Dishwasher Screw#546

    Base assy Diagram

    Dishwasher screw

    Part #603934
    Replaced by #00603934
    ?
    Manufacturer substitution
    This part replaces 603934. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $8.09
    Holder#608

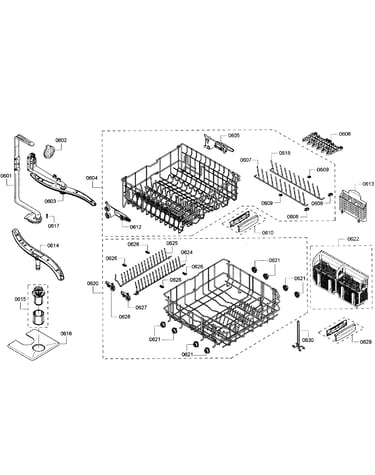

    Baskets Diagram

    Holder

    Part #616990

    The manufacturer no longer makes this part, and there's no substitute part

    Dishwasher Door Hinge Lever Bearing#504

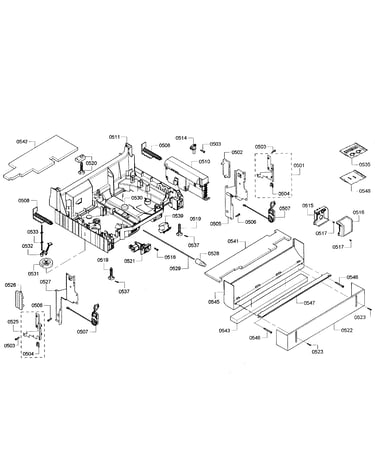

    Base assy Diagram

    Bearing

    Part #165296
    Replaced by #00165296
    ?
    Manufacturer substitution
    This part replaces 165296. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $19.63
    Dishwasher Detergent Dispenser Cover#231

    Door assy Diagram

    Dishwasher door panel

    Part #166623
    Replaced by #00166623
    ?
    Manufacturer substitution
    This part replaces 166623. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $12.63
    Dishwasher Tine Row Retainer#609

    Baskets Diagram

    Holder

    Part #616989
    Replaced by #00616989
    ?
    Manufacturer substitution
    This part replaces 616989. Substitute parts can look different from the original.
    This item is not returnable
    Back Order
    $2.51
    Dishwasher Door Latch Handle#115

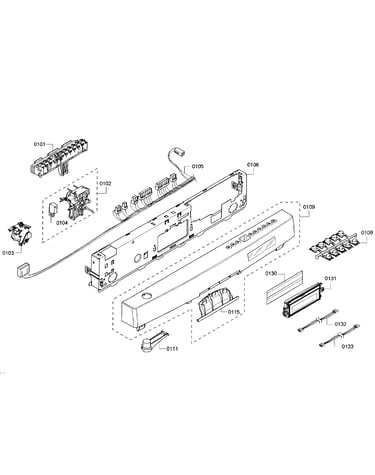

    Control panel Diagram

    Holder

    Part #609802
    Replaced by #00609802
    ?
    Manufacturer substitution
    This part replaces 609802. Substitute parts can look different from the original.
    Back Order
    $42.76
    Dishwasher Drain Hose#432

    Pump assy Diagram

    Dishwasher drain hose

    Part #668109
    Replaced by #00668109
    ?
    Manufacturer substitution
    This part replaces 668109. Substitute parts can look different from the original.
    In Stock
    $45.16
    Dishwasher Tine Row#624

    Baskets Diagram

    Insert

    Part #651436
    Replaced by #00651436
    ?
    Manufacturer substitution
    This part replaces 651436. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $25.53
