Kenmore 66513263K113 undercounter dishwasher Parts

To hard reset your Kenmore dishwasher model 66513263K113, we recommend doing a control reset first (power cycle plus keypad reset). This clears many “stuck” conditions after a power glitch or paused cycle; then run a short cycle to confirm normal operation. See the 66513263K113 owner's manual for the exact key sequence for your console.

Quick hard reset steps (most effective)

• Turn the dishwasher OFF at the breaker (or unplug it) for 1 minute.
• Restore power.
• Within 30 seconds, press a cancel/drain option (if your console has it) to clear the tub.
• Try a keypad reset sequence commonly used on many Kenmore-built units: press Heated Dry then High Temp (or High Temp then Heated Dry) and repeat until the lights change, then wait about 3 minutes.
• Start a 1-hour/quick cycle and listen for fill and wash.

If it still will not reset

These checks help separate a control issue from a fill, drain, or door-latch problem.

• Door: Open and close the door firmly; a door that is not fully latched can stop the cycle.
• Water supply: Confirm the shutoff valve is open and the unit can fill.
• Drain path: Check the sink/disposer connection and hose routing for kinks.
• Power: Confirm the outlet is grounded and the cord is not contacting the motor area.
• Control symptoms: If the dishwasher drains but will not start washing, the control may be seeing a fault condition.

Symptom after reset	Most likely area to check	Common next step
No lights, no response	Power supply, breaker, wiring	Verify power at outlet/junction box
Lights on, won’t start	Door latch, control, keypad	Try keypad reset again, then inspect latch
Won’t drain	Drain hose, drain pump	Inspect hose, then consider dishwasher drain pump WPW10348269
Fills but no wash action	Circulation system	Check for obstructions, then evaluate pump/motor

Why it matters

A true “hard reset” (removing power) clears the control’s temporary memory. If the dishwasher immediately faults again, the reset worked and the dishwasher is reacting to an underlying issue (drain restriction, fill problem, or a failing component).

Last updated: January 2026

On your Kenmore dishwasher model 66513263K113, the Start/Resume button often won’t start a cycle if the door is not fully closed and latched, if power is interrupted, or if the control is waiting for you to close the door within the required time after pressing Start/Resume. Use the checks below and confirm the Start/Resume timing in the 66513263K113 installation guide.

Quick checks that fix most “won’t start” issues

• Make sure the door is closed tightly and latched (a weak latch feel can stop the cycle from starting).
• Press Start/Resume, then close the door within 3 seconds (otherwise the Start/Resume light can flash and you must press it again).
• Check the home circuit breaker or house fuse.
• Confirm a wash cycle is actually selected (not mid-cancel).
• Verify the water supply valve is turned on.

Reset and restart steps (safe first steps)

1. Turn power off at the breaker (or unplug if accessible) for about 5 minutes.
2. Restore power.
3. Select a short cycle.
4. Press Start/Resume and close the door within 3 seconds.

What you should see during a normal start

Time after start	What’s normal	What it suggests if missing
First 1 to 2 minutes	Filling sounds, then wash motor	No fill: water supply/valve issue
After 2 minutes	Water present in bottom of tub	No water: inlet or fill control problem

If it still won’t start: likely causes

These are the most common parts or conditions behind a dead Start/Resume response:

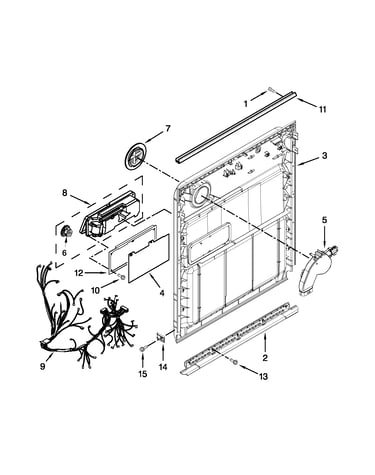

• Door latch or door switch not proving “closed” (even if it looks shut)
• Control panel or electronic control issue (intermittent buttons, no response)
• Wiring connection problem at the control or door area
• No incoming power to the dishwasher (breaker, junction box wiring)

If the dishwasher fills but won’t run, or the button response is inconsistent, the main control can be involved; for this model, a common control option is the dishwasher electronic control W10595569.

Why it matters

The dishwasher is designed to prevent starting when it cannot confirm safe operation (door latched, correct start sequence, and proper power). Fixing the latch/start sequence issue first avoids unnecessary parts replacement.

Last updated: January 2026

Water standing in the bottom of your Kenmore dishwasher model 66513263K113 almost always points to a drain problem (blocked filter/sump area, kinked drain hose, or a drain pump that is jammed or failing). Start with cleaning and hose checks before replacing parts; use the 66513263K113 owner's manual for the exact filter and cleaning steps.

Quick checks that fix most standing-water issues

• Cancel the cycle and let the dishwasher try to drain; listen for the drain pump running.
• Remove the lower rack and check the sump area for labels, glass, food, or twist ties.
• Clean the filter and any screens (a dirty filter is the most common cause).
• Inspect the drain hose routing under the sink for kinks, crushing, or a sag that traps water.
• If your drain hose connects to a garbage disposal, make sure the disposal inlet knockout plug was removed.

Parts to consider if it still will not drain

If the dishwasher hums but does not move water, or drains very slowly after cleaning, these parts are common fixes for 66513263K113:

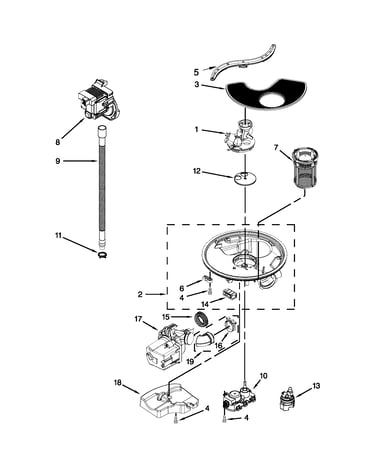

• Dishwasher drain pump WPW10348269 (pump runs but cannot push water out, or is seized)
• Dishwasher drain hose 8269144A (hose is split, soft-collapsed, or permanently kinked)

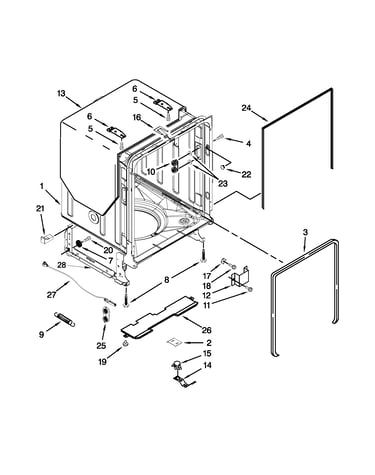

• Dishwasher sump and seal assembly WPW10455268 (debris in sump area, leaking seal, or poor flow through the drain path)

Symptom-to-likely-cause guide

What you notice	Most likely cause	What we do first
Water remains, no drain sound	Control/door not allowing drain	Verify door latches and cycle cancels properly
Humming, little or no draining	Drain pump jammed or failing	Clear debris; then consider drain pump
Drains slowly, some water left	Partial clog or hose routing issue	Clean filter/sump; correct hose routing

Why it matters

Standing water can lead to odors, poor cleaning, and re-depositing soil on dishes. Fixing the drain path early also helps protect the pump and motor from running under strain.

Last updated: January 2026

Common problems we see with the Kenmore 66513263K113 dishwasher include poor draining, weak cleaning from clogged or damaged spray components, rack issues (wheels/adjusters), and door problems that prevent a tight latch. Many symptoms trace back to water supply, drainage routing, or a worn pump or valve.

Most common symptoms and what they usually point to

• Won’t drain or drains slowly: drain hose routing, a blocked sump area, or a failing drain pump
• Dishes still dirty: clogged spray arm, low water fill, or circulation issues
• Burning smell: wiring/connection issue, motor strain, or heater-related problem (stop using and disconnect power before inspecting)

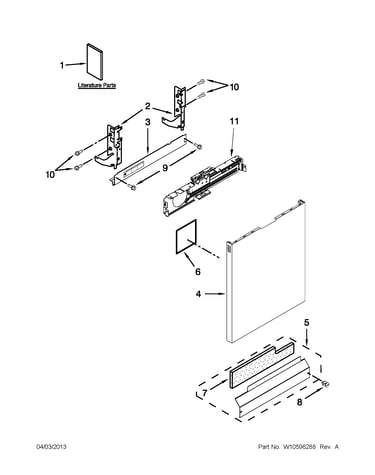

• Door won’t close or feels heavy/light: hinge/balance hardware, rack interference, or latch alignment

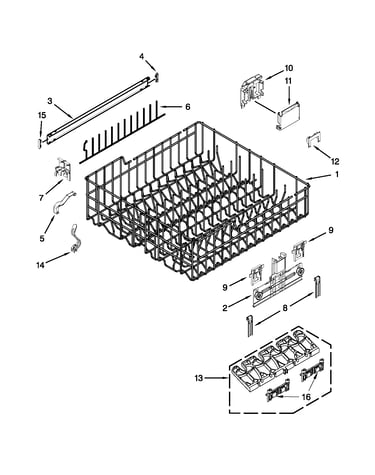

• Racks won’t slide smoothly: worn wheels, broken adjusters, or missing rail stops

Quick checks you can do first (no parts swapping)

Before replacing anything, we recommend these basic checks from the installation and operation guidance:

• Confirm the door is closed tightly and latched.
• Verify the water supply is turned on.
• Check the house breaker or fuse.
• Start a short cycle; after about 2 minutes, open the door and confirm there is water in the bottom of the tub.
• Make sure the drain hose and wiring are routed so they do not contact the motor or interfere with moving parts.

Parts that commonly fix these problems on model 66513263K113

Symptom	Common part involved	Example part for this model

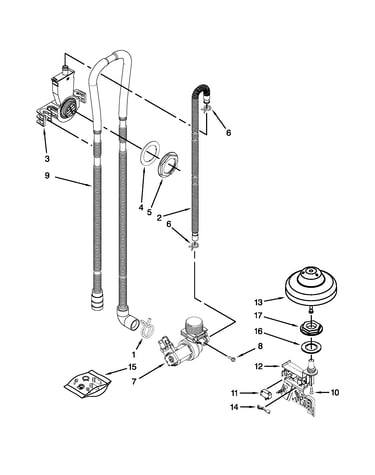

Not draining	Drain pump or drain hose	Dishwasher drain pump WPW10348269, dishwasher drain hose 8269144A

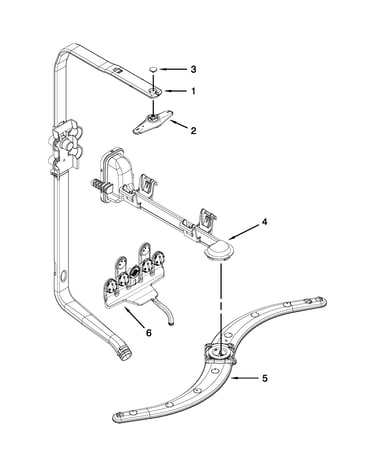

Poor cleaning	Spray arm or diverter	Dishwasher spray arm WPW10491331, dishwasher diverter motor W10537869
Low or no fill	Water inlet valve	Dishwasher water inlet valve W11175771

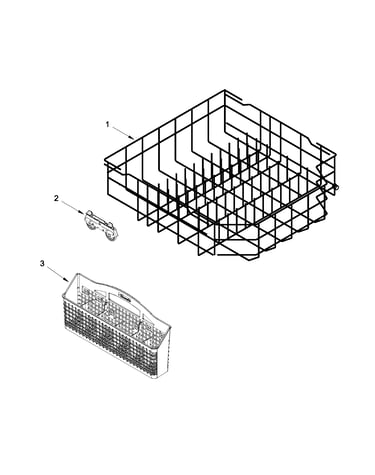

Rack won’t roll/adjust	Wheels/adjusters/rail stops	Whirlpool dishwasher dishrack wheel W10195416V, dishrack adjuster kit - dishwasher rack component by whirlpool W10712395, dishwasher dishrack slide rail stop, upper WP8565925

Why it matters

Drain, fill, and spray problems can leave dirty water in the tub, reduce wash pressure, and increase cycle time. Door and rack issues can also prevent a proper seal or block spray coverage, which makes cleaning performance look worse than it is.

For model-specific operating checks and safety steps, use the 66513263K113 installation guide.

Last updated: January 2026
