On Craftsman lawn tractors like model 917270650, the model number does not tell the year; you date the tractor by decoding the serial number on the ID tag. Many Craftsman serial formats use a date code (month, day, year) embedded in the serial, which lets you identify the build date.

Where to find the serial number on a 917270650

Check the tractor’s product ID label; common locations include:

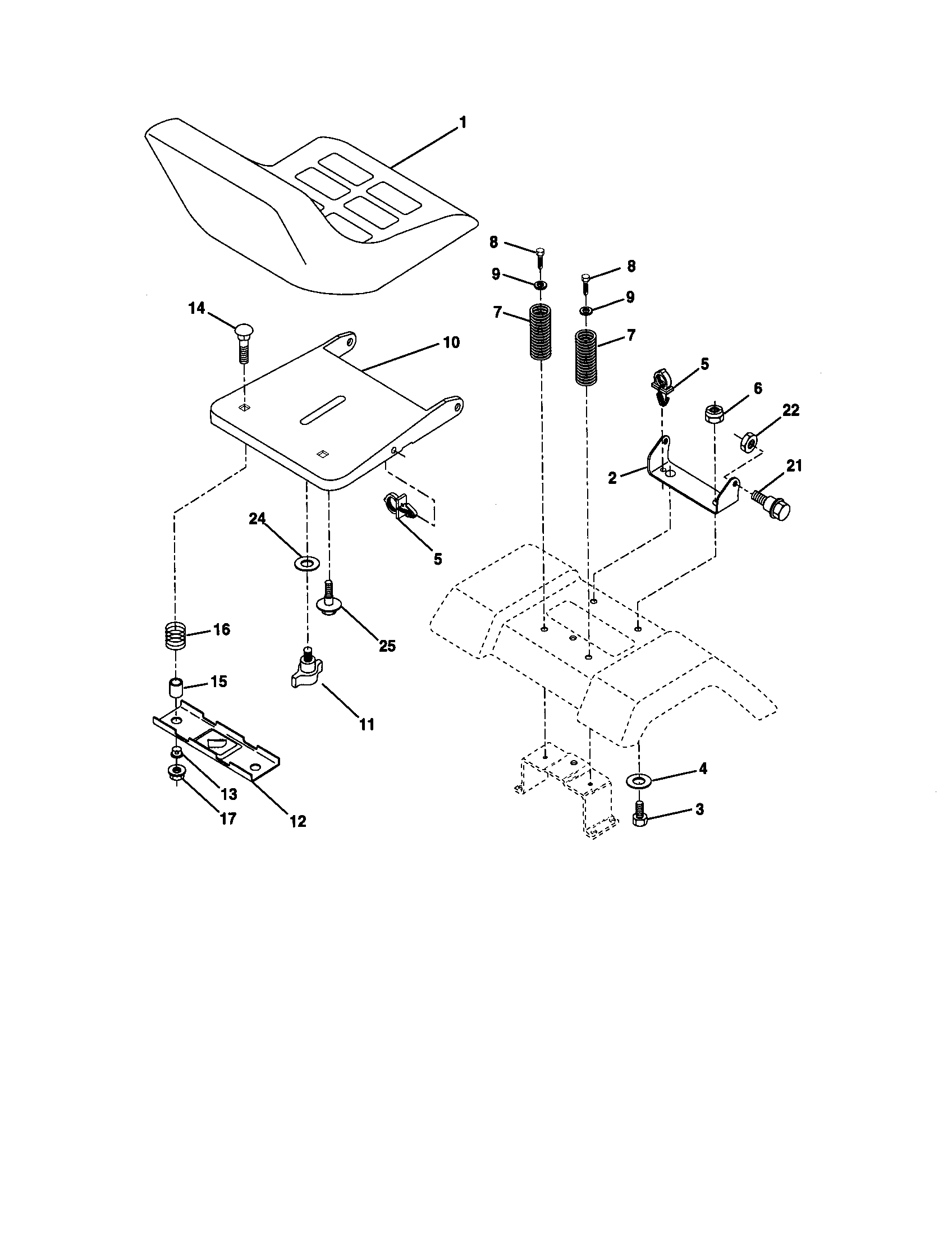

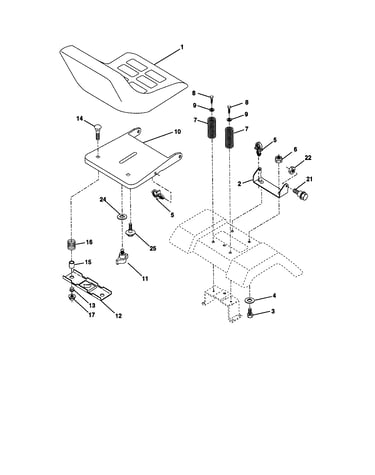

• Under the seat pan or on the seat support
• On the rear fender pan near the seat
• On the frame rail near the engine
• Near the steering column area

For label location and identification details, use the owner's manual.

How to decode the year from the serial number

Craftsman used more than one serial-number format over the years, but a very common date-style format is:

• First 2 digits = month (01 to 12)
• Next 2 digits = day (01 to 31)
• Next 2 digits = year (last two digits)

Example

If the serial begins with 072811, that decodes to:

• 07 = July
• 28 = 28th
• 11 = 2011

Quick decode table

Serial starts with	Month	Day	Year
010124	Jan	01	2024
072811	Jul	28	2011
120599	Dec	05	1999

If your serial number does not match the MMDDYY pattern

Use these checks to avoid a wrong year:

• Look for a block of 6 digits grouped together in the serial
• Ignore letters or plant codes that may appear before or after the date code
• If you see more than 6 digits, the date code is often still the first 6 digits
• Cross-check by tractor features (42-inch deck, 6-speed transaxle) listed for model 917270650 in the manual

Why it matters

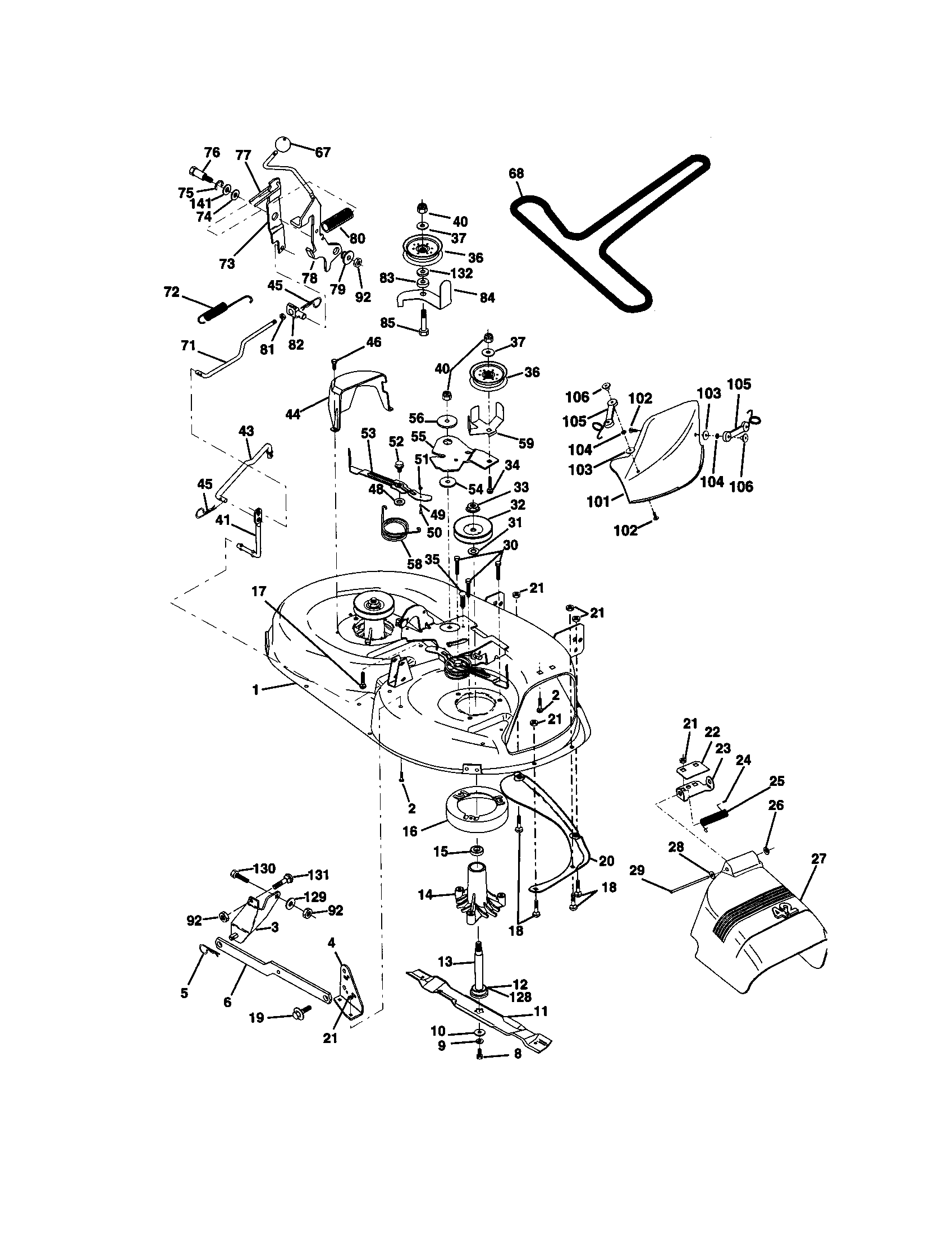

Knowing the build year helps us match the correct parts diagrams and maintenance specs (deck belt routing, blade style, mandrel parts, decals). When you are ordering wear items, the year can prevent fit issues.

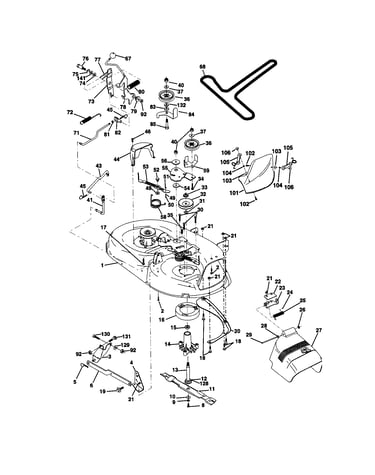

If you are replacing common deck wear parts, match by model and diagram first; for example, the 42-inch deck mulching blade is husqvarna lawn tractor mulching blade, 21-in 532134149. You can also search by model number on Sears PartsDirect.

Last updated: February 2026

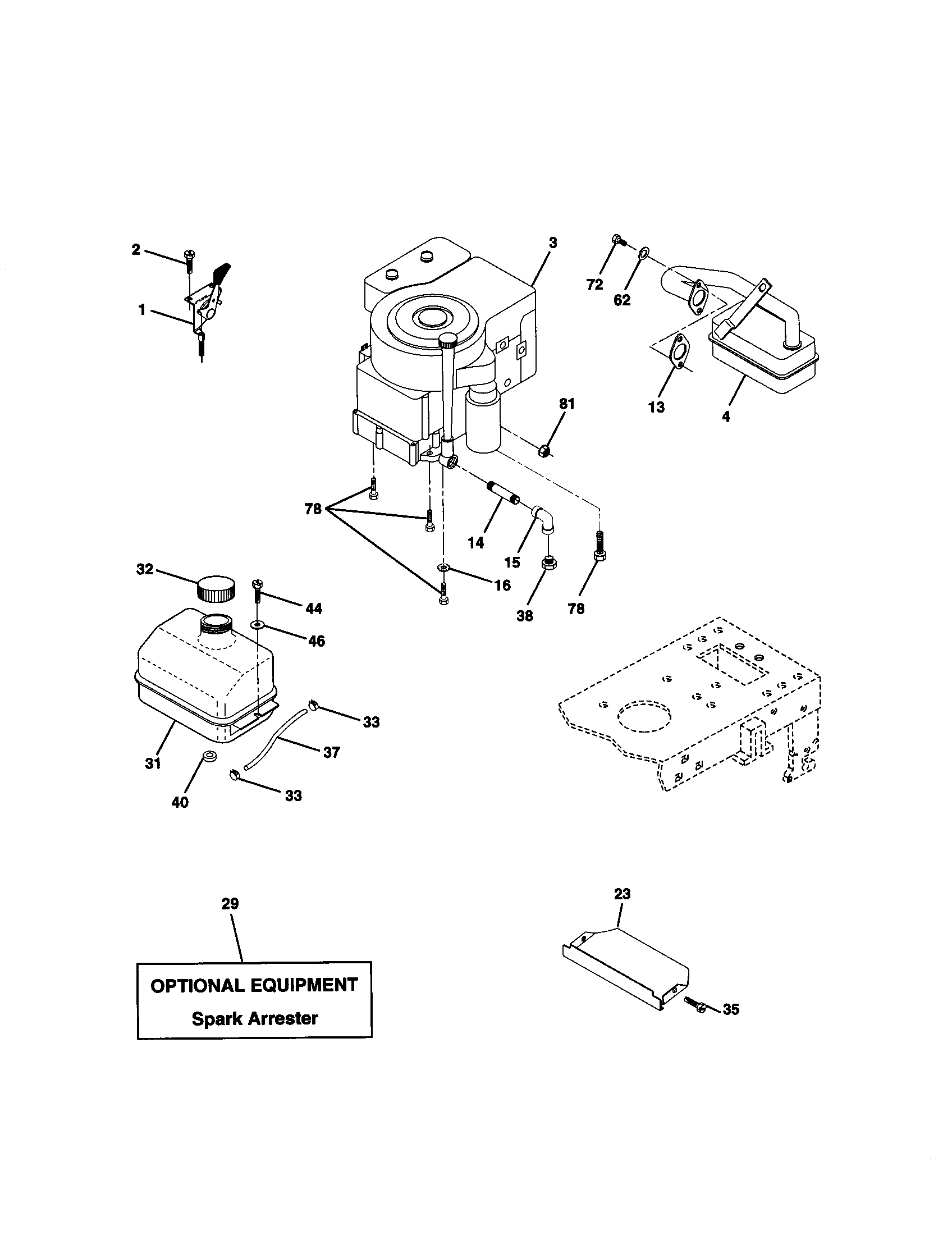

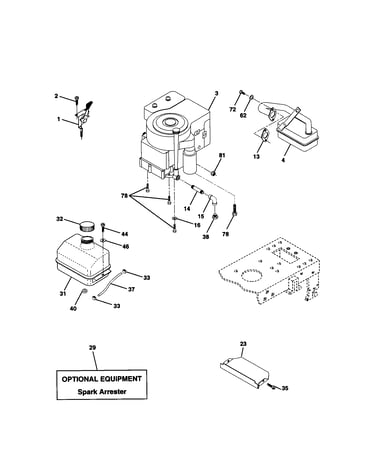

On a Craftsman lawn tractor model 917270650, the engine identification is typically on the engine shroud (sheet metal) near the muffler or on the front of the engine near the air cleaner. Use that engine model and type code when ordering tune-up and starting parts. See the 917270650 owner's manual for your tractor’s safety and service guidance.

Where to look for the engine ID tag or stamping

Check these common locations with the engine cool and the key removed:

• On the sheet metal shroud directly above the muffler (right or left side)
• On the front of the engine near the air cleaner housing
• Near the valve cover area or blower housing (often a stamped plate or sticker)
• On the engine itself, not on the mower deck or frame

What information to write down

Most small engines use a few identifiers; record all of them:

• Engine model (the main identifier)
• Type (build configuration)
• Code or date (production code)
• Any spec number shown on the tag

How the engine ID helps you get the right parts

Your tractor model number (917270650) identifies the chassis and deck; the engine model identifies engine-specific parts.

You need to replace	Use tractor model 917270650 for	Use engine model for
Mower deck parts	Blades, mandrels, belt routing	Not applicable
Starting/charging parts	Wiring layout, safety interlocks	Starter, carburetor, ignition parts
Maintenance items	Deck leveling and blade care	Air filter, spark plug, fuel filter

Why it matters

Using the correct engine model prevents wrong-part returns and speeds up troubleshooting for no-start or clicking issues. For example, if the engine clicks but will not crank, the issue is often battery cables, solenoid, or safety interlocks; the engine ID helps match the correct electrical parts like the solenoid 532146154.

Last updated: February 2026

For Craftsman lawn tractor model 917270650, the owner’s manual identifies an 18.5 HP gas, front-engine setup with electric start and a 42-inch mower deck. For engine service specs (oil, spark plug, adjustments), we follow the 917270650 owner's manual.

What the manual confirms for model 917270650

These are the key powertrain and operating identifiers called out for this specific tractor:

• 18.5 HP engine rating
• Electric start
• 42-inch mower deck
• 6-speed transaxle
• Gasoline: unleaded regular, 1.25-gallon capacity
• Battery: 25 Ah, minimum 190 CCA, case size U1R

Engine service specs (quick reference)

Use these specs when doing routine maintenance or diagnosing hard-starting and poor performance.

Service item	Spec used for 917270650
Oil type	SAE 30 (above 32°F); SAE 5W-30 (below 32°F)
Oil capacity	3.0 pints
Spark plug	Champion RJ19LM or J19LM (gap 0.030 in)
Valve clearance	Intake 0.005 to 0.007 in; exhaust 0.009 to 0.011 in

Parts that commonly affect starting and engine operation

If the engine clicks, cranks slowly, or will not crank, these items are commonly involved:

• Battery (match U1R size and 190 CCA minimum)
• Starter solenoid, such as solenoid 532146154
• Spark plug and fresh fuel (correct plug type and gap listed above)
• Correct oil viscosity for temperature (helps cranking speed)

Why it matters

Using the correct horsepower rating and service specs for the 917270650 helps you choose the right tune-up parts and fluids, set proper adjustments, and prevent no-start, weak charging, and poor cutting performance.

Last updated: February 2026

For a Craftsman 917270650 front-engine lawn tractor, a full engine replacement typically costs $260 to $1,800 installed, depending on the replacement engine price, any extra parts needed (fuel line, wiring, belts), and local labor rates. Plan on about 6 hours of labor for a typical riding mower engine swap.

What drives the total replacement cost?

Engine swaps vary mainly by how complete the replacement is and how much troubleshooting is needed before installation.

• Engine type and output (direct replacement vs. different spec)
• Parts transferred from the old engine (pulleys, starter, muffler, wiring)
• Fuel system cleanup (old fuel, clogged lines, dirty tank)
• Electrical and safety interlock repairs found during diagnosis
• Shop labor rate plus pickup and delivery fees

For safety steps and service precautions before any repair, follow the 917270650 owner's manual.

Typical cost breakdown (parts vs. labor)

Cost item	Typical range	What it covers
Replacement engine	$200 to $1,400	Engine assembly cost is the biggest variable
Labor	$200 to $600	Often based on about 6 hours
Misc. parts and supplies	$20 to $200	Oil, filter, clamps, hardware, belts as needed

Before you replace the engine, check these common “no start” causes

Many “engine is dead” symptoms are caused by starting circuit or safety interlock problems, not a failed engine.

• Battery condition and cable connections (loose or corroded)
• Starter solenoid (clicking but no crank is common); see solenoid 532146154
• Safety interlock system (seat switch, brake switch, PTO disengaged); the manual notes the engine should only start with the clutch/brake fully depressed and the attachment clutch disengaged
• Blown fuse, damaged wiring, or poor ground connection
• Deck drag that overloads the engine during cranking (frozen idler pulley or mandrel)

If the engine clicks but will not turn over, use our troubleshooting steps in riding lawn mower engine clicks but doesnt turn over video.

Why it matters

An engine replacement is one of the highest-cost repairs on a riding mower. Verifying the starting circuit, interlocks, and deck load first helps prevent replacing an engine when the real issue is a solenoid, wiring fault, or seized deck component.

If you decide to move forward, you can order model-matched replacement parts from the parts list for your Craftsman 917270650, or search by model number on Sears PartsDirect.

Last updated: February 2026

Yes, replacing the engine on your Craftsman 917270650 lawn tractor is worth it when the tractor’s deck, steering, and drive system are still in good condition and the total repair cost stays well below the price of a comparable replacement tractor. If multiple major systems are worn out, replacement is the better value.

Quick decision checklist

• The mower deck is structurally sound (no rust-through, cracks, or severe spindle wear)
• The transaxle pulls strongly (no slipping, grinding, or loss of motion)
• The electrical system is dependable (no recurring no-crank or charging problems)
• You can complete the swap safely (battery disconnected, fuel shut off and contained)
• Total parts plus labor is clearly less than replacing the tractor

What to inspect first on Craftsman 917270650

Use the owner's manual to confirm your tractor’s safety procedures and service checks before you commit to an engine swap.

• Deck and blade system: Bent blades, worn mandrels, or heavy vibration can add cost quickly. The manual’s blade-care section covers correct blade orientation and secure fastening.
• Blade drive issues: If the blades will not rotate, common causes include a worn belt, a frozen idler pulley, or a seized mandrel.
• Safety interlocks: The tractor should only start with the clutch/brake fully depressed and the attachment clutch disengaged; leaving the seat with the attachment engaged should shut the engine off.

Cost and value comparison

Condition you find	Engine replacement makes sense	Replacing the tractor makes sense
Deck shell	Solid, normal wear	Rusted through, cracked, repeated failures
Drive system	Smooth engagement, consistent pull	Weak drive, noisy transaxle, frequent breakdowns
Repair stack	Mostly engine-related	Engine plus deck, steering, electrical, and drivetrain issues

Parts that often come up during deck-related repairs

If your inspection shows deck-drive wear, these are common wear items for this tractor:

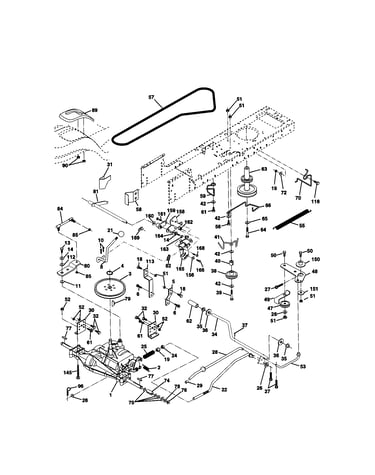

• Lawn tractor drive belt 532144200
• Solenoid 532146154
• Husqvarna lawn tractor mandrel assembly 532130794

Why it matters

An engine swap only pays off when the rest of the tractor is safe and mechanically sound; deck integrity, blade-drive condition, and safety interlocks determine whether you end up with a reliable mower or a stack of follow-on repairs.

You can order parts from the list for model 917270650, or search by model on Sears PartsDirect.
