Craftsman
Power Sander

Model # 315117920 Official Craftsman 4" belt sander

Here are the diagrams and repair parts for Official Craftsman 315117920 4" belt sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Roller 998374-004
#20

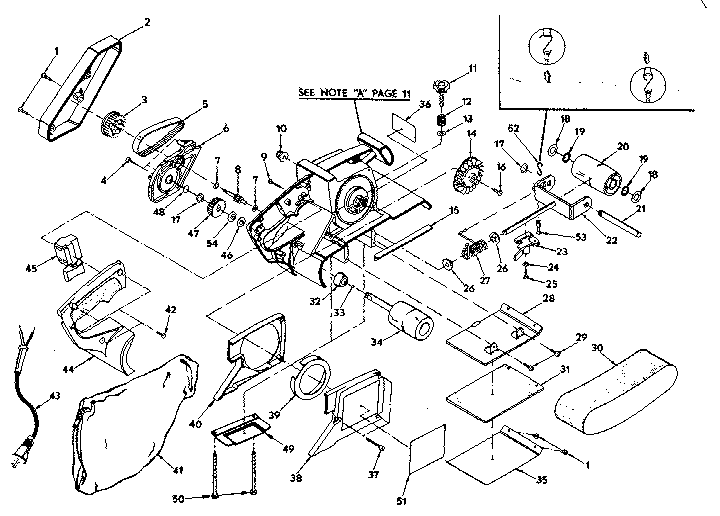

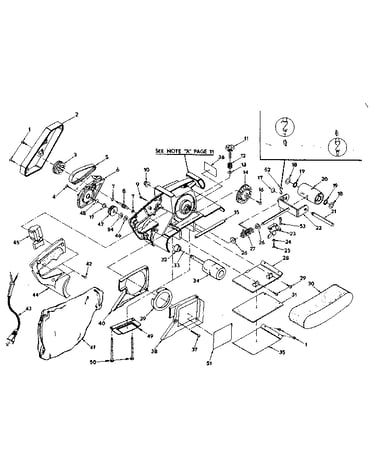

Gear and platen assembly diagram

Roller

Part #998374-004

The manufacturer no longer makes this part, and there's no substitute part

Screw 610122-003
#1

Gear and platen assembly diagram

Screw

Part #610122-003

The manufacturer no longer makes this part, and there's no substitute part

Belt Cover 998367-001
#2

Gear and platen assembly diagram

Belt cover

Part #998367-001

The manufacturer no longer makes this part, and there's no substitute part

Screw 989592-006
#3

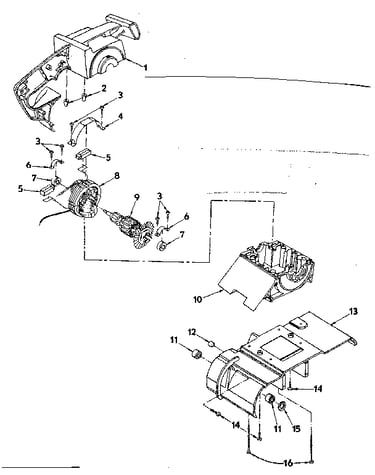

Field and armature assembly diagram

Screw

Part #989592-006

The manufacturer no longer makes this part, and there's no substitute part

Platen 998377-003
#28

Gear and platen assembly diagram

Platen

Part #998377-003

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Motor Brush 998457-002
#5

Field and armature assembly diagram

Power tool motor brush

Part #998457-002

The manufacturer no longer makes this part, and there's no substitute part

Blower Housing 998398-001
#40

Gear and platen assembly diagram

Blower housing

Part #998398-001

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 990353-001
#7

Field and armature assembly diagram

Ball bearing

Part #990353-001

The manufacturer no longer makes this part, and there's no substitute part

Sander Wear Plate 999448-003
#15

Gear and platen assembly diagram

Sander wear plate

Part #999448-003

The manufacturer no longer makes this part, and there's no substitute part

Housing Cover 999930-001
#1

Field and armature assembly diagram

Housing cover

Part #999930-001

The manufacturer no longer makes this part, and there's no substitute part
