Craftsman 917274961 lawn tractor Parts

The model number for this Craftsman riding mower is 917.274961 (often written without the dot as 917274961). You can confirm it on the model tag and in the 917274961 owner's manual; this model is a Craftsman front-engine lawn tractor.

Where to find the model number on the tractor

We recommend checking the tractor’s identification label first, then matching it to the manual.

• Look for the model/serial label under the seat, on the frame near the rear fender, or near the engine compartment
• The model number is typically printed as 917.274961
• Write down the full model number before ordering parts (one digit off can change fit)

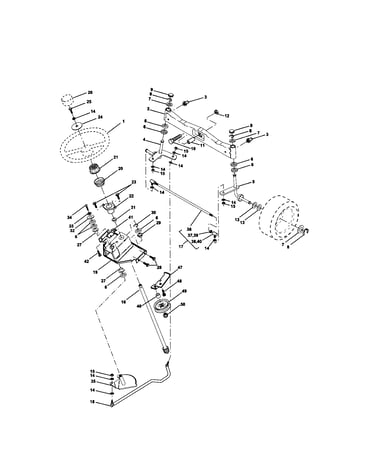

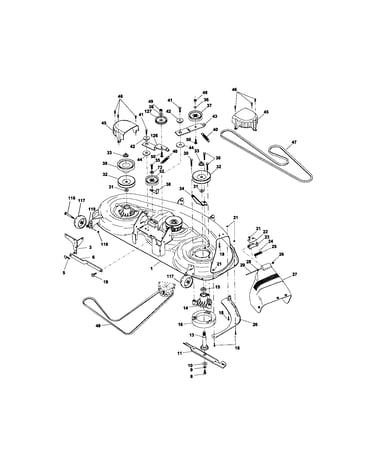

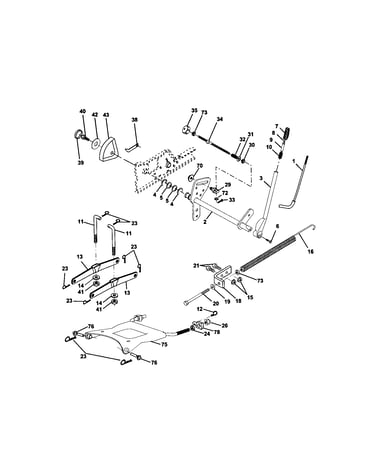

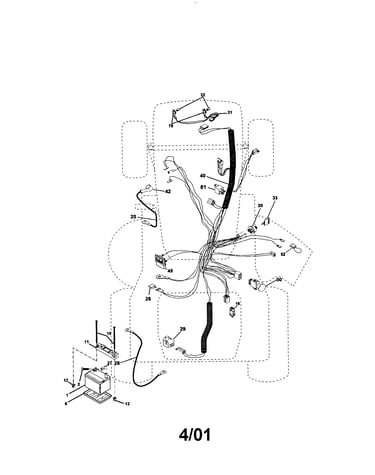

• Use the model number when searching diagrams for electrical, steering, deck, and lift assembly parts

Why the model number matters for parts

Parts lists and diagrams are organized by model number. For Craftsman 917274961, the manual’s parts breakdown includes items such as the ignition key, PTO switch, steering components, and deck drive parts.

What you’re doing	Use this identifier	Example for this tractor
Ordering parts	Model number	917274961 (or 917.274961)
Matching a specific replacement	Part ID	532140403, 582107601
Verifying the exact component	Part name + Part ID	Ignition key 532140403

Common parts you may order by model

If you’re ordering replacement parts for Craftsman 917274961, these model-matched items are commonly referenced in the diagrams:

• Molded ignition key 532140403
• Switch.pto 582107601
• Lawn tractor ignition harness 532170238
• Riding lawn mower blade drive belt 532148763

For additional parts lookups by model number, we also support searching by model on Sears PartsDirect.

Why it matters

Using the correct model number ensures you get the right diagrams, the right part IDs, and the right fit for critical systems like starting, PTO engagement, and steering.

Last updated: February 2026

For Craftsman model 917274961, the owner’s manual identifies it as a 21.0 HP garden tractor with electric start and a 46-inch mower deck. For the exact engine make, model, and spec numbers, match the engine ID label on your engine to the listings in the 917274961 owner's manual.

How to identify the exact engine on your tractor

We use the engine’s ID tag to pinpoint the correct engine family and service parts (filters, spark plug, fuel parts), because horsepower alone is not enough.

• Park on a level surface, set the parking brake, and remove the key
• Let the engine and muffler cool completely
• Lift the hood and locate the engine ID label (often on the blower housing, valve cover, or near the starter)
• Write down the engine model, type, and code (or spec number)
• Use those numbers when ordering tune-up parts or looking up engine-specific procedures

What the manual confirms for model 917274961

The manual for this specific model calls out the tractor configuration and controls used to operate the engine and deck.

Item	What you can expect on 917274961	Why it matters
Starting system	Electric start	Helps narrow battery, ignition switch, and starter circuit checks
Deck size	46-inch mower deck	Affects blade drive belt length and deck parts selection
Power rating	21.0 HP	Useful for general capability and maintenance intervals

Related parts that often come up with engine and starting questions

If you are troubleshooting a no-start, intermittent crank, or “no power” condition, these model-matched parts are commonly involved:

• Molded ignition key 532140403 (lost key, worn key, or intermittent ignition switch engagement)
• Lawn tractor ignition harness 532170238 (loose connections, damaged wiring, safety circuit issues)
• Switch.pto 582107601 (PTO switch problems can prevent starting on many tractors)

For broader parts shopping by model number, we list parts for 917274961 on this page and also on Sears PartsDirect.

Why it matters

Using the correct engine identification prevents ordering the wrong maintenance parts and speeds up diagnosis for common issues like clicking-no-crank, cranks-but-won’t-start, or stalling under load.

Last updated: February 2026

For a Craftsman lawn tractor like model 917274961, a full engine replacement typically costs $260 to $1,800 installed, with labor commonly running around 6 hours for a riding mower. Your total depends on the engine price, any wiring or belt parts needed, and shop labor rates.

What drives the total cost

Engine replacement is more than just the engine itself. Plan for these common cost factors:

• Engine price (largest variable; depends on horsepower, shaft size, and charging system)
• Labor time (riding tractors commonly take longer due to hood, wiring, and linkage removal)
• Extra parts you may replace “while you’re in there” (belts, pulleys, hardware)
• Fuel system cleanup if old fuel or debris contributed to the failure
• Electrical/safety interlock checks after installation (seat switch, brake switch, PTO switch)

Typical cost ranges (what most customers see)

These ranges help you budget before you price the exact engine for your tractor.

Cost item	Typical range	Notes
Engine (part only)	$200 to $1,400	Varies by brand/spec and availability
Labor (shop)	$300 to $900	Often based on ~6 hours plus shop rate
Misc. parts/fluids	$20 to $200	Fuel line items, clamps, oil, filters, hardware
Estimated total installed	$260 to $1,800	Matches common industry pricing

Parts you may end up replacing during an engine swap

We often see these related items replaced to prevent repeat issues and reduce downtime:

• Riding lawn mower blade drive belt 532148763 (if the belt is cracked, glazed, or oil-soaked)
• Switch.pto 582107601 (if the PTO circuit is intermittent after reassembly)
• Molded ignition key 532140403 (if the key is worn and causes unreliable starting)
• Lawn tractor ignition harness 532170238 (if wiring is brittle, corroded, or damaged)

Why it matters

A correct engine match and clean installation prevents hard-starting, charging problems, and unsafe operation. Your tractor’s safety system is designed so the engine should not start unless the brake is fully depressed and the PTO is disengaged; after an engine swap, verifying those interlocks protects you and the machine.

Where to confirm specs for your exact tractor

Use the 917274961 owner's manual to confirm the correct engine specifications, safety interlock operation, and service procedures before ordering parts or scheduling labor. For parts shopping beyond the list for this model, search by model number on Sears PartsDirect.

Last updated: February 2026

Yes; replacing the engine on your Craftsman lawn tractor model 917274961 is worth it when the deck, steering, and drive system are in good shape and the total swap cost stays well below the cost of replacing the whole tractor. If several major systems are worn, replacement is the better value.

Quick decision checklist

Use these checks before committing to an engine swap:

• Deck shell has no rust-through or cracks
• Blades engage and the deck spins freely (no seized mandrels)
• Drive system moves consistently (no chronic slipping or loss of drive)
• Wiring and safety interlocks work reliably
• You can get the wear parts you need for a complete refresh

For model-specific safety and service procedures, follow the 917274961 owner's manual.

Cost vs. condition: a simple guide

If this is true	Engine swap is usually	Why
Tractor is structurally solid; engine is the main failure	Worth it	You restore reliability without replacing the whole machine
Deck and drive need minor service only	Worth it	Common wear items are manageable alongside the engine
Deck is failing and drive/steering also need major work	Not worth it	Costs stack quickly and downtime increases

Parts that often go with a deck-related repair

If the engine is fine but the deck will not spin or cuts poorly, these common wear items can be part of the fix:

• Riding lawn mower blade drive belt 532148763 (belt wear, glazing, stretching)
• Idler and mandrel components (binding or noise)
• Blades and deck cleaning (grass buildup increases load)

Why it matters

Many “bad engine” symptoms come from fuel, spark, airflow, or excessive deck load. The troubleshooting steps in the manual help you rule out lower-cost fixes before you invest in an engine.

Ordering parts

We list model-matched replacement parts for Craftsman 917274961 on the parts list for this tractor; you can also search by model number on Sears PartsDirect.

Last updated: February 2026

Craftsman uses engines from multiple manufacturers across its lawn tractors. For Craftsman model 917274961, the equipment is a 21.0 HP garden tractor; to confirm the engine brand on your exact unit, match the engine’s model and spec numbers shown in the owner's manual.

What engine brands Craftsman commonly uses

Across Craftsman riding mowers and lawn tractors, the most common engine suppliers include:

• Briggs & Stratton
• Kohler
• Kawasaki
• Other OEM suppliers on select production runs

How to identify the engine brand on your 917274961

Use the engine identification label, then cross-reference it to the engine section in the manual and parts diagrams.

• Find the label on the blower housing, valve cover, or near the starter
• Record the engine manufacturer name
• Write down the engine model number
• Capture the type/spec number (this is critical for correct tune-up parts)
• Note the code or serial number for the engine

Quick comparison: why the label matters

What you have	What it tells us	What it affects
Tractor model number (917274961)	The tractor platform and chassis parts	Belts, deck parts, steering, electrical harnesses
Engine model and spec	The exact engine build	Spark plug, air filter, fuel system parts, carb settings

Why it matters

Craftsman model numbers identify the tractor, but engine parts and service procedures depend on the engine’s manufacturer and spec. Using the engine label prevents ordering the wrong maintenance parts and helps you follow the correct tune-up steps.

Ordering parts

You can order tractor parts from the diagrams for model 917274961, and for broader parts searches by model number you can also use Sears PartsDirect.

Last updated: February 2026
