Model # 12512008 Official Craftsman wet/dry vacuum

Here are the diagrams and repair parts for Official Craftsman 12512008 wet/dry vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |

Shop Vacuum Filter (red Stripe) 17816
#16

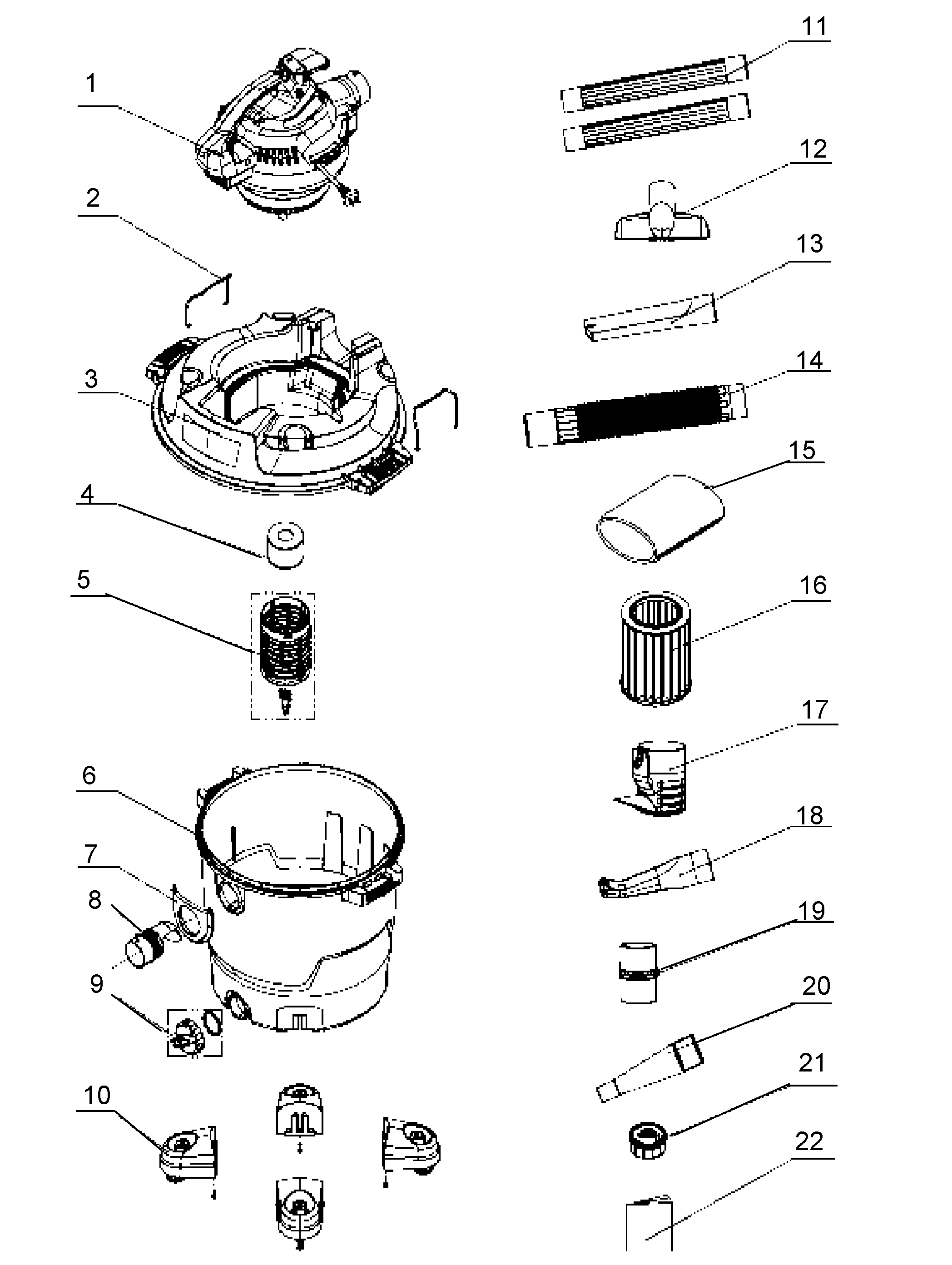

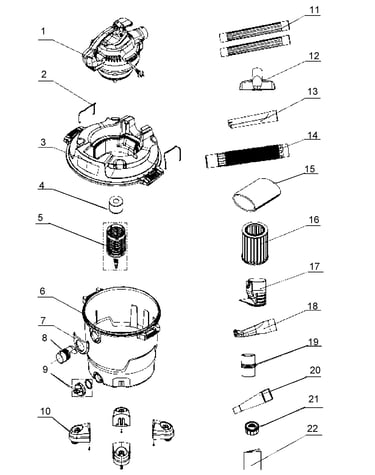

Main assy diagram

Shop vacuum filter (red stripe)

Part #17816

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Filter Cage Assembly VJ51PF.10.04.W2.00
#5

Main assy diagram

Shop vacuum filter cage assembly

Part #VJ51PF.10.04.W2.00

Replaced by #551006104

?
Manufacturer substitution
This part replaces VJ51PF.10.04.W2.00. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.78
15% OFF Phone Price : $6.78
In Stock
Retainer FV9543.11.01
#21

Main assy diagram

Retainer

Part #FV9543.11.01

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Caster And Foot TVQTJC.29.00
#10

Main assy diagram

Shop vacuum caster and foot

Part #TVQTJC.29.00

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Foam Filter Sleeve 17888
#15

Main assy diagram

Shop vacuum foam filter sleeve

Part #17888

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Drain Cap VB01PF.X0.03
#9

Main assy diagram

Shop vacuum drain cap

Part #VB01PF.X0.03

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Car Nozzle 16978
#18

Main assy diagram

Shop vacuum car nozzle

Part #16978

$10.29
16% OFF Phone Price : $12.29
In Stock
Float TVQTZS.06.YZ.W2.00
#4

Main assy diagram

Float

Part #TVQTZS.06.YZ.W2.00

Replaced by #551005103

?
Manufacturer substitution
This part replaces TVQTZS.06.YZ.W2.00. Substitute parts can look different from the original.
This item is not returnable
In Stock
Shop Vacuum Blower Nozzle 16933
#20

Main assy diagram

Shop vacuum blower nozzle

Part #16933

This item is not returnable
$5.99
14% OFF Phone Price : $6.99
In Stock
Shop Vacuum Utility Nozzle, 2-1/2-in 16922
#12

Main assy diagram

Shop vacuum utility nozzle, 2-1/2-in

Part #16922

This item is not returnable
$6.49
13% OFF Phone Price : $7.49
In Stock
