Kenmore 11096565210 electric dryer Parts

Your Kenmore dryer’s model number is printed on the appliance’s ID label; once you find it, match it exactly (all digits) to look up the correct parts and diagrams. For this page, the model number is 11096565210.

Where to find the model number label

Check these common locations on Kenmore electric dryers:

• Inside the door opening on the front panel (most common)
• On the door itself (edge or inner surface)
• On the back panel of the cabinet
• Near the lint screen housing (some designs)
• On the side panel near the door opening

What the model number looks like (and what to write down)

Kenmore model numbers are usually a long string of numbers. Write it down exactly as shown, including any leading digits.

What to capture	Example for this dryer	Why it matters
Full model number	11096565210	Ensures parts fit your exact Kenmore dryer
Any suffix/extra digits	None shown on this page	Some models use suffixes to indicate revisions
Serial number (optional)	Not required for most parts	Helps date the unit and confirm production run

Quick checks to avoid ordering the wrong part

Before ordering a belt, heating part, or switch, we use these checks:

• Confirm the label says Kenmore and the full model number matches 11096565210
• Avoid using only “110” or “Kenmore 110 series”; those are not specific enough
• Compare your part to the listing by name and ID (for example, drum belt 341241)
• If the dryer won’t start, verify the door closes and the switch clicks (common with dryer door switch W10820036)
• If the dryer runs but won’t heat, focus on airflow and heating circuit parts (often the element 279838)

Why it matters

Kenmore dryers share many look-alike parts across different model families. Using the exact model number prevents mismatched items like a drum belt, heating element, or thermal cut-off kit that can look similar but mount differently.

Last updated: February 2026

To hard reset your Kenmore electric dryer model 11096565210, disconnect power (unplug the cord or switch the breaker off) for 5 minutes, then restore power and try a normal cycle. This clears many control glitches, stuck indicators, and unresponsive buttons.

Hard reset steps (safe and effective)

• Turn the dryer OFF.
• Unplug the dryer (or turn both dryer breakers OFF if it is hardwired).
• Wait 5 minutes (a full 5 minutes helps the control fully discharge).
• Restore power.
• Open and close the door once, then select a cycle and press Start.

If it still will not start after the reset

A reset only clears the symptom; it does not fix a failed part. Check these common causes next:

• Door not fully closed or a failed door switch (see dryer door switch W10820036).
• Blown thermal cut-off or overheating protection trip (see cut-off kit 279816).
• No heat complaints after reset: heating circuit issue (see element 279838).
• Dryer runs but takes too long: airflow restriction; clean lint screen and venting (see screen W10874409).
• Drum will not turn or you hear motor running: belt or idler problem (see drum belt 341241 and dryer idler pulley WP691366).

Quick symptom guide

What you see	What it usually means	What to check first
Panel dead	No power to dryer	Breaker, outlet, terminal connections
Starts then stops	Safety device opened	Venting, cut-off kit 279816
Runs but no heat	Heating circuit fault	Element 279838, thermostat
Hums, no drum movement	Belt or motor issue	Drum belt 341241, idler

Why it matters

Resetting is a fast first step because it restores the control to a known state. If the same problem returns, focusing on airflow, the door switch, and the heating safety devices prevents repeat shutdowns and helps protect the heating element and motor.

Last updated: February 2026

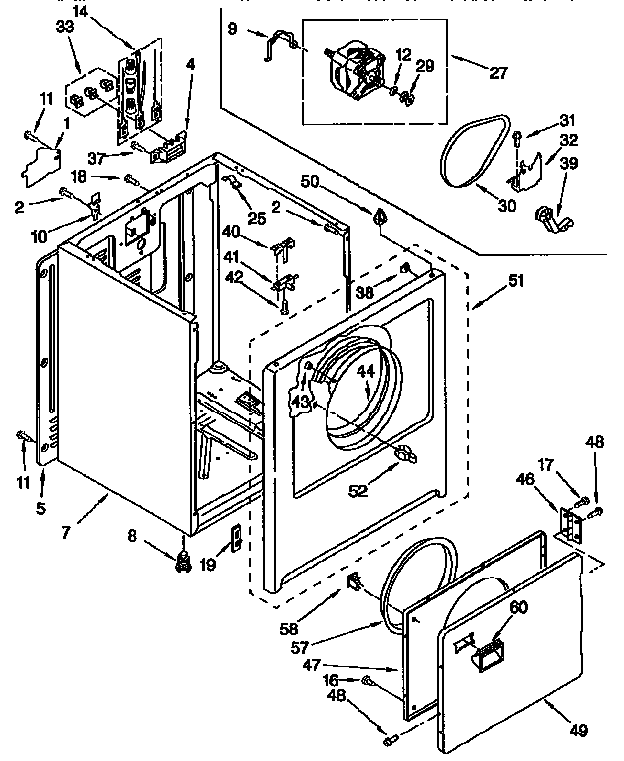

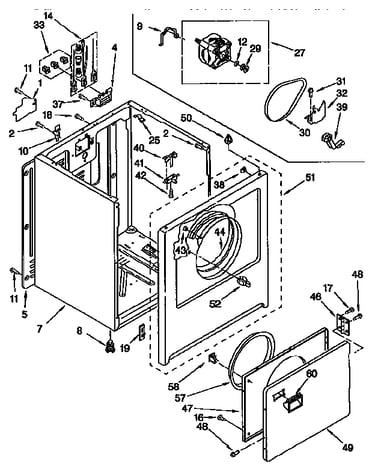

On Kenmore electric dryer model 11096565210, we remove the front panel by disconnecting power, opening the top to access the mounting screws, then lifting the front panel up and off the lower retaining clips while supporting the drum. This gives access to the belt, idler pulley, and motor.

Before you start (safety and setup)

• Unplug the dryer from the wall outlet.
• If it is hardwired, switch OFF the breaker and verify the dryer is dead.
• Pull the dryer forward so you can reach the rear and sides.
• Wear cut-resistant gloves; cabinet edges are sharp.
• Keep a small container for screws so nothing gets lost.

Front panel removal steps (typical Kenmore 110-style cabinet)

1. Remove the lint screen from the top panel.
2. Remove the two screws that are usually located in the lint screen housing opening.
3. Use a putty knife to release the spring clips at the front corners of the top; lift the top up.
4. Disconnect the door switch wire harness if it is attached to the front panel.
5. Remove the screws securing the front panel to the cabinet (commonly near the top inside corners).
6. Tilt the front panel forward slightly, then lift it up to unhook it from the bottom clips.
7. If the drum drops forward, support it; the belt and drum can shift.

What you can inspect once the front is off

Symptom	Common area to check	Example part for this model
Drum will not turn	Belt and idler system	Drum belt 341241
Loud rumble or scraping	Drum support and front bearing area	Dryer drum front bearing ring WP3394509
Humming but no tumble	Motor and blower area	Drive motor 279827

Why it matters

Removing the front panel the right way prevents bent panels, broken retaining clips, and pinched wiring. It also makes belt and motor service much easier, especially when replacing wear items like the belt or idler pulley.

Last updated: February 2026
