Kenmore 11088752798 washer/dryer laundry system Parts

Yes, some Kenmore washers and dryers are stackable, but it depends on the exact product design. Your Kenmore 11088752798 is a stacked laundry center (washer and dryer in one unit), so it is already vertically stacked and does not use a separate stacking kit; use the 11088752798 owner's manual for installation and safety requirements.

What “stackable” means for Kenmore laundry

Kenmore laundry setups typically fall into one of these categories:

• Laundry center (like model 11088752798): factory-stacked, single frame, one power and venting setup
• Separate washer + dryer pair: two standalone machines that may be stackable with a compatible kit
• Compact laundry pair: often stackable, but only with the correct bracket/kit for that specific pair

How to tell what you have

Use these quick checks before buying any stacking hardware:

• Look for one combined cabinet with the dryer on top and washer below (laundry center)
• Check the model tag; 11088752798 indicates a laundry center configuration
• Confirm whether the dryer requires venting (most laundry centers do)
• Verify electrical and gas type (electric dryer vs gas dryer) before planning placement

Compatibility guide (quick comparison)

Setup type	Can it be stacked?	What you typically need
Laundry center (11088752798)	Already stacked	Leveling, venting, water hookups
Full-size separate pair	Sometimes	Model-specific stacking kit
Compact separate pair	Often	Compact stacking kit matched to both models

Why it matters

Stacking the wrong way can create vibration, airflow restrictions, and service access problems. For laundry centers like Kenmore 11088752798, correct venting, lint screen cleaning, and safe installation practices are the priorities called out in the manual.

Last updated: February 2026

Yes, repairing a Kenmore washer is worth it when the fix restores reliable operation for less than the cost of replacement, especially on a stacked laundry center like model 11088752798 where fit, venting, and hookups are already in place. Use the 11088752798 owner's manual to match symptoms to the right repair.

Quick way we decide: repair vs. replace

We recommend repairing when one of these is true:

• The washer fills, drains, and spins but has a specific failure (noise, no agitation, won’t drain).
• The repair is a common wear item (coupling, drain pump, clutch) rather than multiple major assemblies.
• The cabinet, tub, and controls are in good shape (no widespread rust, no repeated electrical issues).
• You can do a DIY repair safely with basic tools and power disconnected.
• The laundry center’s stacked format makes replacement more complicated (space, vent routing, hookups).

Common repairs on this Kenmore laundry center

These parts are frequently involved in “worth repairing” fixes on model 11088752798:

• No drain or slow drain: washer drain pump WP3363394

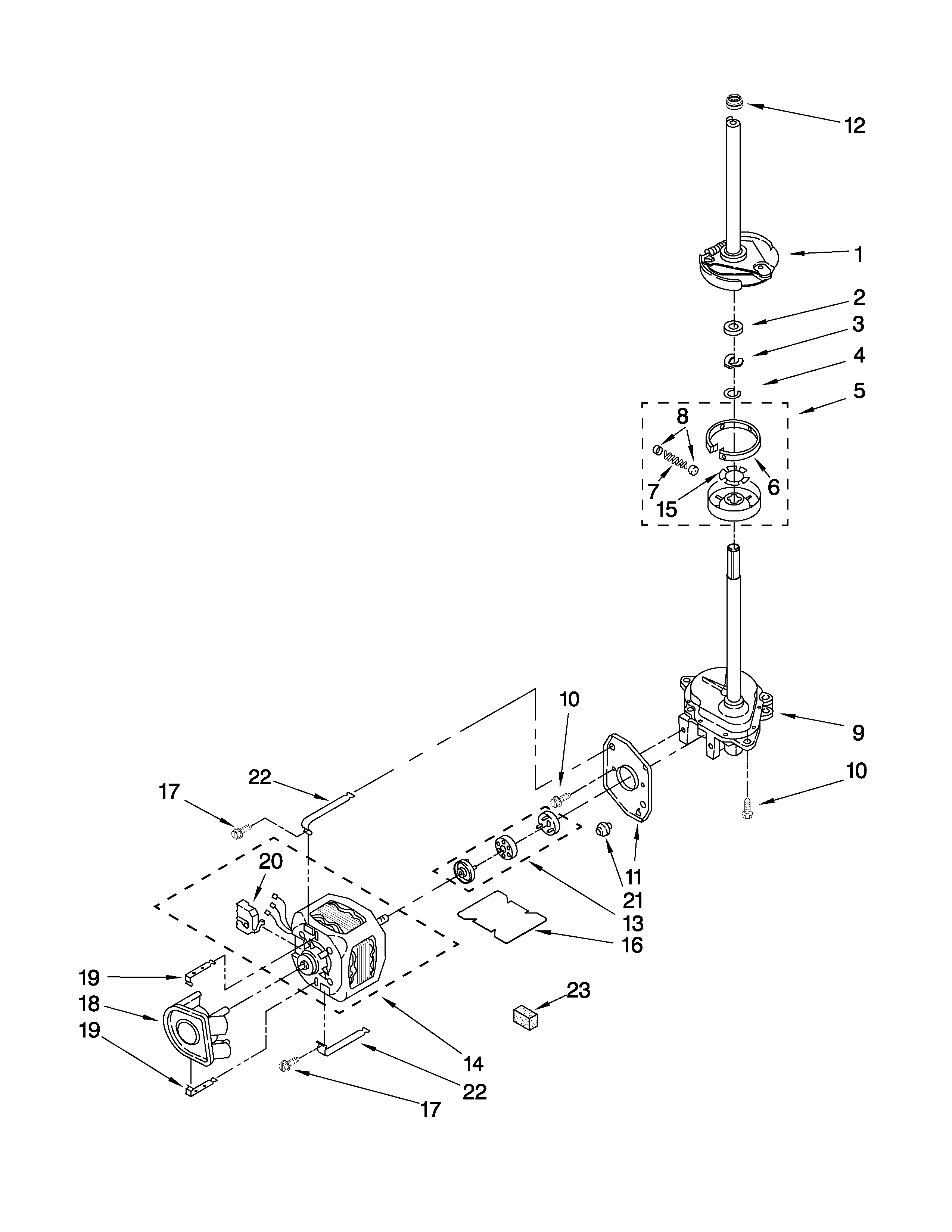

• No agitation or weak agitation: coupling 285753A and agitator dog 80040
• Won’t spin or poor spin: clutch 285785

Typical symptom-to-part starting points

Symptom	Most likely area	Good first check
Won’t drain	Drain pump, hose	Listen for pump hum; check for clogs
Agitator clicks or won’t move clothes	Agitator dogs, coupling	Inspect agitator movement and coupling wear
Loud during spin, weak spin	Clutch, drive components	Check for burning smell, slipping, debris

Why it matters

A targeted repair keeps a proven Kenmore washer running for years and avoids the extra cost and hassle of replacing a stacked washer/dryer laundry system. The manual’s troubleshooting section also helps you avoid paying for a service call when the issue is leveling, loading, or a simple maintenance step.

Last updated: February 2026

For the Kenmore laundry center model 11088752798, the washer runs on standard household power (110/120 volts), but the electric dryer section uses 220/240 volts on a dedicated dryer circuit. Confirm the exact electrical requirements and cord type in the 11088752798 owner's manual.

What power you need (washer vs. dryer)

Most stacked laundry centers like this one use two different electrical needs: one for the washer controls/motor and one for the electric heater in the dryer.

• Washer: 110/120V, standard grounded outlet
• Electric dryer: 220/240V, dedicated circuit (typically 30 amp)
• Dryer cord: 3-wire or 4-wire, depending on your home wiring and local code
• Outlet type: matches the cord (common modern setup is 4-prong)
• Grounding: must be properly grounded to reduce shock risk

Quick comparison

Component	Typical voltage	What that means at home
Washer section	110/120V	Plugs into a standard outlet
Electric dryer section	220/240V	Needs a dedicated dryer outlet/circuit

Before you plug it in (important checks)

• Verify you have a dedicated 220/240V dryer receptacle available where the unit is installed.
• Check whether your home uses a 3-prong or 4-prong dryer outlet before buying a cord.
• Make sure the circuit is sized correctly (electric dryers are commonly 30 amp).
• Do not use an extension cord for the dryer.
• If you are unsure about the outlet or wiring, have a qualified electrician confirm the setup.

Why it matters

Using the wrong voltage can cause the dryer not to heat, trip breakers, or create an electrical hazard. Matching the correct outlet, cord, and grounding method helps the Kenmore 11088752798 run safely and dry properly.

Last updated: February 2026

The Kenmore 11088752798 is a 24-inch wide stacked laundry center (washer with electric dryer). Dryer capacity is not listed in the provided documentation excerpts, but most 24-inch compact dryers are typically about 3.4 to 4.0 cu. ft. Check the 11088752798 owner's manual for the exact spec.

How to confirm the exact dryer capacity

We recommend verifying capacity using the model-specific literature because compact laundry centers can vary by drum design.

• Look for a “Specifications” or “Features” section in the manual
• Check for terms like “drum volume” or “dryer capacity (cu. ft.)”
• If the manual lists only dimensions, capacity may be shown on a separate spec page
• Use the full model number 11088752798 when comparing specs

Typical capacity range (what to expect)

Here is a practical comparison to set expectations for load size.

Dryer type	Typical capacity	Best for
24-inch compact (common for laundry centers)	3.4 to 4.0 cu. ft.	Everyday loads, smaller households
Full-size 27-inch dryer	6.5 to 7.4+ cu. ft.	Large loads, bulky bedding

Why it matters

Dryer capacity affects how well clothes tumble and dry. If you overload a compact drum, drying times increase and clothes can come out damp or wrinkled. Keeping loads sized for a compact dryer also helps airflow through the lint screen and venting.

Last updated: February 2026

For a Kenmore washer like model 11088752798 (washer/dryer laundry system), the typical life expectancy is 10 to 15 years with normal household use and basic maintenance. Consistent loading habits, good drainage, and routine cleaning are the biggest factors that keep it running longer.

What affects washer lifespan the most

• Load size and balance: frequent overloading or off-balance loads increase wear on the drive system.
• Drain performance: slow draining makes the pump work harder and can shorten pump life.
• Water quality: hard water and sediment can stress the inlet valve and internal seals.
• Cycle selection: heavy-duty cycles used constantly add more mechanical strain.
• Basic care: following the care and operating steps in the 11088752798 owner's manual helps prevent avoidable failures.

Maintenance that extends life (practical checklist)

• Keep loads evenly distributed; mix large and small items to reduce vibration.
• Use the right detergent amount; excess suds can affect agitation and draining.
• Check pockets and remove hard objects (coins, screws) to prevent tub and pump damage.
• If draining slows, inspect the drain path and consider replacing the pump if needed (see washer drain pump WP3363394).
• Listen for new noises during wash, rinse, or spin; many sounds are normal, but sudden grinding or repeated banging signals a developing issue.

Common wear items vs. major repairs

Type	Examples on this model	What you typically notice
Wear items	Motor coupling, clutch, drain pump	Won’t spin, won’t drain, burning smell, loud operation
Higher-cost repairs	Gear case/drive components, motor	Persistent leaks, no agitation, repeated failures

Why it matters

Knowing the expected lifespan helps you decide when maintenance and smaller repairs (like a drain pump or coupling) make sense versus planning for replacement, especially if multiple symptoms show up at once.

Last updated: February 2026

If you have a Kenmore stacked laundry center, the most reliable way to identify your washer is to read the model number from the appliance’s model and serial label; for this unit, the model is 11088752798. Use the model number to match the correct parts list and troubleshooting steps in the 11088752798 owner's manual.

Where to find the model number label

On Kenmore laundry centers like model 11088752798, the model and serial label is on the product itself (not on the control panel). Check these common spots:

• Under the washer lid area (around the top opening or underside of the top)
• Inside the washer opening area near the rim
• On the back panel near the power cord entry
• Along the side of the cabinet frame (visible when you pull the unit forward)

What the model number looks like (and why it matters)

Kenmore laundry centers commonly use a numeric model format that starts with 110. The full model number is what we use to ensure the right fit for parts like a drain pump, motor coupling, or timer.

Quick ID checklist

• Model number: identifies the exact design and parts
• Serial number: identifies production run details
• Purchase date: helps with service history and maintenance planning

Common examples (so you can compare)

What you see on the label	What it means	What to do next
11088752798	Exact model match	Use this model for parts lookup and diagrams
110.88752 (or similar)	Model series shown in some manuals	Confirm the full label number for ordering parts
Partial digits missing	Label worn or damaged	Clean the label area and re-check under good light

Why it matters

Using the exact Kenmore model number prevents ordering the wrong replacement part and saves time during repairs, especially on stacked washer/dryer laundry systems where components are model-specific.

Last updated: February 2026

On the Kenmore laundry center model 11088752798, the model and serial number label is on the appliance itself (not on the box). We use that label to match the correct parts and the correct wiring and service information in the 11088752798 owner's manual.

Common places to check on a stacked laundry center

Look for a sticker or metal tag that lists Model and Serial.

• Under the washer lid on the top rim of the washer opening
• On the washer cabinet side panel (often near the lower front edge)
• Around the washer opening area (rim) where the lid closes
• On the back panel of the laundry center (upper or lower section)
• Inside the dryer door opening area (on some stacked units)

What the label looks like and what to write down

We recommend recording the full model and serial exactly as shown.

What to capture	Example of what it helps with
Model number	Ensures parts diagrams match your exact build
Serial number	Helps confirm production series and revisions
Purchase date	Useful for service history and maintenance tracking

Why it matters for parts and troubleshooting

Kenmore stacked washer and electric dryer combos can have multiple versions that look similar. Using the exact model number prevents ordering the wrong washer drain pump, timer, or dryer drive components.

If you are ordering common wear items for this unit, having the model number handy speeds up matching parts like the washer drain pump WP3363394 or the dryer idler pulley WP691366.

Last updated: February 2026
