How do I reset my Kenmore electric range?
To reset your Kenmore electric range model 79095683300, turn the range off, then cycle power at the home breaker for a full minute and restore power. After power returns, reset the clock and reselect your oven function as needed (per the 79095683300 owner’s manual).
Use the reset method that matches what you are trying to fix.
- Control reset (most common): Turn the breaker OFF for 60 seconds, then ON.
- After a power failure: Turn all knobs and oven controls OFF; when power returns, reset the clock and set the oven mode again.
- Stuck or odd display behavior: Power-cycle at the breaker, then confirm the control panel responds normally.
- If a burner stays on or won’t regulate heat: Reset power first; if it continues, the surface element control switch may be failing.
- Turn all surface element knobs to OFF.
- Switch the range circuit breaker OFF (or remove the fuse).
- Wait 60 seconds.
- Switch the breaker ON.
- Set the time of day and test Bake and a surface element.
A reset clears many control glitches, but it will not fix a failed part.
- If the oven will not heat, inspect the bake and broil functions; a failed heating element is common.
- If the oven temperature seems inaccurate, the sensor circuit is a common cause.
- If a surface element won’t cycle correctly, the control switch for that element is a common failure point.
| Symptom after reset | Most likely area to inspect | Example part for this model |
|---|---|---|
| Oven won’t bake | Bake heating circuit | Frigidaire range bake element 316202200 |
| Oven temp is erratic | Temperature sensing circuit | Oven probe 316233903 |
| Burner won’t regulate | Surface element control | Oven switch 316436000 |
Resetting safely restores normal operation after a power interruption and helps you separate a temporary control glitch from a true part failure (like a bake element, oven probe, or control switch).
Last updated: January 2026
What was the size of the Kenmore 79095683300 oven?
The Kenmore 79095683300 is a full-size freestanding electric range; most ranges in this Kenmore 790 series have a standard 30-inch-wide oven cavity, with overall exterior dimensions typically around 30 inches wide, about 36 inches tall to the cooktop, and about 25 to 28 inches deep (not including the handle). For the exact cutout and overall measurements for your unit, use the 79095683300 owner’s manual and the 79095683300 installation guide.
When customers ask for oven size, it usually refers to one of these:
- Overall exterior dimensions (width, height, depth)
- Oven capacity (cubic feet)
- Interior oven cavity dimensions (usable width, height, depth)
- Installation requirements (clearances, electrical connection location)
These are common ranges for freestanding electric ranges like model 79095683300.
| Measurement type | Typical value | Notes |
|---|---|---|
| Overall width | 30 in. | Standard freestanding range width |
| Height to cooktop | ~36 in. | Often adjustable with leveling legs |
| Overall depth | ~25 to 28 in. | Handle can add additional depth |
We recommend pulling the exact numbers from the installation section so you get the right fit at the wall and countertop.
- Check the dimension diagram in the installation guide
- Confirm whether depth is listed with or without handle
- Verify rear clearance requirements for the power cord/terminal block area
- Measure your existing opening and compare to the guide before moving the range
Using the correct overall dimensions and clearances prevents fit issues (range sticking out too far, door hitting cabinets) and helps ensure safe electrical hookup and proper airflow around the oven.
Last updated: January 2026
Where to find model number on Kenmore electric stove?
On Kenmore electric ranges like model 79095683300, the model and serial number are printed on the serial plate located on the right side of the oven front frame, inside the storage drawer or warmer drawer compartment. Use those numbers when ordering parts or scheduling service; see the 79095683300 owner's manual for the exact illustration.

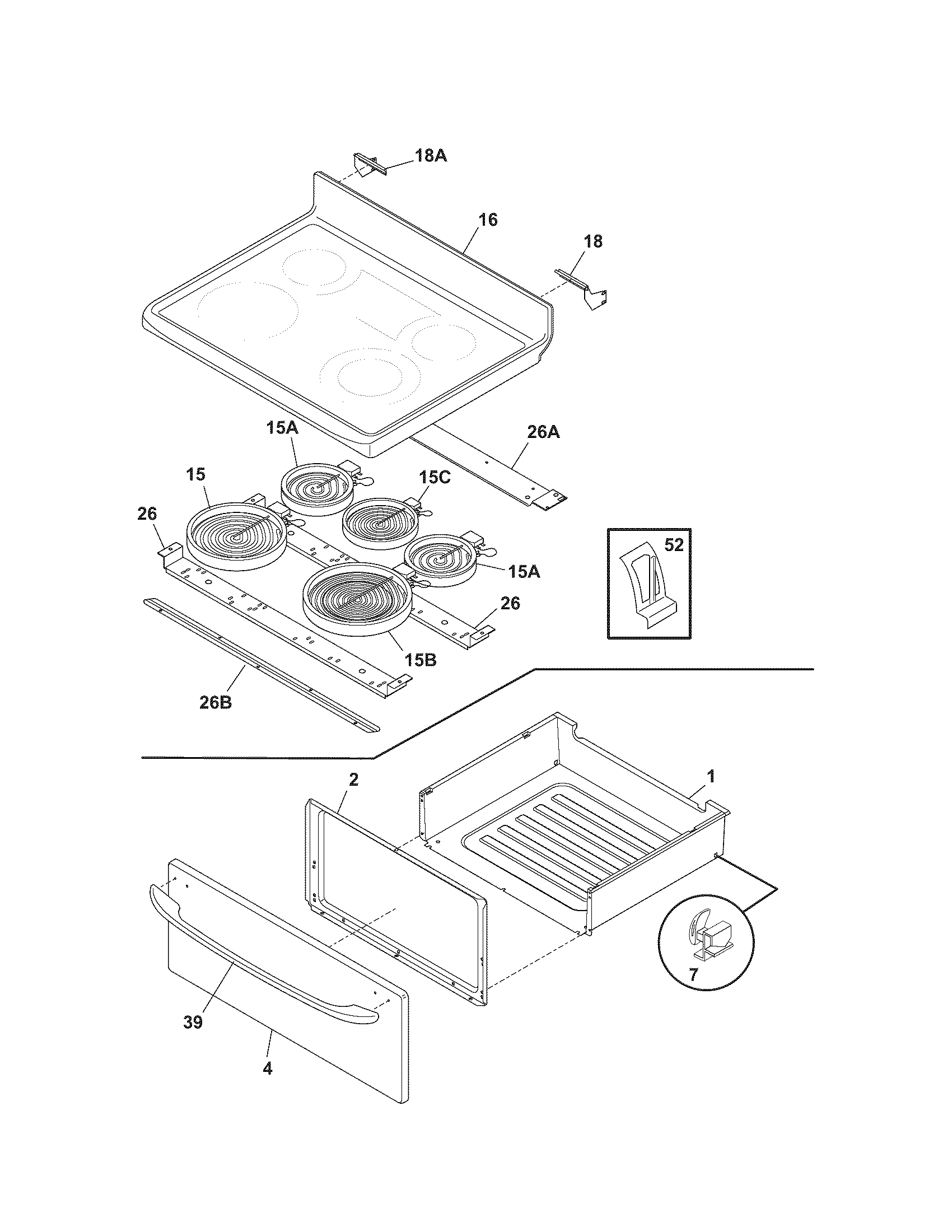

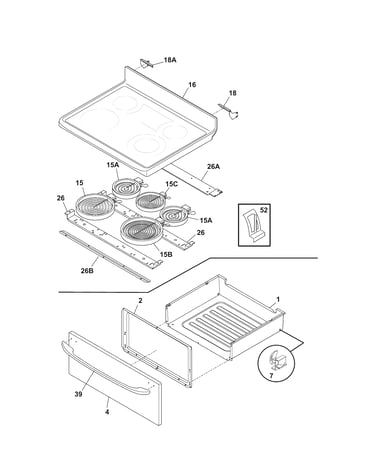

Pull the storage drawer or warmer drawer out and look along the right side of the oven frame opening.
- Turn the range off and let it cool completely
- Open the warmer drawer or storage drawer fully
- Look on the right side of the oven front frame for a label/plate
- Write down the model number, serial number, and any lot number/letter
- Take a clear photo of the plate for future reference
The serial plate is more than just the model number; it also helps match the correct Kenmore parts and electrical requirements.
| What you’ll see | Why it matters |
|---|---|
| Model number | Ensures diagrams and parts match your exact range |
| Serial number | Helps confirm production details for the correct replacement parts |
| Lot number/letter | Useful for parts lookups and service inquiries |
| Voltage/kilowatt rating | Confirms power requirements for safe installation |
Using the exact model and serial information prevents ordering the wrong bake element, broil element, oven probe, or control parts for your Kenmore electric range.
If you’re trying to identify the range because of a display fault or beeping, use the Kenmore 790 self-cleaning range error codes guide to match the code to the most likely cause.
