Model #DV50F9A6EVW/A2-00 Official Samsung dryer

Here are the diagrams and repair parts for Samsung DV50F9A6EVW-A2-00 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

    Showing 10 of 146 parts

    Dryer Heating Element Assembly

    See All Related Diagrams

    Dryer heating element assembly

    Part #DC97-14486D
    Replaced by #DC97-14486A
    ?
    Manufacturer substitution
    This part replaces DC97-14486D. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $161.96 |
    6% OFF
    Phone Price: $171.96
    Dryer Drum Belt#1

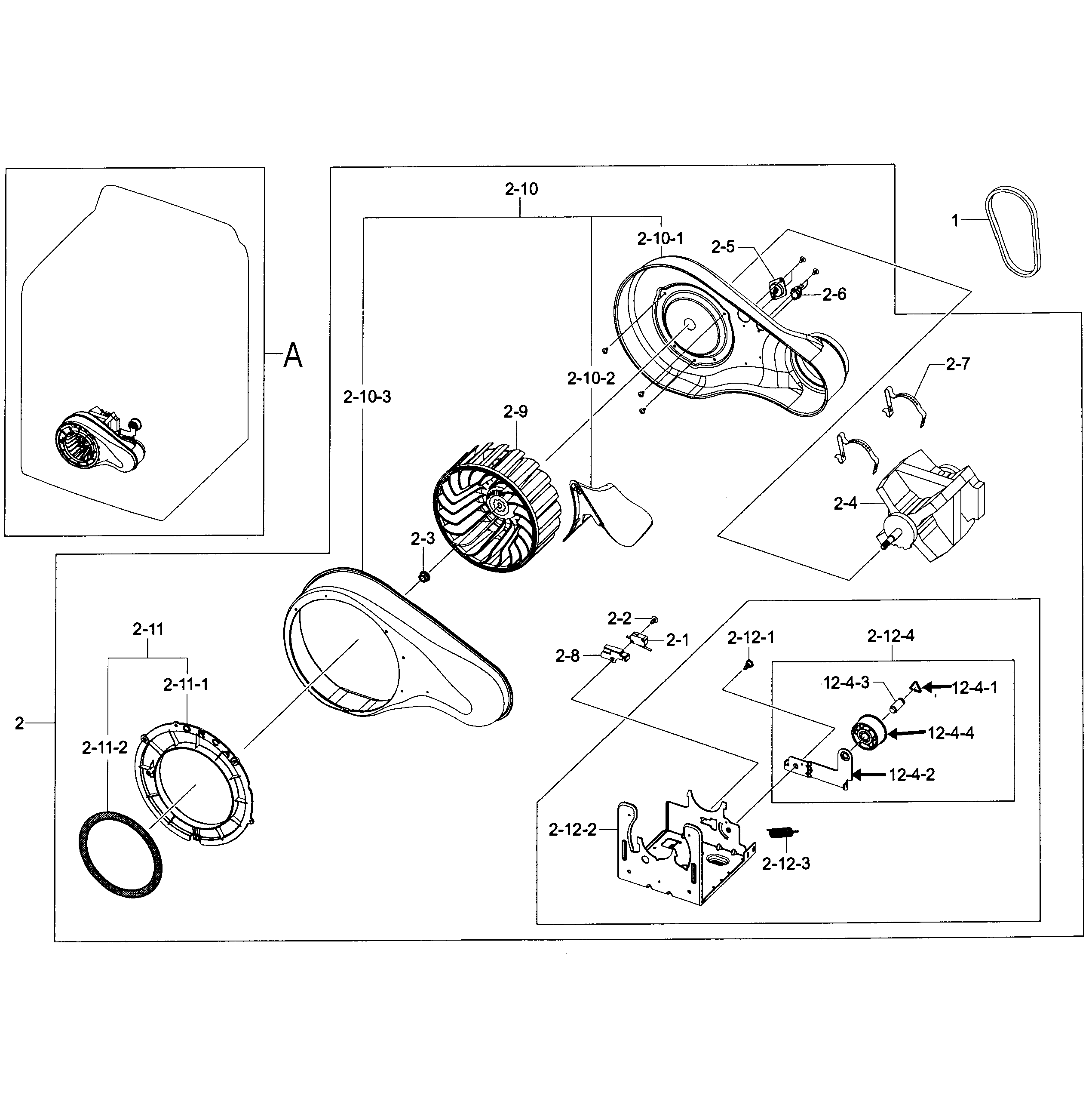

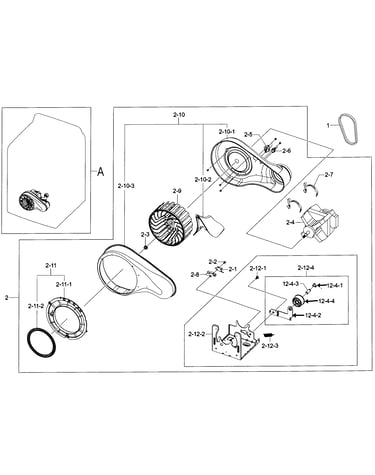

    Motor assy Diagram

    Dryer drum belt

    Part #6602-001655
    BEST SELLER
    In Stock
    $39.99 |
    11% OFF
    Phone Price: $44.99
    Dryer Idler Assembly#2124

    Motor assy Diagram

    Dryer idler assembly

    Part #DC96-00882C
    Replaced by #DC93-00634A
    ?
    Manufacturer substitution
    This part replaces DC96-00882C. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $59.01 |
    8% OFF
    Phone Price: $64.01
    Dryer Thermistor#2-5

    Motor assy Diagram

    Dryer thermistor

    Part #DC32-00007A
    BEST SELLER
    In Stock
    $24.11 |
    17% OFF
    Phone Price: $29.11
    Dryer Thermal Cut-Off Thermostat#2-6

    Motor assy Diagram

    Dryer thermal cut-off thermostat

    Part #DC47-00016A
    BEST SELLER
    In Stock
    $21.61 |
    19% OFF
    Phone Price: $26.61
    Dryer Thermal Cut-Off Fuse and Bracket, 320-degree F#1-8

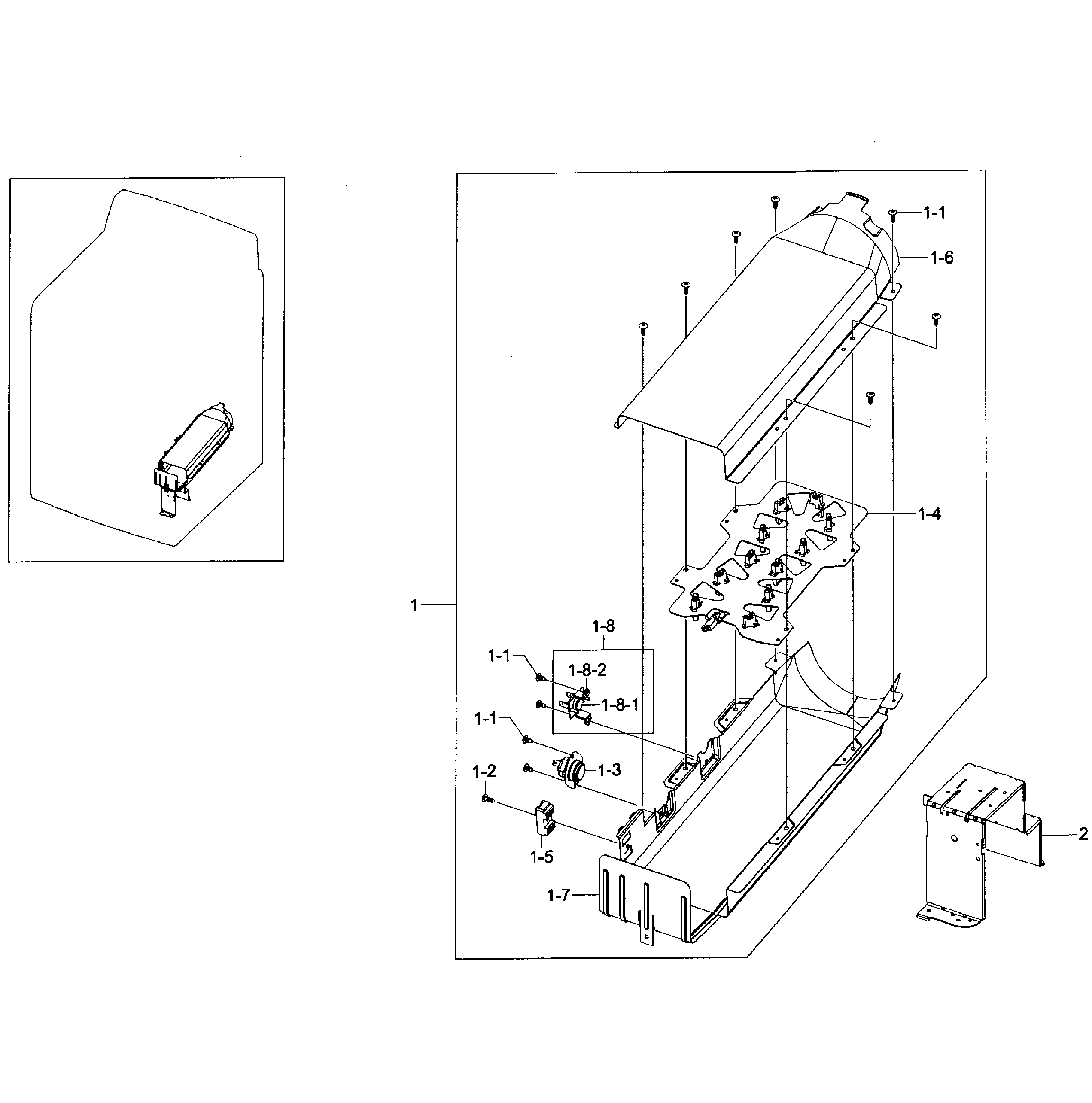

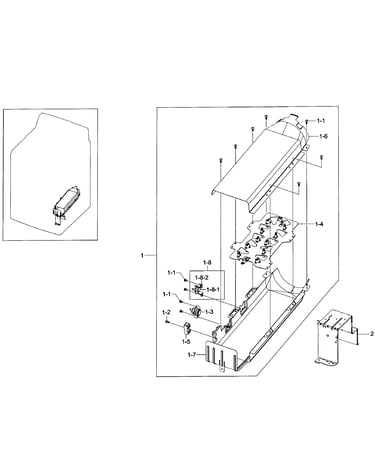

    Heater assy Diagram

    In Stock
    $36.80 |
    12% OFF
    Phone Price: $41.80
    Dryer High-Limit Thermostat#1-3

    Heater assy Diagram

    Dryer high-limit thermostat

    Part #DC47-00018A
    BEST SELLER
    In Stock
    $35.07 |
    12% OFF
    Phone Price: $40.07
    Dryer Drum Support Roller

    See All Related Diagrams

    Dryer drum support roller

    Part #DC97-16782A
    BEST SELLER
    In Stock
    $44.95 |
    20% OFF
    Was: $56.19
    Dryer Lint Screen

    Dryer lint screen

    Part #DC97-16742A
    BEST SELLER
    In Stock
    $70.93 |
    7% OFF
    Phone Price: $75.93
    Dryer Lint Screen#1452

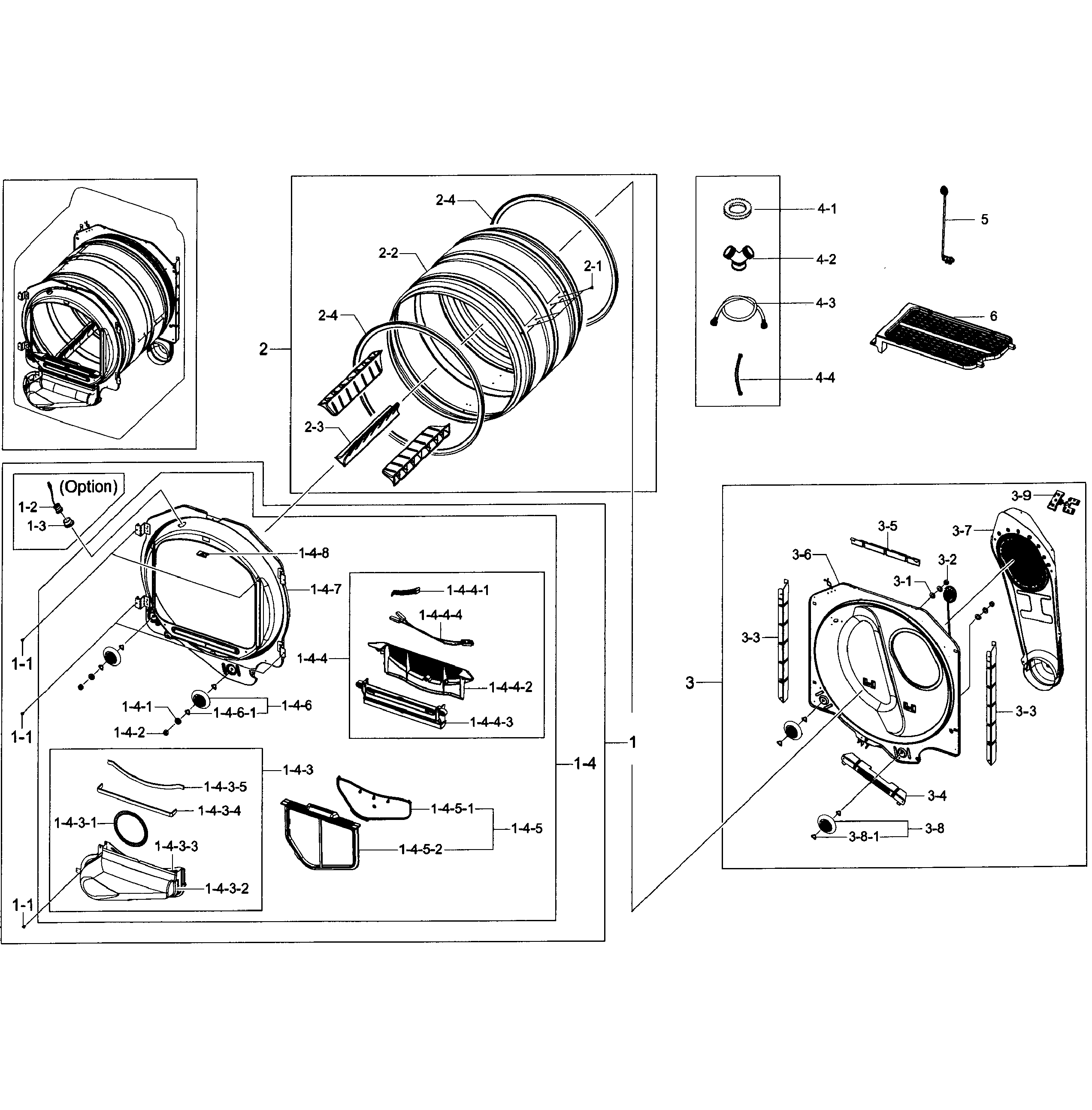

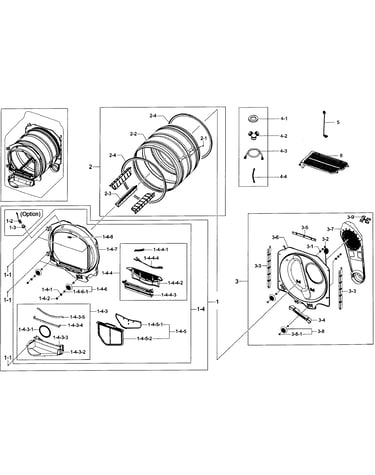

    Drum assy Diagram

    Dryer lint filter

    Part #DC61-03048A
    Replaced by #DC97-16742A
    ?
    Manufacturer substitution
    This part replaces DC61-03048A. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $70.93 |
    7% OFF
    Phone Price: $75.93
