Whirlpool W4TXNWFWQ01 refrigerator Parts

The Whirlpool refrigerator model W4TXNWFWQ01 is a top-mount refrigerator; its exact overall dimensions and cubic-foot capacity are listed on the model’s rating label and in the W4TXNWFWQ01 owner's manual. Most Whirlpool top-mount units of this style are roughly 28 to 33 inches wide and 60 to 69 inches tall.

How to find the exact size for W4TXNWFWQ01

We recommend using these quick checks so you get the correct measurements for your kitchen opening and door-clearance needs:

• Check the specifications section in the W4TXNWFWQ01 owner's manual for the published dimensions.
• Measure the cabinet opening: width, height, and depth (wall to front edge of countertop).
• Measure the refrigerator itself: case width, case height, and depth without handles.
• Add clearance for airflow (especially behind and above the cabinet).
• Confirm door swing clearance so doors and bins open fully.

Typical size ranges (helpful planning guide)

These are common ranges for Whirlpool top-mount refrigerators; use them for planning, then confirm the exact W4TXNWFWQ01 specs in the manual.

Measurement	Typical range for top-mount refrigerators
Width	28 to 33 in.
Height	60 to 69 in.
Depth (cabinet)	28 to 34 in.
Capacity	14 to 21 cu. ft.

Why it matters

Correct sizing prevents installation problems like doors hitting walls, poor ventilation that can reduce cooling performance, and difficulty sliding the refrigerator into the opening. It also helps you choose compatible accessories and plan for service access.

Last updated: January 2026

The biggest problem we see in Whirlpool refrigerators like model W4TXNWFWQ01 is loss of proper cooling caused by restricted airflow or a breakdown in the cooling system. Start by confirming vents are not blocked and temperatures are set correctly; then check fans and defrost components.

Most common “big” problems (and what they look like)

• Airflow blocked by food packages: warm refrigerator section, uneven temps, moisture issues
• Dirty condenser coils: long run times, poor cooling, hot cabinet sides
• Evaporator fan issue: freezer may be cold but refrigerator warms; weak airflow from vents
• Defrost system failure: frost buildup on the freezer back wall; refrigerator warms over time
• Compressor start problems: clicking, intermittent cooling, compressor not staying on

Quick checks we recommend first

1. Make sure no vents are blocked; this model relies on airflow between freezer and refrigerator sections (see the W4TXNWFWQ01 owner’s manual).
2. Set temps to a normal starting point: 0°F in the freezer and 37°F in the refrigerator.
3. Clean condenser coils and confirm the unit has good clearance for airflow.
4. Listen for the evaporator fan when the freezer door switch is pressed.

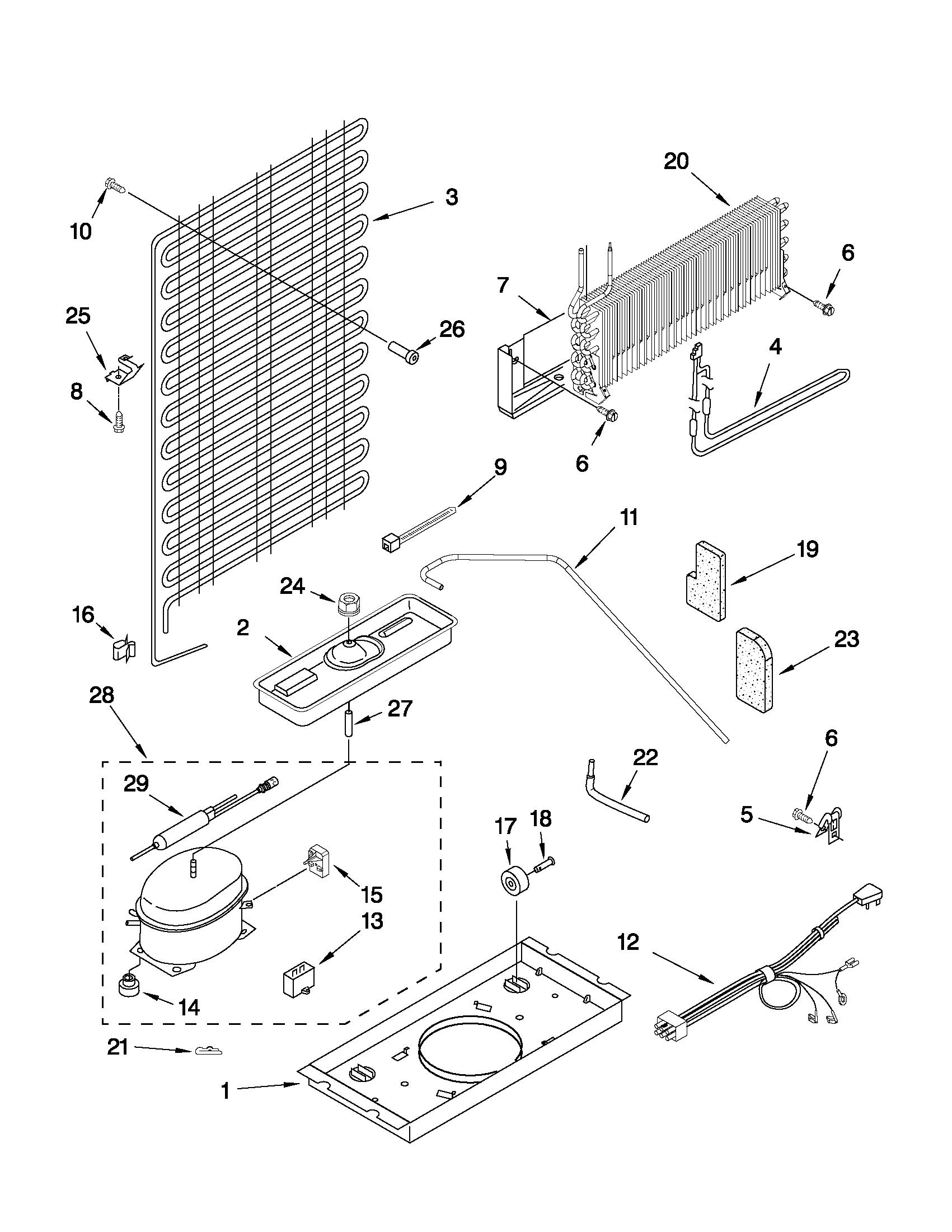

Parts that commonly fix cooling complaints on this model

Symptom	Likely system	Example part for W4TXNWFWQ01
Frost blanket on evaporator cover	Defrost	Refrigerator defrost heater WP2263749 or refrigerator defrost bi-metal WPW10225581
Warm fridge, freezer OK, weak airflow	Air circulation	Refrigerator evaporator fan motor WPW10188389
Clicking, won’t start, intermittent cooling	Start components	Refrigerator compressor start device WPW10194431

Why it matters

Cooling problems can look “small” at first, but blocked vents or a failing defrost system can quickly cause temperature swings that spoil food and overwork the compressor.

Helpful DIY references

• Whirlpool refrigerator error codes
• How to fix your evaporator cooling fan

Last updated: January 2026

A top-mount refrigerator like the Whirlpool W4TXNWFWQ01 is reliable and efficient, but its main disadvantages are convenience and features: fresh-food items sit lower (more bending), freezer access is higher, and many top-mount designs skip premium organization and dispenser options.

Common disadvantages (what most owners notice)

• More bending for daily use: the refrigerator section is below the freezer, so produce, drinks, and leftovers are lower.
• Less built-in organization: fewer specialty drawers, dividers, and flexible storage compared with many bottom-mount styles.
• Fewer feature upgrades: top-mount models often do not include external water or ice dispensers.
• Door swing clearance needs: you may need extra space on the hinge side for the doors to open fully.
• Airflow can be easier to block: overpacked shelves can block vents and cause uneven temperatures.

Practical tradeoffs: top-mount vs bottom-mount

Feature	Top-mount refrigerator	Bottom-mount refrigerator
Fresh-food access	Lower, more bending	Higher, easier reach
Freezer access	Eye level	Lower drawer
Storage/organization	Usually simpler	Often more flexible
Dispenser options	Less common	More common

Tips to reduce the downsides on W4TXNWFWQ01

• Keep everyday items on the upper refrigerator shelves to reduce bending.
• Avoid blocking freezer and refrigerator vents; blocked vents can lead to temperature and moisture problems.
• Level the cabinet so doors close easily and seal well.
• Plan installation clearance: allow space at the sides, top, back, and hinge side for proper ventilation and door swing.

Why it matters

Most “top-mount disadvantages” show up as daily comfort issues (reaching and bending) and temperature consistency issues when airflow is restricted. Good loading habits and proper leveling help this style perform at its best.

For model-specific setup clearances, leveling, and airflow guidance, use the W4TXNWFWQ01 owner's manual.

Last updated: January 2026

A top-mount refrigerator (like Whirlpool model W4TXNWFWQ01) is usually the better pick for value, reliability, and energy efficiency; a bottom-mount is usually better for everyday convenience because fresh food sits at eye level. The “best” choice depends on how you shop, cook, and use the freezer.

Quick comparison

Feature	Top-mount (freezer on top)	Bottom-mount (freezer on bottom)
Fresh food access	More bending	Less bending
Freezer access	Easier	Often requires drawer pull-out
Cost to buy/repair	Typically lower	Typically higher
Organization	Simpler shelves	Often more bins/drawers
Energy use	Often lower	Varies by design

When a top-mount is the better choice

• You want a dependable, straightforward Whirlpool refrigerator design
• You use the freezer often (items are at chest height)
• You want lower upfront cost and typically simpler repairs
• You have limited kitchen space and prefer a lighter door swing feel
• You want fewer complex features to maintain

When a bottom-mount is the better choice

• You cook daily and want the refrigerator section at eye level
• You store lots of fresh produce and use crisper drawers frequently
• You prefer wide shelves and more “grab-and-go” organization
• You don’t mind bending less for fresh food but more for freezer items

What matters for performance (either style)

Airflow and door sealing matter more than freezer position. For W4TXNWFWQ01, we recommend following the venting and spacing guidance in the W4TXNWFWQ01 owner’s manual and keeping interior vents clear so cold air can circulate between the freezer and refrigerator sections.

Fast checklist before you decide

• Measure your opening and allow clearance for ventilation and door swing
• Choose based on which section you access most (fresh food vs. freezer)
• Prioritize a tight door seal and stable leveling for consistent temperatures
• Plan for features you will actually use (ice maker, bins, drawers)

Why it matters

The “better” refrigerator is the one that fits your daily habits. If you open the refrigerator door far more than the freezer, a bottom-mount reduces bending; if you want a simpler, cost-effective layout, a top-mount is hard to beat.

Last updated: January 2026
