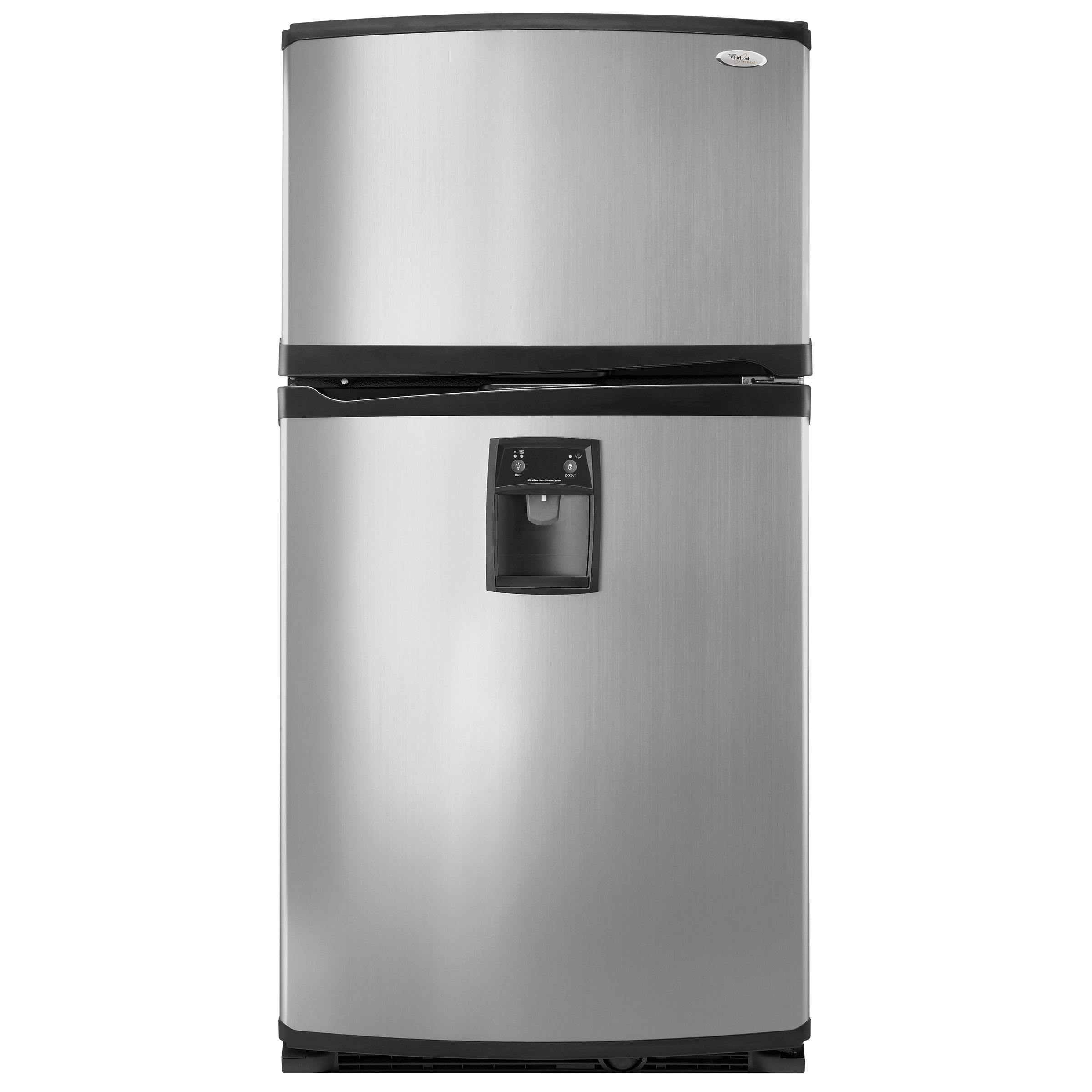

Whirlpool Top mount refrigerators

Official Whirlpool top-mount refrigerator parts

Whirlpool top-mount refrigerators have established a long track record of dependable performance over the years. Whirlpool offers many different sizes and types of top-mount refrigerators so you can find the model that best fits in your kitchen. When your Whirlpool top-mount refrigerator quits cooling, get the repair parts you need to fix the problem at Sears PartsDirect.

Popular maintenance items for Top-Mount Refrigerators

Parts you might be looking for

Ge Profile Refrigerator Temperature Sensor WR55X10025

Ge Profile Refrigerator Temperature Sensor

Part #WR55X10025
In Stock
$19.47
9% OFF Phone Price : $21.47
Minus Item
Qty
Plus Item
G.e. Refrigerator Water Filter MWF

Ge Refrigerator Water Filter (replaces 9970, Mwfpa)

Part #MWF

Replaced by #MWFP

Info Icon
Manufacturer substitution
This part replaces MWF. Substitute parts can look different from the original.
In Stock
$105.92
Minus Item
Qty
Plus Item
Refrigerator Filter Dryer 5303305677

Refrigerator Filter Dryer

Part #5303305677
In Stock
$12.96
13% OFF Phone Price : $14.96
Minus Item
Qty
Plus Item

Replacing a compressor start relay in a Whirlpool top-mount refrigerator

  • Unplug the power cord from the wall outlet.
  • Pull the refrigerator away from the wall. Remove the screws from the rear compartment cover and then remove the cover.
  • Pry off the wire retainer holding the start relay on the compressor. Disconnect the wire harness from the start relay. Pull the start relay and run capacitor off the compressor.
  • Transfer the run capacitor from the old start relay to the new start relay. Plug the new start relay with capacitor into the compressor terminals. Plug the wire harness into the new start relay. Reinstall the wire retainer to hold the start relay on the compressor.
  • Position the rear compartment cover on the back of the refrigerator and reinstall the mounting screws.
  • Plug in the refrigerator and push the refrigerator back into place.

How to replace a door gasket on your Whirlpool top-mount refrigerator

  • Safely store any food that could deteriorate while the refrigerator is shut off for this repair. Then unplug the refrigerator or shut off the circuit breaker for the refrigerator.
  • Carefully pull the panels apart slightly and remove the existing gasket. Pull out the door gasket.
  • To smooth creases and folds in the gasket, soak it in warm water and let it dry. Or carefully warm it with a hair dryer or heat gun on a low setting. Be careful not to melt the gasket.
  • Starting at the top of the door, work the lip of the new door gasket into the gap between the inner and outer door panels. Work your way down both sides of the door and across the bottom. Check for loose spots. Work the new gasket into the gap between the panels.
  • Plug in the refrigerator or turn on the house circuit breaker to restore power.
