Craftsman 3902522 pump Parts

The most common problem we see with a Craftsman water pump like model 3902522 is loss of prime or reduced water delivery caused by air leaks on the suction side, a leaking foot valve, or a clogged jet/impeller. These issues often show up as the motor running but little or no water coming out.

Most common symptoms to watch for

• Motor runs but no water is delivered
• Pump loses prime after it was working
• Pump cycles too frequently (short-cycling)
• Air spurts from faucets
• Pump runs but does not deliver full capacity
• Pressure will not build or the pump will not shut off

The usual causes (and what to check first)

Start with the simplest, most common checks from the troubleshooting guidance in the owner's manual.

• Air leaks in suction piping: tighten fittings, reseal threaded joints, check for cracked pipe
• Leaking foot valve or check valve: water drains back to the well, causing repeated re-priming
• Improper priming: trapped air prevents the pump from pulling water
• Clogged jet or impeller: debris reduces flow and pressure
• Frozen pipes: common in cold weather if the system is not protected from freezing
• Pressure switch issues: out of adjustment or contacts “frozen”; this can cause frequent cycling

Quick diagnosis table

What you notice	Most likely cause	Best first step
Motor runs, no water	Lost prime, air leak, foot valve leak	Re-prime; check suction fittings and foot valve
Short-cycling	Tank air charge issue, leak, pressure switch	Check tank air charge; inspect for leaks
Low flow/pressure	Jet/impeller clogged, lift too high	Clean jet/impeller; confirm lift and piping
Pump won’t shut off	Open faucet/leak, pressure switch	Close valves; inspect switch and system leaks

Safety and setup details that prevent repeat failures

• Disconnect power before servicing
• Never run the pump dry
• Never run against a closed discharge
• Keep the well covered during installation to prevent contamination and mechanical damage
• Protect pump and piping from freezing temperatures

Why it matters

Loss of prime, air leaks, and clogged jet/impeller conditions make the pump work harder and can overheat seals and internal components. Fixing the root cause improves pressure stability, reduces cycling, and helps the pump reach its rated capacity.

Last updated: February 2026

On a Craftsman 3902522 water pump, the identifying numbers are usually on the motor nameplate or an ID label on the pump housing. Once you have the model number, you can match the exact replacement component using the repair parts list in the owner's manual.

Where to look on the pump

Check these common spots first; wipe off dirt, rust, or overspray so the stamping or label is readable:

• Motor nameplate on the side of the motor
• Sticker or metal tag on the pump body (front or back half)
• Near the pressure switch and wiring cover area
• On the base or mounting frame close to the motor
• On attached jet/check valve assemblies (if equipped)

What the numbers mean

Pumps often show several different identifiers. Use them like this:

Marking you find	What it tells you	How we use it for parts
Model number	Which pump design you have	Primary way to pull the correct diagrams and parts list for 3902522
Component part number	A specific replaceable part	Used to confirm the exact item in the parts list
Electrical ratings	Motor wiring requirements	Helps confirm correct motor and switch compatibility
Serial/date code	Production tracking	Helpful for reference, not usually needed to order parts

If the label is missing or unreadable

You can still identify the right part by matching the component name and location to the diagram.

• Use the model number 3902522 to open the repair parts breakdown
• Match the part by description (for example, pressure switch, impeller, diffuser, shaft seal)
• Compare your part visually to the diagram before ordering
• If you are replacing an electrical part, disconnect power before servicing

Why it matters

Using the correct model number and the correct component description prevents fit issues and avoids problems with pressure settings or electrical compatibility.

Last updated: February 2026

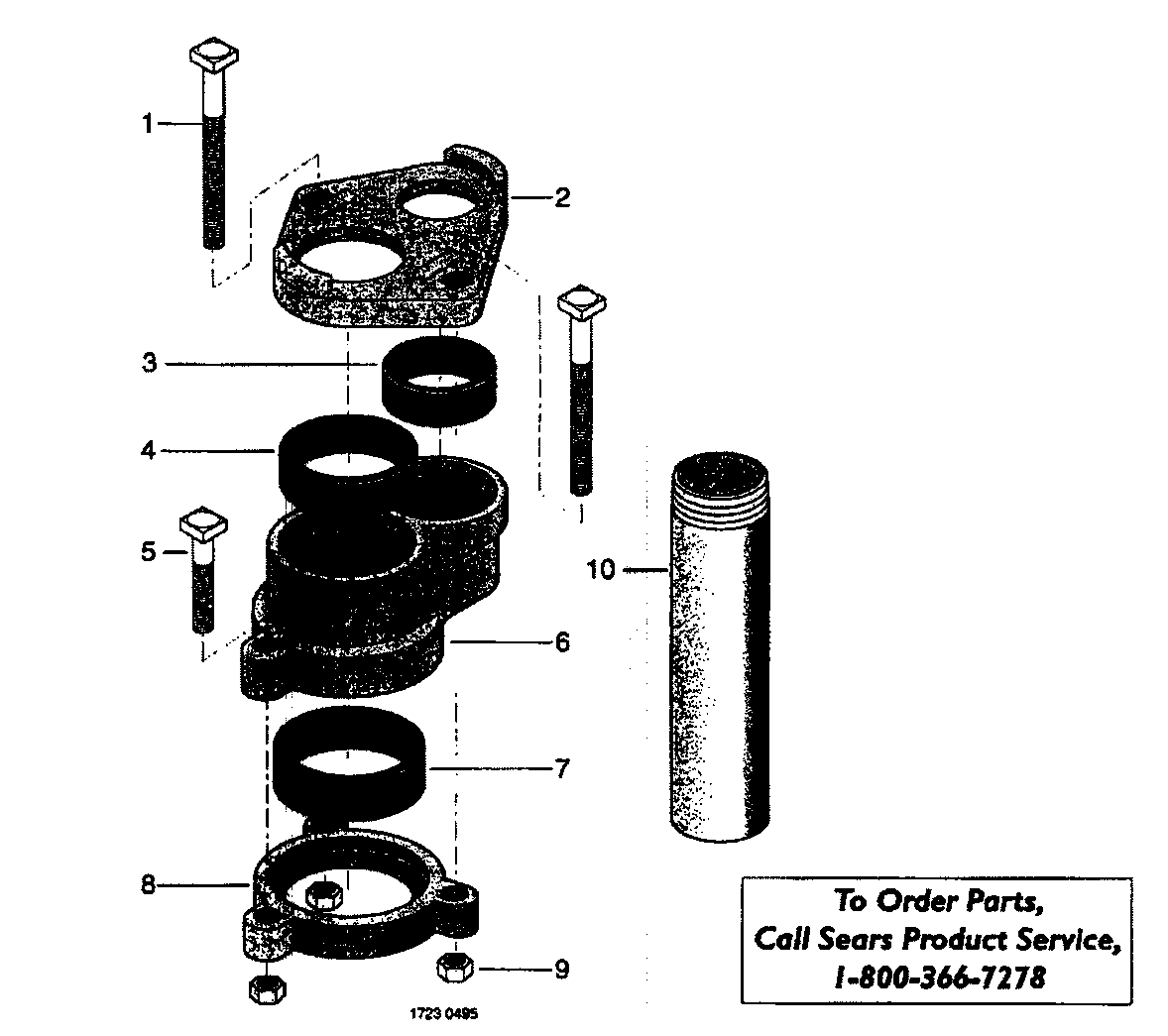

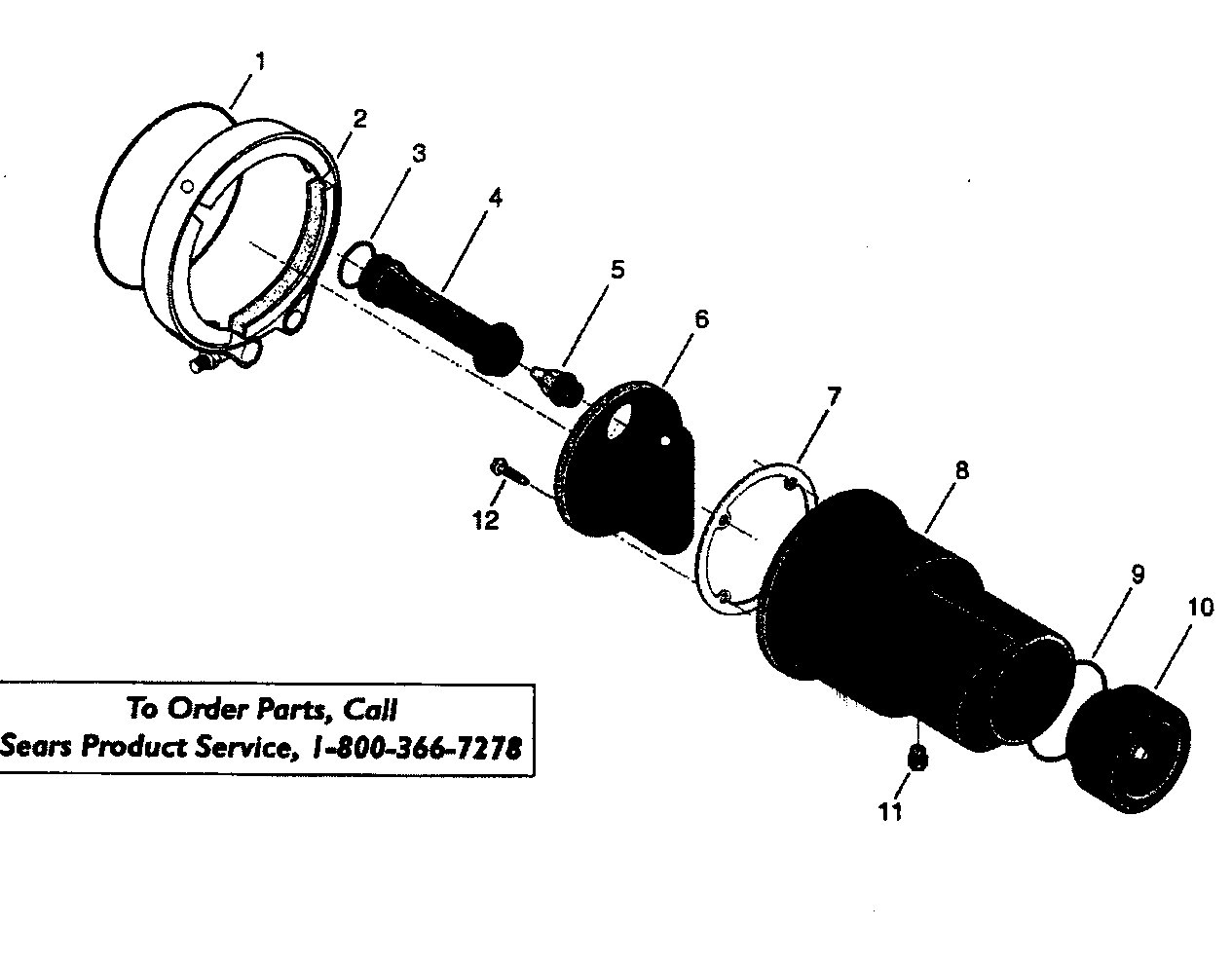

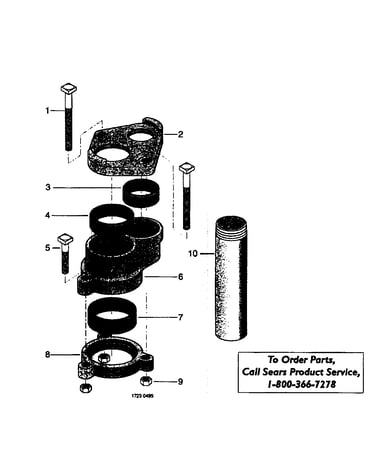

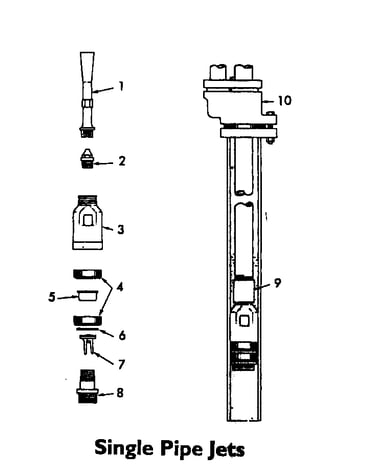

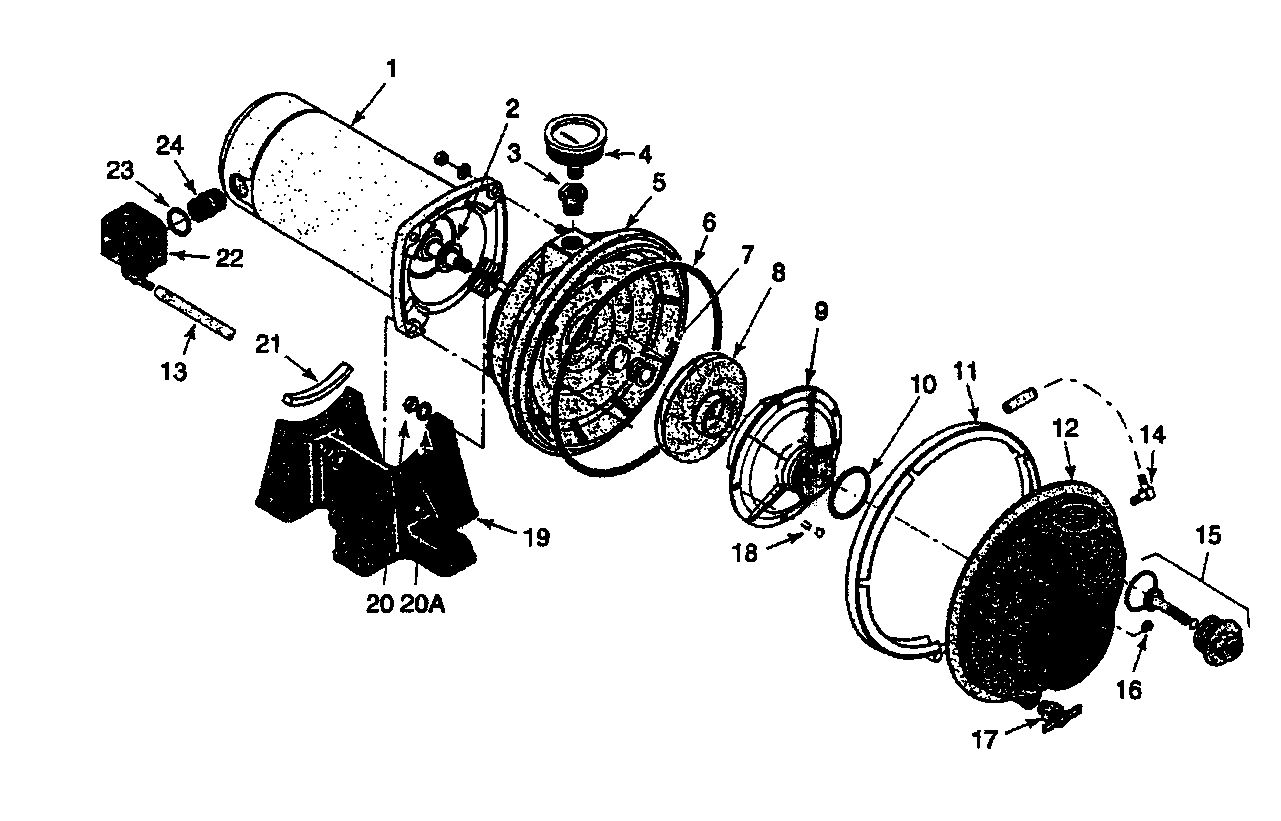

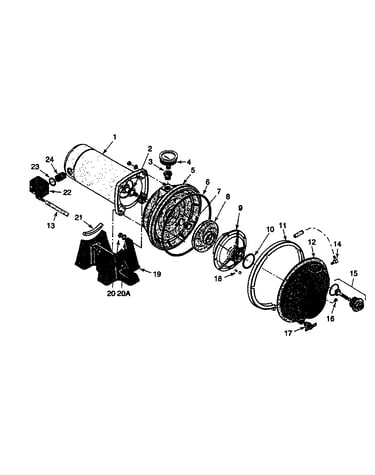

On a typical residential well water pump like the Craftsman 3902522, the “major parts” are the components that move water, seal the pump, and control automatic on and off operation. You will commonly see the impeller and casing, the motor and shaft, sealing and support parts, plus the pressure control described in the owner's manual.

The 7 major parts (and what they do)

• Motor: provides the power to spin the pump.
• Shaft: connects the motor to the rotating pump parts.
• Impeller: spins to move water by centrifugal force.
• Casing (housing/volute): encloses the impeller and directs flow to build pressure.
• Bearings: support the shaft so it spins smoothly.
• Mechanical seal: prevents water from leaking along the shaft.
• Pressure switch: turns the pump on and off automatically based on system pressure.

How this applies to the Craftsman 3902522

The Craftsman 3902522 uses a pressure switch for automatic operation; the manual lists these pressure points:

Model	Pump starts at	Pump stops at
3902522	40 psi	60 psi

Why it matters

Knowing which part does what helps you narrow down symptoms quickly. For example, “runs but no water” often points to priming, air leaks, or a plugged jet/impeller; “rapid cycling” often points to pressure control or tank issues.

Quick troubleshooting map (common symptoms)

• Runs but no water delivered: lost prime, air leak on suction side, stuck foot/check valve
• Won’t reach full pressure: plugged jet/impeller, low well water level, suction restriction
• Cycles too frequently: pressure switch setting/contacts, tank air charge or air volume control

Last updated: February 2026

On the Craftsman water pump model 3902522, the first signs of trouble are usually loss of prime (motor runs but little or no water), rapid on and off cycling, reduced pressure or flow, and air spurts at faucets. These symptoms often point to suction-side air leaks, a leaking foot valve, a clogged jet or impeller, or a pressure switch problem (see the owner's manual).

Quick symptoms checklist

• Motor runs but no water is delivered (lost prime, air leak, foot valve problem)
• Pump does not deliver water to full capacity (plugged jet or impeller, low well level, piping restriction)
• Pump cycles too frequently (tank waterlogged, air charge too low, pipe leak, foot valve leak)
• Pump runs but does not shut off (pressure switch out of adjustment or contacts sticking, faucets left open)
• Air spurts from faucets (suction-side air leak or low water level)

What to check first (safe, high-impact steps)

1. Disconnect power before inspecting wiring or opening any covers.
2. Confirm the pump is primed; improper priming and suction leaks are the most common early causes of “runs but no water.”
3. Inspect suction piping and fittings for air leaks; even a small leak can cause loss of prime and sputtering.
4. Check the foot valve/check valve for leaking or sticking; this can cause pressure drop and frequent cycling.
5. Verify pressure switch operation; if contacts stick or settings are off, the pump can short-cycle or run continuously.

Common causes and what they look like

Symptom	Most common cause	What you’ll notice
Motor runs, no water	Lost prime or suction air leak	Pump sounds normal, faucets stay dry
Frequent cycling	Tank air charge low or system leak	Pressure rises and falls quickly
Low flow/pressure	Jet or impeller clogged	Water runs but is weak
Won’t shut off	Pressure switch issue	Pump keeps running past cut-out

Why it matters

Catching these early symptoms helps prevent seal damage and overheating. The owner's manual also highlights critical operating cautions, including not running the pump dry and not running against a closed discharge.

Last updated: February 2026

Replacing the Craftsman 3902522 water pump typically takes about 1 to 3 labor hours when the pump is accessible and fittings come apart normally. Plan extra time for rigid plumbing, corroded unions, electrical checks, and priming. Follow the installation guide for the correct sequence.

What changes the labor time

These are the most common time adders on a jet/utility water pump setup:

• Hard-plumbed pipe vs. flexible hose connections
• Corroded fittings, seized unions, or thread sealant cleanup
• Electrical verification (correct voltage, wiring, and grounding)
• Priming and leak checks on the suction side
• Pressure tank and pressure switch adjustments after startup

Typical time breakdown (planning guide)

Task	Typical time	Notes
Shut off power, relieve pressure, drain lines	15 to 30 min	Prevents shock and spray
Disconnect wiring and plumbing	30 to 90 min	Corrosion can double this
Swap pump, align, secure mounting	15 to 45 min	Includes gasket/seal prep
Reconnect, prime, test and fine-tune	30 to 60 min	Air leaks add time

Before you start (safety and setup)

Use these steps to avoid delays once the pump is apart:

• Turn off power at the breaker and verify power is off
• Open a faucet to relieve system pressure
• Label wires before disconnecting
• Have thread sealant or PTFE tape ready for reassembly
• Prime the pump per the procedure in the owner's manual

Why it matters

Most “extra hours” come from suction-side air leaks and priming issues, not the physical swap. The Craftsman 3902522 manual troubleshooting covers symptoms like frequent cycling, no water delivery, and pressure switch adjustment, which are common after reassembly.

Last updated: February 2026
