Cooling problems are the most common issue we see with LG refrigerators, including the LG LFXC24796D. Symptoms usually show up as a warm fresh food section, a warming freezer, or temperatures that swing after door openings or heavy use; the LFXC24796D owner's manual troubleshooting section focuses on airflow, door use, and condenser vent cleaning as key first checks.

• Fresh food is warm but the freezer seems closer to normal
• Freezer is warm and ice production slows or stops
• Food near the vents freezes while other areas are warm (airflow imbalance)
• The refrigerator runs a lot, especially in warm rooms
• You hear normal fan and compressor sounds but temperatures do not recover

Use these steps before replacing parts because many “not cooling” complaints are caused by airflow and heat load.

• Give a new install or major temperature change up to 24 hours to stabilize
• Reduce long or frequent door openings (warm, humid air raises temps)
• Make sure air vents are not blocked by food packages
• Confirm the refrigerator is not operated in spaces above 110°F
• Vacuum the exterior condenser cover and vents (do not remove the condenser area panel)

If the basic checks do not help, these model-specific parts are often involved in cooling performance or ice/water complaints:

A refrigerator that is even 5 to 10 degrees too warm can spoil food faster and force longer run times. Restoring proper airflow and heat removal (condenser ventilation) is often the fastest path back to stable temperatures.

Your model supports Smart Diagnosis; follow the exact button sequence and steps in the LFXC24796D owner's manual so the refrigerator can transmit data for analysis.

You can order replacement parts for LG LFXC24796D from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

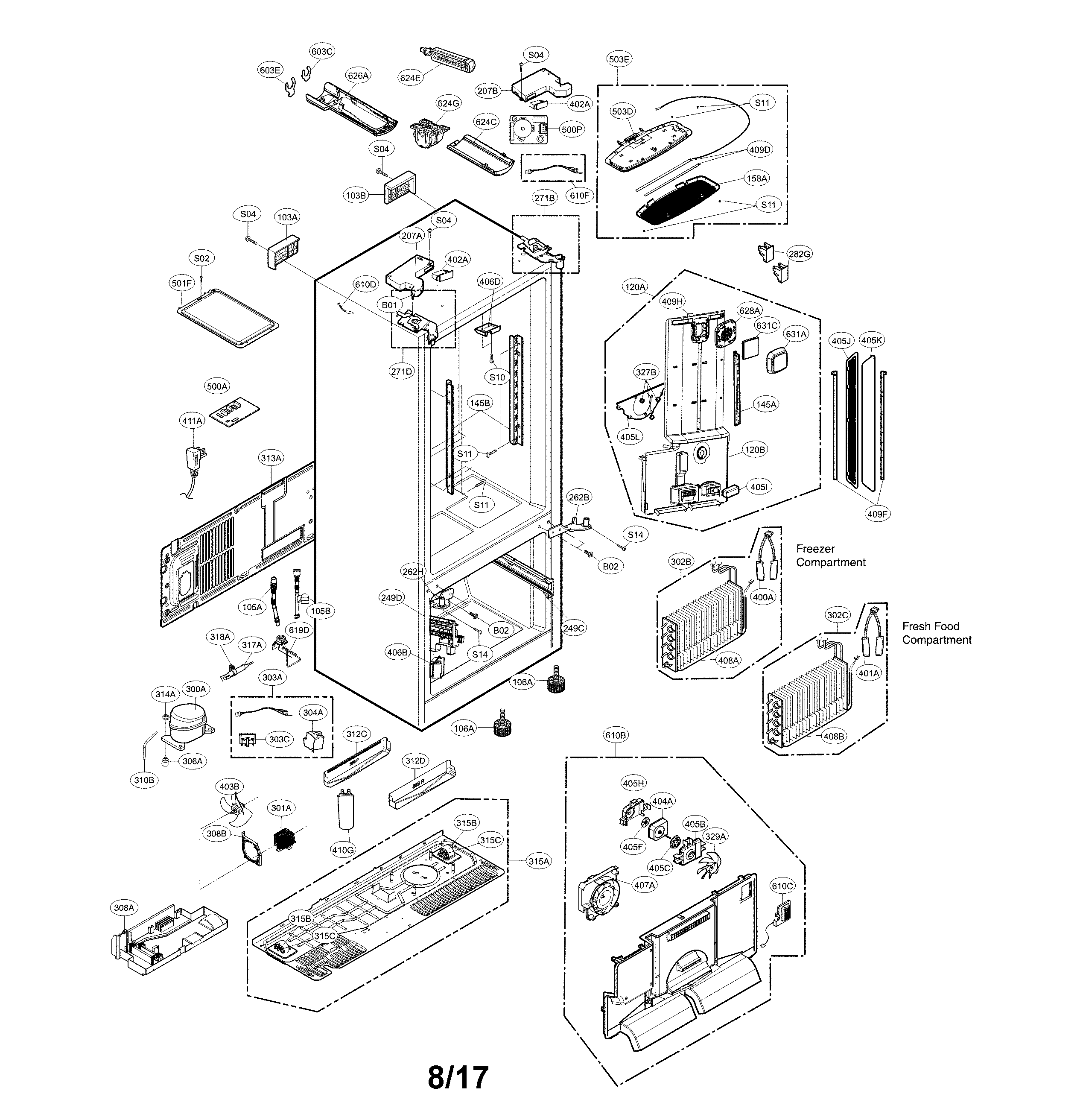

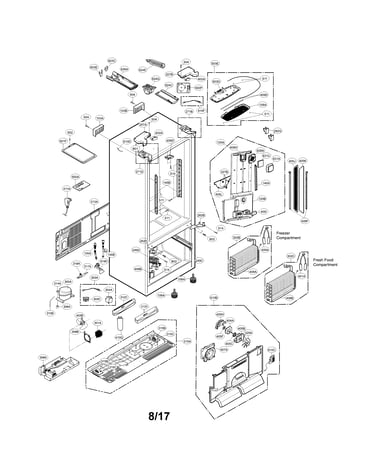

On our LG LFXC24796D refrigerator, DHF typically indicates a defrost heating failure. The refrigerator is not melting frost off the evaporator as expected, which can restrict airflow and cause warm temperatures, poor ice production, or unusual fan noise.

• Power reset: Unplug the refrigerator (or turn off the breaker) for 2 minutes, then restore power.
• Temperature symptoms: Note if the freezer is warming, fresh food is warming, or both.
• Frost pattern: Look for heavy frost on the rear freezer panel (a common sign of a defrost problem).
• Door sealing: Make sure doors close fully and gaskets are sealing.
• Airflow: Do not block vents with food packages.

A DHF condition is usually tied to the defrost system or temperature sensing. These model-matched parts are commonly involved:

When the defrost cycle does not clear frost, the evaporator can ice over and block airflow. That forces longer run times, raises temperatures, and can lead to intermittent cooling and ice maker issues.

• Use the owner's manual to locate controls, indicators, and any model-specific display behavior.
• For code meaning and what to do next, use our LG bottom freezer refrigerator error codes reference.
• If you need to order a model-matched replacement, use the parts list for LFXC24796D on this page, or search by model at Sears PartsDirect.

Last updated: February 2026

A bottom leak on our LG LFXC24796D refrigerator is usually caused by a defrost drain that is clogged and overflowing into the base, or by water/ice maker issues that let water drip down and pool underneath. Use the LFXC24796D owner's manual for model-specific locations and safety steps.

• Look for water under the crisper drawers and along the center floor of the fresh food section (often points to a defrost drain issue).

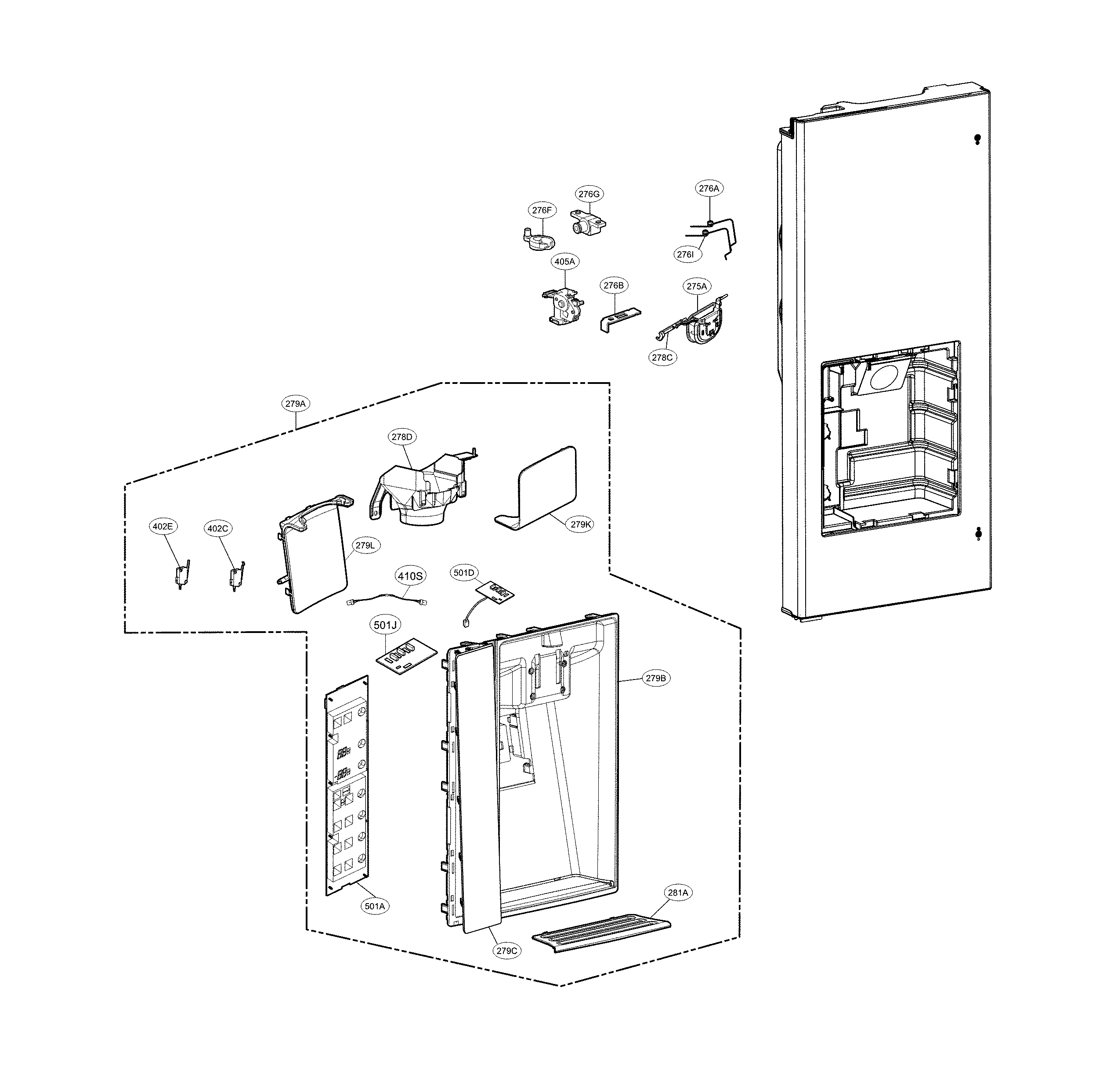

• Check the ice bin and ice compartment door; if ice is melting, it can leak through the dispenser area.
• Inspect the water supply line connection behind the refrigerator for slow drips.
• Confirm the refrigerator is level; a forward tilt can encourage water to run out the front.
• If the leak happens only when dispensing water or making ice, focus on the inlet valve and dispenser path.

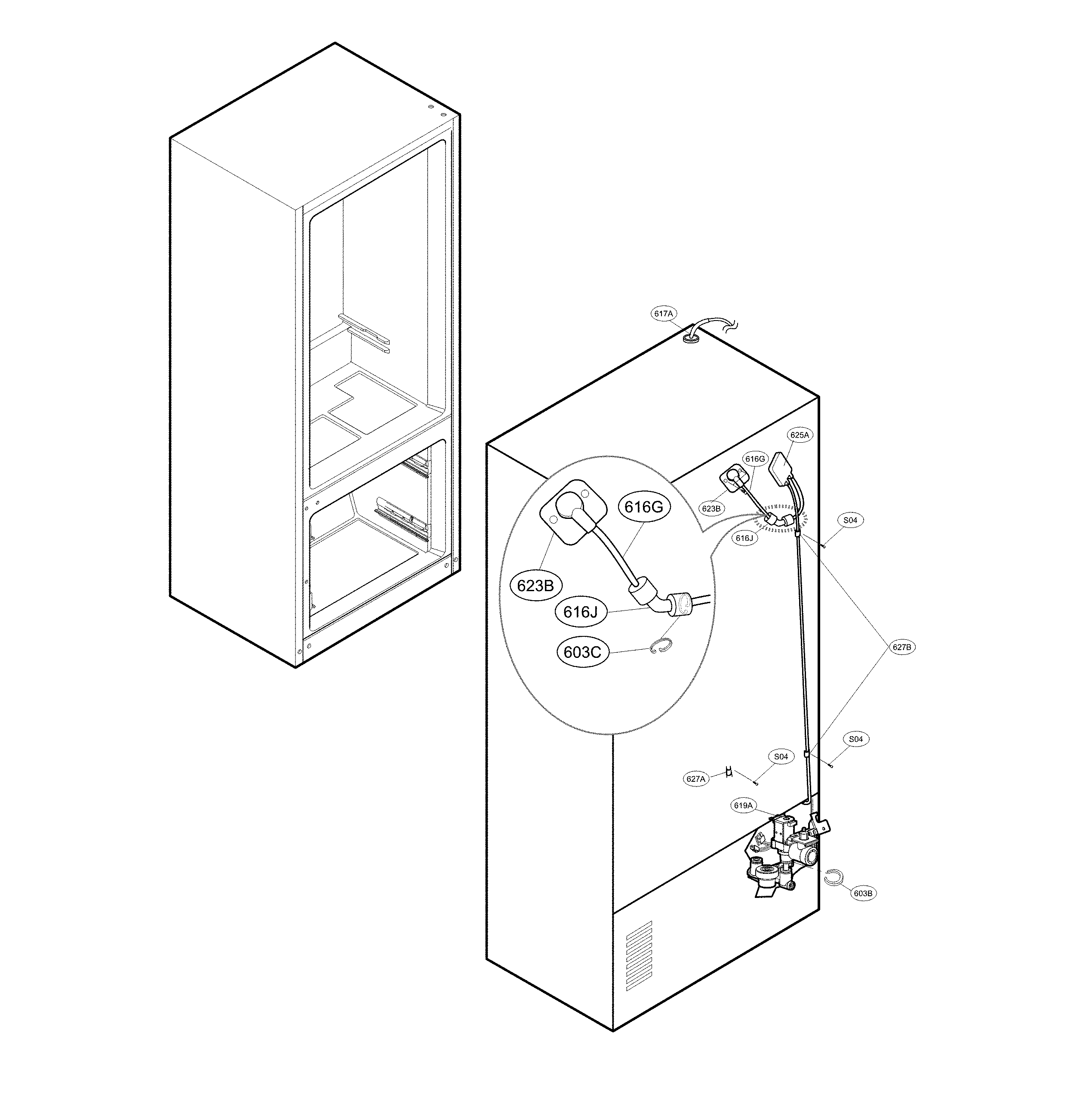

If troubleshooting points to the water supply side, these model-matched parts are commonly involved:

• LG refrigerator water inlet valve AJU72992603 (controls water flow to the ice maker and dispenser)
• Refrigerator water inlet valve assembly AJU74532703 (alternate valve assembly used on some configurations)

For ordering, use the parts list for LG LFXC24796D on this page, or search by model number on Sears PartsDirect.

Leaks can damage flooring and can also lead to ice buildup, odors, and poor cooling if water ends up freezing in the wrong place. Catching a drain clog or a seeping inlet valve early prevents repeat puddles and bigger repairs.

Last updated: February 2026

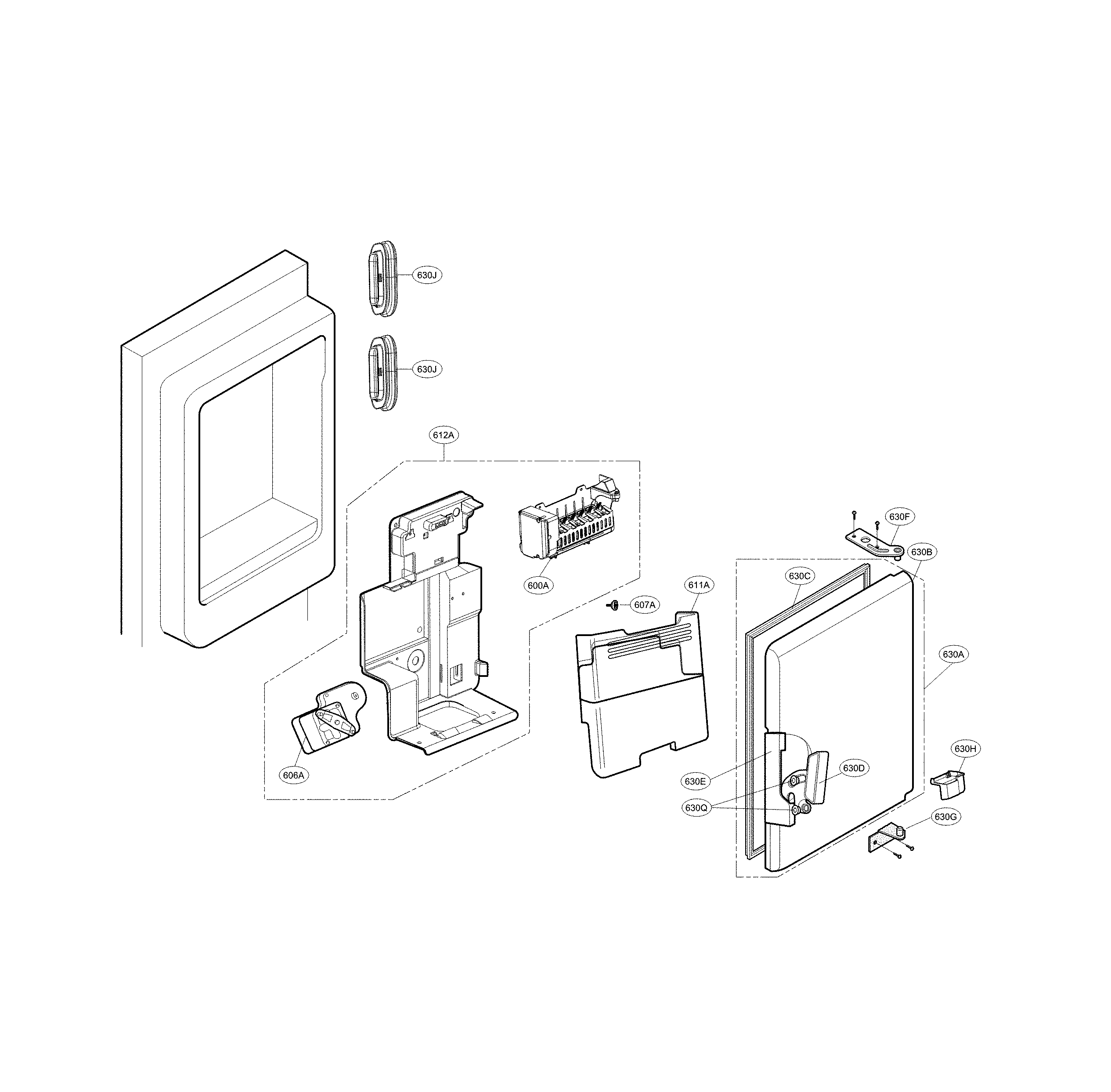

To turn on the bottom ice maker on your LG LFXC24796D, use the control panel and press and hold the Ice On/Off button for 3 seconds. The ice maker starts making ice automatically after the freezer reaches 15°F (-9°C) or colder; expect the first ice within 12 to 24 hours.

• Confirm the refrigerator is plugged into a properly grounded outlet.
• Confirm the refrigerator is connected to the water supply.
• Fully open the household water shutoff valve.
• On the control panel, press and hold Ice On/Off for 3 seconds to turn the ice maker ON.
• Wait for the freezer to reach 15°F (-9°C) or below.
• Discard the first few batches of ice (new install or after long non-use).

Ice production timing varies based on temperature and usage. Use this as a practical guide:

These checks solve most “ice maker not working” complaints on bottom-mount LG refrigerators:

• Make sure the ice bin is seated correctly and not overfilled.
• Check that the shutoff arm or sensor area is not blocked by ice or a container.
• Verify freezer temperature is set cold enough (target 0°F for best ice production).
• If you hear buzzing but get no ice, confirm the water shutoff valve is fully open.
• If the ice maker is ON but never fills, the water inlet valve can be the cause; see LG refrigerator water inlet valve AJU72992603 as the model-matched replacement.

The ice maker will not cycle until the freezer is cold enough, and running it without water connected can cause problems. Turning it on correctly, confirming water flow, and allowing proper cool-down time prevents false “no ice” symptoms.

For model-specific control panel details and ice maker notes, use the LFXC24796D owner's manual. If you need to order parts for your refrigerator, start with the parts list for LFXC24796D or search by model on Sears PartsDirect.
