Craftsman 917259580 tractor Parts

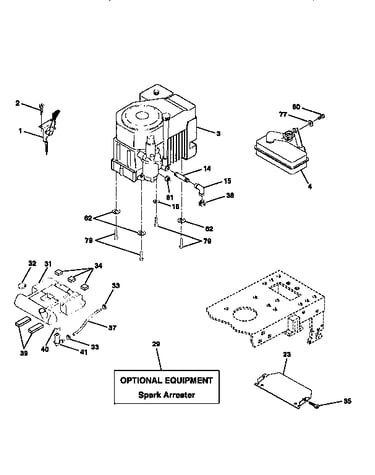

For Craftsman model 917259580, the engine is a gas, internal combustion design; the exact engine brand and horsepower vary by build and are identified on the engine ID label and in the specifications section of the 917259580 owner's manual.

How to identify the exact engine on your 917259580

Use these quick checks to match the correct tune-up and repair parts (air filter, spark plug, fuel filter, belts):

• Lift the hood and look for the engine model/type code label on the blower housing or valve cover
• Record the engine model, type, and code (or spec number)
• Compare those numbers to the Specifications and maintenance sections in the 917259580 owner's manual
• If the tractor has been serviced before, verify the air filter and spark plug part numbers currently installed
• Use the engine ID (not just the tractor model) when ordering engine-specific parts

Common engine types you may see on this tractor

Many Craftsman front-engine lawn tractors in this series were built with single-cylinder engines; the engine label is the deciding factor.

What you have	What it usually means	What to do next
Single-cylinder vertical-shaft engine	Typical layout for 42-inch class lawn tractors	Use the engine ID label to match filters and plugs
Twin-cylinder engine	Less common on this series, but possible on some builds	Confirm model/type code before ordering
Engine swapped/replaced	Tractor model stays 917259580, engine may not be original	Order parts by engine model/type code

Why it matters

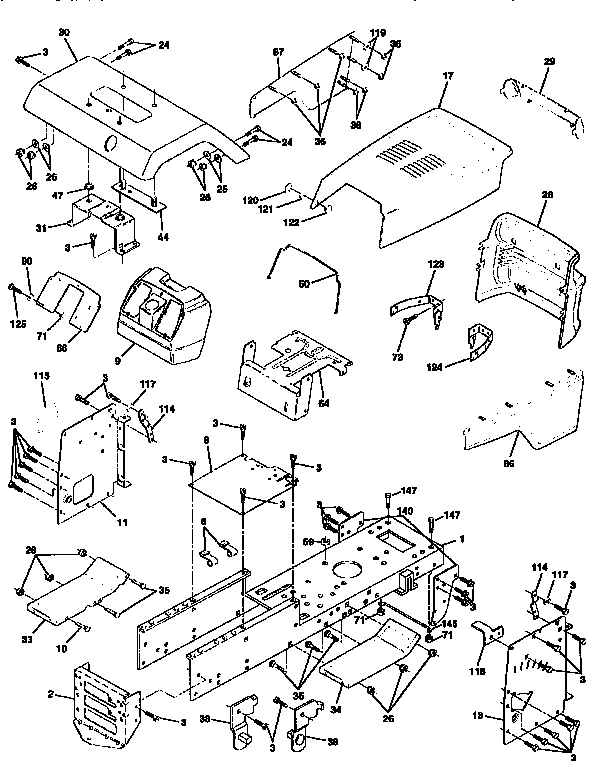

The tractor model 917259580 helps us match chassis and deck parts (like belts and blades), but engine maintenance parts are selected by the engine’s model/type code. That prevents wrong-fit items and starting or performance issues.

Related parts you might replace during service

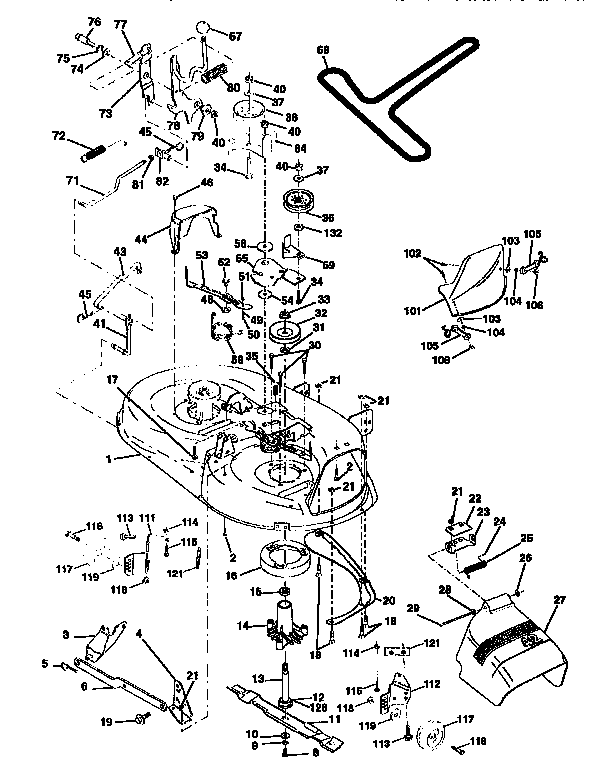

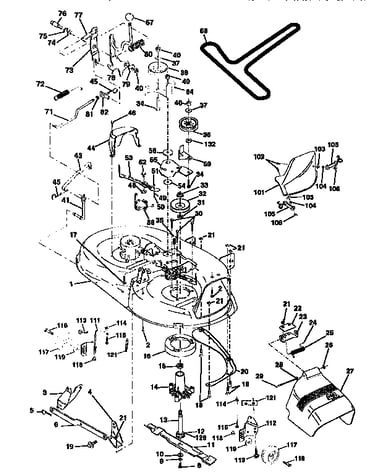

If you are also servicing the mower deck on 917259580, these model-matched parts are commonly replaced:

• Husqvarna lawn tractor mulching blade, 21-in 532134149 (blade condition affects cut quality)
• Lawn tractor drive belt 532144200 (blade drive belt for deck operation)

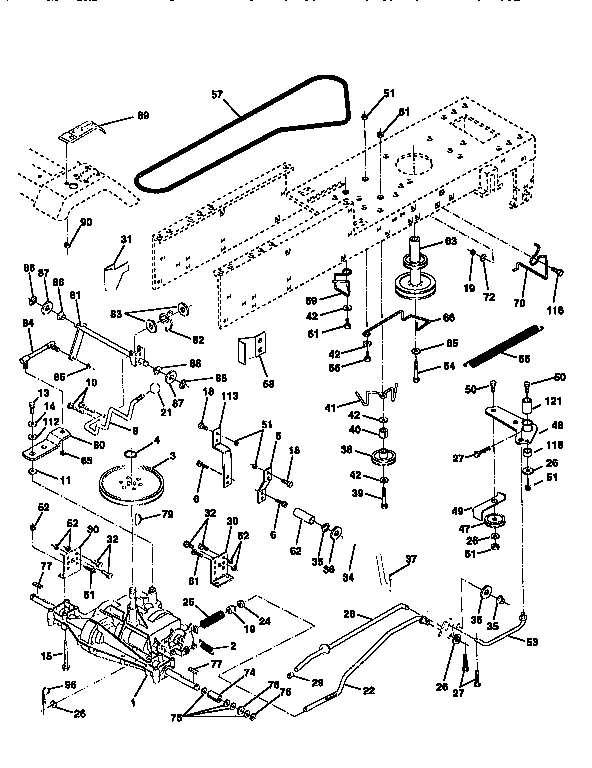

• V-belt 532138255 (ground drive belt for tractor movement)

Last updated: February 2026

If you have a Craftsman riding mower or tractor, the fastest way to identify exactly what you own is to find the model number on the product identification label and match it to your parts list and manual. For this page, the model is Craftsman 917259580; confirm your label matches 917259580.

Where to find the model number on a Craftsman tractor

On most Craftsman front-engine lawn tractors, the product identification label is located under the seat area. Use these quick checks:

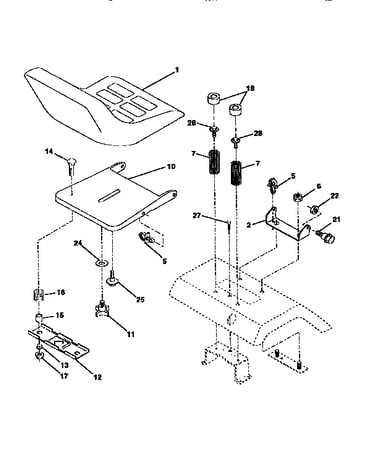

• Lift the seat and look on the underside of the seat or the seat pan area
• Check the frame rails directly under the seat
• Wipe off grass and dirt so the numbers are readable
• Write down the full model number exactly as shown (all digits)
• Use the model number to match the correct parts diagrams and maintenance specs in the 917259580 owner's manual

What to record (so you get the right parts)

We recommend recording these items from the label before ordering parts like belts, blades, or a fuel tank:

• Model number (example: 917259580)
• Product number (if listed)
• Engine model and type (often on a separate engine label)
• Mower deck size (commonly 42-inch on many tractors in this series)

Quick ID checklist

Item	What it tells you	Why it matters
Model number (917xxxxxx)	Exact tractor platform	Ensures correct diagrams and parts fit
Engine model/type	Engine-specific tune-up parts	Prevents wrong air filter or spark plug
Deck size	Blade and belt sizing	Avoids mismatched blade drive belt

Why it matters

Craftsman tractors can look similar across multiple model numbers, but parts like the ground drive belt, blade drive belt, mandrel parts, and blades can differ by deck and build. Using the exact model number keeps repairs accurate and prevents returns.

Last updated: February 2026

Craftsman riding mowers and lawn tractors can use engines from several manufacturers depending on the model and production year. For the Craftsman 917259580 front-engine lawn tractor, the most reliable way to identify the exact engine brand is to match the engine model and type shown on the engine shroud and in the 917259580 owner's manual.

How to identify the engine brand on your 917259580

Use these quick checks on the tractor itself (no disassembly needed):

• Look for the engine label on the blower housing or valve cover (often lists the engine maker and model).
• Record the engine model, type, and code (common on Briggs & Stratton engines).
• Check the air cleaner cover for a brand badge (Briggs & Stratton, Kohler, Kawasaki).
• Compare what you find to the engine information and maintenance sections in the 917259580 owner's manual.
• If the label is missing, use the tractor’s product ID tag plus engine photos to confirm the match.

Common engine brands used on Craftsman lawn tractors

Craftsman has commonly sourced engines from these manufacturers:

Engine brand	Where you’ll usually see it	What to look for
Briggs & Stratton	Many Craftsman lawn tractors	Model/type/code stamping or label
Kohler	Some mid to higher output tractors	Command/Courage/7000-series labeling
Kawasaki	Some premium models	FR/FS series markings

Why it matters

The engine brand determines the correct tune-up parts and service specs (spark plug, air filter, oil type, and fuel system parts). It also helps when troubleshooting starting issues or ordering maintenance items.

If you are chasing a performance issue after confirming the engine brand, we recommend starting with basic maintenance items and deck condition. For example, a worn or incorrect blade can affect cut quality; the husqvarna lawn tractor mulching blade, 21-in 532134149 is one of the listed blades for this model.

Last updated: February 2026

For the Craftsman riding tractor model 917259580, we use SAE 30 motor oil for typical warm-weather mowing; 10W-30 is also acceptable and is a better choice when you expect cooler starts. Confirm the exact oil type and oil-change steps in the 917259580 owner's manual.

Recommended oil by temperature

Use this quick guide for your Craftsman front-engine lawn tractor:

Outdoor temperature	Best choice	Why
Above 40°F	SAE 30	Strong protection in steady warm conditions
Variable temps (spring/fall)	10W-30	Easier starting and better flow when cool
Cold starts	10W-30	Reduces wear during startup

How we choose the right oil for this tractor

• Match viscosity to your typical mowing temperature range.
• Check oil level before each use (a key item in the maintenance checklist).
• Change oil on schedule and anytime the oil looks dark, smells like fuel, or feels gritty.
• Use a clean funnel and keep dirt out of the fill tube.
• Do not overfill; overfilling can cause smoking and poor running.

Oil change tips that prevent common problems

• Run the engine a few minutes first so the oil drains faster.
• Park on a level surface, set the parking brake, and remove the key.
• Let the muffler and engine cool enough to avoid burns.
• Recheck the level after filling, then recheck again after a short run.

Why it matters

Using the correct oil viscosity helps your Craftsman 917259580 engine lubricate properly at startup and under load. That reduces wear, improves starting, and supports longer engine life during mowing season.

Last updated: February 2026

For a Craftsman riding mower like model 917259580, you look up the model number by finding the identification plate on the tractor. On this model, the plate is located under the seat; record both the model and serial number for parts lookup and service.

Where to find the model and serial number on model 917259580

On Craftsman model 917259580, the model and serial numbers are on a plate under the seat. Use the exact model number when searching parts to match the correct deck, belts, and steering components.

• Park on a flat surface and set the parking brake
• Turn the key off and remove it
• Lift the seat (or look on the frame directly under the seat)
• Locate the ID plate and write down the MODEL NUMBER and SERIAL NUMBER
• Keep the numbers in a safe place for future reference

How to use the number for parts lookup

Once you have the model number, use it exactly as shown (including all digits) to find the right diagrams and replacement parts.

What you have	Example	What it’s used for
Model number	917259580	Finds the correct parts list and diagrams
Serial number	(varies)	Helps confirm production details for service

Why it matters

Craftsman tractors often share similar frames and mower decks across different models. Using the correct model number helps prevent ordering the wrong drive belt, blade drive belt, or deck parts.

For additional identification and maintenance details, check the 917259580 owner’s manual.

Last updated: February 2026

Craftsman model 917259580 does not have a single built-in “model year.” The year is tied to the serial number/date of purchase on the ID plate under the seat; we use that information (and the manual’s identification section) to determine when your tractor was made or sold. See the 917259580 owner's manual.

Where to find the date information

On Craftsman riding tractors like 917259580, the key identifiers are on a plate under the seat.

• Lift the seat and locate the model/serial plate
• Write down the serial number exactly as shown
• Record the date of purchase if you still have it
• Compare the serial number format to the identification guidance in the manual
• Use the serial number when ordering parts like a drive belt or blade

How “year” is typically determined (what to check)

Different Craftsman/Husqvarna-built tractors use different serial number formats. The most reliable approach is to match your serial number to the format used for your tractor’s production run.

What you have	What it tells you	Best next step
Model number (917259580)	Identifies the tractor family and parts list	Use it to look up diagrams and common parts
Serial number (under seat)	Identifies the specific unit and production info	Decode it using the manual’s ID section
Date of purchase	When it was sold (not always build date)	Use for warranty and maintenance records

Why it matters

Knowing the correct production timeframe helps us match the right components and revisions, especially for wear items like belts, blades, and mandrel parts. For example, if you are replacing a deck belt, matching by model and serial helps avoid ordering the wrong length.

If you are already servicing the mower deck, a common maintenance part for this tractor’s deck setup is the husqvarna lawn tractor mulching blade, 21-in 532134149.

Last updated: February 2026

For the Craftsman riding tractor model 917259580, replacing the engine typically costs about $900 to $3,500 total (engine plus labor). Most of the cost is the engine itself; labor commonly runs 4 to 8 hours depending on the shop and whether pulleys, belts, or wiring need attention.

What drives the total price

• Engine type and horsepower (OEM-style replacement vs. universal repower)
• Labor time (engine swap, throttle/choke setup, wiring, test run)
• Extra parts found during teardown (belts, pulleys, fuel lines, battery cables)
• Shop rates (often higher in peak mowing season)
• Condition of the tractor (rusted fasteners, damaged mounts, worn deck drive)

Typical cost breakdown (what most owners see)

Cost item	Typical range	Notes
Replacement engine	$600 to $2,800	Biggest variable; depends on brand/spec match
Labor	$300 to $1,200	Commonly 4 to 8 hours
“While you’re in there” parts	$0 to $500	Belts, pulleys, filters, fuel parts

Parts that commonly get replaced at the same time

If the engine failed due to heat, vibration, or age, we often see related wear in drive and deck components. These are common add-ons to budget for:

• Deck belt such as the lawn tractor drive belt 532144200
• Ground drive belt such as the v-belt 532138255
• Muffler if corroded or restricted (your manual calls out muffler inspection as a safety and performance item)
• Fuel system cleanup (tank, lines, filter) if old fuel sat in storage

Why it matters

An engine replacement only pays off if the rest of the tractor is solid. If the deck, mandrels, steering, and transmission are in good shape, a repower can restore years of service. If multiple major systems are worn, putting that money toward a different tractor is usually the better value.

Before you commit: quick checks we recommend

• Confirm the exact engine spec and mounting pattern in the 917259580 owner's manual
• Inspect belts and pulleys for glazing, cracks, or wobble
• Check for heavy grass and debris buildup around cooling fins and screens (overheating can damage engines)
• Verify safety interlocks and wiring are intact before reinstalling

Last updated: February 2026

Yes; replacing the engine on your Craftsman front-engine lawn tractor model 917259580 is worth it when the deck, steering, and drive system are still solid and the total engine-swap cost stays well below the price of a comparable replacement tractor. If several major systems are worn out, replacement makes more sense.

Quick decision checklist

• Deck is structurally sound (no cracks or rust-through)
• Tractor drives and stops correctly (no chronic belt slip or brake problems)
• You can match the engine shaft size, mounting pattern, and wiring
• You want to keep this tractor for attachments or familiarity
• The failure is internal (not fuel, ignition, battery, or safety switches)

Cost and condition guide

Situation	Best move	Why it matters
Deck and drivetrain are in good shape	Replace the engine	You keep a known-good chassis
Deck is damaged or cut is consistently poor	Replace the tractor	Deck repairs plus engine cost add up
Engine only clicks or will not crank	Diagnose starting system first	Often battery, wiring, or interlocks
Runs but overheats or backfires on shutdown	Tune-up and cooling service first	Maintenance issues mimic engine failure

Before you buy an engine, rule out common non-engine problems

Use the maintenance and troubleshooting sections in the 917259580 owner's manual and check:

• Disconnect the spark plug wire before servicing
• Battery and cable connections (clean and tight)
• Safety interlock switches (seat, brake, PTO)
• Cooling fins, grass screen, and shrouds (clear debris to prevent overheating)
• Deck drag (frozen mandrel or belt issues can overload the engine)

Parts that can change the math

If the tractor also needs deck-drive parts, include them in your total cost.

• Deck belt example: lawn tractor drive belt 532144200
• Spindle/mandrel example: husqvarna lawn tractor mandrel assembly 532130794

Why it matters

An engine swap restores reliability only when the rest of the Craftsman 917259580 is mechanically sound; otherwise you end up rebuilding the whole tractor.

Last updated: February 2026
