Model # 11077975800 Official Kenmore gas dryer

Here are the diagrams and repair parts for Official Kenmore 11077975800 gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 184 parts  |

Drum Belt 349533
#30

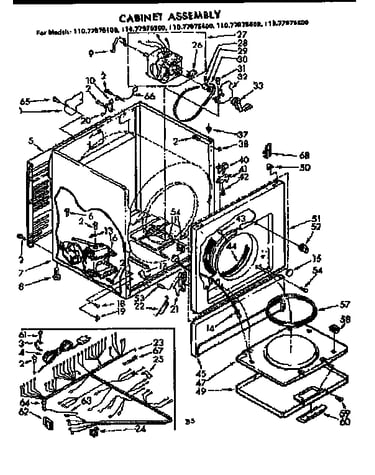

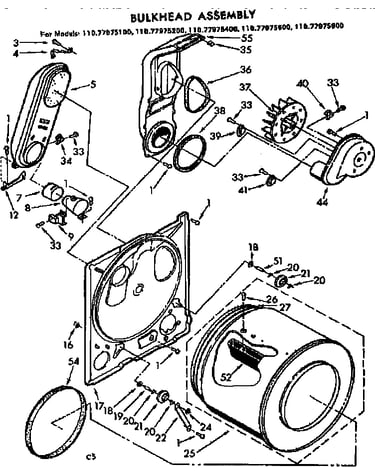

Cabinet assembly diagram

Drum belt

Part #349533

Replaced by #341241

?
Manufacturer substitution
This part replaces 349533. Substitute parts can look different from the original.
BEST SELLER
$13.10
13% OFF Phone Price : $15.10
In Stock
Door Catch 347813
#58

Cabinet assembly diagram

Door catch

Part #347813

Replaced by #279570

?
Manufacturer substitution
This part replaces 347813. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.74
71% OFF MSRP : $13.00
In Stock
Door Strike 236876
#52

Cabinet assembly diagram

Door strike

Part #236876

Replaced by #279570

?
Manufacturer substitution
This part replaces 236876. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.74
71% OFF MSRP : $13.00
In Stock
Support 349241
#21

Bulkhead assembly diagram

Support

Part #349241

Replaced by #349241T

?
Manufacturer substitution
This part replaces 349241. Substitute parts can look different from the original.
BEST SELLER
$19.79
29% OFF MSRP : $28.00
In Stock
Fuse 688841
#40

Bulkhead assembly diagram

Fuse

Part #688841

Replaced by #WP3390719

?
Manufacturer substitution
This part replaces 688841. Substitute parts can look different from the original.
BEST SELLER
$17.04
37% OFF MSRP : $27.00
In Stock
Screen 348855
#22A

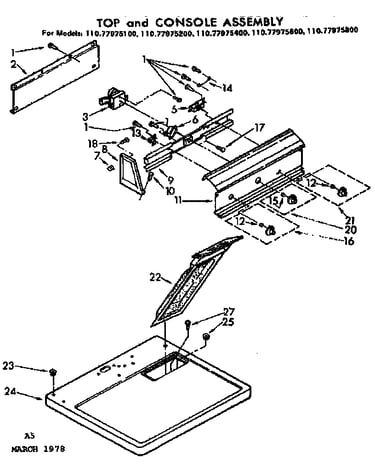

Top and console assembly diagram

Screen

Part #348855

Replaced by #W10874409

?
Manufacturer substitution
This part replaces 348855. Substitute parts can look different from the original.
BEST SELLER
$43.41
10% OFF Phone Price : $48.41
In Stock
Screen 689471
#22D

Top and console assembly diagram

Screen

Part #689471

Replaced by #W10874409

?
Manufacturer substitution
This part replaces 689471. Substitute parts can look different from the original.
BEST SELLER
$43.41
10% OFF Phone Price : $48.41
In Stock
Screen (almond) 689469
#22E

Top and console assembly diagram

Screen (almond)

Part #689469

Replaced by #W10874409

?
Manufacturer substitution
This part replaces 689469. Substitute parts can look different from the original.
BEST SELLER
$43.41
10% OFF Phone Price : $48.41
In Stock
Dryer Lint Screen Housing Foam Seal 339956
#36

Bulkhead assembly diagram

Dryer lint screen housing foam seal

Part #339956

Replaced by #WP339956

?
Manufacturer substitution
This part replaces 339956. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.09
12% OFF Phone Price : $8.09
In Stock
Dryer Door Switch 347207
#41

Cabinet assembly diagram

Dryer door switch

Part #347207

Replaced by #W10820036

?
Manufacturer substitution
This part replaces 347207. Substitute parts can look different from the original.
BEST SELLER
$23.87
35% OFF MSRP : $37.00
In Stock
