GE GDF520PGJ0BB dishwasher Parts

On your GE GDF520PGJ0BB dishwasher, the model number is printed on the rating label on the tub wall just inside the door. Open the door fully and look along the inside tub wall near the door opening.

Quick steps to locate it

• Open the dishwasher door.
• Look at the tub wall just inside the door (not the outer door panel).
• Check the left-hand side first; that is the most common placement.
• Find the rating label with both the model and serial numbers.
• Write the model number exactly as shown (letters and numbers matter).

What the label looks like

The rating label is a small factory sticker or plate with appliance details.

What you need	What it’s used for	Example for this model
Model number	Matching parts and diagrams	GDF520PGJ0BB
Serial number	Service history and warranty identification	(varies by unit)

Why it matters

We use the model number to match the correct GE dishwasher parts for your exact configuration (controls, racks, door style, and internal components). Even small model-number differences can change which parts fit.

For diagrams and model-specific details, use the GDF520PGJ0BB owner’s manual.

Last updated: February 2026

To manually reset your GE dishwasher model GDF520PGJ0BB, press and hold the Start/Reset pad for 3 seconds, then close the door so the unit cancels the cycle and drains. This clears most “stuck cycle” situations and gets the control ready to start again (see the GDF520PGJ0BB owner’s manual).

Quick reset steps (most common)

• Press and hold Start/Reset for 3 seconds.
• Close the door to let the dishwasher begin draining.
• Wait until draining stops and the cycle light turns off.
• Open the door, then select a new cycle.
• Press Start and close the door within about 10 seconds to begin.

If it still will not start after the reset

These checks fix the most common “has power but won’t run” complaints:

• Confirm the door is fully latched (a weak latch can prevent starting).
• Make sure the water supply valve is turned on.
• Check the breaker (reset if tripped).
• If the unit tries to start but acts erratic, inspect the door latch assembly; a failing latch can interrupt operation (see GE dishwasher door latch lock WD21X10490).
• If you see an error code, match it to the code list before replacing parts (see GE electronic dishwasher error codes).

What “reset” does (and does not) do

Action	What you’ll notice	What it’s for
Cancel/drain reset (hold Start/Reset 3 sec)	Unit drains, cycle light turns off	Clears a stuck cycle and returns controls to idle
Power reset (breaker off then on)	Display/pads reboot	Helps after a power glitch or control lockup

Why it matters

A proper Start/Reset cancel-and-drain prevents standing water, clears a paused cycle, and helps you avoid misdiagnosing a control board or pump problem when the issue is simply a latched-door or stuck-cycle condition.

Last updated: February 2026

A GE dishwasher typically lasts 10 to 12 years with normal household use. For your GE GDF520PGJ0BB, consistent cleaning, correct detergent use, and fixing small issues early (like poor draining or weak spray) help you reach the full service life; see the GDF520PGJ0BB owner’s manual for care and cleaning routines.

What affects lifespan the most

• Water quality and buildup (hard water film, scale, and detergent residue)
• How often you run it (daily use wears pumps, seals, and racks faster)
• Loading habits (blocked spray arms reduce cleaning and strain the circulation system)
• Drying heat and ventilation (heating element cycles add wear)
• Maintenance frequency (filters, sump area, and door seals)

Quick maintenance checklist (high impact)

• Scrape off hard soils and avoid heavy pre-rinsing; load so spray can reach all surfaces.
• Use dishwasher detergent and rinse aid as recommended in the GDF520PGJ0BB owner’s manual.
• Clean the tub and address film buildup several times per year.
• Inspect spray arms for clogs; replace if cracked or warped (example: dishwasher spray arm, lower WD22X33499).
• If drying performance drops, check heating performance and wiring connections; a failing heater can shorten overall life (example: dishwasher heating element WD05X30818).

Common “end-of-life” symptoms and what they usually point to

Symptom	Most common cause	Typical fix path
Dishes not getting clean	Clogged spray arm, weak circulation	Clean/replace spray arm; check circulation pump
Not draining well	Drain restriction or weak drain pump	Clear hose/air gap; check drain pump and hose
Won’t start or stops mid-cycle	Door latch issue or control problem	Check latch alignment; test latch and controls
Leaks at the door	Worn gasket or misalignment	Inspect/replace door/tub gasket

Why it matters

Knowing the typical 10 to 12-year lifespan helps you decide whether to repair or replace. If your GDF520PGJ0BB is near that age and needs a major component (like a circulation pump or control board), comparing repair cost to replacement value is the practical next step.

Last updated: February 2026

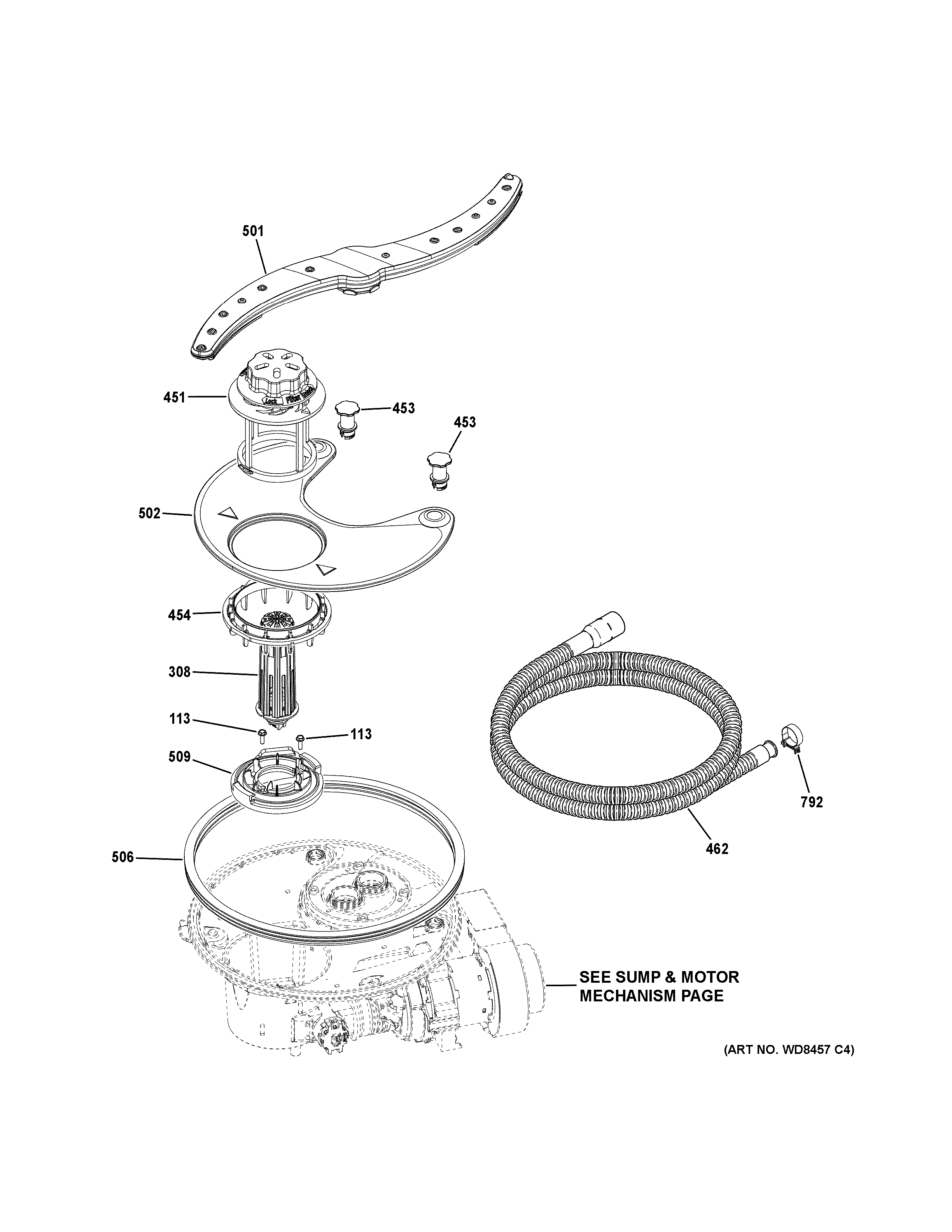

The most common GE dishwasher problem we see is poor draining or poor cleaning caused by buildup in the filter and wash system. On the GE GDF520PGJ0BB, start by cleaning the filters and checking for drain restrictions before replacing parts.

What to check first (fast, no-parts steps)

• Clean the filters regularly; GE recommends inspecting them periodically (about every other month, depending on use), and cleaning if wash performance drops or dishes feel gritty.
• Confirm the door is fully closed and latched; an unlatched door can interrupt the cycle and trigger beeping.
• If you have an air gap, clean it; a clogged air gap can cause draining problems.
• Use fresh automatic dishwasher detergent and keep rinse aid filled for better drying and fewer spots.
• Reset the cycle correctly: press Start to run; press Start again while running only if you intend to cancel.

Common symptoms and the most likely causes

Symptom	Most common cause	What usually fixes it
Water left in tub	Clogged filter, drain restriction, drain pump issue	Clean filters, clear hose/air gap; test drain pump
Dishes not clean	Dirty filters, spray arm blockage, circulation issue	Clean filters; clear spray arm holes; check pump
Won’t start or stops	Door not latched, control issue	Check latch; verify Start/door sequence
Leaks at door	Worn or mis-seated gasket	Inspect/replace door seal

Parts that commonly solve these problems on GDF520PGJ0BB

If cleaning and basic checks do not restore normal operation, these are frequent repair parts for this model:

• Dishwasher spray arm, lower WD22X33499: clogged or damaged spray arm can reduce wash pressure.

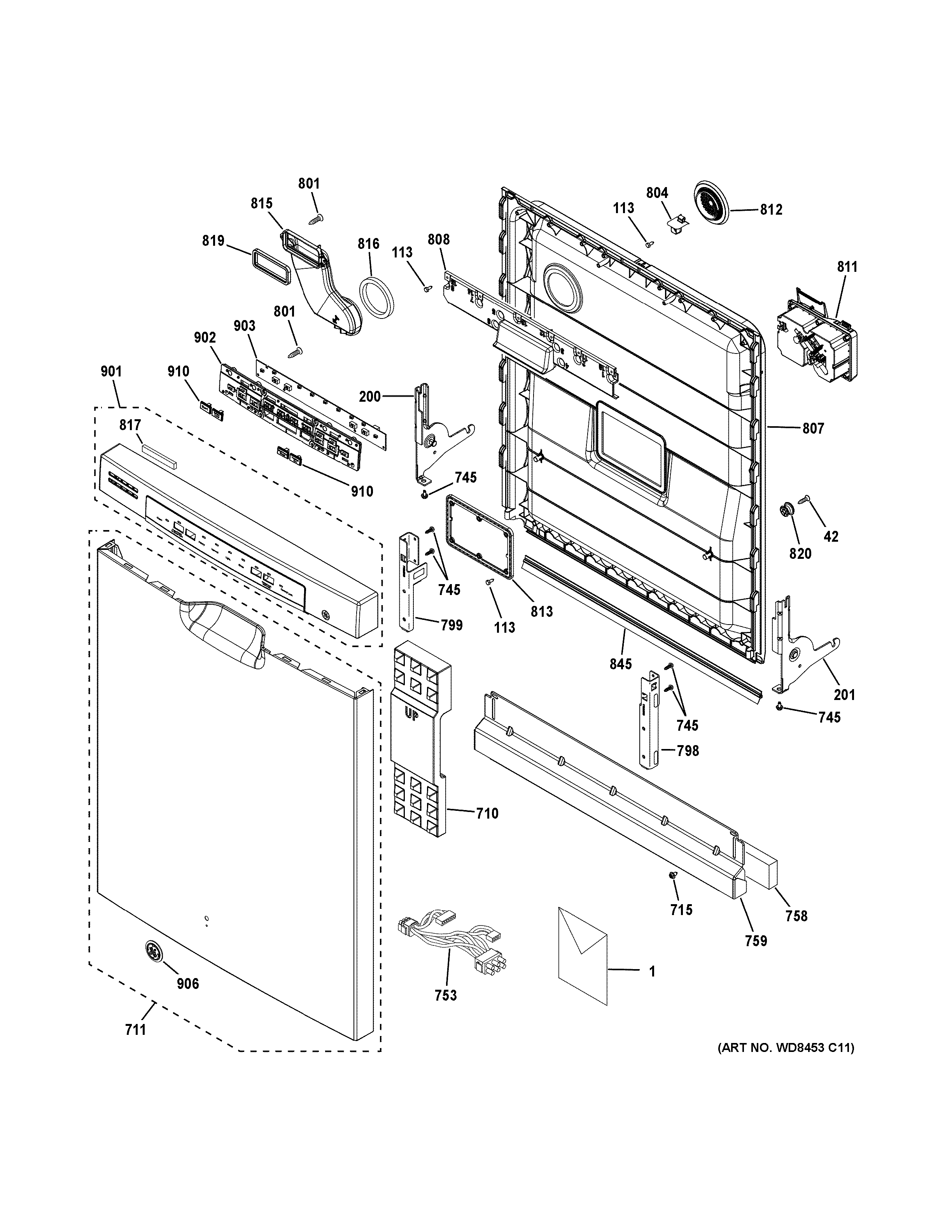

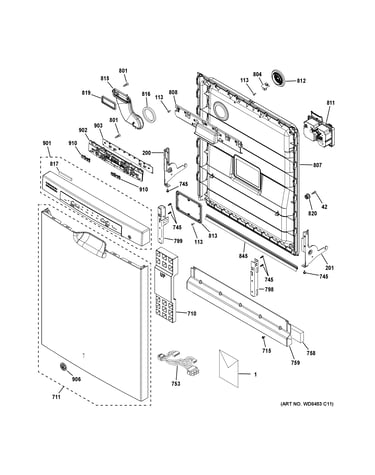

• GE dishwasher door latch lock WD21X10490: a weak latch can prevent starting or cause mid-cycle stops.
• Dishwasher drain hose WD24X10062: kinks, clogs, or poor routing can lead to slow or no drain.

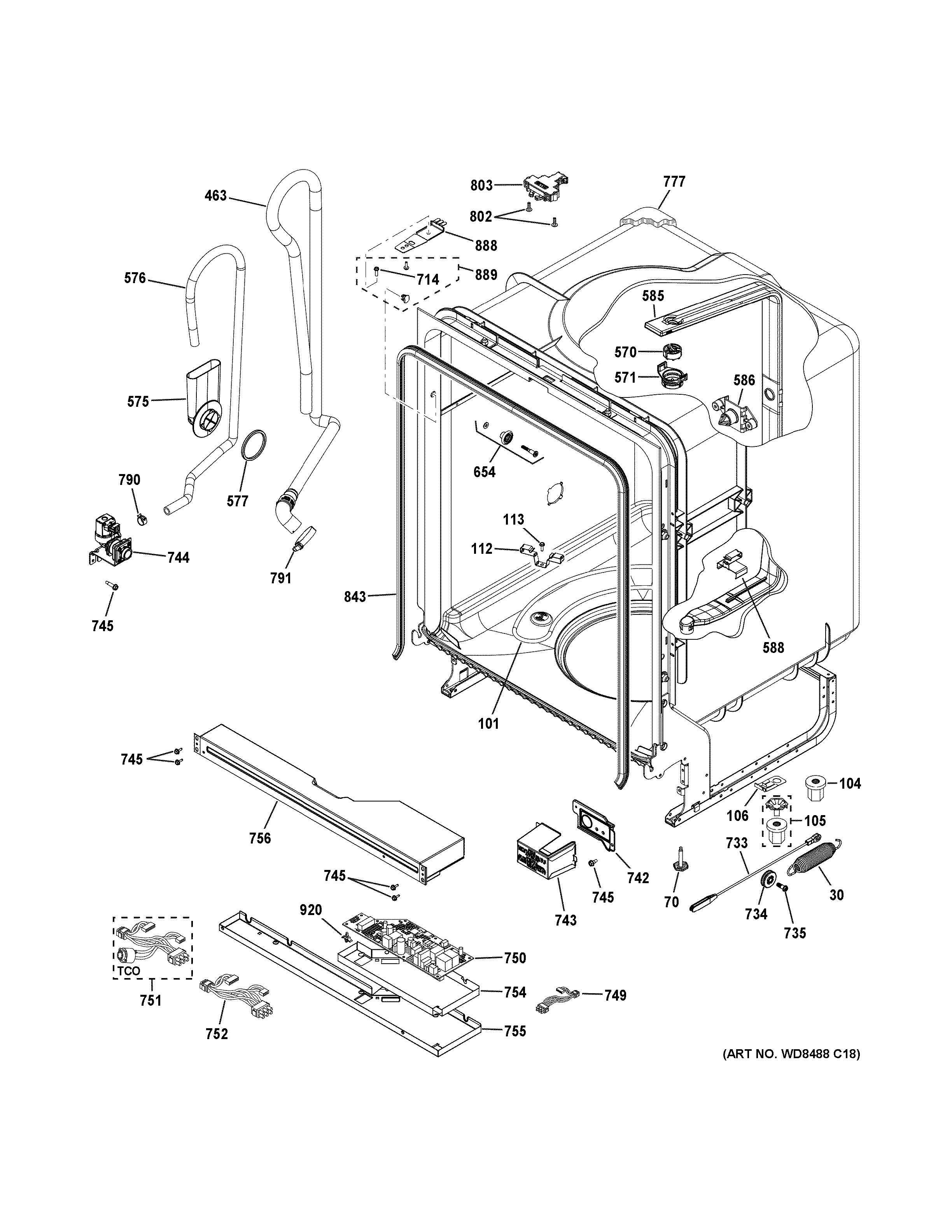

• Dishwasher tub gasket WD08X23476: helps stop leaks around the door opening.

Why it matters

Drain and wash performance issues often look like “the dishwasher is failing,” but they are frequently maintenance-related. Keeping filters and the drain path clear helps the circulation pump and spray arms do their job, improves cleaning, and reduces repeat clogs.

For model-specific operating and maintenance steps, follow the GDF520PGJ0BB owner’s manual. For mounting, drain hose routing, and service-access requirements, use the GDF520PGJ0BB installation guide.

Last updated: February 2026
