How many cubic feet is my Kenmore Elite refrigerator?
Your Kenmore Elite refrigerator model 79574025410 is a 30.6 cubic foot standard-depth refrigerator. For the exact configuration details (features, controls, and specifications) that apply to your unit, use the 79574025410 owner's manual.
How to confirm the capacity on the appliance
We recommend verifying the capacity using at least one of these quick checks:
- Look for the model and rating label inside the fresh food compartment (often on a side wall)
- Check the specifications section in the 79574025410 owner's manual
- Match the model number exactly: 79574025410 (all digits must match)
- If you are comparing listings, confirm it is the same series shown in the manual (795.7402_ / 7404_ family)
What “30.6 cu. ft.” means in practical terms
Capacity is the total interior volume of the refrigerator and freezer compartments combined. Usable space can feel different depending on shelving, ice maker components, and door bin layout.
| Term | What it refers to | What can change it |
|---|---|---|
| Total capacity | Combined refrigerator + freezer volume | Fixed by design |
| Usable space | How much you can actually store | Shelves, bins, ice storage, air channels |
| Standard-depth | Cabinet depth style | How far it projects past counters |
Why it matters

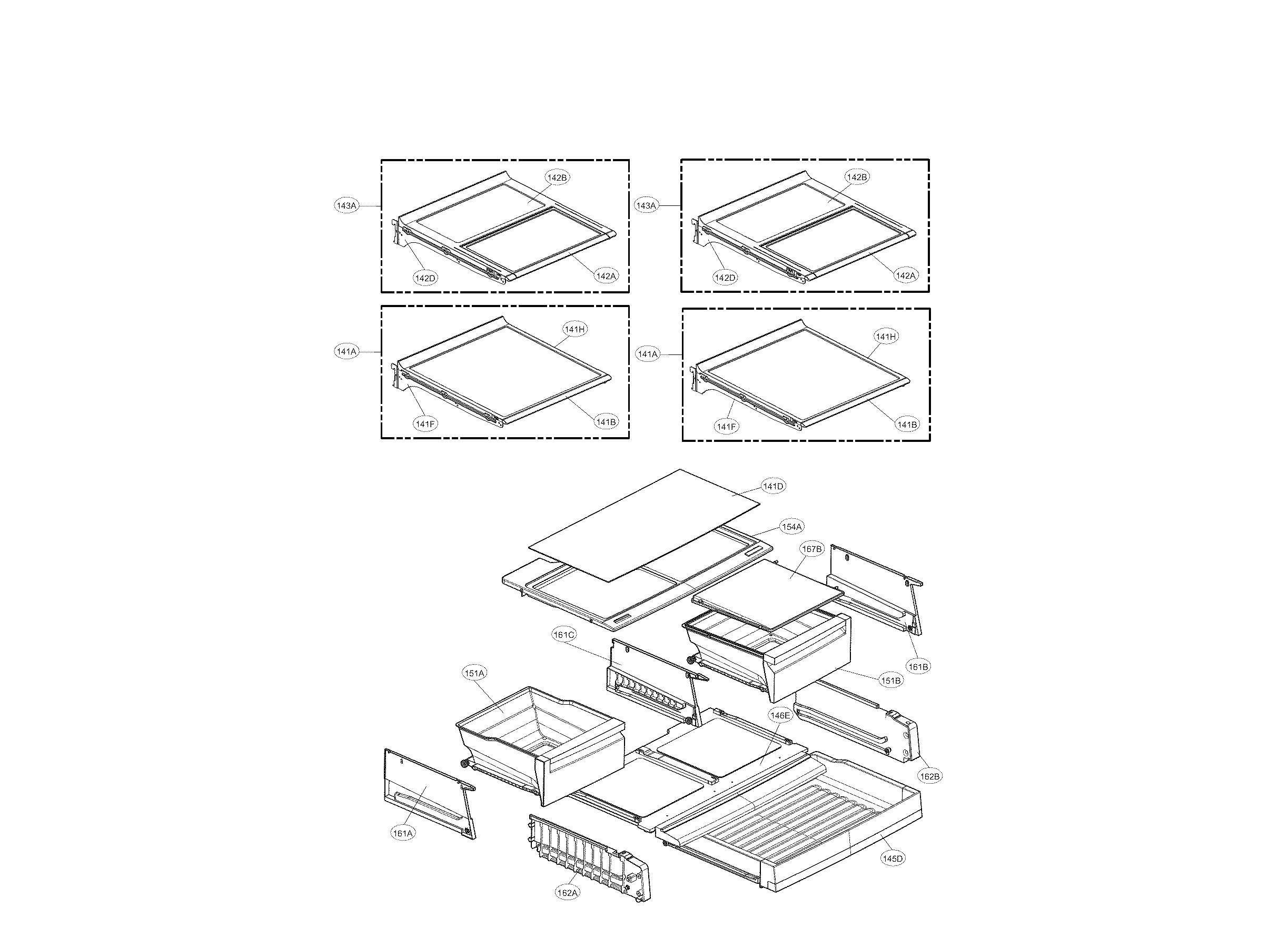

Knowing the cubic feet helps us match the right parts and accessories for your 79574025410, and it also helps when comparing replacement shelves, door bins, and filtration items.
Last updated: January 2026
What does code er if mean on Kenmore Elite fridge?

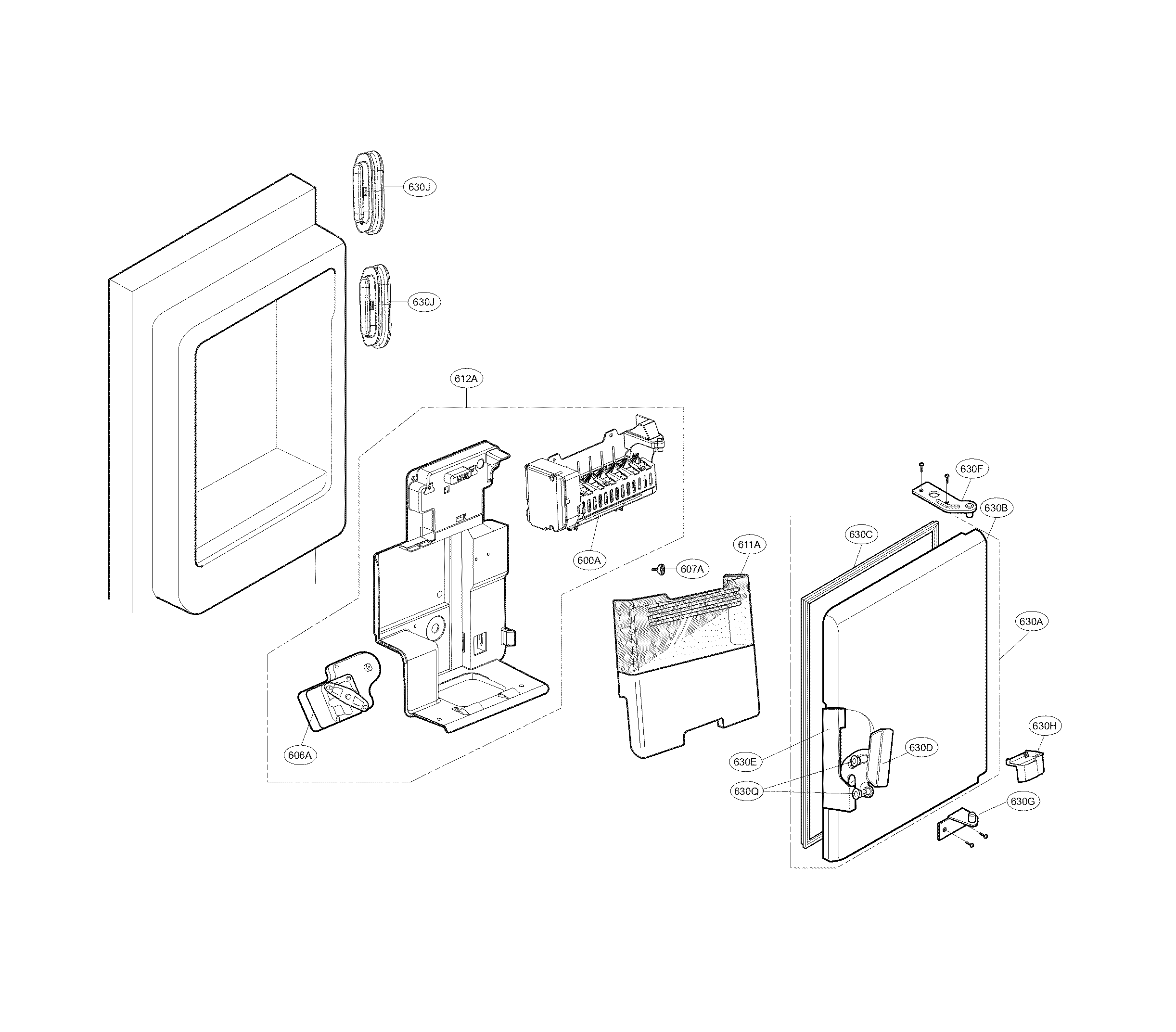

On Kenmore Elite model 79574025410, the ER IF error points to an ice fan problem in the freezer area. That fan moves cold air through the ice maker air ducting; when airflow is blocked by frost or the fan is failing, the control detects it and triggers ER IF. See the troubleshooting section in the 79574025410 owner's manual.
What to check first (fast, no parts)
- Power reset: Unplug the refrigerator (or turn off the breaker) for 5 minutes, then restore power.
- Ice buildup: Look for frost or ice blocking vents near the ice maker area; heavy frost usually means airflow is restricted.
- Door sealing: Make sure doors close fully and gaskets seal; warm air leaks can create frost that jams the ice fan.
- Freezer temperature: Confirm the freezer is set near 0°F; warmer temps can cause slow ice production and odd fan behavior.
- Airflow: Do not pack items tightly against the rear freezer panel or vents.
Likely causes and what they mean
| What you notice | Most common cause | What to do next |
|---|---|---|
| Loud buzzing or grinding from freezer | Ice fan hitting frost or failing motor | Defrost any heavy ice; if noise returns, plan a fan-related repair |
| ER IF returns after a full defrost | Fan motor weak, wiring issue, or control not reading fan feedback | Inspect connectors; consider control diagnosis |
| Heavy frost on freezer back wall | Defrost system issue causing airflow blockage | Check for recurring frost patterns and defrost components |
Parts that are commonly involved on this model
If ER IF keeps coming back after clearing ice and confirming good airflow, we typically focus on fan/airflow and defrost sensing components.
Why it matters
The ice fan is what keeps the ice maker area cold. When it cannot move air, ice production drops, cubes can clump, and freezer temperatures can become uneven, which can affect food quality.
When to use Kenmore Connect
Your manual describes using Kenmore Connect to transmit diagnostic data to a specialist (it uses the Freezer Temp button and the speaker area near the right hinge). Follow the steps in the 79574025410 owner's manual if support asks you to run it.
Last updated: January 2026
What size is Kenmore refrigerator model 79574025410?
The Kenmore Elite refrigerator model 79574025410 is a bottom-mount style unit; the exact exterior dimensions (width, depth, height) vary by configuration and are listed in the specifications section of the 79574025410 owner's manual. For planning space, most 33-inch-class bottom-mount refrigerators are roughly 33 in. wide and 66 to 70 in. tall.
How to confirm the exact dimensions for your 79574025410
Use the model’s spec and installation information so you can measure correctly for door swing, leveling, and airflow.
- Check the specifications and installation pages in the 79574025410 owner's manual
- Measure width at the widest point (often the door or hinge area)
- Measure height from floor to top of hinge cover (after leveling)
- Measure depth two ways: cabinet only and with handles
- Plan clearance: at least 2 inches behind the refrigerator and about 24 inches in front for door opening
Space planning checklist (what to measure)
| Measurement | What to include | Why it matters |
|---|---|---|
| Width | doors/hinges if they stick out | prevents binding in the opening |
| Height | floor to top of hinge cover | avoids cabinet trim interference |
| Depth | with handles and without handles | ensures it fits your kitchen layout |
| Door swing clearance | front clearance | lets doors and drawers open fully |
Why it matters

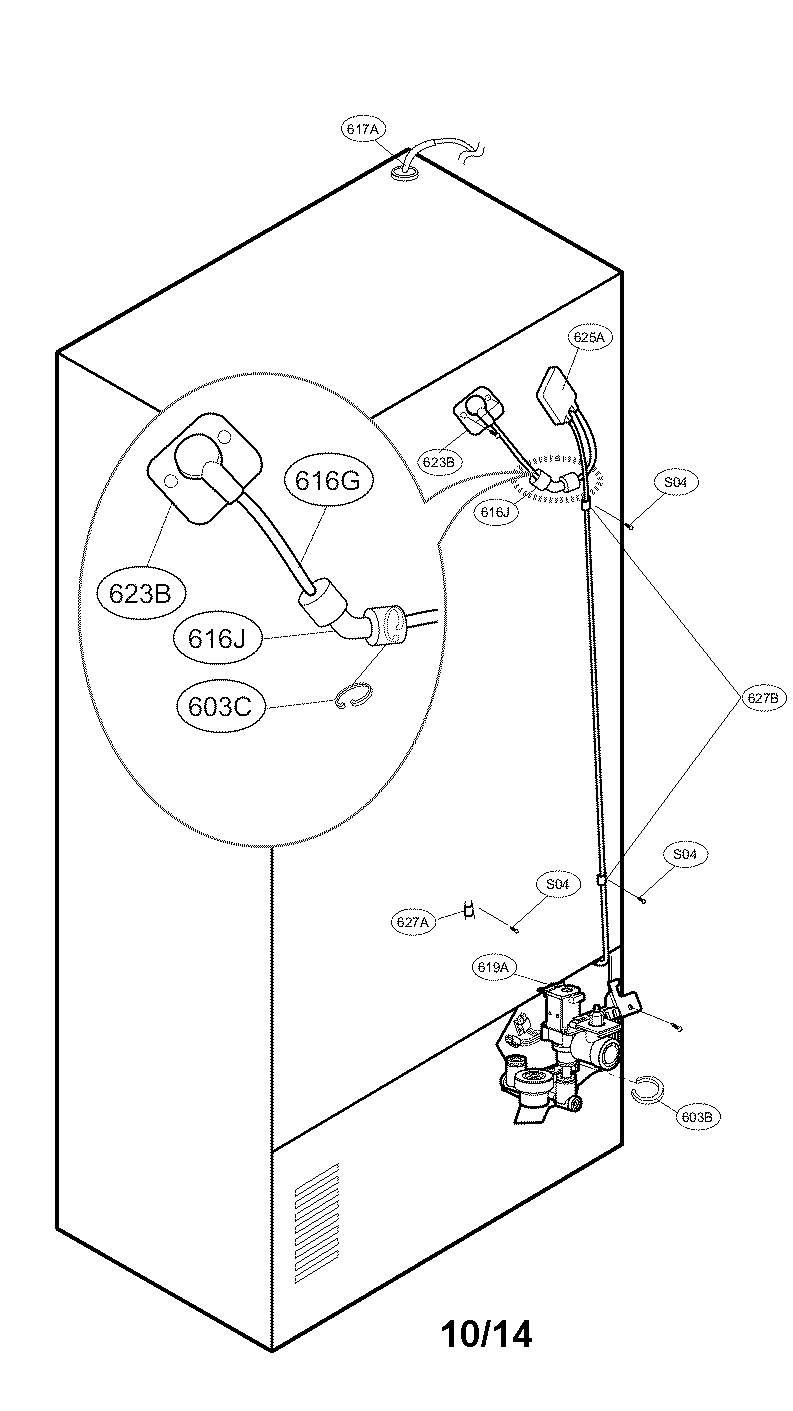

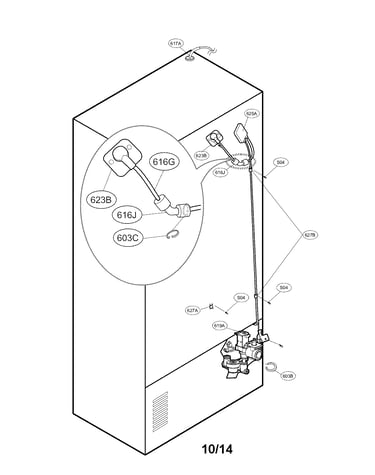

Correct sizing prevents poor airflow (which can hurt cooling performance), makes door removal easier when moving through tight openings, and helps avoid installation issues with the water line for the ice maker.
Last updated: January 2026
