Samsung FER300SX/XAA-00 electric freestanding range Parts

On your Samsung FER300SX electric range, many error codes will clear after a power reset; turn the range off at the breaker for 5 minutes, then restore power. If the display shows TEST or DEMO, you must turn off demo/test mode using the keypad steps in the FER300SX use & care manual.

Step 1: Try the safe reset first

1. Turn OFF the range circuit breaker (or unplug the cord if accessible).
2. Wait 5 minutes.
3. Restore power and see if the code returns.

If the code comes back right away, it is usually detecting an ongoing problem (keypad issue, temperature sensor issue, wiring problem, or control problem).

Step 2: If you see “TEST” or “DEMO”, turn off demo/test mode

Samsung uses different key sequences across model families, so we recommend following the exact steps for FER300SX in the FER300SX use & care manual. Common sequences you may see on similar Samsung ranges include:

• Press and hold CLEAR/OFF for 3 to 5 seconds
• Press and hold OPTIONS for 3 seconds, then select 0, then START/SET
• Press BOIL + 7, then 0, then START (toggles demo/test on or off)

What to do if the error code will not clear

Quick checks that often solve repeat codes

• Confirm the range has a solid 240 VAC supply (a tripped half-breaker can cause odd behavior)
• Cancel cooking modes and let the oven cool; some codes clear after temperatures normalize
• Check for stuck or wet keys on the touch panel; wipe and dry the control area
• If you are comfortable doing so, shut off power and inspect for a loose wire connection at the rear (no live voltage)
• If the code is heat-related, avoid repeated resets; diagnose the cause first

Tools and references that help

What you check	What it tells you	Typical tool
Incoming power at terminal block	Confirms full 240 VAC supply	Multimeter
Oven temperature sensor circuit	Finds open/shorted sensor or wiring	Multimeter
Keypad response	Identifies stuck key behavior	Visual test

Why it matters

Clearing an error code without fixing the cause can lead to repeat shutdowns, poor baking performance, or overheating. A proper reset plus the correct demo/test mode steps gets the FER300SX back to normal operation and helps you pinpoint when a part or wiring repair is actually needed.

Last updated: January 2026

The most common problems we see on the Samsung FER300SX electric freestanding range involve heating performance (oven not baking evenly or not heating), surface burner control issues, and door or self-clean latch symptoms. These issues often trace back to a failed heating element, temperature sensing, or a worn control or latch component.

Most common symptoms and likely causes

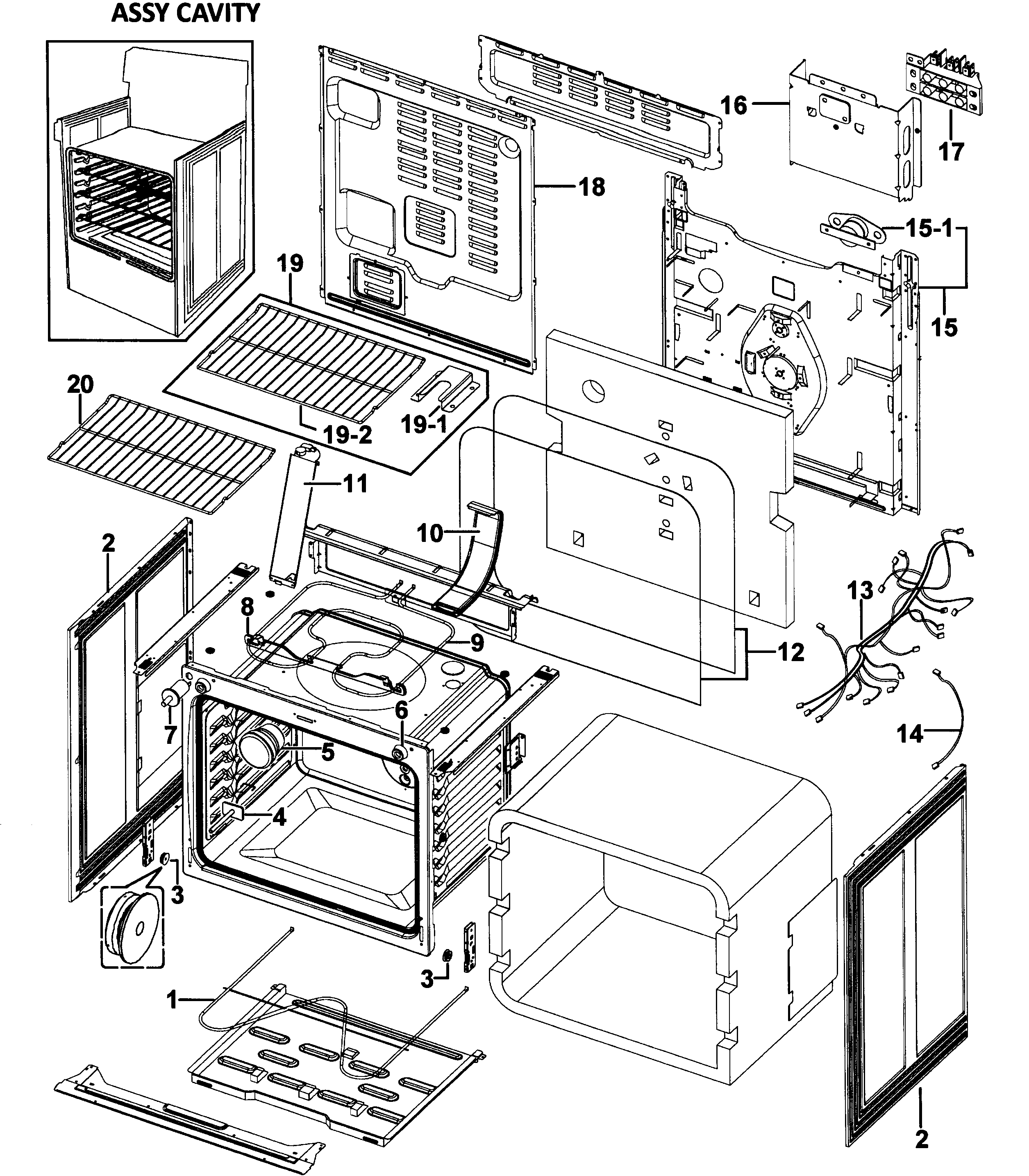

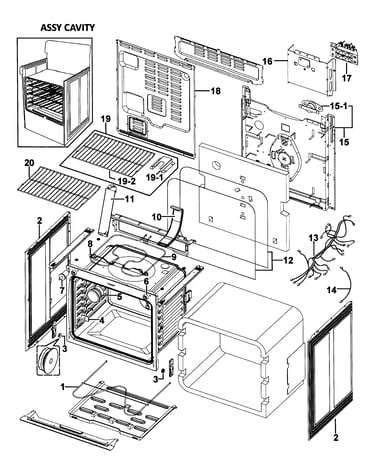

• Oven not heating or takes too long: failed range bake element (DG47-00038A) or Samsung range broil element (DG47-00037A)
• Oven temperature inaccurate: failed Samsung range oven temperature sensor (DG32-00002B)

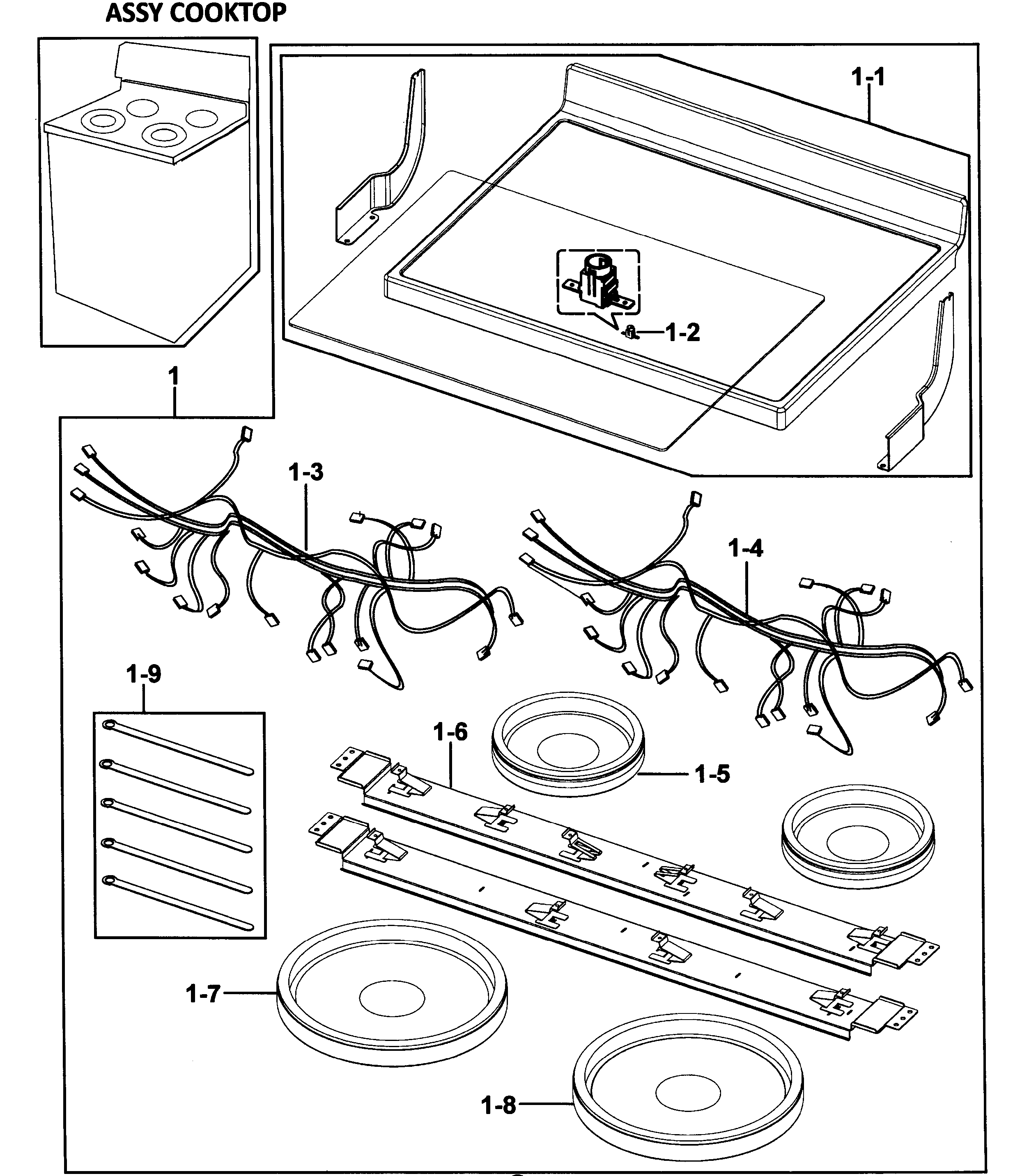

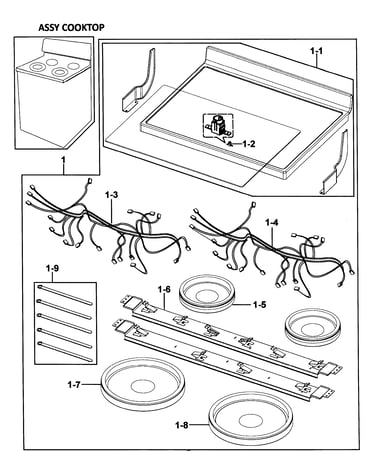

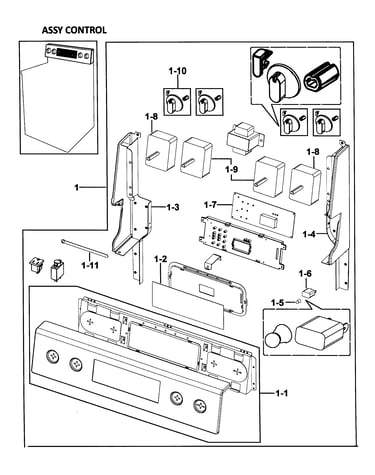

• One surface element will not heat or stays on high: failed Samsung range surface element control switch (DG44-01002A) or range surface element control switch (DG44-01001A)

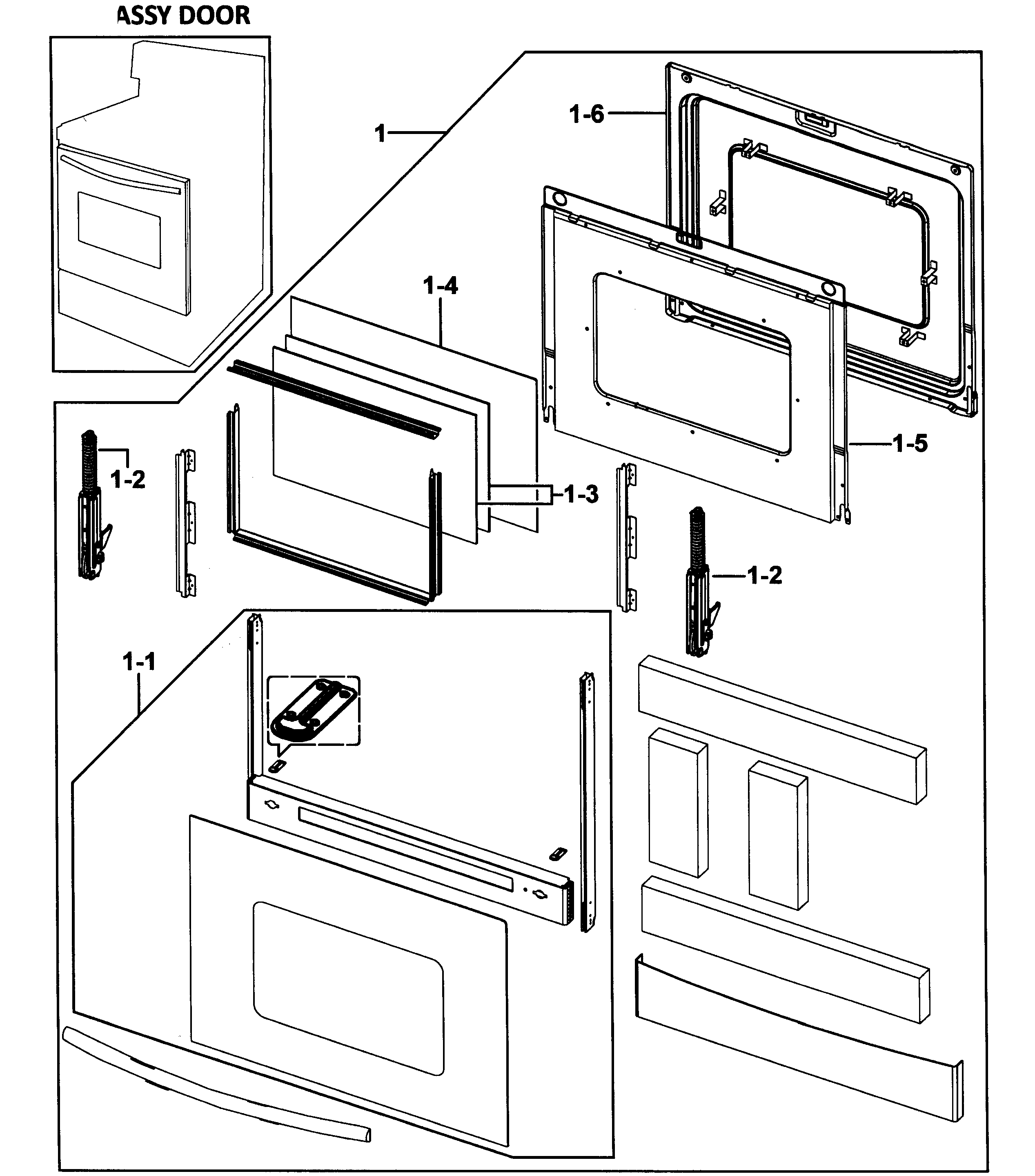

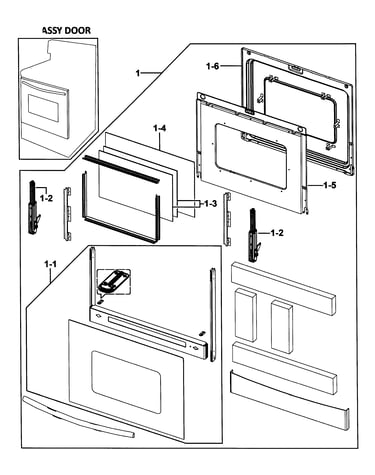

• Door will not lock or unlock for self-clean: worn range door latch (DG66-00017C) or a door switch issue

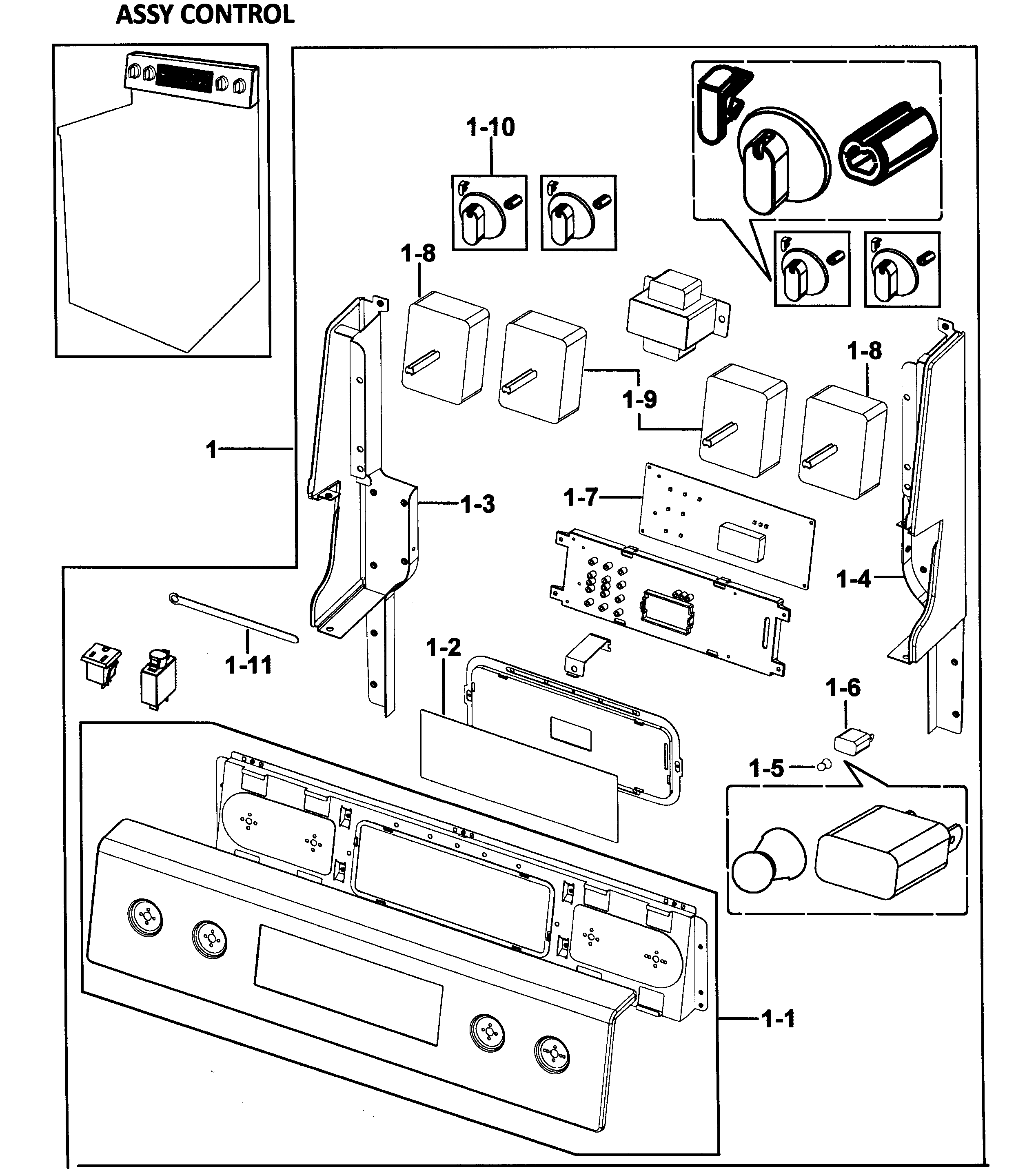

• Oven light or indicator behavior is wrong: failed range indicator light (DG64-00131A)

Quick checks we recommend first

1. Confirm power: An electric range needs a full 240V supply; a tripped breaker can leave you with partial power (lights work, heat does not).
2. Match the symptom to the circuit: Bake uses the bake element; broil uses the broil element; surface burners use their own switches and elements.
3. Look for visible damage: Blistering, cracks, or burn spots on elements; loose or heat-damaged connectors.
4. Use the wiring diagram and test points: Follow the diagnostic steps in the FER300SX owner's manual.

Common issue-to-part guide

Problem you notice	Most common part involved	What it affects
Oven will not bake	Bake element DG47-00038A	Lower oven heat
Oven temp swings	Temperature sensor DG32-00002B	Temperature control
Burner stuck on high	Element control switch DG44-01002A / DG44-01001A	Surface heat regulation
Self-clean latch trouble	Door latch DG66-00017C	Door locking system

Why it matters

Heating and door-latch problems can cause undercooking, overheating, or self-clean interruptions. Catching a weak element, bad sensor, or failing switch early helps prevent wiring damage and repeat failures.

Last updated: March 2026

A Samsung electric freestanding range like model FER300SX typically lasts 13 to 15 years with normal use and basic maintenance. Keeping the oven temperature accurate, door sealing tight, and surface elements working correctly helps you reach that lifespan.

What affects lifespan most

• Heat stress and heavy use (daily baking, frequent self-clean cycles)
• Power quality (loose outlet/cord connections can damage wiring)
• Door seal and hinge condition (heat loss makes components work harder)
• Element and sensor health (uneven heating increases run time)
• Cleaning habits (spills left to bake on can damage finishes and parts)

Quick maintenance checklist (high impact)

• Wipe up spills after the range cools; avoid harsh abrasives on glass and stainless.
• Keep the oven door closing squarely; replace worn hinges if the door sags.
• If baking temps seem off, test and replace the sensor if needed.
• Replace weak heating elements that blister, arc, or heat unevenly.
• Confirm the range is stable and level to reduce door and frame stress.

Common wear items and what they do

Symptom	Likely wear item	What it affects
Oven temp swings, underbakes	Samsung range oven temperature sensor DG32-00002B	Temperature accuracy and bake times
No/weak bake heat	Range bake element DG47-00038A	Baking performance
No/weak broil heat	Samsung range broil element DG47-00037A	Broiling and preheat assist
Door won’t close tightly	Range oven door hinge	Heat retention and cooking consistency

Why it matters

A range that holds temperature and seals properly cooks faster, uses less energy, and puts less strain on the control system and wiring. That directly extends the service life of your FER300SX.

For model-specific care and operating guidance (including cleaning and self-clean recommendations), use the FER300SX owner's manual.

Last updated: March 2026
