Samsung
Bottom-Mount Refrigerator

Model #RF217ACRS/XAA-00 Samsung refrigerator

Here are the diagrams and repair parts for Samsung RF217ACRS-XAA-00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manualError Codes

    Showing 10 of 239 parts

    Refrigerator Spring#4-11

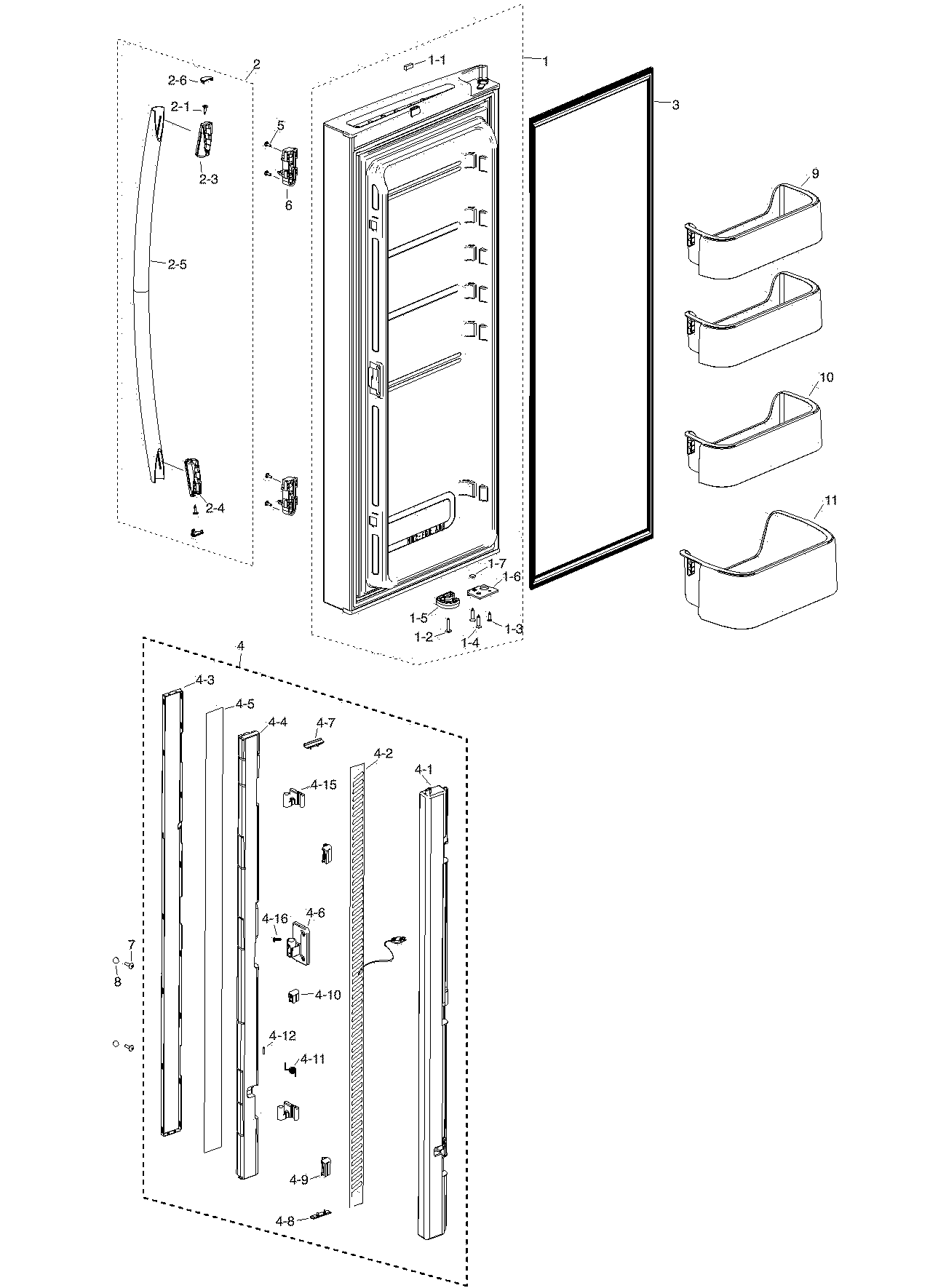

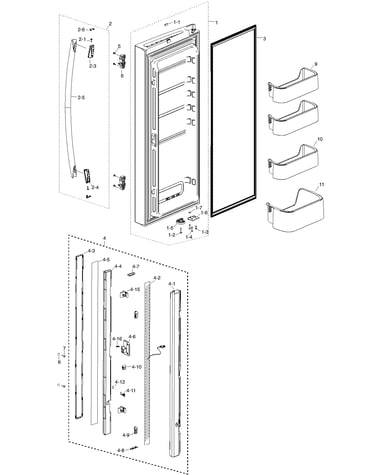

    Refrig l door Diagram

    Refrigerator spring

    Part #DA81-01345A
    Replaced by #DA81-01345B
    ?
    Manufacturer substitution
    This part replaces DA81-01345A. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    In Stock
    $6.69
    Refrigerator Ice Maker Assembly#2

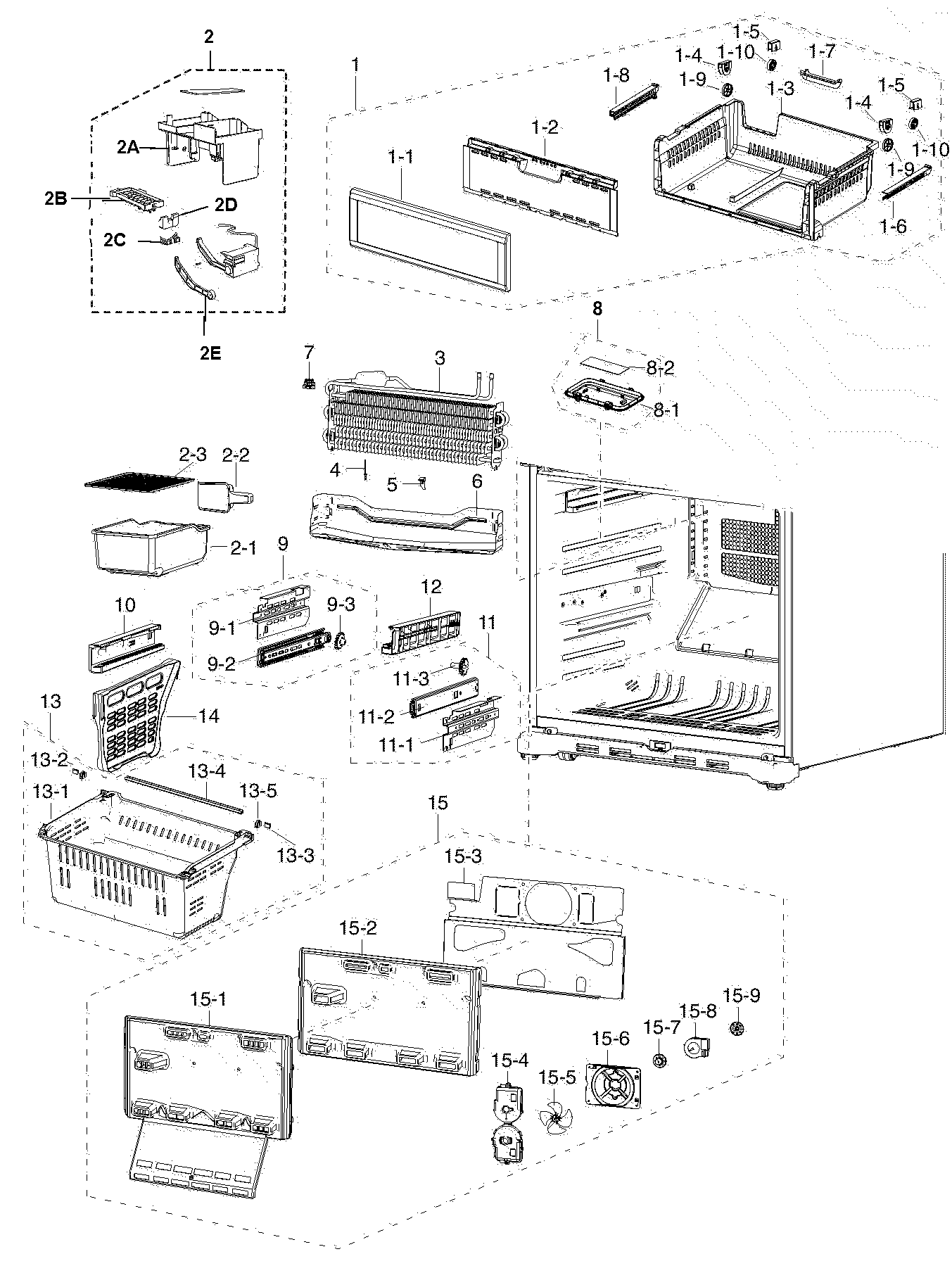

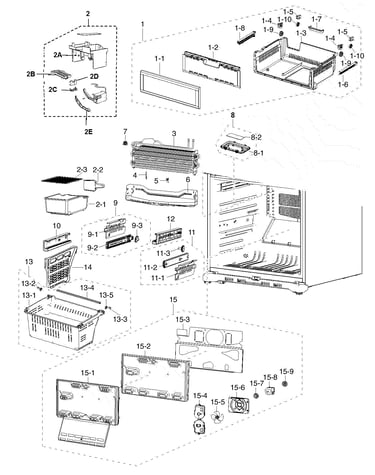

    Freezer assy Diagram

    Refrigerator ice maker

    Part #DA97-05037C
    Replaced by #DA97-07603B
    ?
    Manufacturer substitution
    This part replaces DA97-05037C. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $145.39
    Refrigerator Ice Maker Assembly#2A

    Freezer assy Diagram

    Refrigerator support

    Part #DA61-03213B
    Replaced by #DA97-07603B
    ?
    Manufacturer substitution
    This part replaces DA61-03213B. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $145.39
    Refrigerator Ice Maker Cube Tray#2B

    Freezer assy Diagram

    Refrigerator ice maker cube tray

    Part #DA63-02284B
    BEST SELLER
    In Stock
    $25.49
    Refrigerator Fresh Food Evaporator Cover and Fan Assembly#10

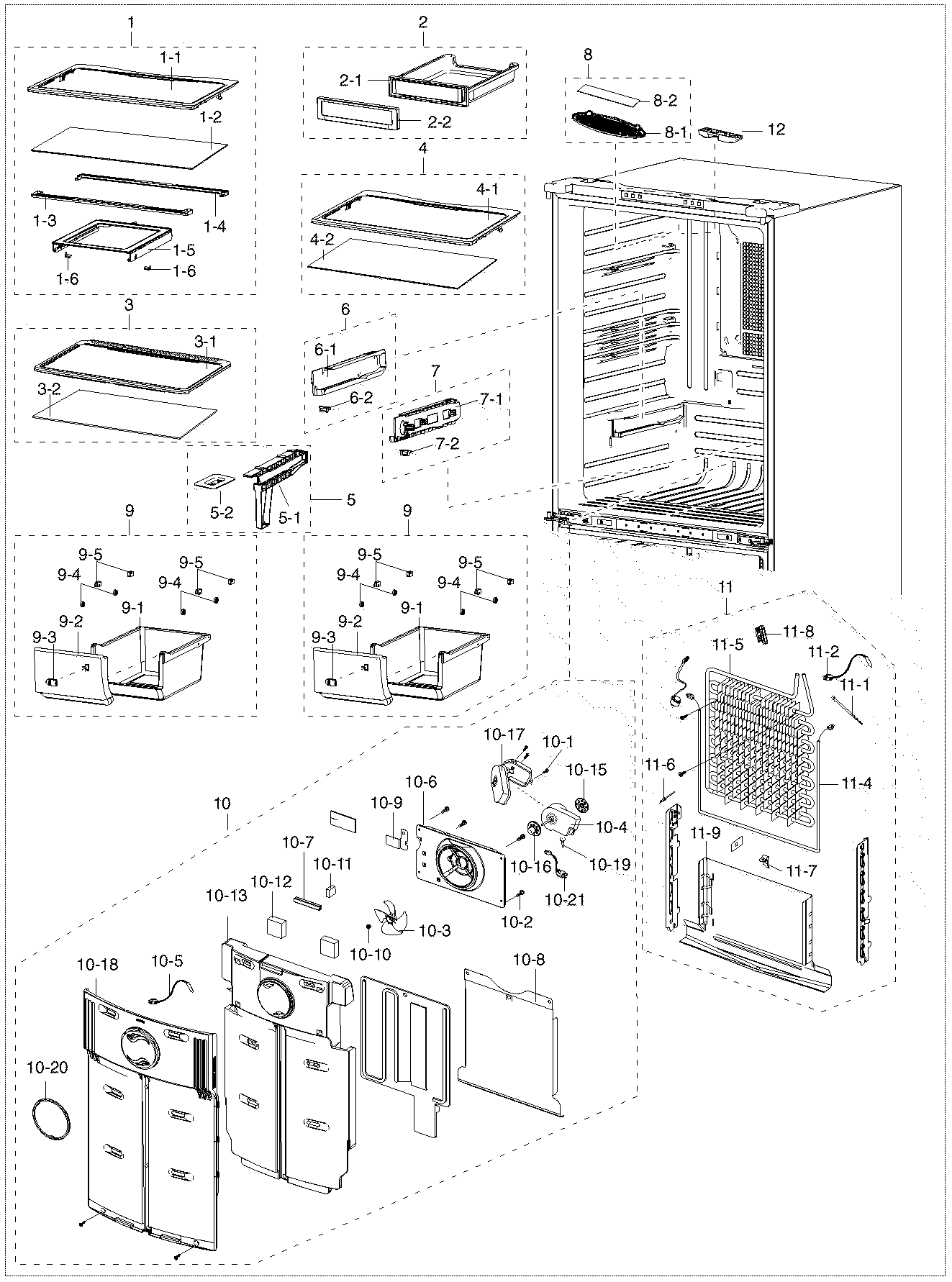

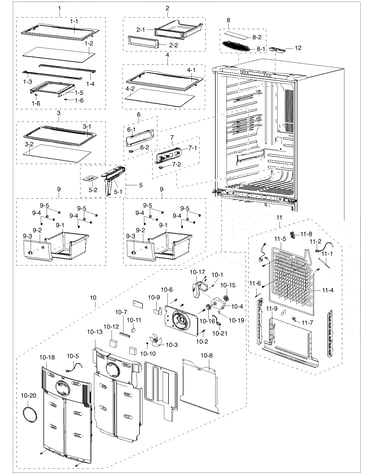

    Refrig asy Diagram

    Refrigerator cover assembly

    Part #DA97-06656F
    Replaced by #DA97-11823A
    ?
    Manufacturer substitution
    This part replaces DA97-06656F. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $136.99

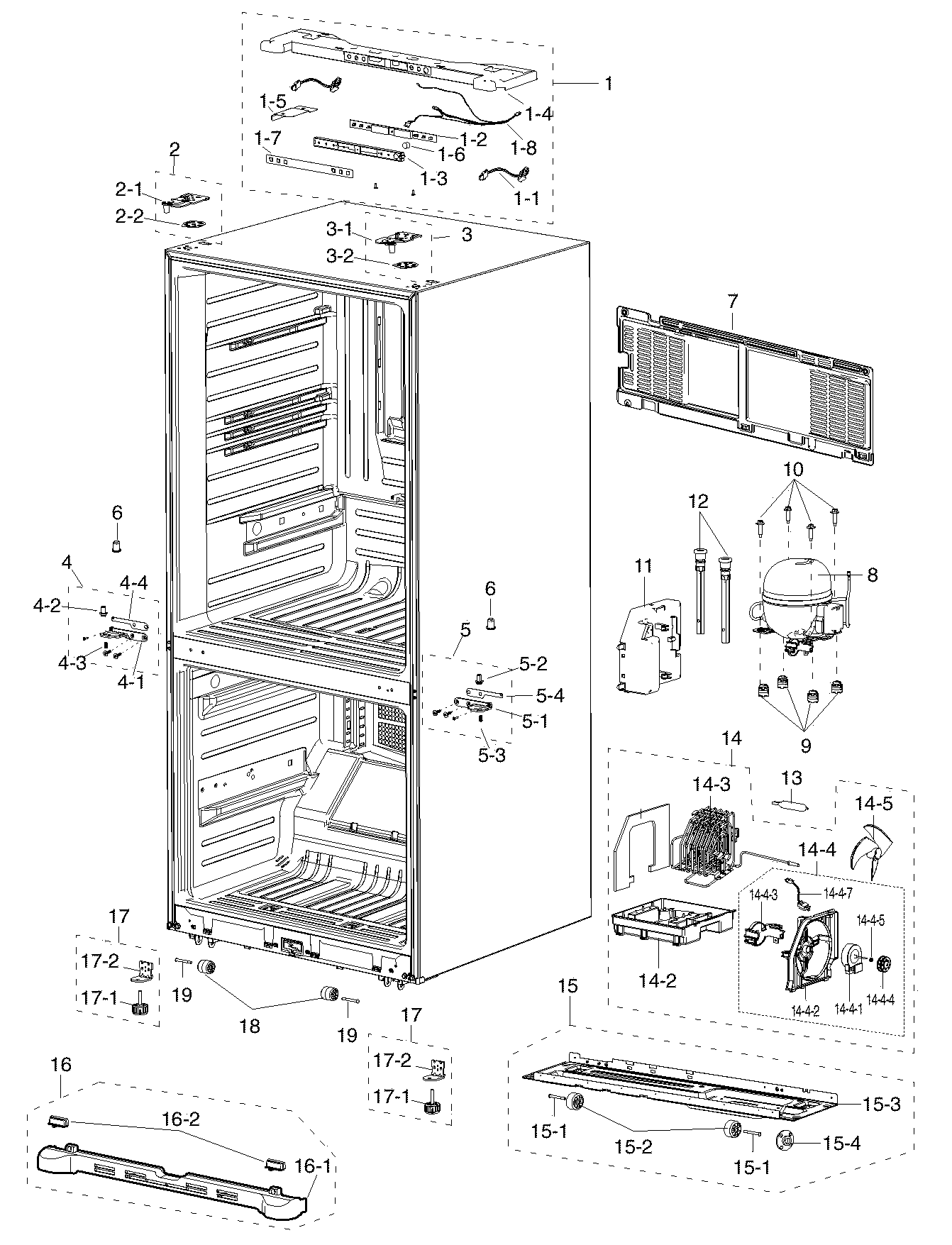

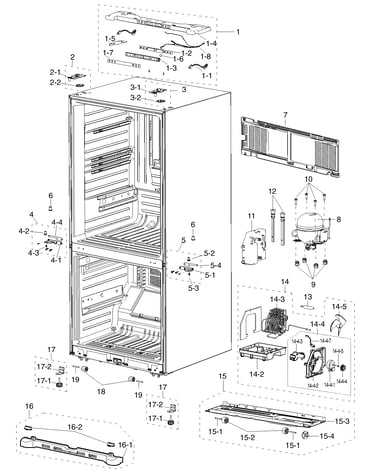

    Refrigerator Compressor Start Relay#NI

    Freezer assy Diagram

    Refrigerator compressor start relay

    Part #DA35-00103B
    BEST SELLER
    In Stock
    $60.59
    Refrigerator Defrost Bi-Metal Thermostat

    See All Related Diagrams

    Refrigerator protector

    Part #DA47-00243C
    Replaced by #DA47-00243K
    ?
    Manufacturer substitution
    This part replaces DA47-00243C. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $35.19
    Refrigerator Flipper Assembly#4

    Refrig l door Diagram

    Refrigerator flipper assembly

    Part #DA97-07661C
    BEST SELLER
    In Stock
    $113.87
    Refrigerator Door Hinge#4-15

    Refrig l door Diagram

    Refrigerator door hinge

    Part #DA61-03230B
    BEST SELLER
    This item is not returnable
    In Stock
    $6.09

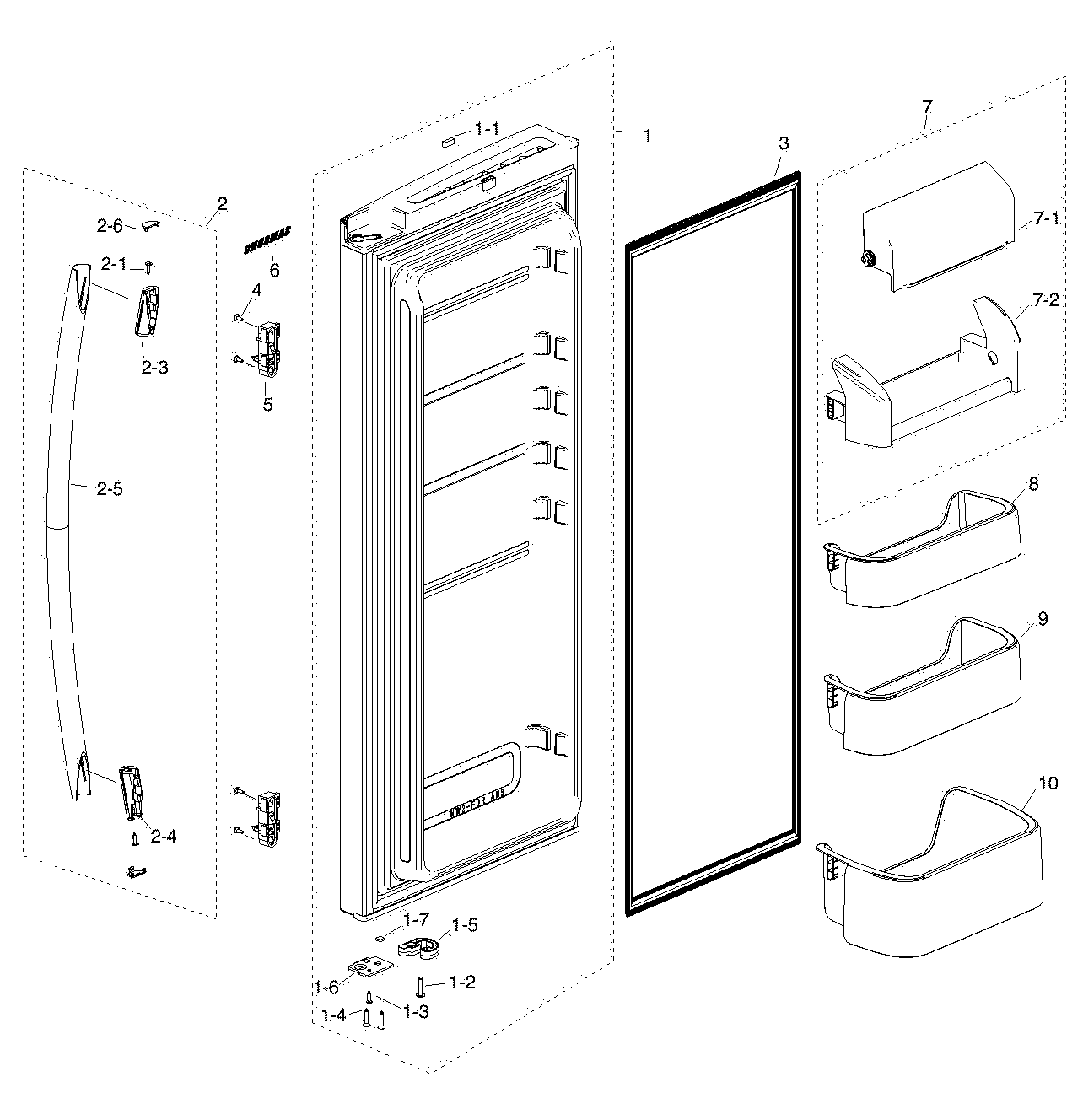

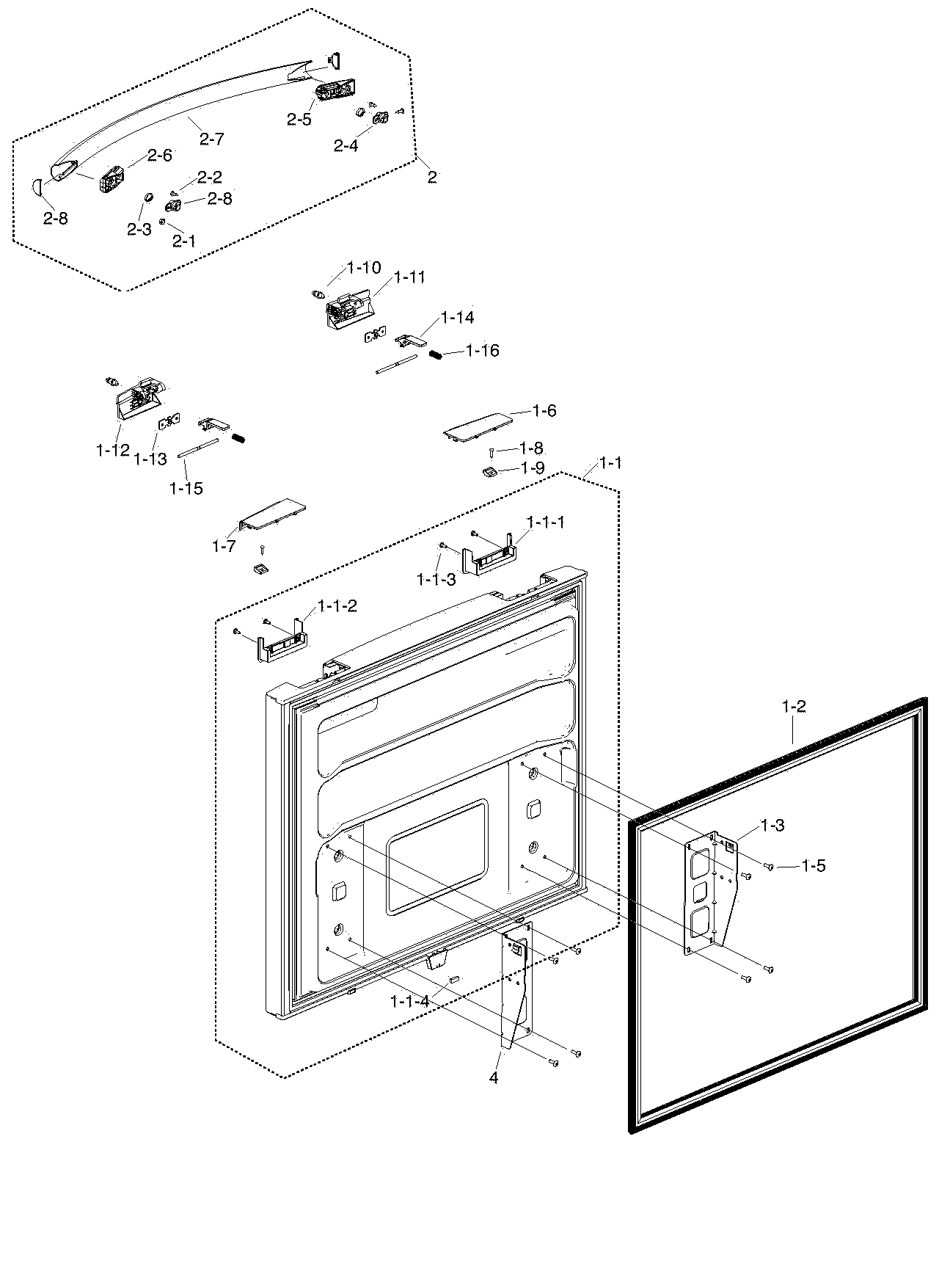

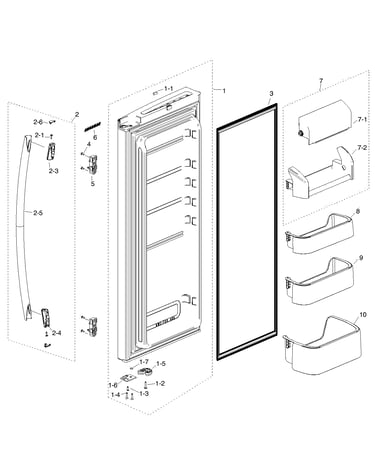

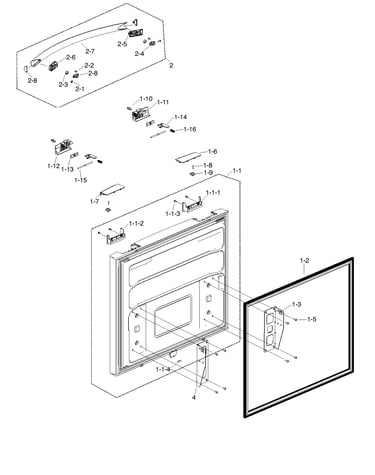

    Refrigerator Door Gasket

    See All Related Diagrams

    Refrigerator door gasket

    Part #DA97-07668B
    Replaced by #DA63-07733A
    ?
    Manufacturer substitution
    This part replaces DA97-07668B. Substitute parts can look different from the original.
    BEST SELLER
    In Stock
    $58.89

    Symptoms common to all refrigerators

    Choose a symptom to see related refrigerator repairs.

    Main causes: leaky door gasket, defrost system failure, evaporator fan not running, dirty condenser coils, condenser fan not running
    Things to do: clean condenser coils, replace the water filter, clean the interior, adjust doors to prevent air leaks, clean the drain pan
    Main causes: jammed ice cubes, broken ice maker assembly, dirty water filter, kinked water line, bad water valve, freezer not cold enough
    Main causes: damaged door seal, faulty defrost sensor or bi-metal thermostat, broken defrost heater, bad defrost timer or control board
    Main causes: control board or cold control failure, broken compressor start relay, compressor motor failure, defrost timer problems
    Main causes: blocked air vents, compressor problems, condenser or evaporator fan not working, control system failure, sensor problems
    Main causes: blocked vents, defrost system problems, evaporator fan failure, dirty condenser coils, bad sensors, condenser fan not working
    Main causes: water valve leaking, frozen or broken defrost drain tube, overflowing drain pan, cracked water system tubing, leaking door seal
