Side-By-Side Refrigerator

Model # 79551023012 Official Kenmore refrigerator

Here are the diagrams and repair parts for Official Kenmore 79551023012 refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

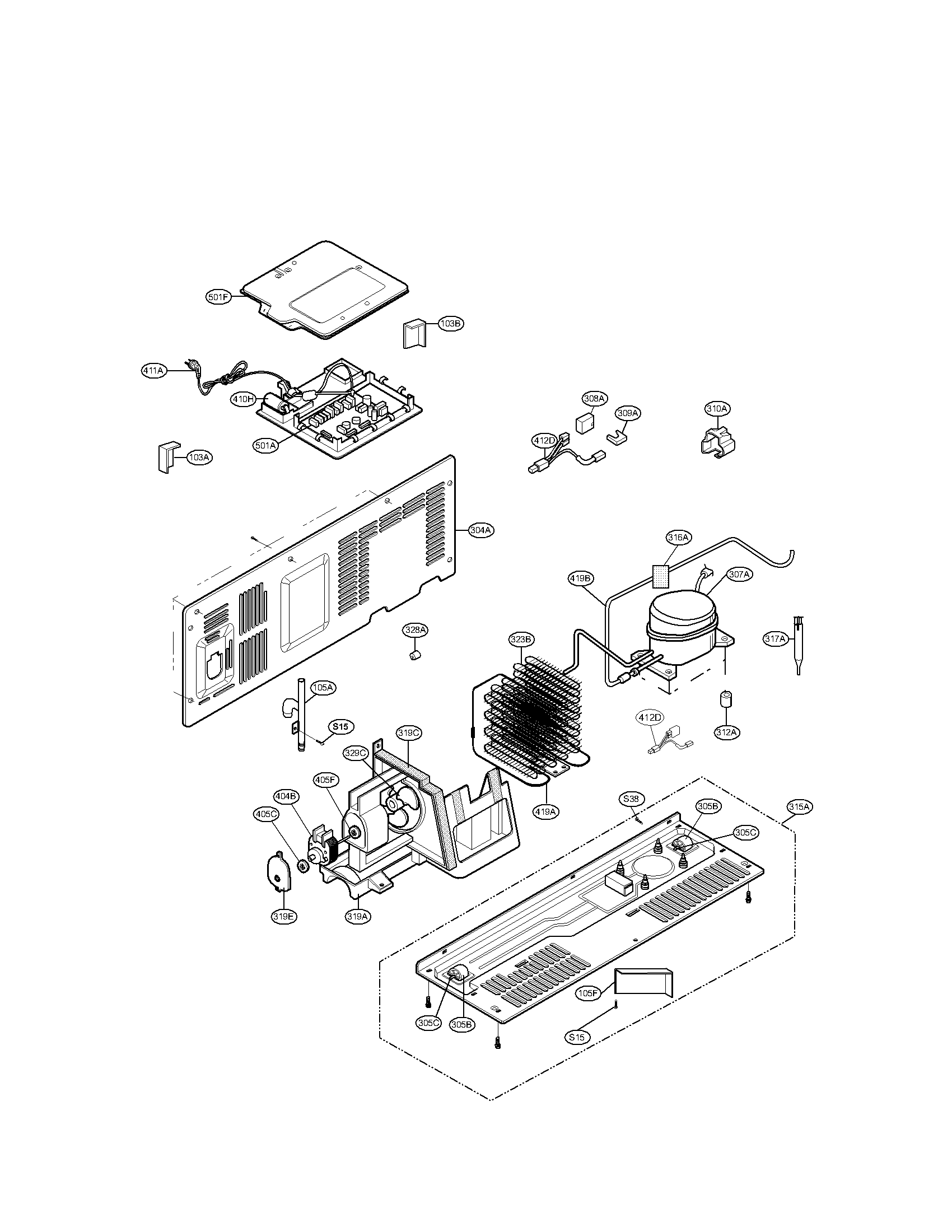

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for79551023012 Refrigerators

  • Refrigerator Auger Motor EAU59551201
    #405H

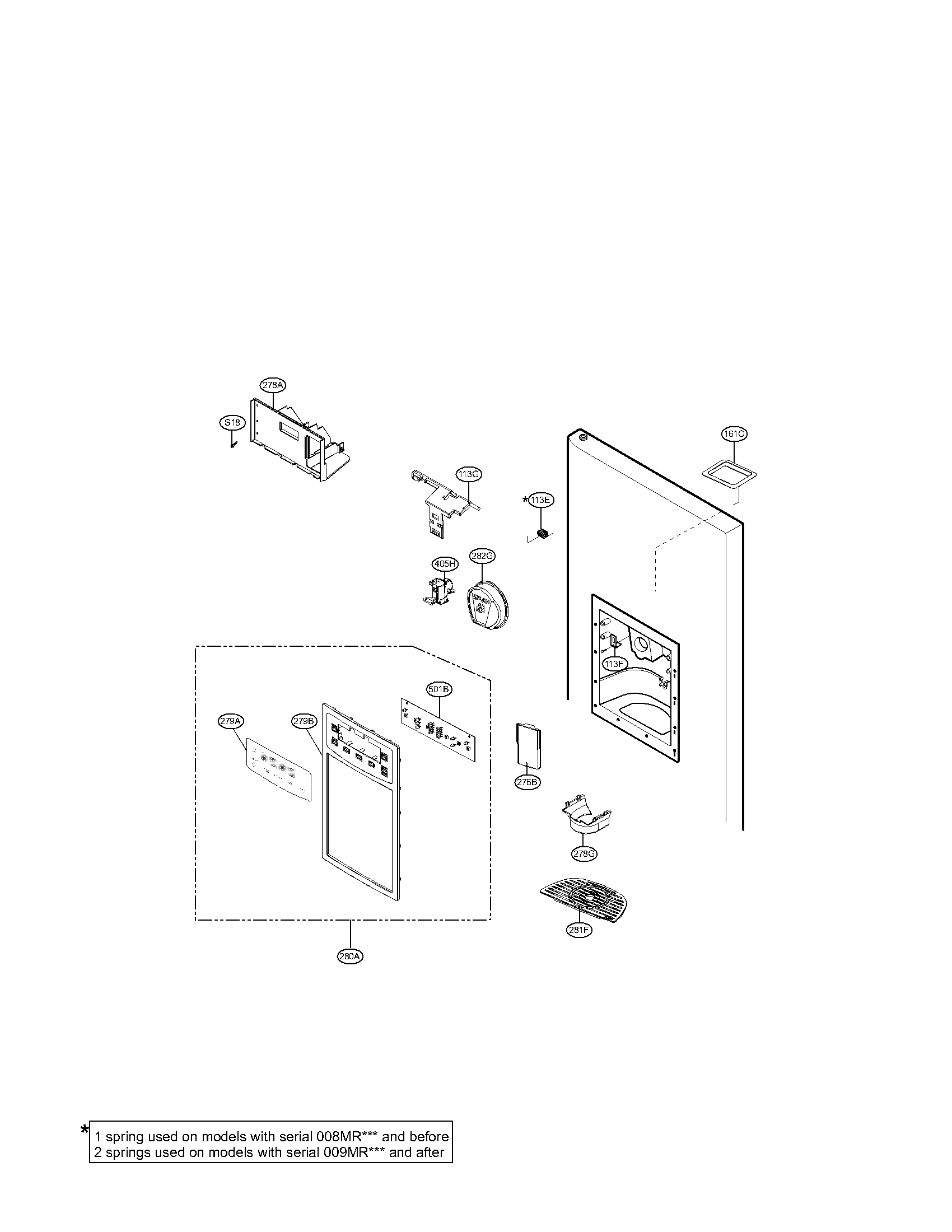

    Dispenser parts diagram

    Refrigerator auger motor

    Part #EAU59551201

    Replaced by #EAU59551204

    ?
    Manufacturer substitution
    This part replaces EAU59551201. Substitute parts can look different from the original.
    BEST SELLER
    $64.05 |
    9% OFF Phone Price : $70.05
    In Stock
  • Lg Refrigerator Ice Maker Assembly 5989JA1005G
    #600A

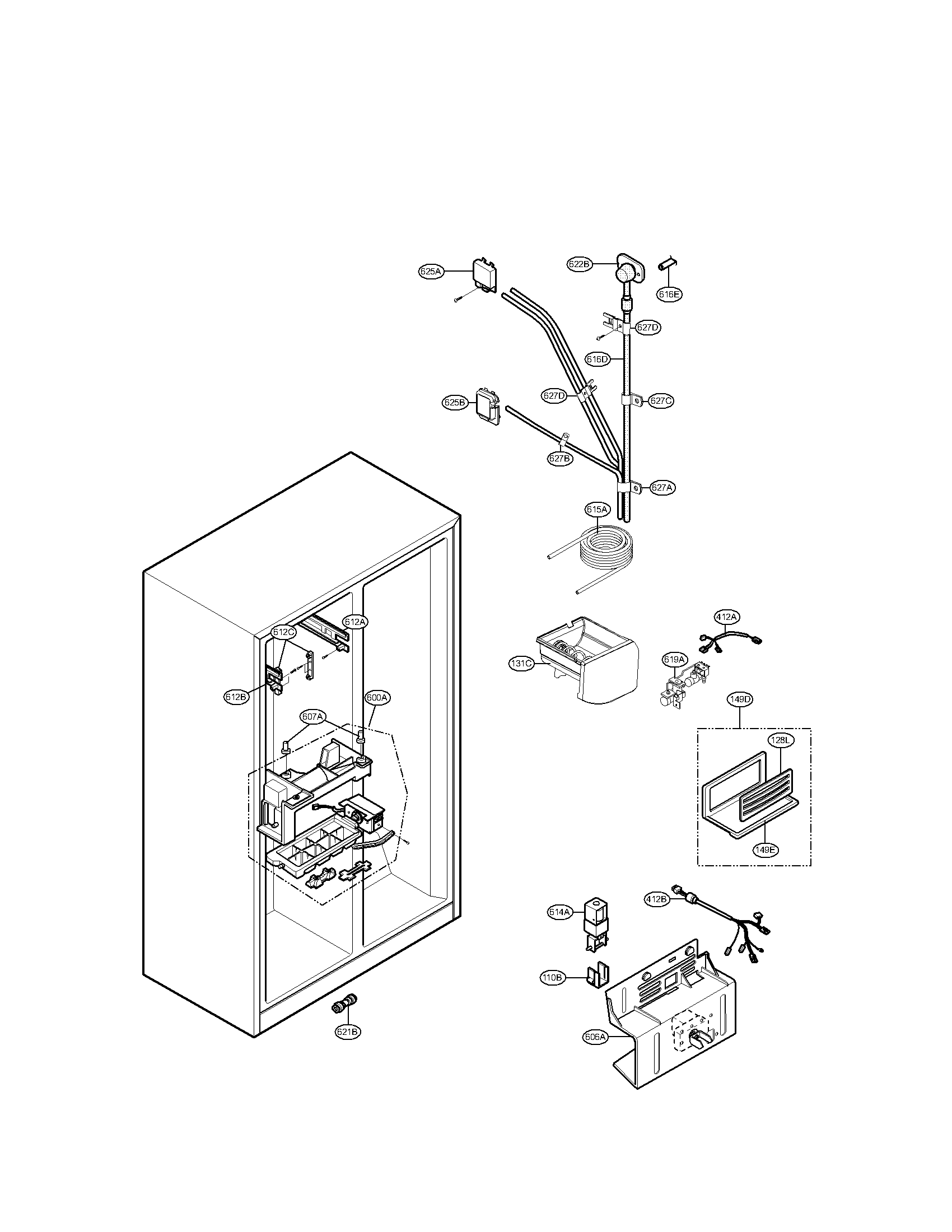

    Ice and water parts diagram

    Lg refrigerator ice maker assembly

    Part #5989JA1005G

    BEST SELLER
    $244.71 |
    5% OFF Phone Price : $256.71
    In Stock
  • Refrigerator Water Tube Fitting MCD61866802
    #621B

    Ice and water parts diagram

    Refrigerator water tube fitting

    Part #MCD61866802

    Replaced by #4932JA3002C

    ?
    Manufacturer substitution
    This part replaces MCD61866802. Substitute parts can look different from the original.
    BEST SELLER
    $23.80 |
    20% OFF Phone Price : $29.80
    In Stock
  • Refrigerator Water Tank MJM61904701
    #615A

    Ice and water parts diagram

    Refrigerator water tank

    Part #MJM61904701

    Replaced by #MJM61904702

    ?
    Manufacturer substitution
    This part replaces MJM61904701. Substitute parts can look different from the original.
    BEST SELLER
    $121.43 |
    9% OFF Phone Price : $133.43
    In Stock
  • Refrigerator Sensor 6500JK1003A
    #903D

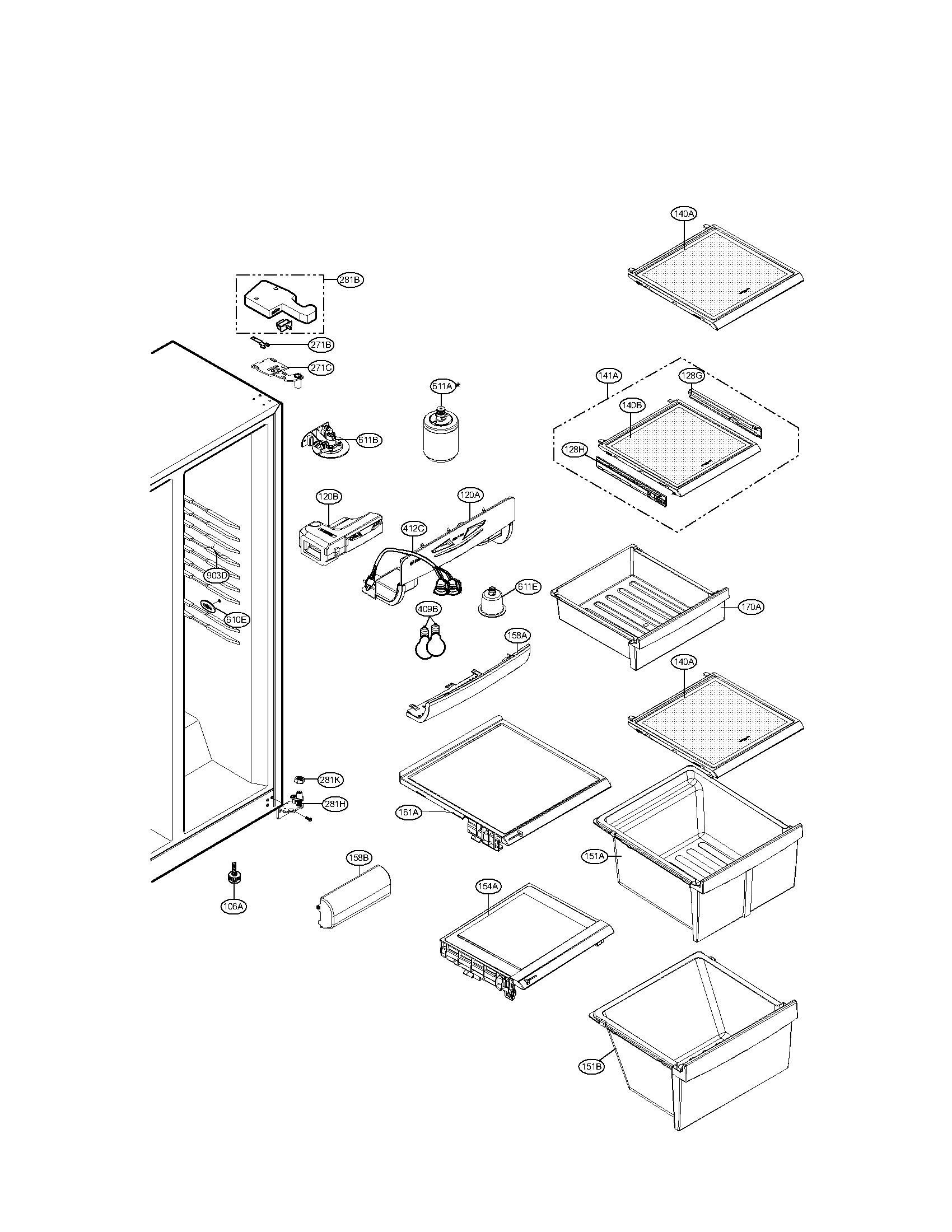

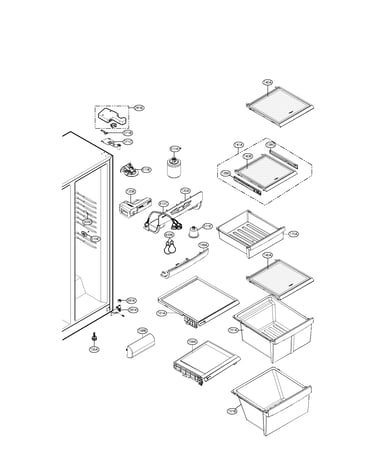

    Refrigerator compartment parts diagram

    Refrigerator sensor

    Part #6500JK1003A

    Replaced by #6500JB2001B

    ?
    Manufacturer substitution
    This part replaces 6500JK1003A. Substitute parts can look different from the original.
    BEST SELLER
    $36.35 |
    14% OFF Phone Price : $42.35
    In Stock
  • Refrigerator Door Hinge 4621JA3002H
    #243B

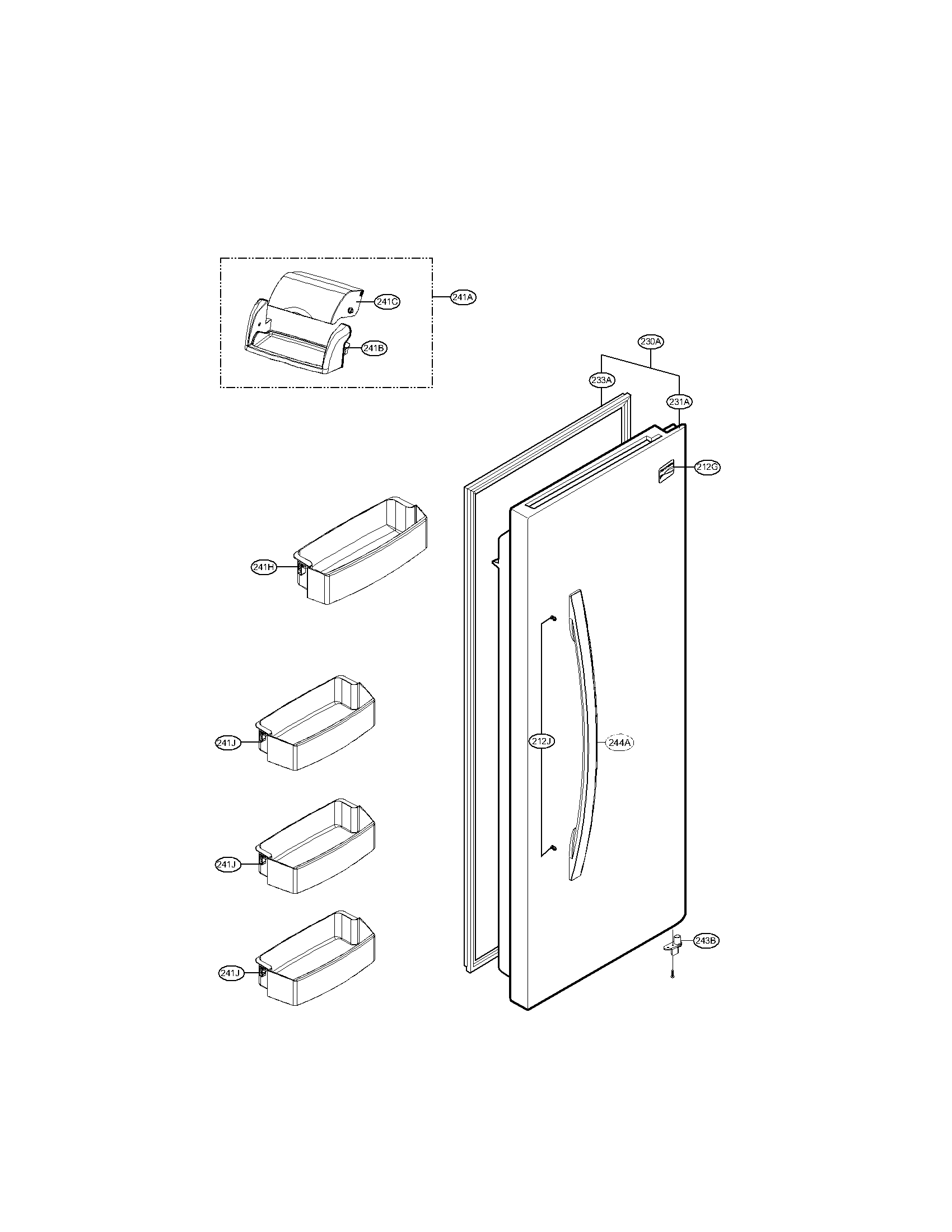

    Refrigerator door parts diagram

    Refrigerator door hinge

    Part #4621JA3002H

    Replaced by #AJC34211602

    ?
    Manufacturer substitution
    This part replaces 4621JA3002H. Substitute parts can look different from the original.
    BEST SELLER
    $23.80 |
    20% OFF Phone Price : $29.80
    In Stock

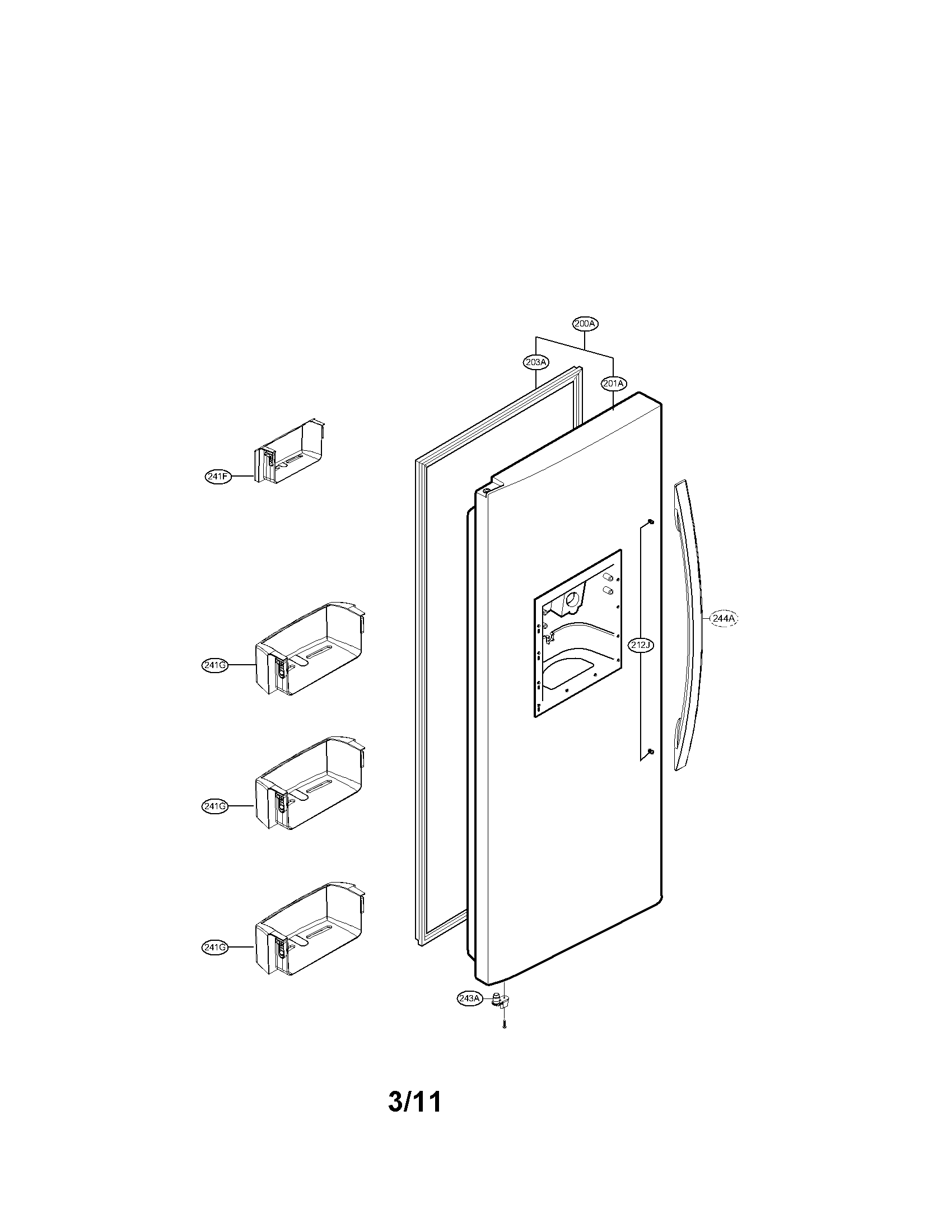

  • Lg Refrigerator Door Bin MAN61844501
    #241J

    Refrigerator door parts diagram

    Lg refrigerator door bin

    Part #MAN61844501

    BEST SELLER
    $103.13 |
    10% OFF Phone Price : $115.13
    In Stock
  • Refrigerator Door Hinge 4775JA2113A
    #281H

    Refrigerator compartment parts diagram

    Refrigerator door hinge

    Part #4775JA2113A

    BEST SELLER
    $36.75 |
    14% OFF Phone Price : $42.75
    In Stock
  • Lg Refrigerator Door Bin MAN61844601
    #241H

    Refrigerator door parts diagram

    Lg refrigerator door bin

    Part #MAN61844601

    BEST SELLER
    $91.52 |
    6% OFF Phone Price : $97.52
    In Stock

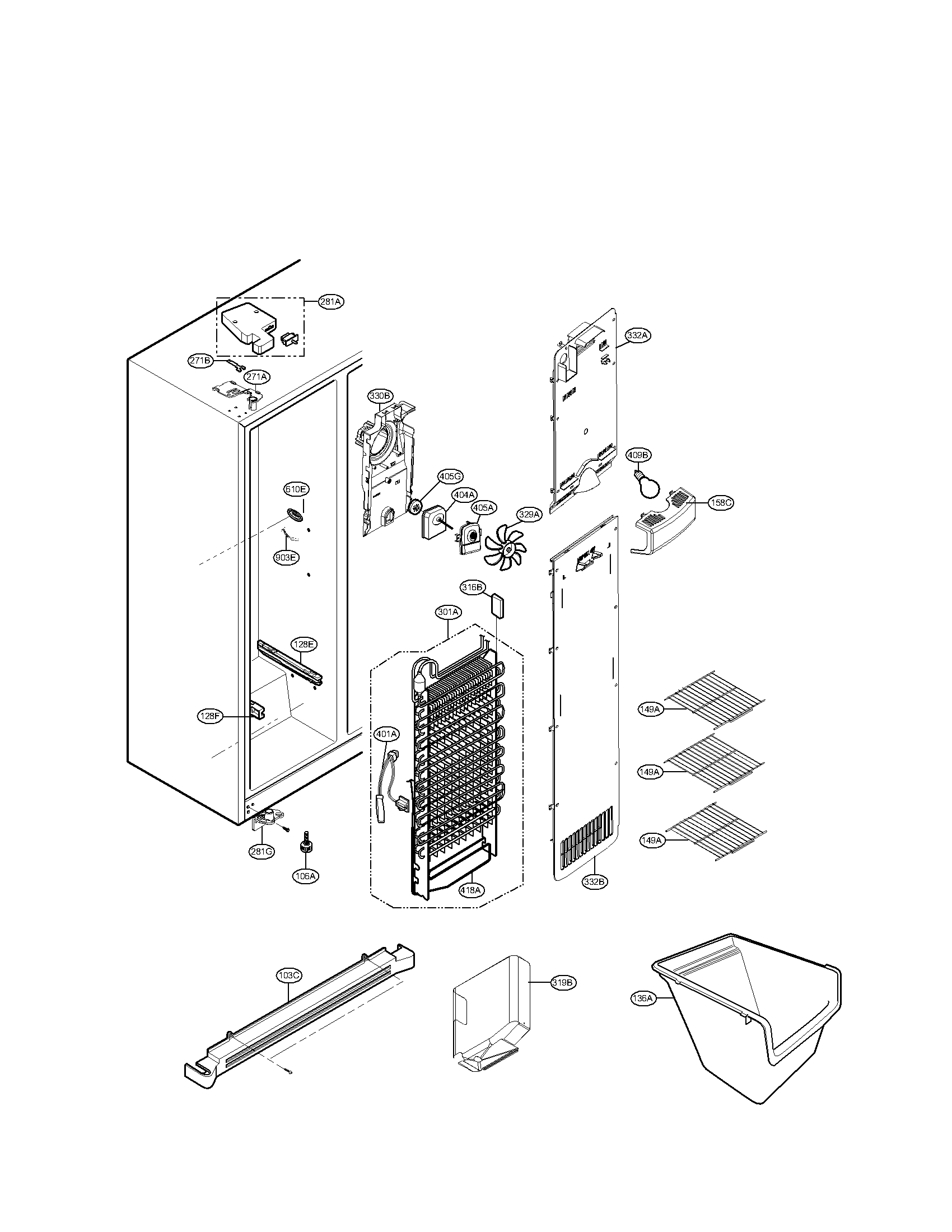

  • Refrigerator Drawer Slide Rail, Right MEA40002601
    #128G

    Refrigerator compartment parts diagram

    Refrigerator drawer slide rail, right

    Part #MEA40002601

    BEST SELLER
    $38.36 |
    14% OFF Phone Price : $44.36
    In Stock
