Model #WF419AAU/XAA-00 Samsung washer

Here are the diagrams and repair parts for Samsung WF419AAU-XAA-00 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

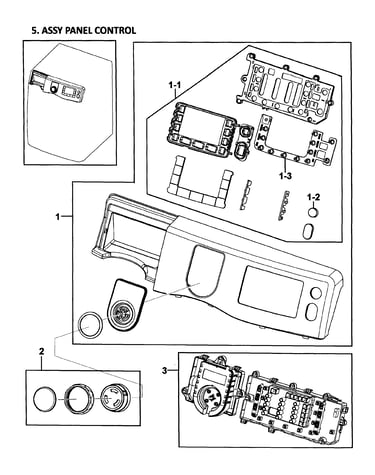

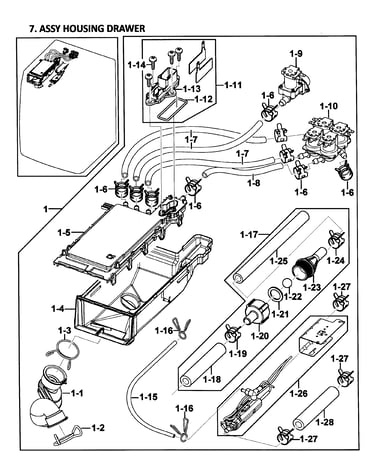

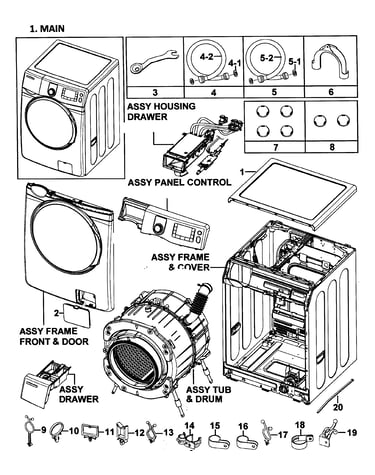

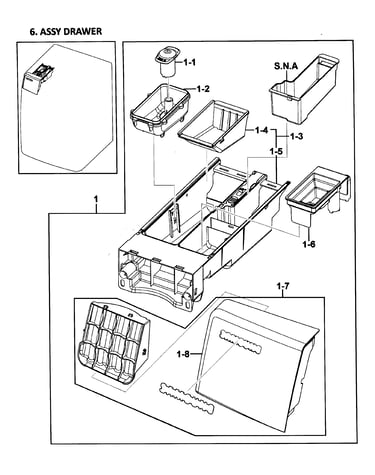

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profileOwner’s manual

Showing 10 of 173 parts

Washer Outer Tub Gasket

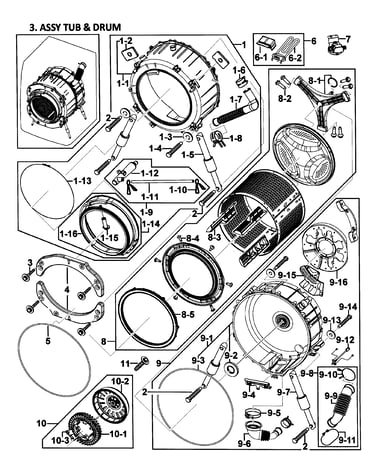

Tub/drum assy Diagram

Washer outer tub gasket

Part #DC69-00804A

In Stock

Washer Drain Pump

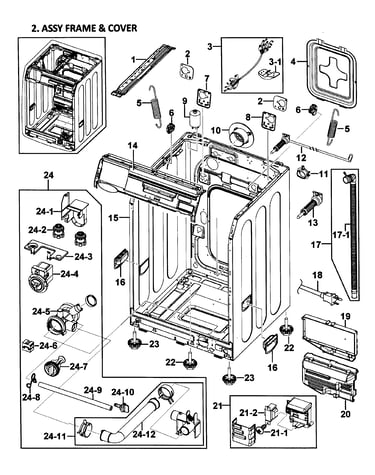

Cabinet assy Diagram

Washer drain pump

Part #DC31-00054A

In Stock

Washer Door Lock

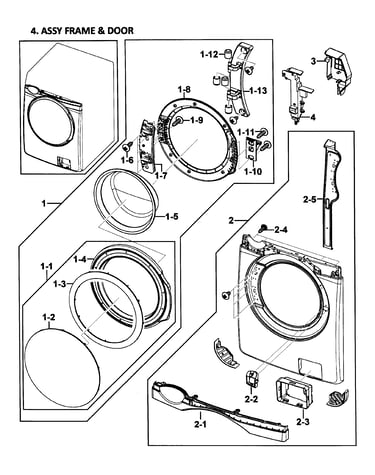

Door assy Diagram

Washer door lock

Part #DC64-00519B

In Stock

Washer Drum Shaft Assembly


Tub/drum assy Diagram

Washer drum shaft assembly

Part #DC97-15491A

In Stock

Washer Bolt


Tub/drum assy Diagram

Washer bolt

Part #DC60-40137A
This item is not returnable

In Stock

Washer Door Boot Spring Clamp


Tub/drum assy Diagram


In Stock

Washer Door Boot


Tub/drum assy Diagram

Washer door boot

Part #DC64-00802C

In Stock

Washer Shock Absorber


Tub/drum assy Diagram

Washer shock absorber

Part #DC66-00470A

In Stock

Washer Drain Hose


Cabinet assy Diagram

Washer drain hose

Part #DC97-15273A

In Stock

Washer Motor Rotor Position Sensor


Tub/drum assy Diagram


In Stock

Symptoms common to all washers

Choose a symptom to see related washer repairs.

Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control board or timer
Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water temperature sensor
Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve assembly
Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in drain pump
Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspension component failure
Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system
Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board
Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interface board
Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lock or lid switch
