Bosch
Dishwasher

Model # SHEM63W52N/01 Official Bosch dishwasher

Here are the diagrams and repair parts for Official Bosch SHEM63W52N-01 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

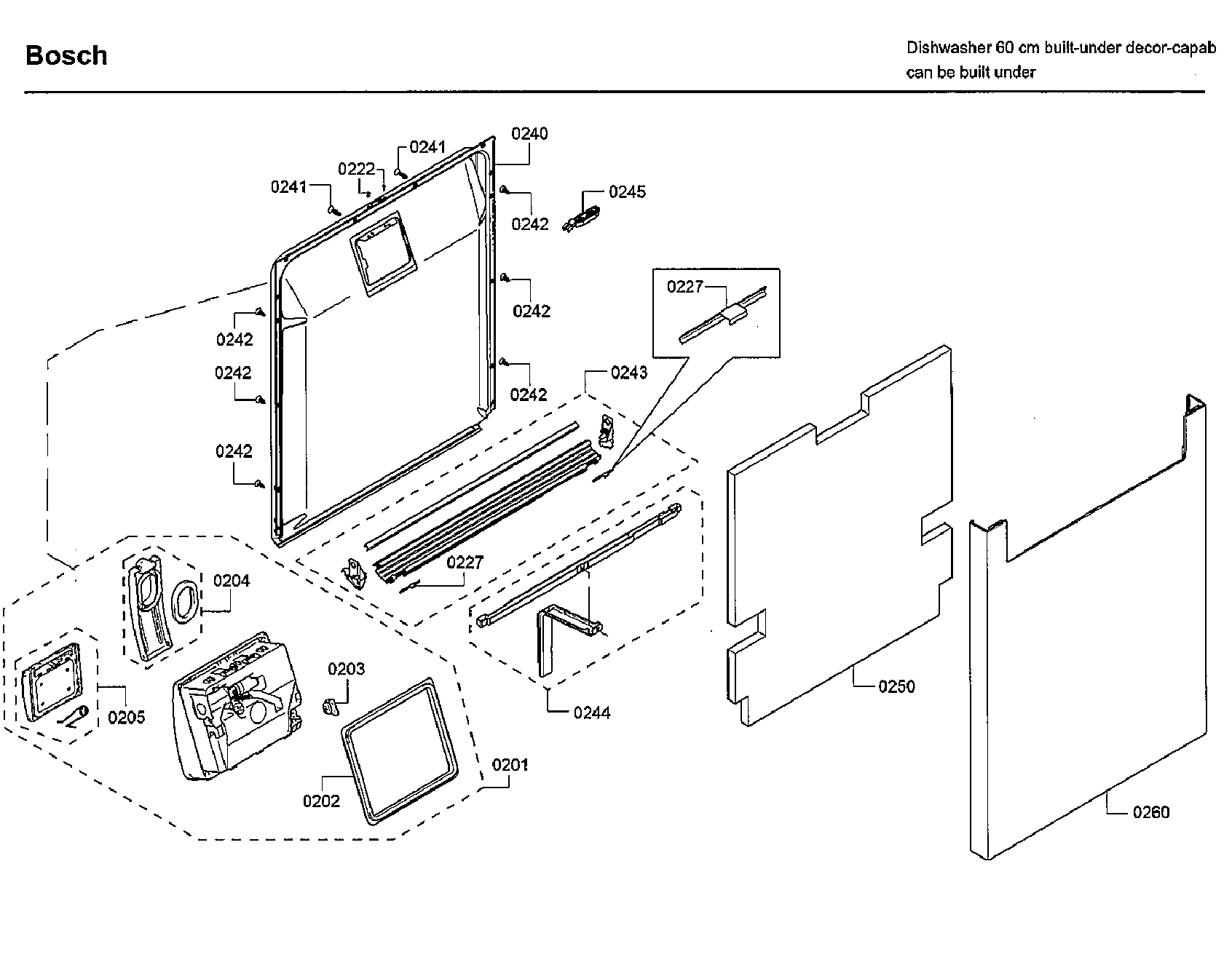

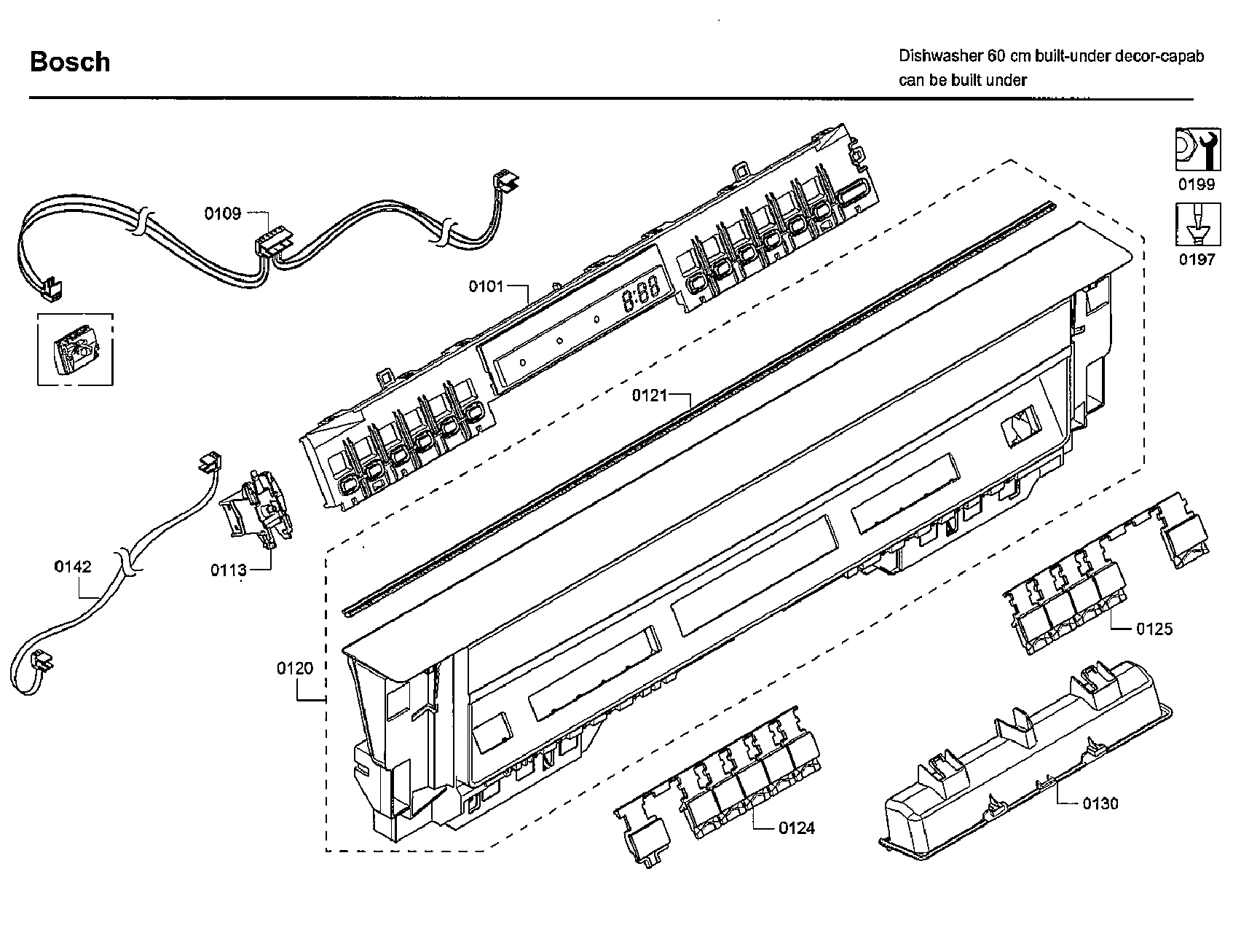

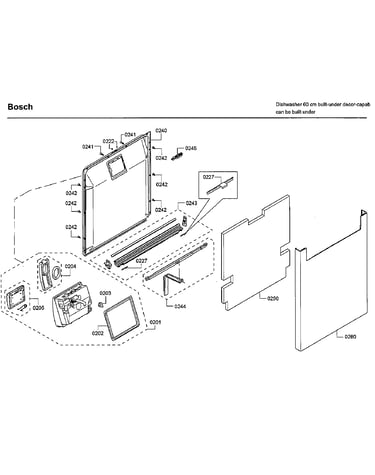

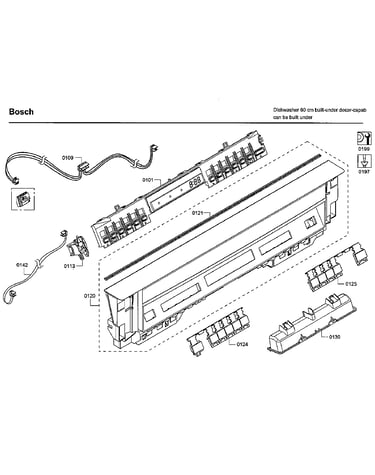

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 115 parts  |

Dishwasher Drain Pump 00631200
#455

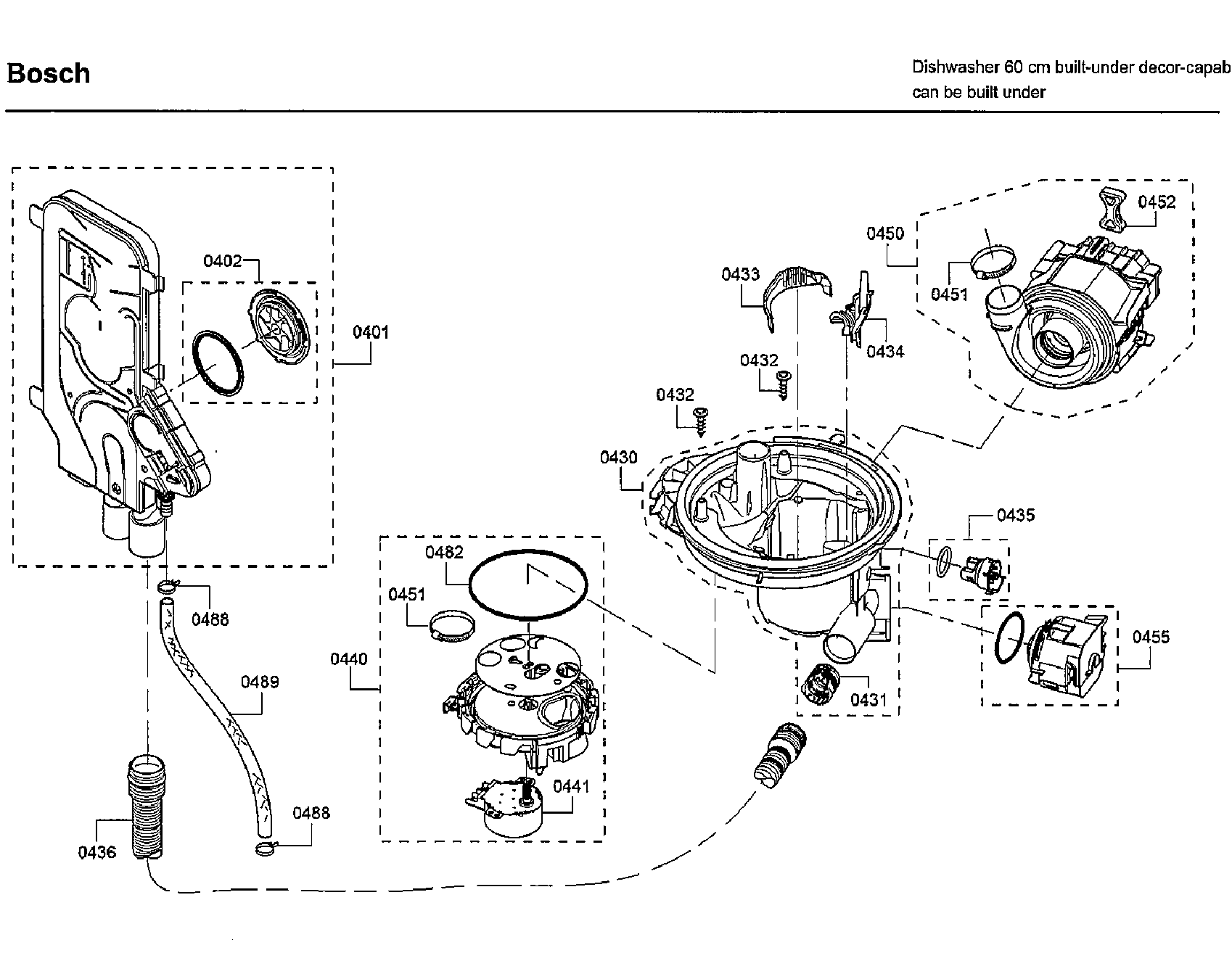

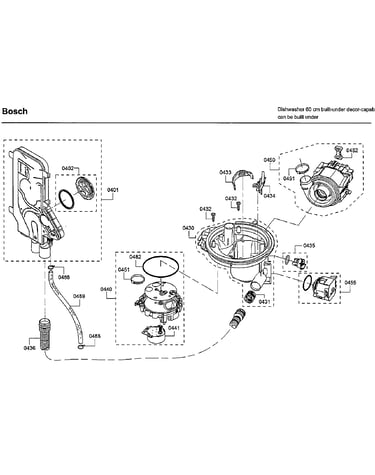

Pump diagram

Dishwasher drain pump

Part #00631200

BEST SELLER
$45.02
10% OFF Phone Price : $50.02
In Stock
Dishwasher Circulation Pump With Heater 12008381
#450

Pump diagram

Dishwasher circulation pump with heater

Part #12008381

BEST SELLER
$114.95
8% OFF Phone Price : $124.95
In Stock
Dishwasher Water Inlet Valve (replaces 628334) 00628334
#544

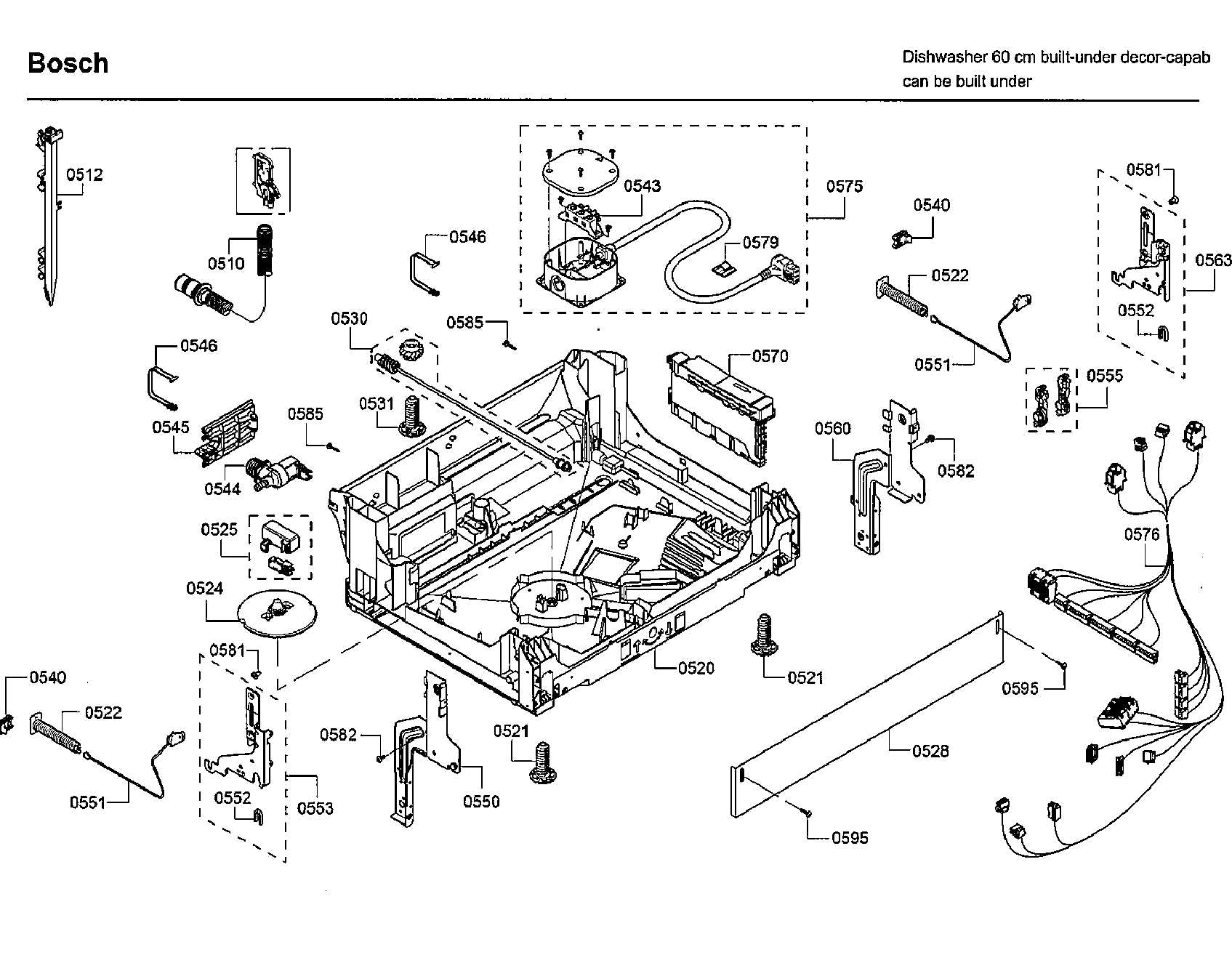

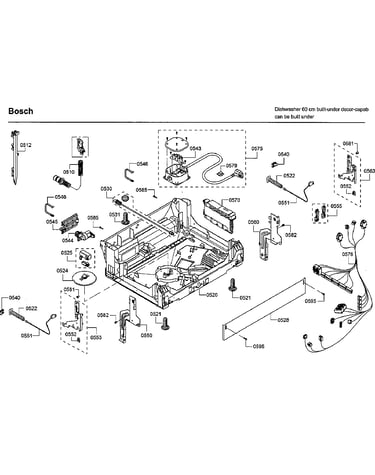

Base diagram

Dishwasher water inlet valve (replaces 628334)

Part #00628334

Replaced by #10023852

?
Manufacturer substitution
This part replaces 00628334. Substitute parts can look different from the original.
BEST SELLER
$26.03
16% OFF Phone Price : $31.03
In Stock
Dishwasher Diverter Assembly (replaces 751950) 00751950
#440

Pump diagram

Dishwasher diverter assembly (replaces 751950)

Part #00751950

BEST SELLER
$49.82
9% OFF Phone Price : $54.82
In Stock
Dishwasher Door Seal (replaces 494772) 00494772
#331

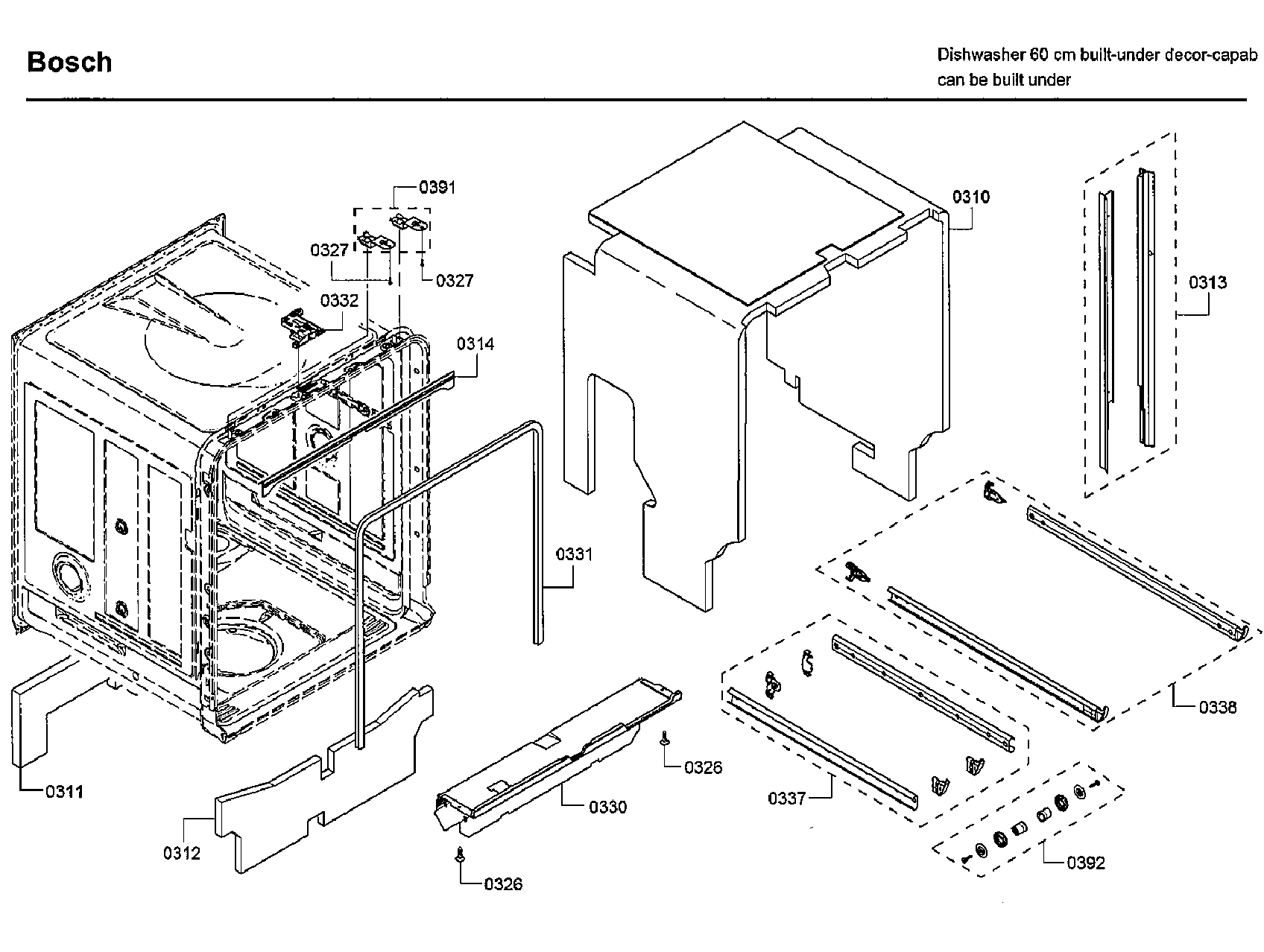

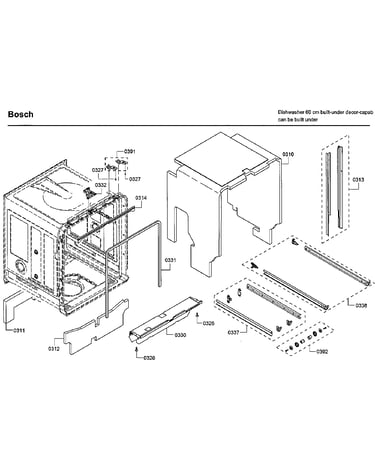

Frame diagram

Dishwasher door seal (replaces 494772)

Part #00494772

BEST SELLER
$32.69
13% OFF Phone Price : $37.69
In Stock
Dishwasher Spray Arm, Upper (replaces 745856) 00745856
#603

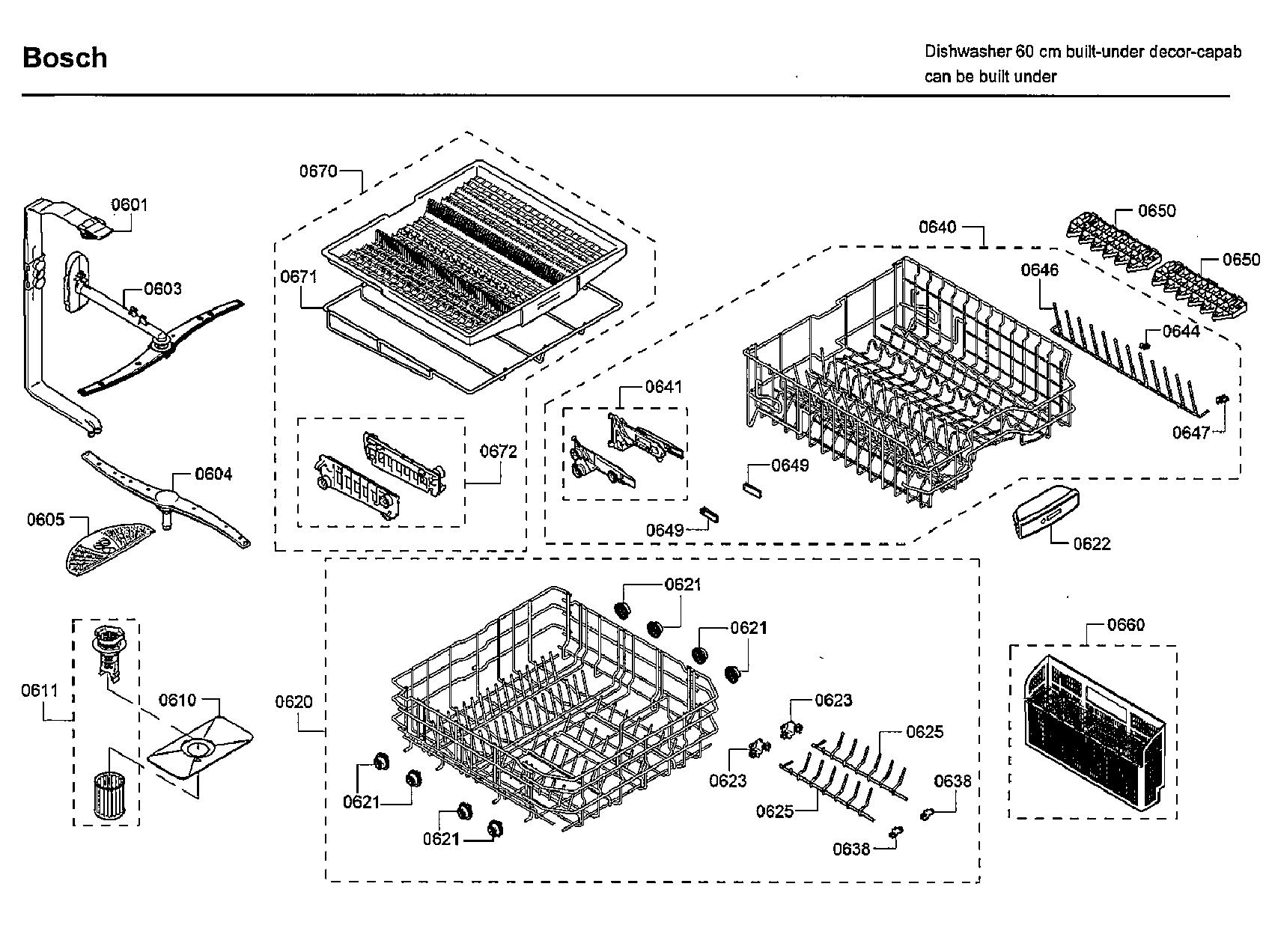

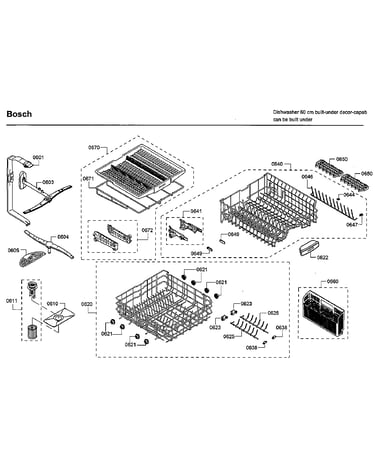

Rack asy diagram

Dishwasher spray arm, upper (replaces 745856)

Part #00745856

BEST SELLER
$26.71
16% OFF Phone Price : $31.71
In Stock
Dishwasher Hose Clamp (replaces 00417502, 00606311, 172272) 00172272
#451

Pump diagram

Dishwasher hose clamp (replaces 00417502, 00606311, 172272)

Part #00172272

BEST SELLER
$20.47
20% OFF Phone Price : $25.47
In Stock
Dishwasher Dishrack Roller, Lower (replaces 611475) 00611475
#621

Rack asy diagram

Dishwasher dishrack roller, lower (replaces 611475)

Part #00611475

BEST SELLER
$11.44
15% OFF Phone Price : $13.44
In Stock
Dishwasher Door Lock Kit (replaces 630784) 00630784
Dishwasher door lock kit (replaces 630784)

Part #00630784

BEST SELLER
This item is not returnable
$23.49
18% OFF Phone Price : $28.49
In Stock
Basket 00775828
#640

Rack asy diagram

Basket

Part #00775828

Replaced by #00779033

?
Manufacturer substitution
This part replaces 00775828. Substitute parts can look different from the original.
BEST SELLER
$112.98
8% OFF Phone Price : $122.98
Back Order
