To remove the main panels on a Whirlpool dryer like model WED6120HC1, we typically take off the top first, then the control console (if needed), and finally the front panel by releasing the retaining clips and removing mounting screws. Always disconnect power before starting.

Before you start (safety and setup)

• Unplug the dryer (or switch off the breaker for the 240V circuit).
• If the dryer is stacked, unstack it before disassembly.
• Pull the dryer forward so you can access the rear and sides.
• Use a small container for screws so nothing gets lost.
• Wear cut-resistant gloves; cabinet edges can be sharp.

Common top and front panel removal steps

On most Whirlpool-built dryers in this style, the sequence below works well:

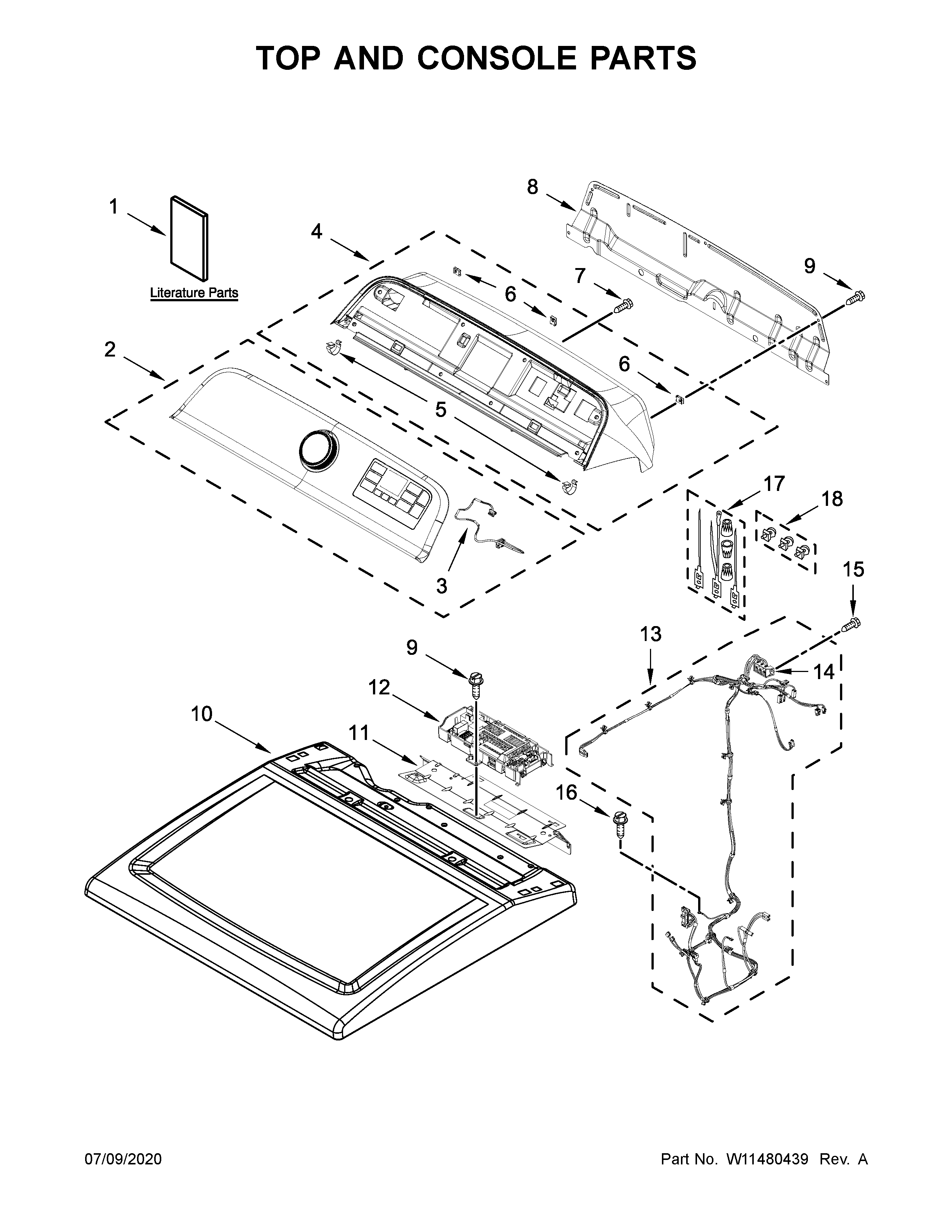

• Remove screws at the back edge of the top (often 2 to 3 screws).
• Slide the top back about 1 inch, then lift it up and off.
• If you need the control panel off, remove the console mounting screws and rotate the console up and back.

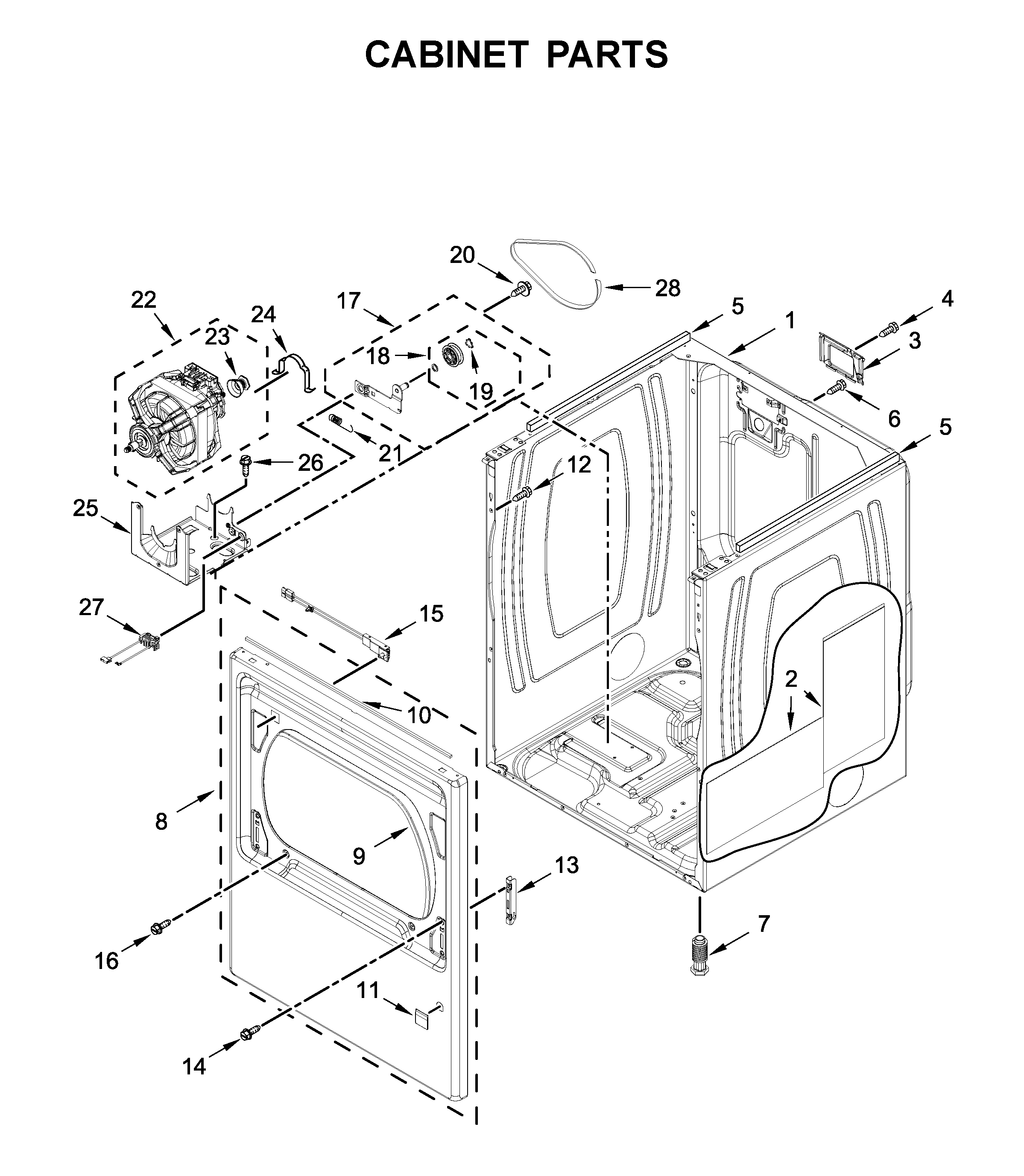

• To remove the front panel, insert a flat-blade screwdriver between the upper and lower front panel seams to release the spring clips.
• Remove the front panel mounting screws, then lift the panel up and off the lower tabs.

What you may need to disconnect (and what not to force)

Item	When it comes off	Tip

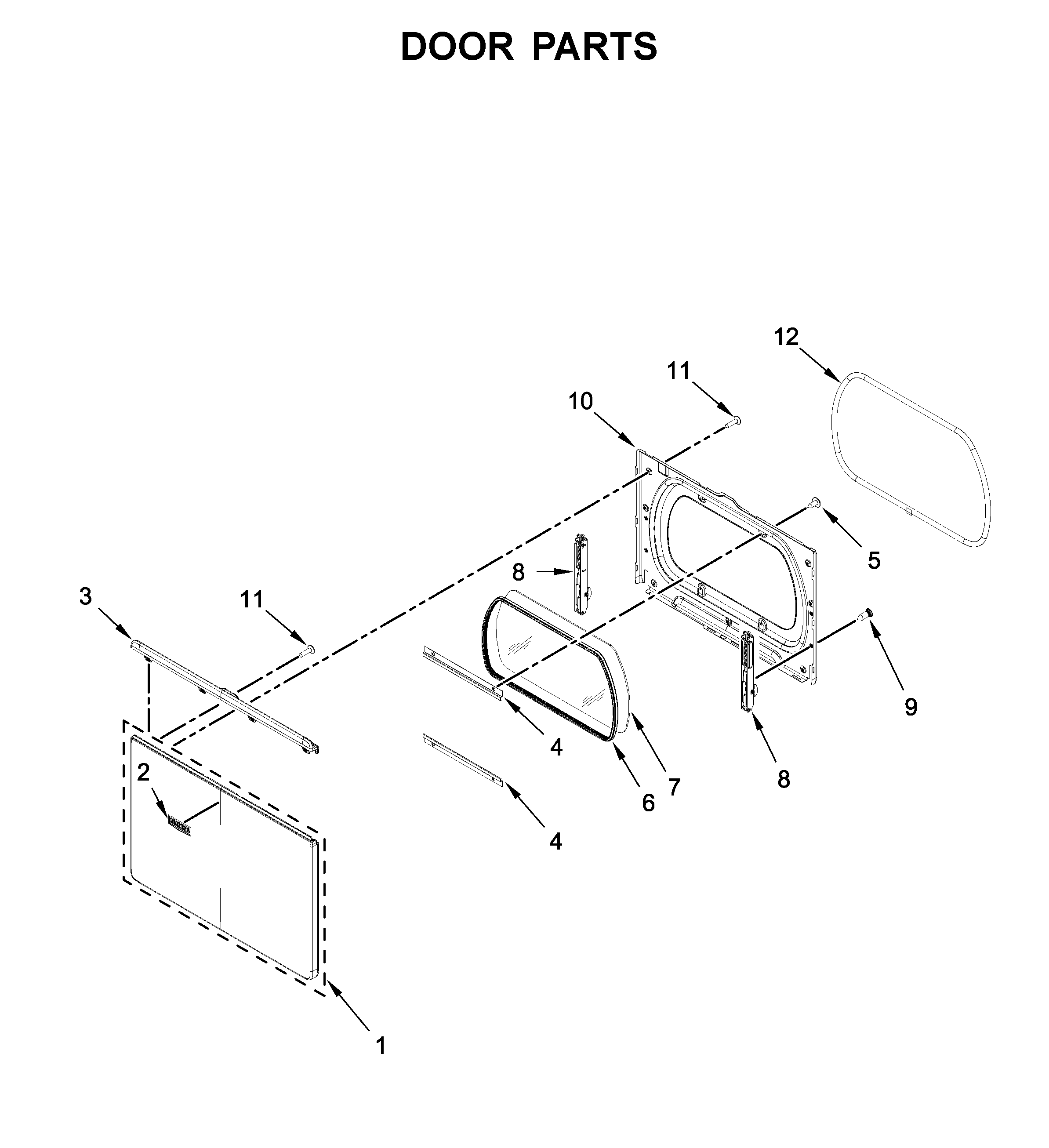

Door switch harness	Front panel removal	Depress the locking tab before pulling

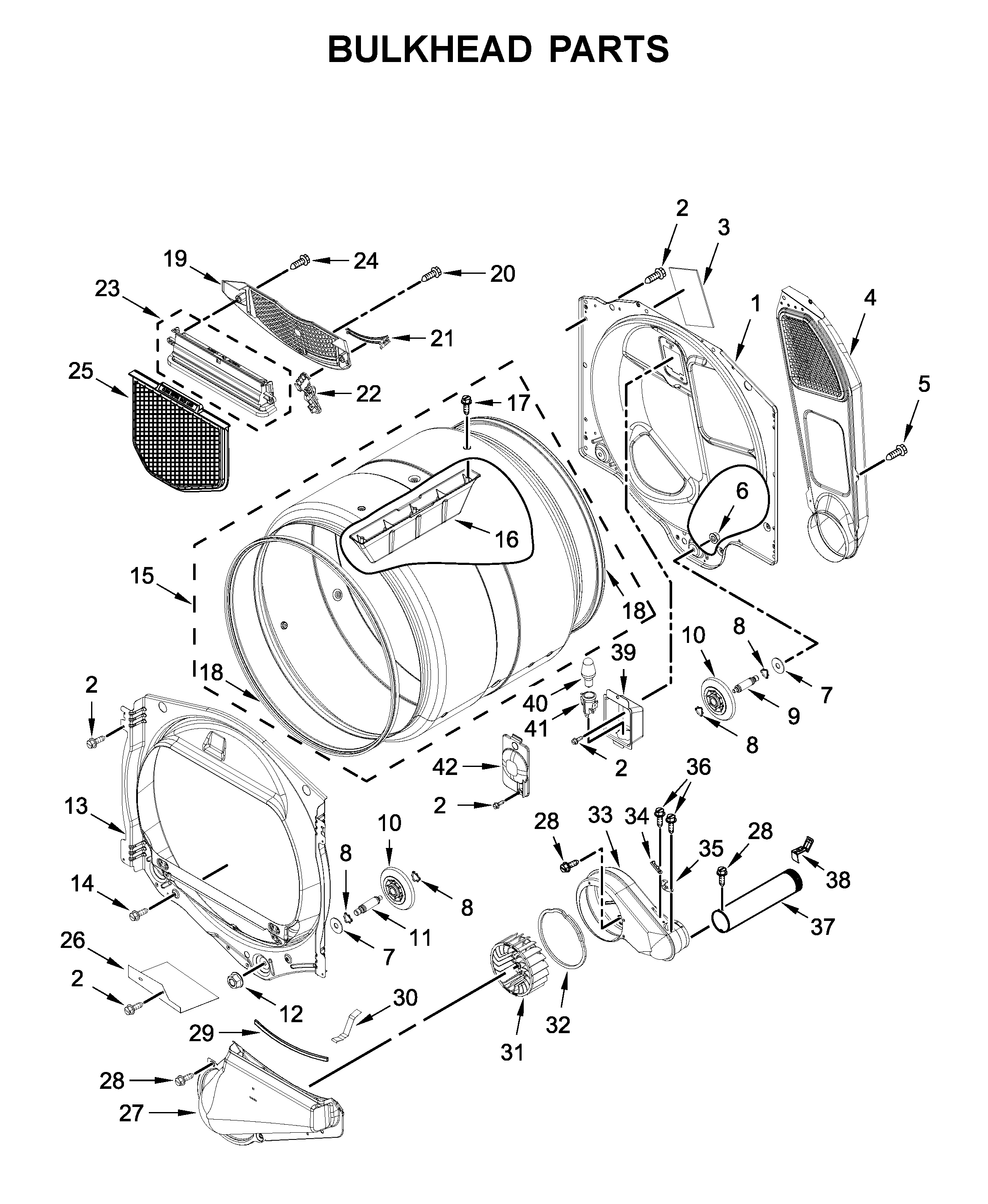

Drum belt tension	Front panel or bulkhead removal	Relieve tension at the idler pulley
Lint duct	Front panel removal on some builds	Remove screws, then pull straight out

Why it matters

Correct panel removal prevents broken plastic tabs, stripped screws, and pinched wiring. It also makes common repairs (belt, rollers, blower wheel, heater) faster and safer.

Parts we often replace during a teardown (if symptoms match)

If you are opening the cabinet because of noise, thumping, squealing, or poor airflow, these are frequent wear items for WED6120HC1:

• Dryer drum support roller WPW10314173 (rumbling or thumping)
• Dryer idler pulley W10837240 (squeal, belt slack)
• Dryer blower wheel WP697772 (vibration, weak airflow)
• Dryer repair kit 4392067 (convenient bundle for common wear parts)

Last updated: February 2026

Common Whirlpool dryer problems (including model WED6120HC1) are no-start, no-heat, not tumbling, loud squealing or thumping, and long dry times. Most issues trace back to airflow restrictions, power supply problems, or worn moving parts like rollers and the idler pulley.

Most common symptoms and what they usually mean

• Dryer will not start: power supply issue, door switch, or motor circuit problem
• Dryer runs but does not heat: heating circuit issue (element, thermal fuse, cut-off)
• Dryer tumbles but is noisy: worn drum support rollers or idler pulley
• Dryer takes too long to dry: restricted venting, clogged lint path, weak airflow
• Auto cycles end too soon or clothes stay damp: moisture sensor bars dirty or failing

Quick checks we recommend first (fast, no parts)

• Confirm the dryer has full 240V power (a tripped breaker can leave it running but not heating).
• Clean the lint screen and inspect the lint housing for buildup.
• Check the vent run for kinks, crushed flex duct, or a blocked exterior hood.
• Try a timed dry cycle to compare performance versus sensor cycles.
• If you see an error code, use our Whirlpool duet dryer error codes guide to narrow the failure.

Parts that commonly fix these problems on WED6120HC1

Symptom	Common wear item	Example part for this model
Squealing, rumbling, thumping	Drum support rollers	Dryer drum support roller WPW10314173
Squeal, drum not turning smoothly	Idler pulley	Dryer idler pulley W10837240

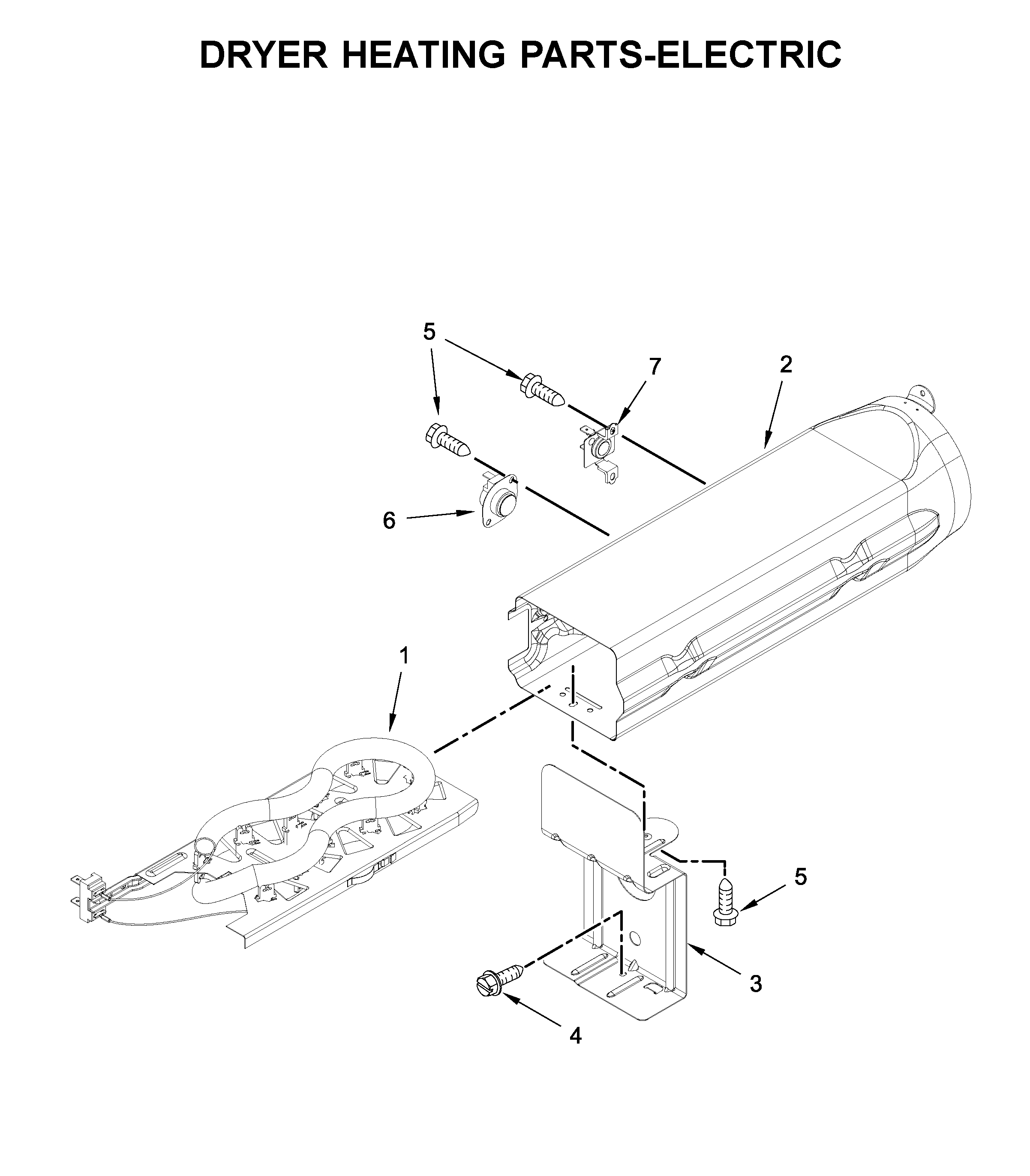

Runs but no heat	Heating element	Element, heater 5400w WP3387747
No heat or shuts off from overheating	Thermal cut-off kit	Whirlpool dryer thermal cut-off fuse kit 279973
Auto dry issues	Moisture sensor	Dryer moisture sensor WP3387223

Why it matters

A dryer that overheats or has poor airflow can repeatedly blow fuses and cut-offs, and it will dry slower while using more energy. Fixing venting and worn drum support parts also prevents bigger failures like motor strain.

Last updated: February 2026

On the Whirlpool WED6120HC1 dryer, the F-01 error typically points to an electronic control problem (a main control board fault or a communication issue in the control circuit). The most effective first step is a power reset; if F-01 returns, the control system needs diagnosis and often repair.

Quick checks we recommend first

• Unplug the dryer (or switch the breaker off) for 5 minutes, then restore power and try a cycle.
• If the code returns, do not keep restarting the dryer; repeated attempts can worsen an overheating or control failure.
• Confirm the dryer has proper power (electric dryers need full 240V supply; a half-tripped breaker can cause odd behavior).
• If the drum turns but heat is inconsistent, check for airflow restriction and overheating protection trips.
• If the dryer stops mid-cycle, listen for the motor running and check for a burning smell (stop immediately if present).

What usually causes F-01

F-01 is most often tied to the control electronics, but these conditions commonly trigger it:

Likely cause	What you may notice	Common next step
Main control board fault	Code appears immediately or randomly	Control diagnosis, wiring checks
Overheating event	Long dry times, very hot cabinet	Vent cleaning, thermal safety checks
Sensor circuit issue	Erratic cycle time, damp loads	Test temperature and moisture sensing
Loose connection	Code after moving dryer	Reseat harness connections

Parts that are commonly involved (when symptoms match)

We match parts to symptoms; these are frequent culprits on Whirlpool dryers:

• If the dryer overheats or shuts down: thermal fuse W10909685 and Whirlpool dryer thermal cut-off fuse kit 279973
• If temperature readings are unstable: dryer thermistor WP8577274
• If auto-dry performance is poor: dryer moisture sensor WP3387223

Why it matters

F-01 is a control-related fault, and control problems are often triggered by heat and airflow issues. Fixing a blocked vent or a failing temperature sensor can prevent repeat failures and protect the heater and wiring.

Helpful reference

For code definitions and what to check next, use our Whirlpool electronic control model dryer error codes.
