Craftsman 917254661 tractor Parts

To find the right parts for your Craftsman front-engine lawn tractor model 917254661, match the exact model number from the ID label, then use the parts diagrams and lists to identify the correct part name and part ID before ordering. The fastest confirmation comes from the parts breakdown in the owner's manual.

Use the model/serial label on the tractor and verify it reads 917254661. On many Craftsman riding mowers, the label is on the rear frame area near the wheels.

• Clean the label area so all digits are readable
• Write down the full model number and any serial information
• Match the model number exactly (even one digit off can change belts, pulleys, and steering parts)
• If the label is damaged, check common secondary locations like under the seat or under the hood

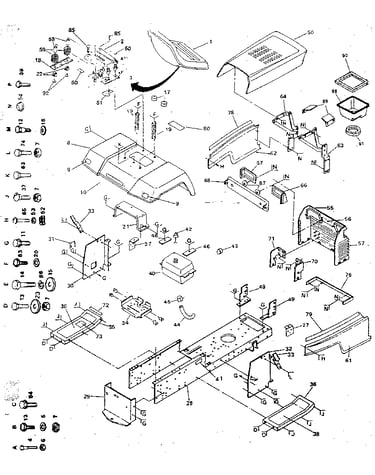

Once you are on the correct model (917254661), use the exploded-view diagrams to find the part by location and description, then confirm the part ID.

Common “find it fast” categories for this tractor include:

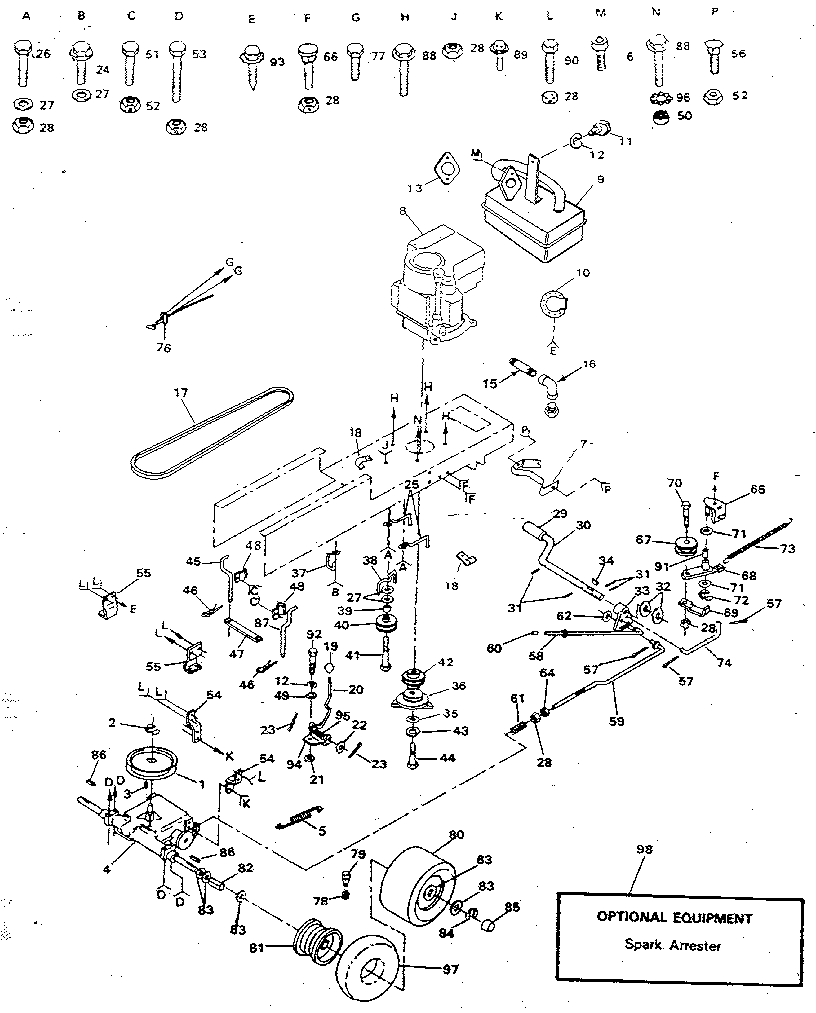

• Drive system (ground drive belt, idlers, springs)

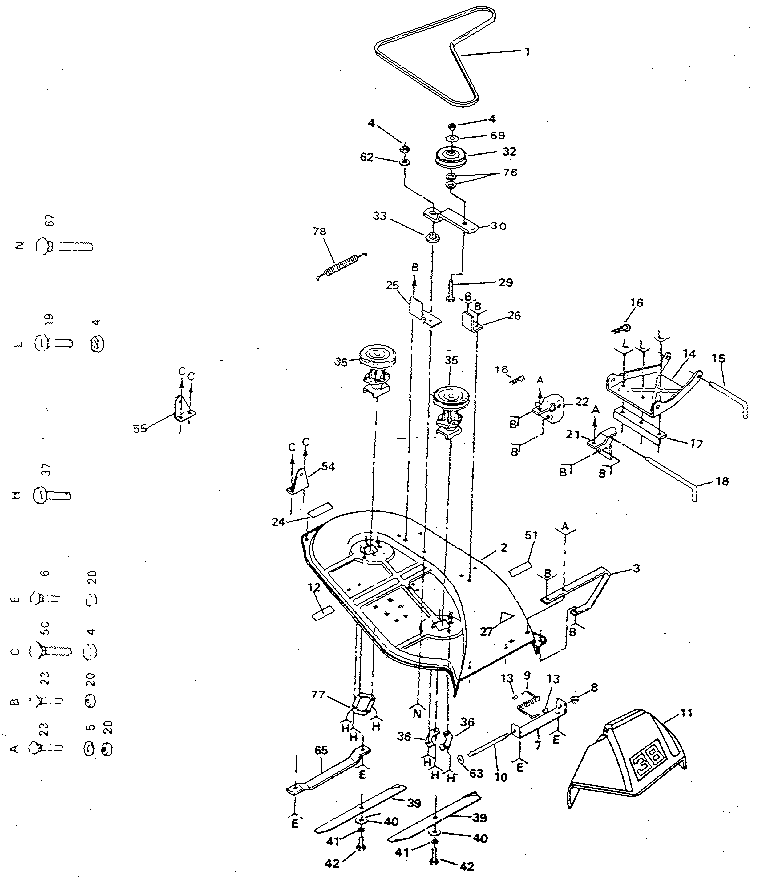

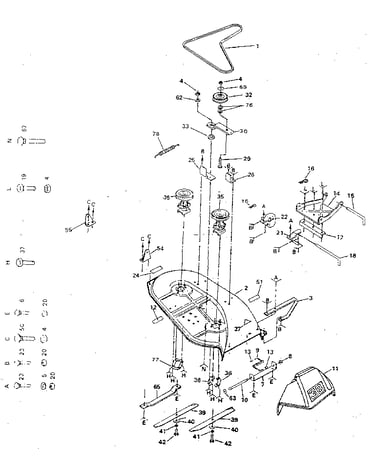

• Mower deck (mower drive belt, pulleys, mandrels)

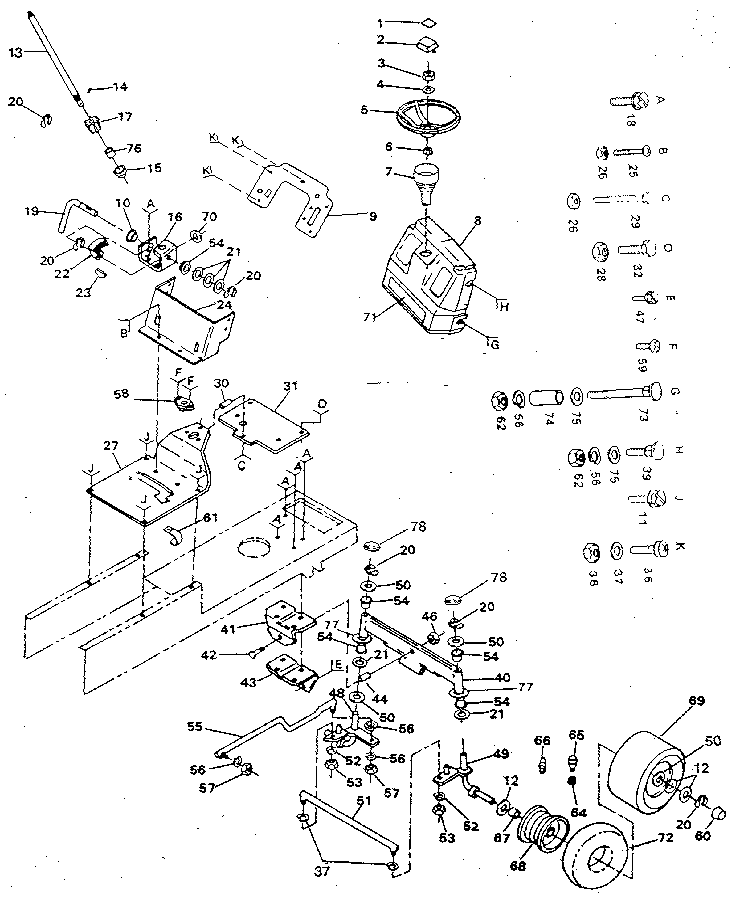

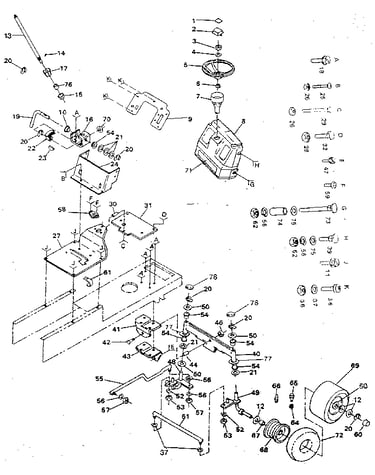

• Steering (tie rod, drag link)
• Wheels and tires (rim, tire, hub cap)

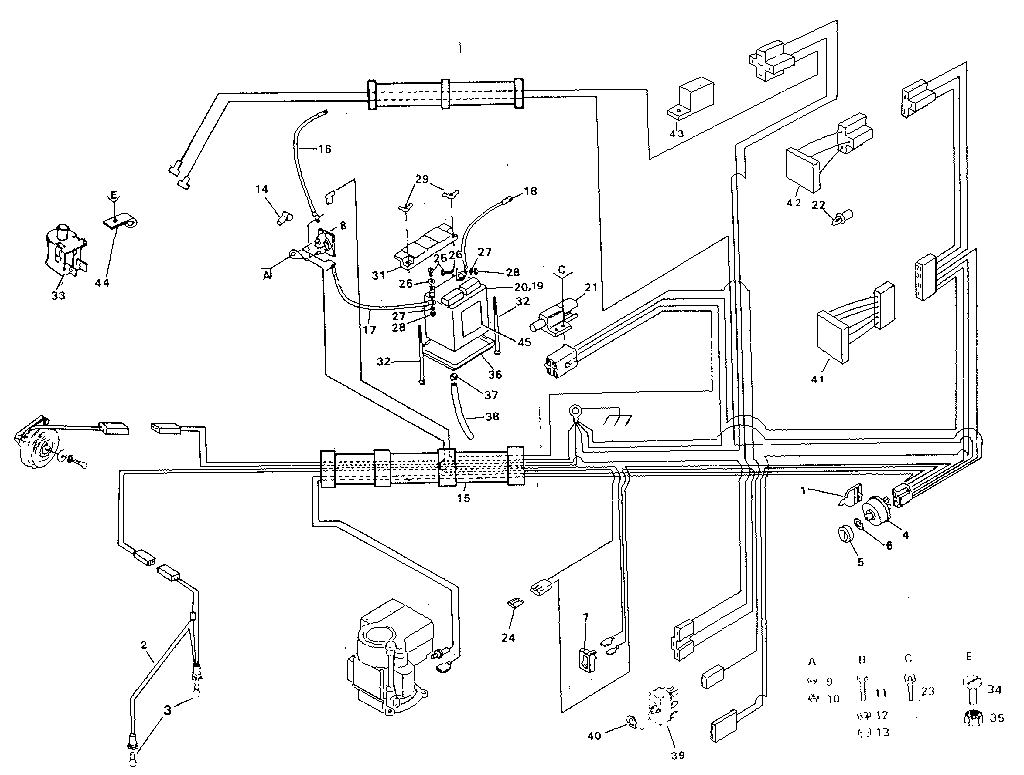

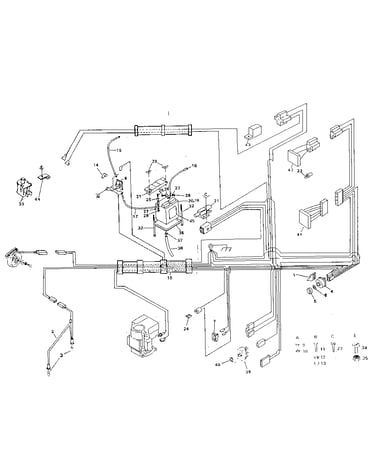

• Electrical starting (starter solenoid)

These are common wear or service items shown for model 917254661:

Riding mower parts are highly model-specific. Belts, pulleys, and steering components can look similar but differ in length, bore size, or mounting style. Using the exact model number and the correct part ID helps ensure proper fit and safe operation.

Last updated: February 2026

Model 917254661 is a Craftsman front-engine lawn tractor. In the owner's manual, it’s identified as an LT 12 HP, electric start, 6-speed lawn tractor with a 38-inch mower deck.

These details help us match the right belts, steering parts, and deck components for your tractor.

• 12 HP engine: points to a smaller, older-style lawn tractor platform
• Electric start: uses a battery, starter circuit, and a starter solenoid

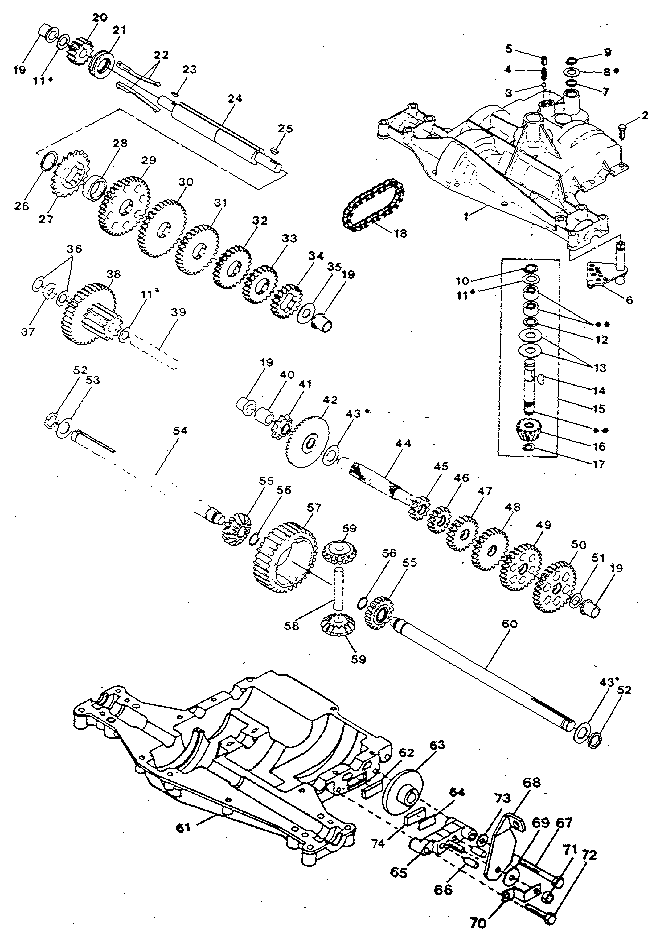

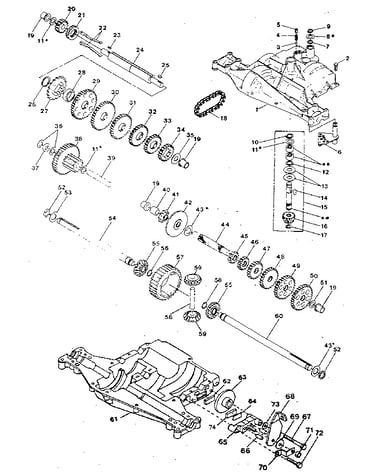

• 6-speed transmission: uses a ground drive belt and shift linkage components
• 38-inch mower deck: uses deck-specific blade drive belt, pulleys, and spindles

If you’re troubleshooting starting or drive issues, these are frequently involved:

• Solenoid 532146154 (starter circuit, clicking or no-crank symptoms)
• V-belt 532125907 (ground drive belt for moving forward and reverse)
• Lawn tractor blade drive belt 532106085 (deck belt for blade engagement)
• Pulley 532139245 (idler pulley used in belt routing and tension)

Use this checklist to confirm you are matching parts to the correct tractor configuration.

Craftsman model numbers can look similar, but deck size and transmission type change belt lengths, pulley sizes, and linkage parts. Confirming 917254661 prevents ordering a belt or solenoid that will not fit.

Last updated: February 2026

The Craftsman lawn tractor model 917254661 is equipped with a 12 HP engine (electric start) and is paired with a 38-inch mower deck. For the exact engine identification details (such as the engine model/type code), use the engine section in the owner's manual.

Even when horsepower is known, the most reliable way to match tune-up and repair parts is by the engine’s ID label.

• Look for the engine ID tag on the engine shroud, valve cover area, or near the starter
• Write down the full engine model and type numbers exactly as shown
• Compare those numbers to the engine information section in the owner's manual
• Use the engine ID (not just “12 HP”) when selecting ignition, fuel, and gasket parts
• If the tag is dirty, wipe it clean; avoid scraping off printed numbers

Many “engine” parts vary by the exact engine model even within the same tractor model. Use the engine ID to avoid wrong-fit parts.

Using the correct engine identification prevents repeat repairs and no-start issues. It also helps you match maintenance items (spark plug, air filter, oil type) and repair parts (starter, carburetor linkage, muffler gasket) to what’s actually installed on your 917254661.

Last updated: February 2026

Common problems on a Craftsman riding mower like model 917254661 are no-start or hard-start issues, poor cutting quality (uneven cut, scalping, windrowing), blade vibration, and drive or deck belt problems. Our best results come from checking fuel, spark, air flow, and the safety interlock system first, then moving to belts and blades.

• Use fresh fuel; old fuel causes hard starting and surging.
• Check the spark plug and make sure plug wires are tight.
• Clean the air filter and air screen; restricted air flow hurts power.
• Verify safety switches: seat switch, brake/clutch switch, and PTO switch.
• Inspect belts and pulleys for glazing, cracking, or slipping.
• Check tire pressure; uneven pressure causes uneven cutting.

The manual calls out several high-frequency mower performance issues: uneven distribution of clippings, blades not rotating, and excessive vibration. It also specifies blade bolt torque of 30 to 35 ft-lbs and notes that bent or unbalanced blades can cause vibration and damage over time. Use the troubleshooting and adjustment steps in the owner's manual.

If you find belt slip, squealing, or blades not engaging, a worn deck belt is a common root cause. For this model, check the condition and routing of the lawn tractor blade drive belt 532106085. If the tractor will not move or the drive feels weak, inspect the ground drive belt such as the v-belt 532125907 for wear and glazing.

Catching these issues early prevents bigger failures (damaged pulleys, mandrels, or engine strain) and keeps your Craftsman tractor cutting evenly and safely.

Last updated: February 2026

For Craftsman lawn tractors like model 917254661, the serial number is on the model plate under the seat. Use that serial number to determine the build year; then use the year to match the correct parts diagrams and replacement parts in the owner's manual.

The manual for 917254661 places the serial number on the model plate under the seat.

• Park on level ground, set the parking brake, remove the key
• Lift the seat and locate the model plate
• Write down the model number 917254661 and the full serial number
• Clean the tag so every character is readable
• Keep the numbers with your maintenance records

Craftsman tags use a few common formats. Match what you see on your ID tag.

The build year helps us match the correct configuration for belts, pulleys, steering linkage, and starting components.

• Ground drive belt length can vary; see v-belt 532125907
• Deck belt routing and size must match; see lawn tractor blade drive belt 532106085
• Starting issues often trace to the starter circuit; see solenoid 532146154

Use these model identifiers to sanity-check your decoded year against the tractor setup.

• 38-inch mower deck (shown on the manual cover)
• 6-speed drive system (shown on the manual cover)
• Belt routing and pulley locations match the diagrams
