Craftsman 917288514 tractor Parts

For a Craftsman riding lawn tractor like model 917288514, a complete engine replacement (parts plus labor) typically costs about $800 to $2,500. The total depends on the engine type, whether you replace it yourself, and any extra repairs discovered during installation; confirm specs and procedures in the 917288514 owner's manual.

• Engine price: New replacement engines commonly run $500 to $1,800 depending on horsepower, shaft size, and charging system.
• Labor: Shops typically charge 3 to 6 hours for a riding mower engine swap.
• Extra parts: Fuel line, clamps, battery cables, muffler hardware, or pulleys may be needed.
• Tune-up items: Oil, filter, spark plug, and air filter are often replaced at the same time.
• Root-cause repairs: If the “bad engine” symptom is actually electrical or fuel related, costs can drop significantly.

Your manual’s troubleshooting chart lists frequent causes when the engine clicks but will not start, including a weak battery, corroded terminals, loose wiring, and a faulty solenoid or starter. Use this quick check first:

• Charge and load-test the battery
• Clean and tighten battery terminals
• Inspect wiring connections at the starter and solenoid
• Verify the brake and PTO safety interlocks are operating
• If it only clicks, test the solenoid and starter circuit

If clicking is your main symptom, follow riding lawn mower engine clicks but doesnt turn over video to narrow it down before committing to an engine.

An engine replacement is one of the highest-cost repairs on a riding mower. A fast diagnosis can prevent replacing a good engine when the real issue is the starting circuit (battery, wiring, or solenoid).

Last updated: February 2026

Common problems on the Craftsman 917288514 front-engine lawn tractor include no-start or clicking (battery, wiring, solenoid/starter), loss of power (dirty air filter, stale fuel, low oil, spark plug issues), excessive vibration (damaged blade or loose hardware), and poor cutting or blades not spinning (deck buildup, worn belt, frozen pulleys/mandrels). Use the 917288514 owner's manual troubleshooting chart to match symptoms to the fastest checks.

• Engine clicks but won’t start: weak/dead battery, corroded terminals, loose/damaged wiring, or a bad solenoid/starter
• Loss of power: mowing too fast, throttle set wrong, debris under the deck, dirty air filter, low/dirty oil, bad spark plug, dirty fuel filter, stale fuel, or water in fuel
• Excessive vibration: bent/damaged blade, loose parts, or impact damage after hitting an object
• Poor cut or uneven cut: deck not level, low tire pressure, dull/bent blade, or grass packed under the deck
• Blades won’t rotate: obstruction, worn mower drive belt, frozen idler pulley, or frozen blade mandrel

1. Battery and cables: clean corrosion at terminals and confirm tight connections.
2. Fuel quality: drain stale fuel and refill with fresh gasoline; replace the fuel filter if flow is restricted.
3. Air and oil: clean/replace the air filter; verify oil level and change dirty oil.

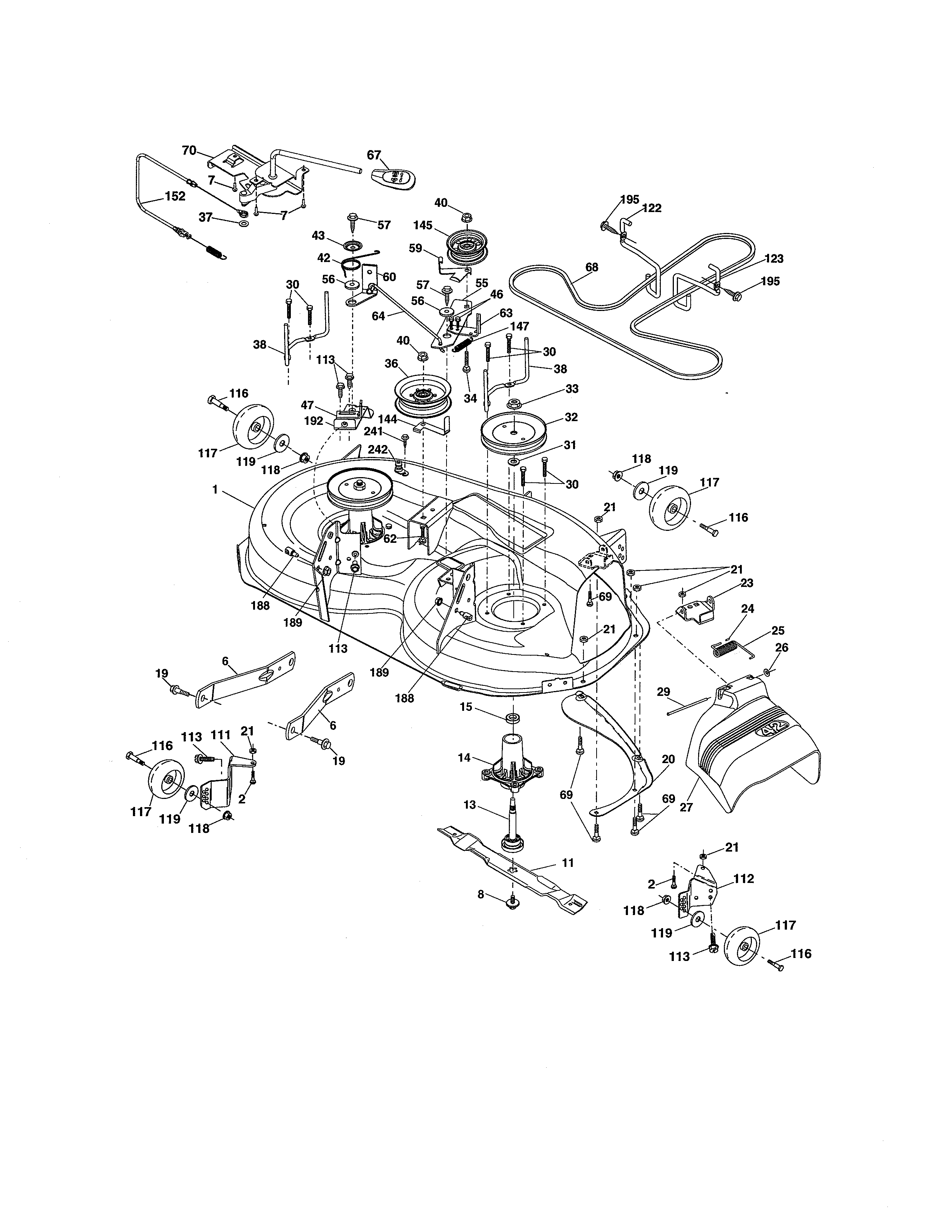

4. Deck condition: scrape packed grass from the underside and clear debris around mandrels.
5. Blade and hardware: inspect for bends/cracks and tighten the blade bolt.

Most “common problems” trace back to maintenance items (fuel, air, oil, deck cleaning) or safety and drive components (battery connections, belts, pulleys). Fixing the root cause prevents repeat failures and protects the mower deck and engine.

Last updated: February 2026

Craftsman model 917288514 was made as part of the 917.28851 tractor series; the exact build year is identified by the product identification label on your tractor (not by the model number alone). Use the 917288514 owner's manual to find the label location and the correct ID numbers to record.

Look for the product identification label and write down the numbers exactly as shown.

• Check under the seat area first (common location on Craftsman riding tractors)
• Also check the frame rail near the engine compartment
• Look near the rear fender pan or footrest area
• Record the model number and any serial/product number on the label
• If the label is dirty, wipe it gently so every digit is readable

Once you have the serial or product number, you can match it to the correct parts breakdown and documentation for your specific production run.

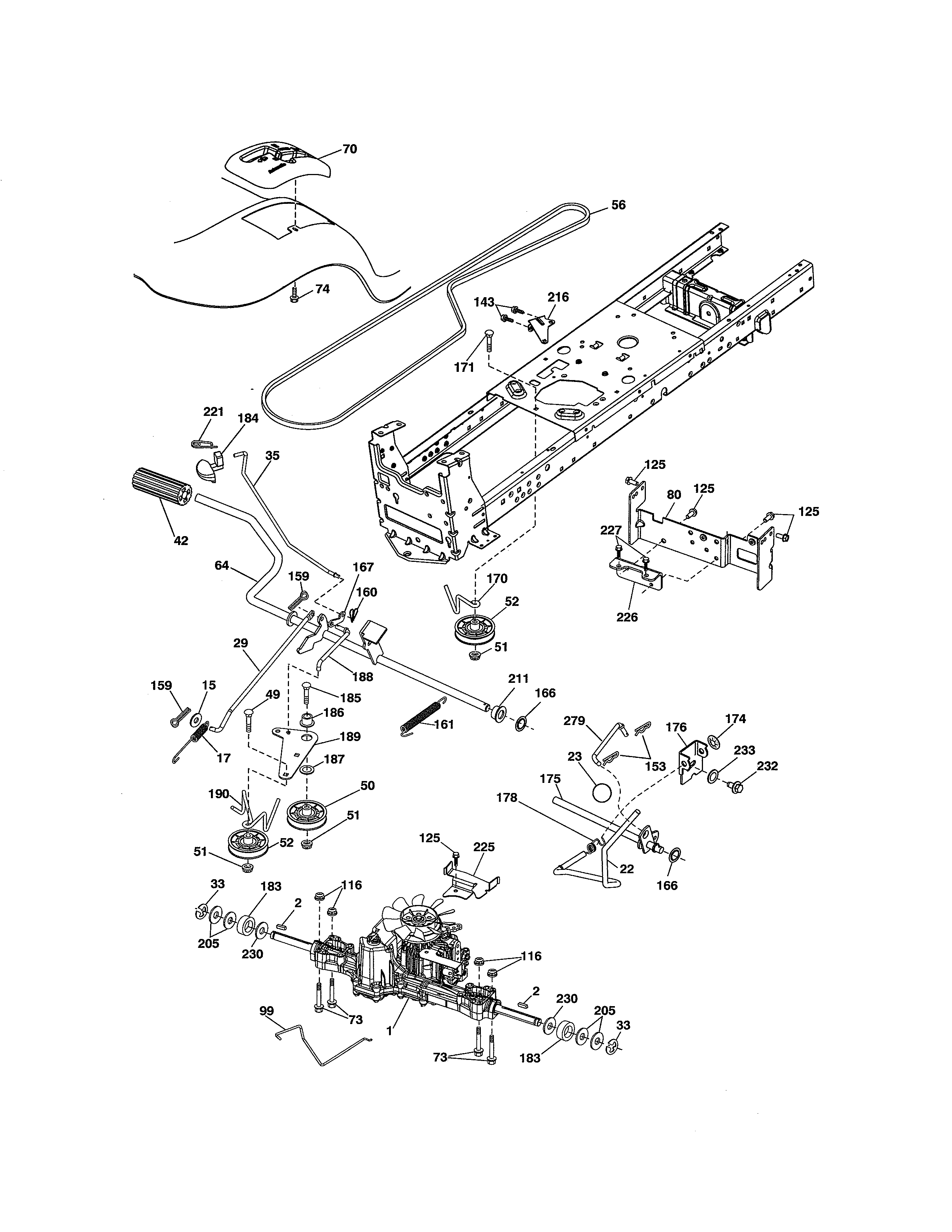

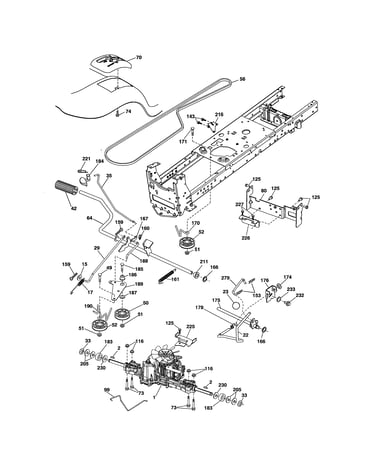

Craftsman tractors like the 917288514 often had running changes across production (belts, pulleys, deck hardware, electrical parts). Confirming the exact ID numbers helps ensure you order the correct items, such as the lawn tractor starter solenoid 582042802 or the lawn tractor ground drive or blade drive belt, 1/2 x 92-2/5-in 592855201.

Last updated: February 2026

On the Craftsman riding tractor model 917.288514, the model number is shown on the product identification label; it also appears on the cover of the 917288514 owner's manual. Use that exact model number when ordering parts like belts, blades, or electrical components.

Check these common ID-label locations used on Craftsman front-engine lawn tractors:

• Under the seat pan (lift the seat and look on the frame or fender pan)
• On the rear fender/deck area near the seat
• On the frame rail near the engine compartment
• Under the hood near the dash tower (less common)
• Near the transmission area on the frame (varies by build)

For this tractor, the model number format is numeric and typically printed as 917.28851 (manual cover) or 917288514 (full model used for parts lookup).

Using the correct model number prevents mismatched parts and saves time, especially for fit-critical items like a ground drive belt, mower deck parts, and steering linkage.

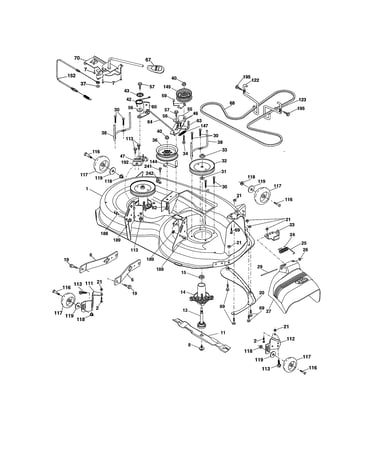

If you are replacing deck components, match parts by model first, then confirm by part ID; for example, the lawn tractor ground drive or blade drive belt, 1/2 x 92-2/5-in 592855201 is model-matched by application.

Last updated: February 2026

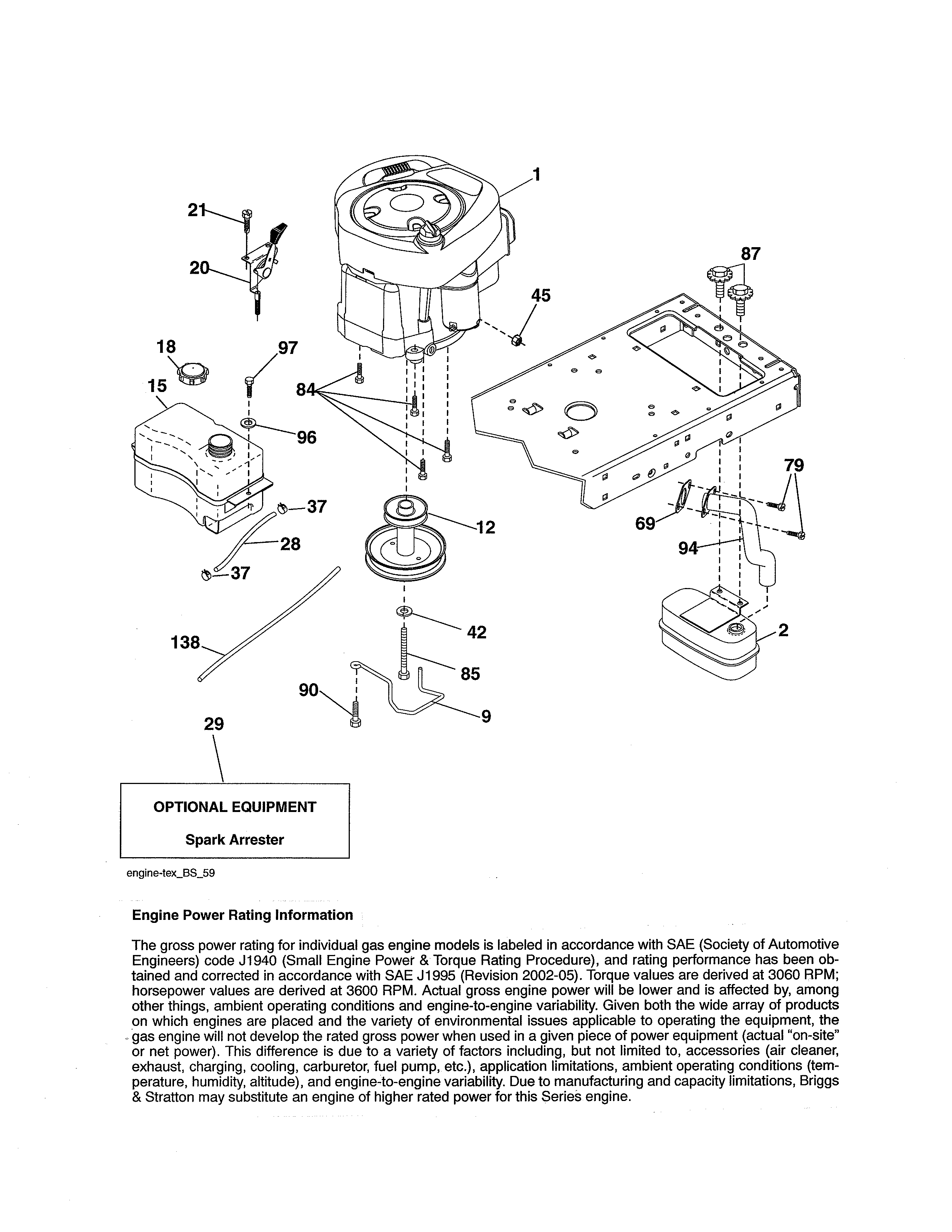

For the Craftsman 917288514 front-engine lawn tractor, Craftsman-branded riding equipment commonly uses engines supplied by major small-engine manufacturers such as Briggs & Stratton, Kohler, or Kawasaki; the exact engine maker depends on the specific tractor and engine model installed. For model-specific operating and maintenance details, use the 917288514 owner's manual.

The fastest way to confirm who made your engine is to read the engine ID information on the engine itself (not the tractor frame).

• Look for the engine data plate or sticker on the blower housing, valve cover, or near the starter
• Record the engine brand, model, type, and code/spec numbers
• Match that information to the engine parts list and tune-up specs
• Use the tractor model number 917288514 only for chassis and deck-related parts
• If the label is missing, check the manual’s engine section and decals shown in the diagrams

Craftsman has used multiple engine suppliers over the years across different riding mower and tractor lines. That is why two Craftsman tractors can share a similar deck size but have different engines.

Ordering the wrong tune-up parts is one of the most common causes of repeat starting and running problems. Confirming the engine manufacturer first helps you get the right maintenance parts and settings for your Craftsman tractor.
