Model # JBP28GK-3 Official GE range

Here are the diagrams and repair parts for Official GE JBP28GK-3 range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

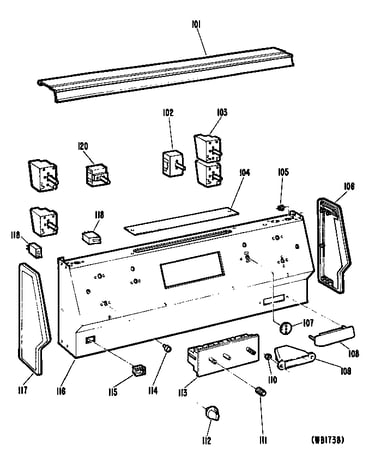

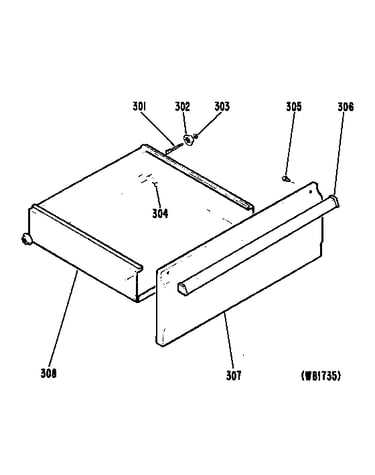

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 139 parts  |
Range Oven Light Bulb WX12X1510
#47

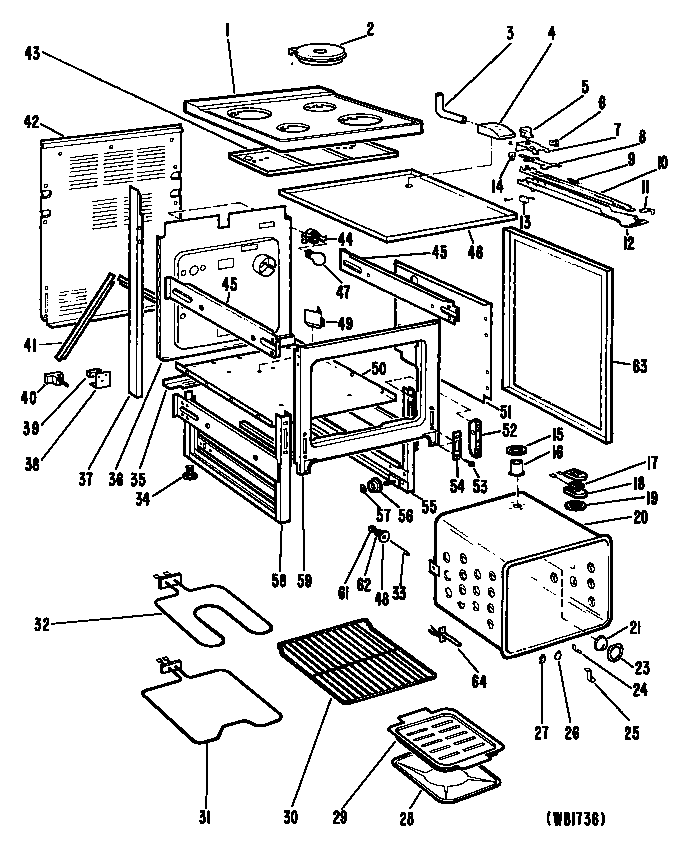

Cabinet diagram

Range oven light bulb

Part #WX12X1510

Replaced by #40A15

?
Manufacturer substitution
This part replaces WX12X1510. Substitute parts can look different from the original.
BEST SELLER
$15.39 |
12% OFF Phone Price : $17.39
In Stock
Bracket WB2X7876

#NI

All parts diagram

Bracket

Part #WB2X7876

Replaced by #WB02T10415

?
Manufacturer substitution
This part replaces WB2X7876. Substitute parts can look different from the original.
$27.48 |
15% OFF Phone Price : $32.48
In Stock
Broil Pan Rack WB49X589
#29

Cabinet diagram

Broil pan rack

Part #WB49X589

Replaced by #WB48X10056

?
Manufacturer substitution
This part replaces WB49X589. Substitute parts can look different from the original.
$26.63 |
16% OFF Phone Price : $31.63
In Stock
Use And Care Guide 49-4796

#NI

All parts diagram

Use and care guide

Part #49-4796

$17.99
In Stock
Main Block WB17X199
#39

Cabinet diagram

Main block

Part #WB17X199

Replaced by #WB17X5095

?
Manufacturer substitution
This part replaces WB17X199. Substitute parts can look different from the original.
$69.94 |
7% OFF Phone Price : $74.94
In Stock
Screen WB29X81
#19

Cabinet diagram

Screen

Part #WB29X81

The manufacturer no longer makes this part, and there's no substitute part

Gasket Seal WB2X120
#201B

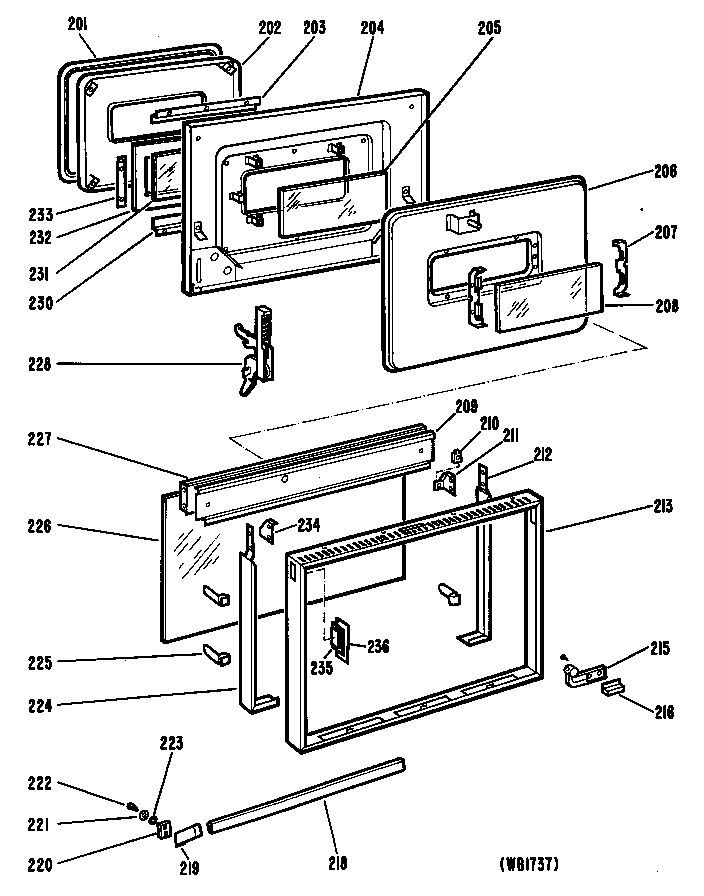

Doors diagram

Gasket seal

Part #WB2X120

The manufacturer no longer makes this part, and there's no substitute part

Support WB2X4931
#227

Doors diagram

Support

Part #WB2X4931

The manufacturer no longer makes this part, and there's no substitute part

Channel Base WB63X270
#55

Cabinet diagram

Channel base

Part #WB63X270

The manufacturer no longer makes this part, and there's no substitute part

Switch WB24X5235
#13

Cabinet diagram

Switch

Part #WB24X5235

The manufacturer no longer makes this part, and there's no substitute part
