Can you adjust the height of a GE refrigerator?

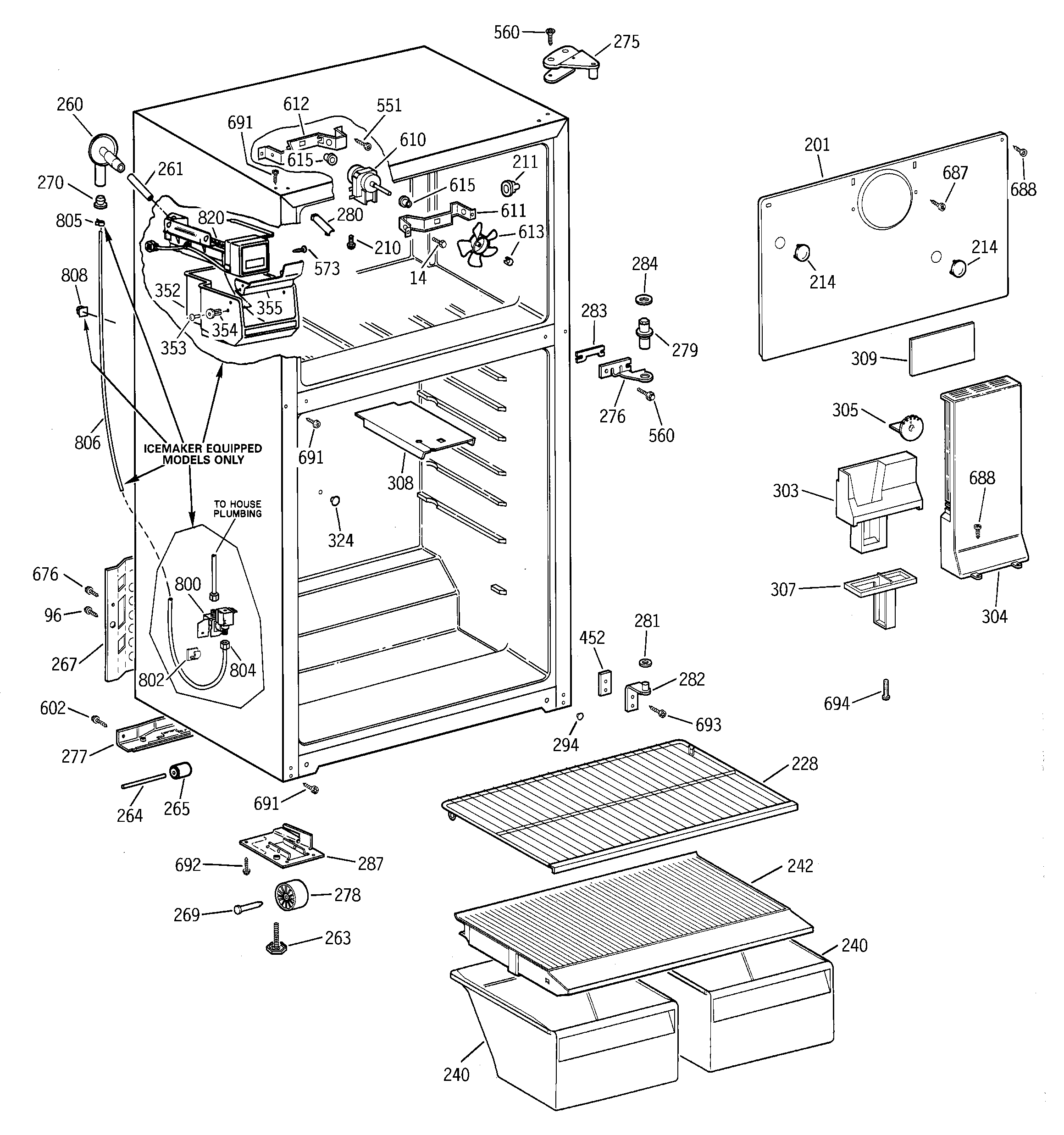

Yes. On the GE TBX16SIZDRWH top-mount refrigerator, you typically adjust the front leveling legs (or front rollers, depending on the base design) to change the height and help the doors close properly; the rear rollers are usually fixed and mainly help you roll the refrigerator in and out.
- Unplug the refrigerator or switch off power at the breaker.
- Pull the refrigerator forward enough to access the front leveling legs.
- Turn the leveling legs to raise or lower the front corners (small turns make a big difference).
- Aim for a slight tilt back so the doors self-close and seal.
- Recheck door alignment and gasket contact after each adjustment.

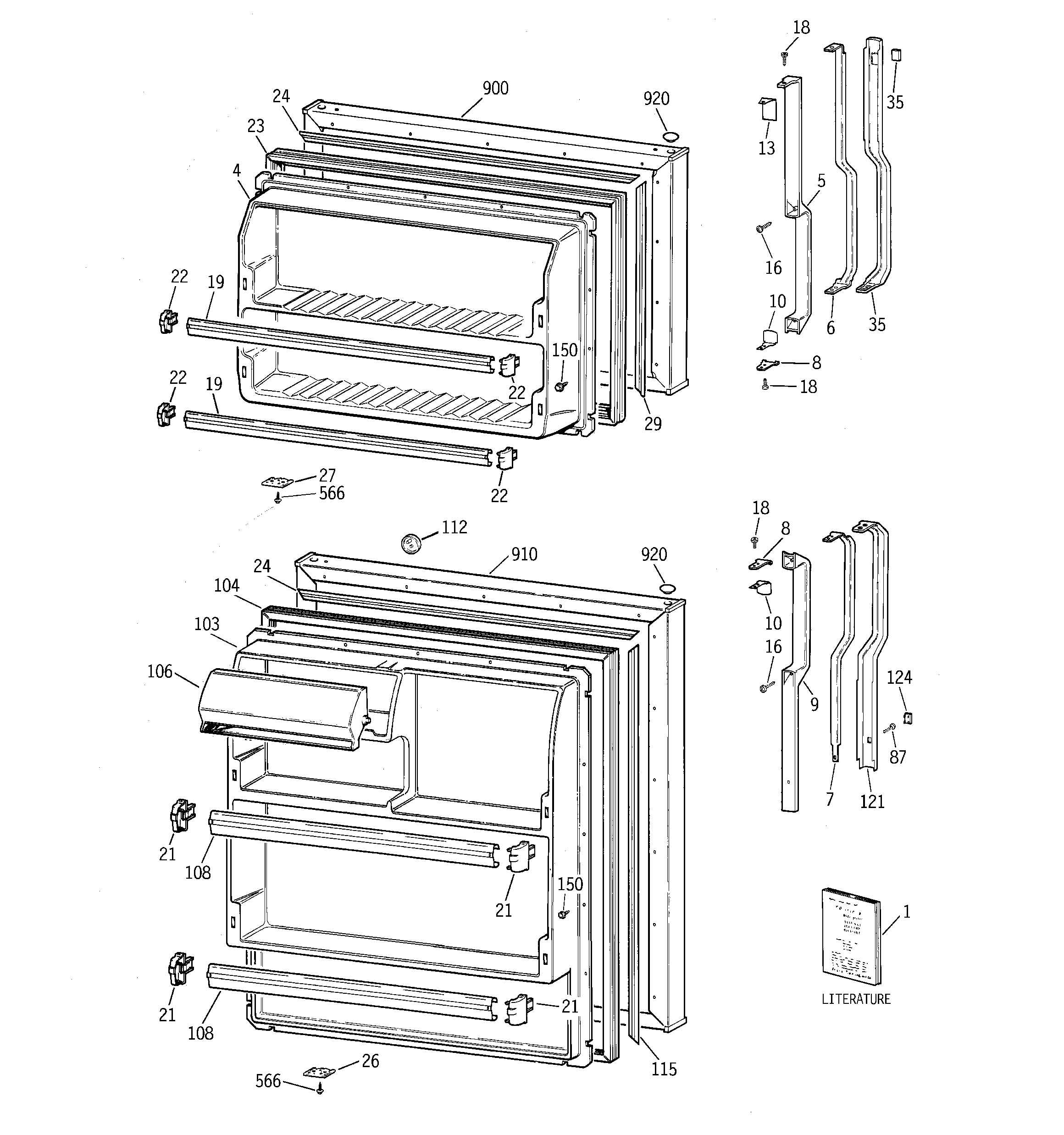

If leveling does not fix the issue, these parts commonly affect door swing and sealing:
- Door gasket is torn, warped, or not fully seated: refrigerator gasket WR24X10228
- Fresh food door gasket is loose or hardened: gasket WR24X10236
- Door is sagging at the hinge area (worn hinge hardware can cause misalignment)
| Symptom | Most common cause | What to do first |
|---|---|---|
| Door pops open or will not stay shut | Refrigerator not tilted slightly back | Raise the front leveling legs slightly |
| Door rubs cabinet or looks uneven | Unit not level side-to-side | Level left to right at the front |
| Frost or moisture near door edge | Gasket not sealing | Inspect and reseat gasket; replace if damaged |
| Door closes but light stays on | Door not pressing switch | Check alignment; inspect switch |
Proper leveling helps the doors close on their own, keeps the door gasket sealing evenly, and reduces warm air leaks that can cause temperature swings, frost buildup, and longer compressor run times.
Last updated: January 2026
What is the upper part of a fridge called?
In a GE top-mount refrigerator like model TBX16SIZDRWH, the upper section is typically the freezer compartment. That is the area designed to keep foods frozen and, on many setups, it is also where an ice maker mounts.
- Freezer shelves or a wire shelf for frozen food storage
- An evaporator area behind an interior panel (where cold air is made)
- An ice maker (if equipped) and ice bucket
- A freezer door gasket that seals the door to prevent warm air leaks
- A light and door switch (on many models)
Sometimes people mean the outside top surface of the refrigerator cabinet. That is simply the top panel or cabinet top, and it is not a cooling compartment.
| What you are describing | Common name | What it does |
|---|---|---|
| Upper inside compartment on a top-mount | Freezer compartment | Freezes food; helps chill the fresh-food section |
| Lower inside compartment on a top-mount | Fresh-food (refrigerator) compartment | Keeps food cold (not frozen) |
| Rubber seal around the door | Door gasket | Prevents air leaks and frost buildup |
| Ice-making assembly (if installed) | Ice maker | Automatically makes ice |
Using the right name helps you order the correct GE refrigerator parts and troubleshoot faster. For example, frost buildup and warm temperatures often point to a freezer air leak (gasket issue) or a defrost problem.
If you are replacing parts related to the upper section, common matches for this model include the refrigerator ice maker WR30X10093 and the refrigerator gasket WR24X10228.
Last updated: January 2026
What is a top mount refrigerator?
A top-mount refrigerator is a classic refrigerator layout where the freezer compartment is on top and the fresh-food (refrigerator) compartment is below. Your GE TBX16SIZDRWH uses this design to keep frozen foods at eye level and everyday refrigerated items in the lower section.
- Freezer section is the upper door and compartment
- Fresh-food section is the lower door and compartment
- Cold air is produced at the evaporator and distributed to both sections
- Temperature is typically adjusted with simple controls (often inside the fresh-food section)
| Style | Freezer location | Typical benefit | Typical tradeoff |
|---|---|---|---|
| Top-mount | Top | Usually lower purchase and repair cost | Bending more for fresh-food access |
| Bottom-mount | Bottom | Fresh-food at eye level | Often higher cost, more complex drawers |
| Side-by-side | Left side | Narrow door swing, easy freezer access | Narrower shelves for wide items |
Knowing you have a top-mount design helps narrow down common repair areas and parts locations, such as door sealing, airflow between compartments, and freezer-based cooling components.
Common top-mount issues we see:
- Frost buildup in the freezer that reduces airflow to the fresh-food section
- Warm refrigerator section while freezer stays cold
- Door not sealing well, causing temperature swings and moisture
- Interior light problems when the door switch or socket fails
If you are diagnosing cooling, icing, or door-seal symptoms on the GE TBX16SIZDRWH, these parts are often involved:
- Defrost control WR9X502 (controls defrost cycling)
- Refrigerator gasket WR24X10228 (helps prevent warm air leaks)
- Fan motor WR60X187 (moves air across coils and through the cabinet)
Last updated: January 2026
