Where is the model number on Kenmore Elite dryer?
On the Kenmore dryer model 11066732501, the model and serial number label is located at the top inside the dryer door well. Open the door and look up along the inside opening where the door closes against the cabinet.
Quick steps to find it
- Open the dryer door fully.
- Look at the top edge inside the door opening (the door well).
- Check for a model and serial number label (often a sticker or metal plate).
- Wipe dust off the area so the print is readable.
- Record both the model number and serial number for parts lookup and service.
What the label typically includes
| Item on label | What it’s used for |
|---|---|
| Model number (example: 11066732501) | Matching the correct Kenmore dryer parts list |
| Serial number | Identifying production details for service |
| Purchase date (you record it) | Warranty and service reference |
Why it matters
We use the exact model number to match the right parts and diagrams because Kenmore dryers can look similar but use different components (for example, a belt, heating element, or door switch) depending on the model series.
Helpful related resources
- Use the location details in the 11066732501 owner’s manual when you need to record the model and serial number for service.
Last updated: February 2026

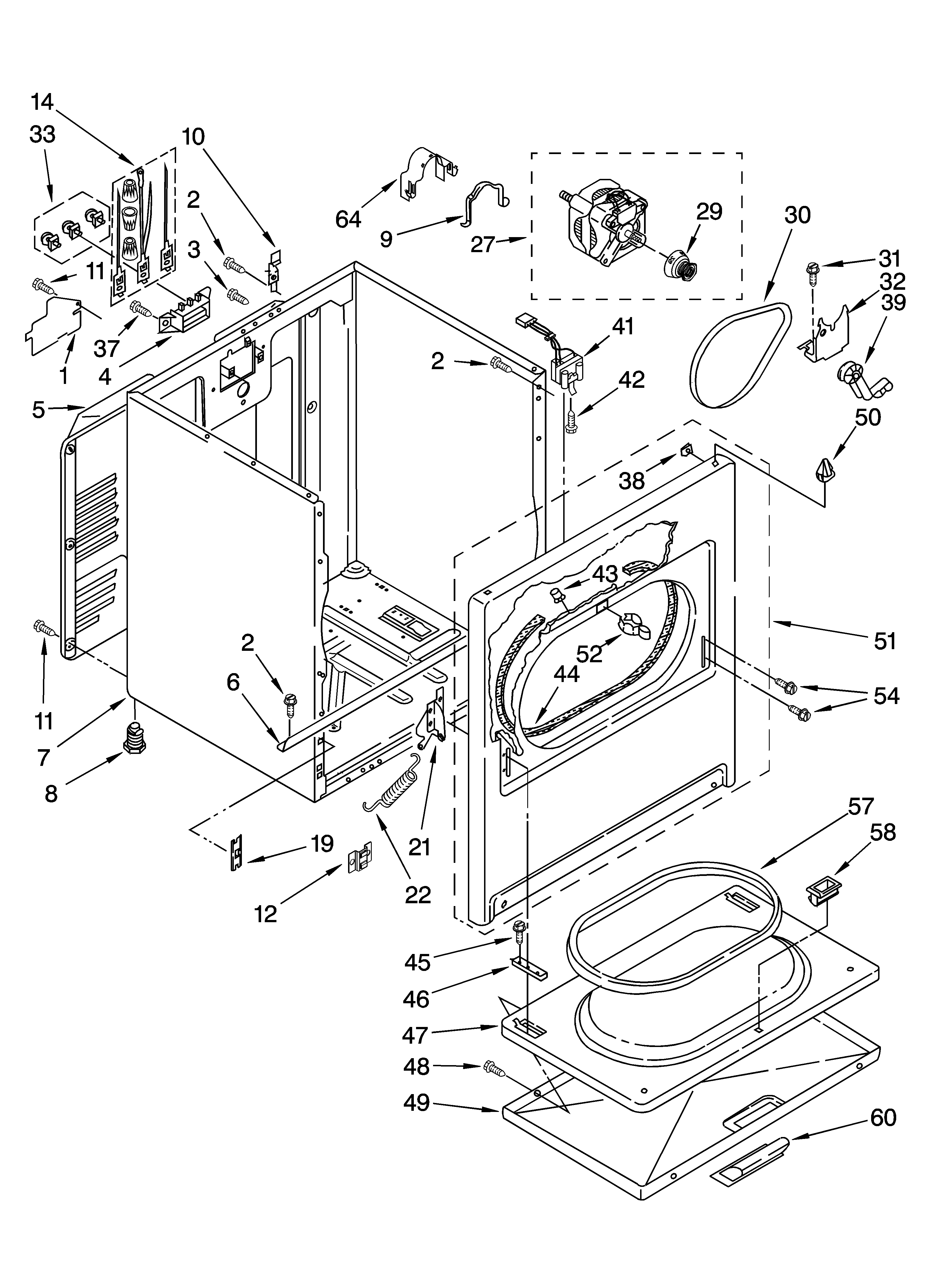

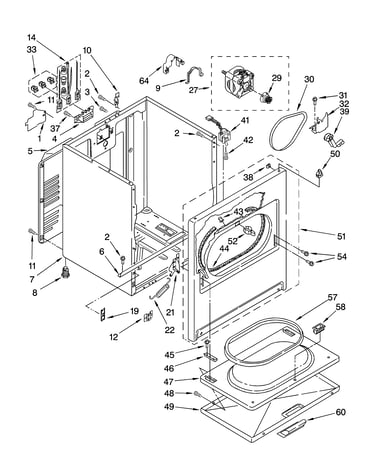

How to take off the front panel of a Kenmore dryer?
On Kenmore model 11066732501, we remove the front panel by disconnecting power, opening up the top, then removing the front-panel mounting screws and lifting the panel off the lower clips. This gives access to the drum, belt, idler pulley, and blower housing.
Before you start (safety and prep)
- Unplug the dryer (or switch off the breaker) before touching any internal wiring.
- If it is a gas dryer, shut off the gas supply valve.
- Pull the dryer forward and leave room so the exhaust vent is not crushed or kinked.
- Have a small container ready for screws.
- Take a quick photo of any wire connections you unplug.
Front panel removal steps (typical for this Kenmore/Whirlpool-built style)
- Disconnect power and confirm the drum light and controls are off.

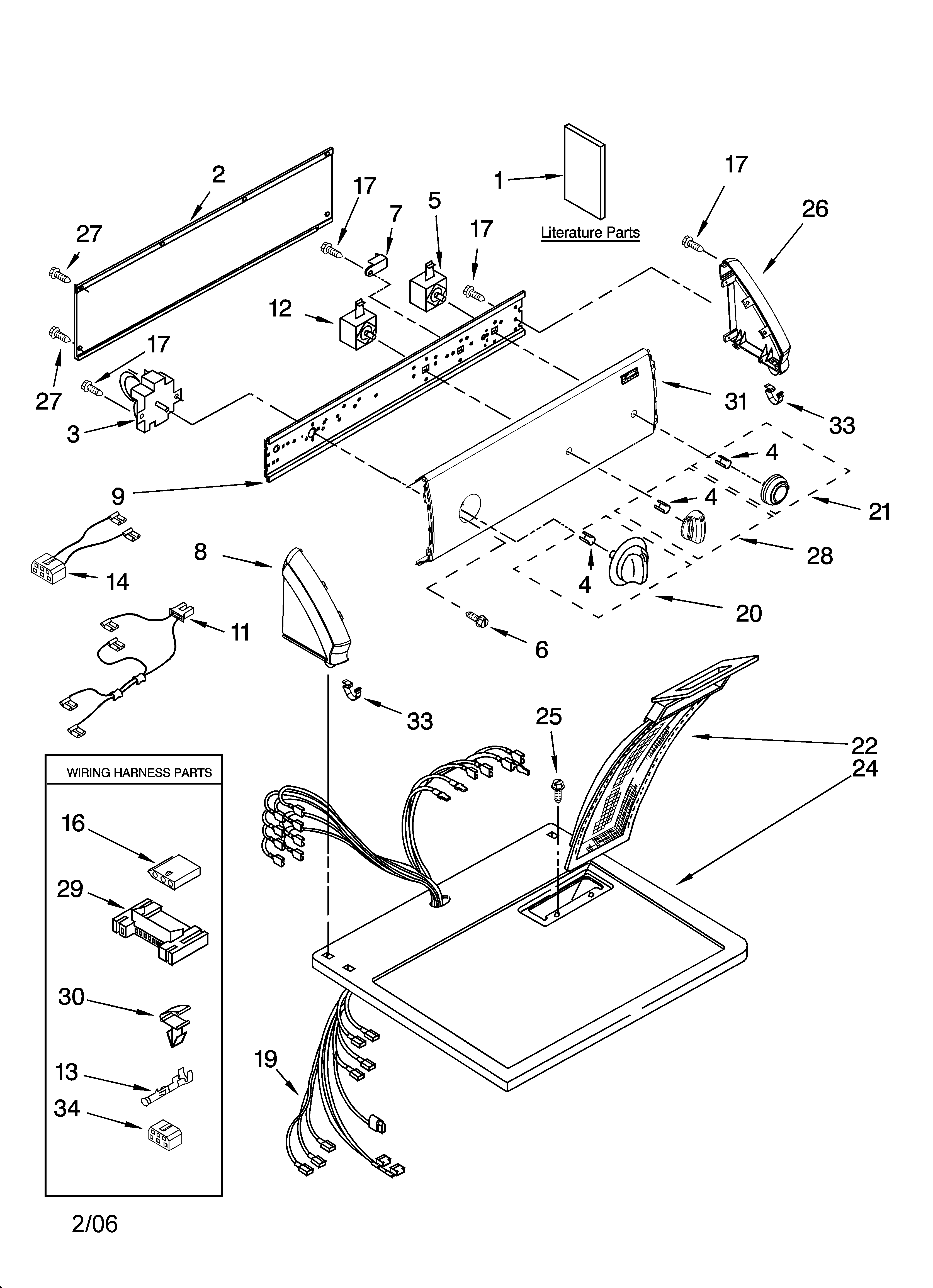

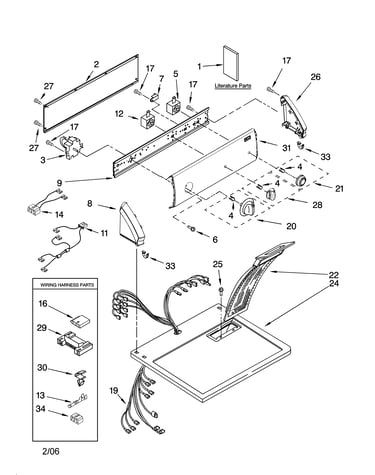

- Release the top panel: insert a putty knife a few inches in from each front corner to release the spring clips, then lift the top.
- Remove the lint screen (if it is in the top) and remove any screws in the lint screen housing opening.
- Remove front-panel screws: look along the inside top edge of the front panel (under the lifted top) and remove the mounting screws.
- Disconnect the door switch harness (if the wiring is attached to the front panel).
- Lift and remove the front panel: pull the top of the panel slightly forward, then lift up to unhook it from the bottom retaining clips.
What you can service once the front is off
| Symptom | Common area to inspect | Example part for this model |
|---|---|---|
| Drum not turning | Belt, idler pulley, motor | Dryer drum belt 341241 |
| Squealing or thumping | Idler pulley, drum support points | Dryer idler pulley WP691366 |
| Poor airflow or rumbling | Blower wheel, lint buildup | Dryer blower wheel WP694089 |
Why it matters
Removing the front panel the right way prevents bent cabinet tabs, broken plastic clips, and pinched wiring. It also makes belt and blower repairs faster and helps you reassemble the door switch and panel alignment correctly.
For model-specific diagrams and reassembly notes, follow the 11066732501 owner's manual.
Last updated: February 2026
How to hard reset a Kenmore dryer?
To hard reset your Kenmore dryer model 11066732501, disconnect power by unplugging the dryer (or switching the breaker off) for at least 1 minute, then restore power and start a new cycle. This clears many temporary control and cycle issues and is the safest reset method to try first.
Hard reset steps (recommended)
- Turn the cycle selector to Off.
- Unplug the dryer (or turn the circuit breaker Off).
- Wait 1 to 5 minutes.
- Restore power.
- Select a cycle and press PUSH TO START.
We follow the same stop and restart approach described in the 11066732501 owner's manual.
If the dryer still will not start after resetting
Use this quick checklist from the startup checks in the installation guide.
- Confirm the controls are set to a running or On position.
- Press Start firmly.
- Verify the dryer is plugged in and the electrical supply is on.
- Check the house fuse or circuit breaker.
- Make sure the dryer door is fully closed.
Common part-related causes (and what they look like)
| Symptom after reset | Likely area to check | Example part for this model |
|---|---|---|
| No response when door closes | Door switch not closing circuit | Dryer door switch WP3406107 |
| Runs but no heat | Heating circuit safety opened | Dryer thermal cut-off fuse kit 279816 |
| Runs but no heat (electric models) | Heater not heating | Dryer element 279838 |
Why it matters
A hard reset clears a stuck cycle state, but it does not fix airflow restrictions or failed safety devices. If a thermal cut-off opened, the dryer often will not heat again until the underlying venting or overheating cause is corrected.
Last updated: February 2026
What is the code F01 on a Kenmore dryer?
On Kenmore dryer model 11066732501, F01 (or F1) is treated as an electronic control fault: the main control is not processing inputs correctly or is detecting an internal failure. The dryer often beeps, stops, or will not start until power is reset and the underlying issue is corrected.
What to do first (safe, quick checks)
- Unplug the dryer (or switch off the breaker) for 2 minutes; restore power and try Timed Dry.
- Confirm the door closes firmly; a door that is not fully latched can mimic control problems.
- Clean the lint screen and make sure the exhaust vent is not crushed or blocked.
- If the code returns, stop the cycle and plan to inspect wiring and the control area.
Common causes on Kenmore electronic-control dryers
| What can trigger F01 | What you may notice | What we do next |
|---|---|---|
| Control board problem | Code returns immediately, random beeping | Inspect connections; replace control if needed |
| Loose or damaged wire harness/connector | Intermittent code, starts then stops | Reseat connectors; repair terminals/wires |
| Overheating from poor airflow | Very hot cabinet, long dry times | Clear venting; check thermostats and heater circuit |
Parts often checked during an F01-related service call
F01 points to the control system, but airflow and heat-limit protection problems can contribute to shutdowns and repeated faults. These are commonly inspected on this model:
- Dryer thermal cut-off fuse kit 279816 (opens if the heater area overheats)
- Dryer operating thermostat WP3387134 (regulates operating temperature)
- Dryer high-limit thermostat WP3977767 (backup limit for overheating)
Why it matters
When the control cannot reliably read inputs or manage heat and motor operation, the dryer can stop mid-cycle, dry poorly, or overheat. Restoring proper airflow and solid electrical connections prevents repeat failures.
For model-specific troubleshooting steps and safety guidance, follow the 11066732501 owner’s manual.
Last updated: February 2026
