Model # 11076842501 Official Kenmore dryer

Here are the diagrams and repair parts for Official Kenmore 11076842501 dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

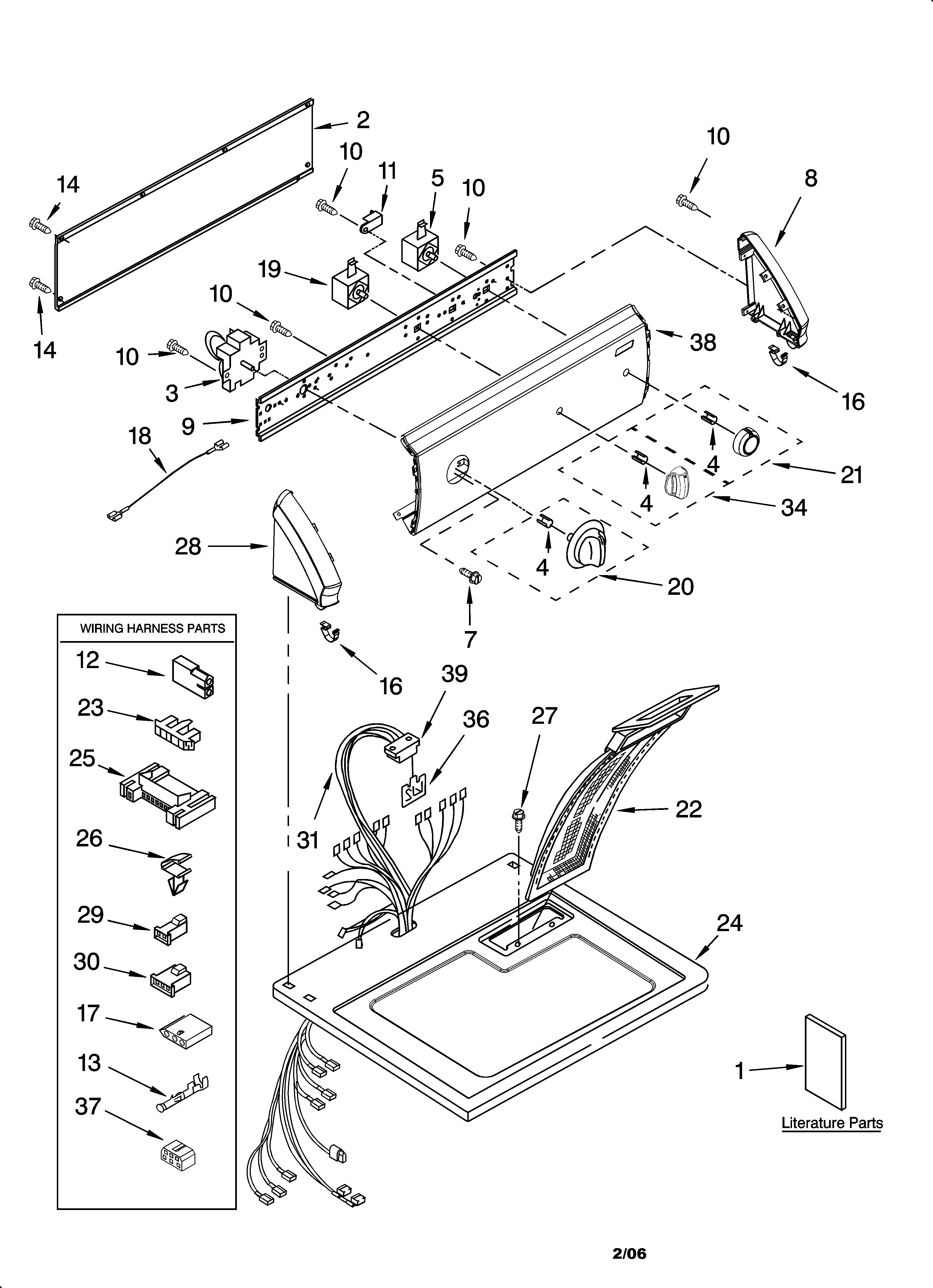

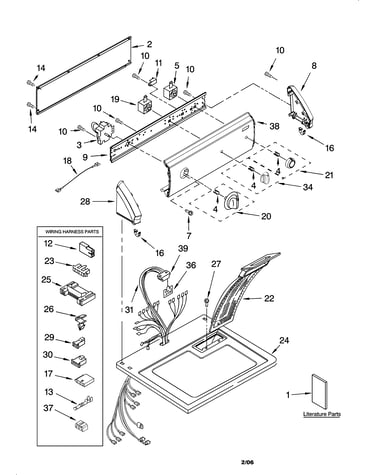

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
PART LIST
Showing 10 of 155 parts  |

Dryer Drum Belt (replaces 2008, 31531589, 349533, 53-1512, 8210, W10127457, W10131364)
#30

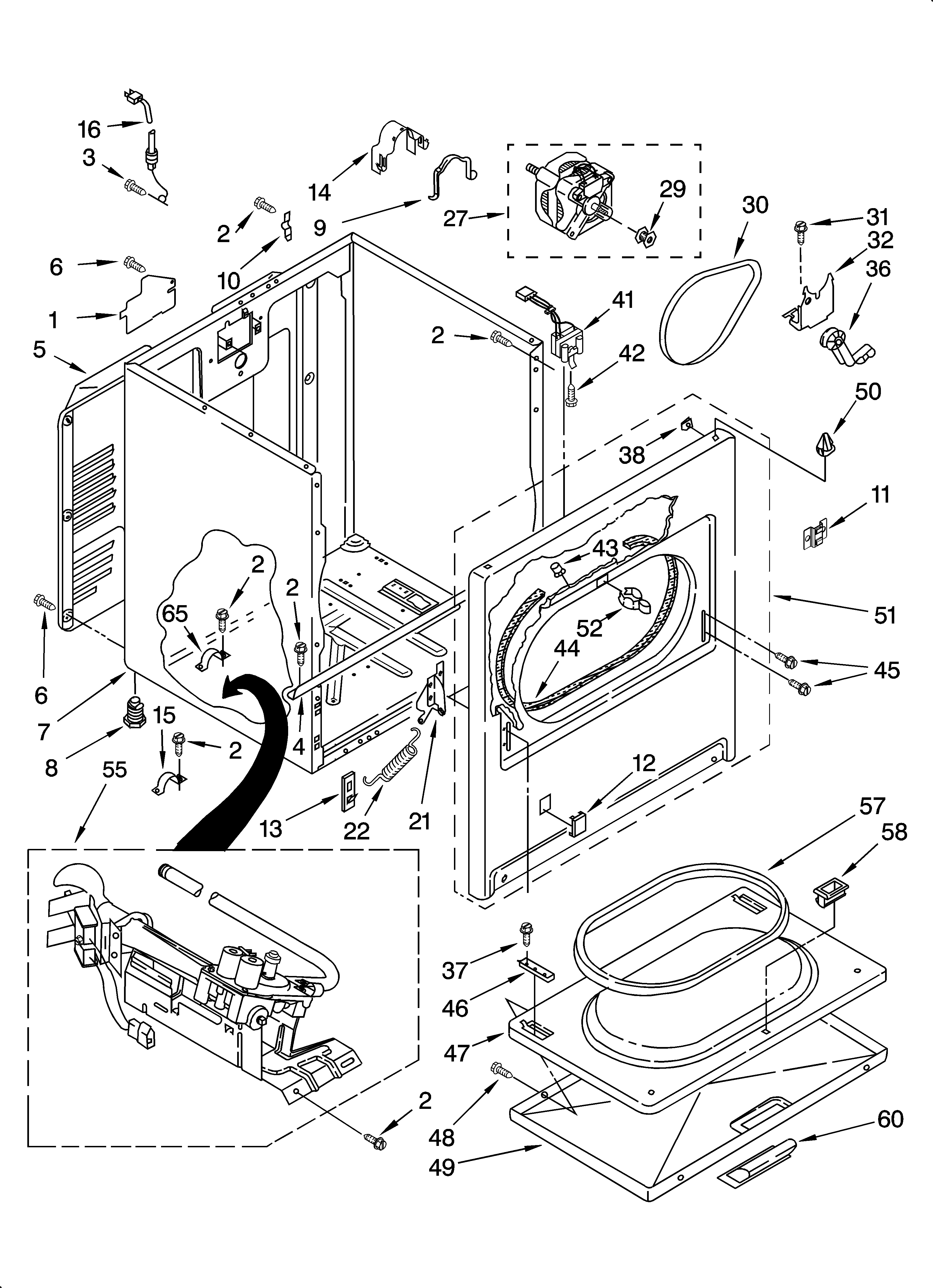

Cabinet parts diagram

Dryer drum belt

Part #8066065

Replaced by #341241

?
Manufacturer substitution
This part replaces 8066065. Substitute parts can look different from the original.
BEST SELLER
$13.12
13% OFF Phone Price : $15.12
In Stock
Dryer Repair Kit (replaces 2014, 279948, 80046, 8238)
#NI

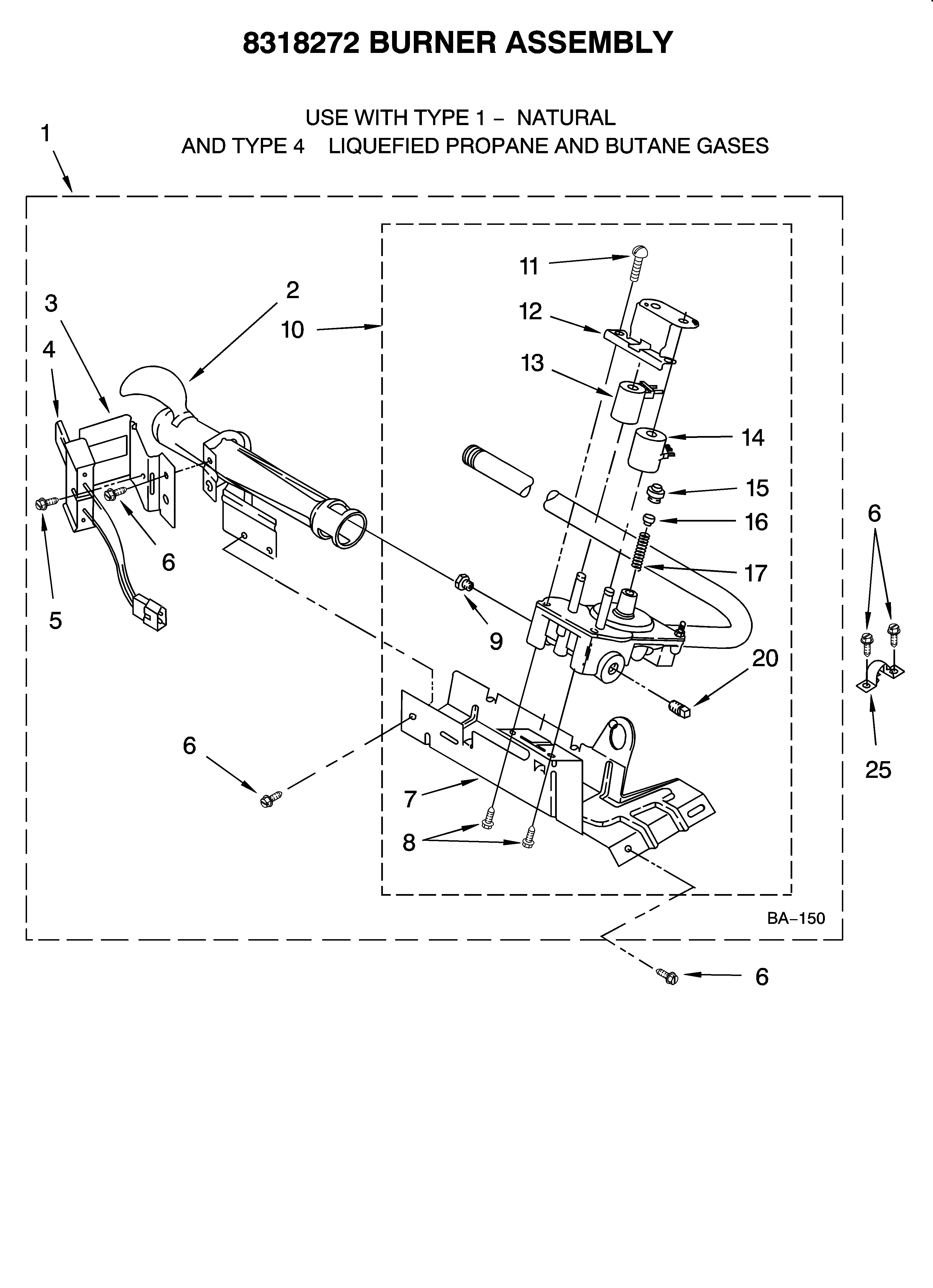

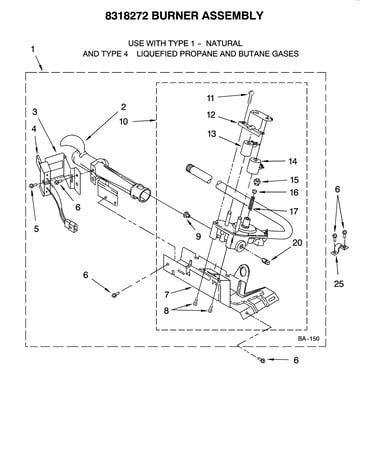

8318272 burner assembly, optional parts (not included) diagram

Dryer repair kit

Part #279948

Replaced by #4392065

?
Manufacturer substitution
This part replaces 279948. Substitute parts can look different from the original.
BEST SELLER
$29.50
14% OFF Phone Price : $34.50
In Stock
Dryer Thermal Fuse, 195-degree F (replaces 3392519)
#39

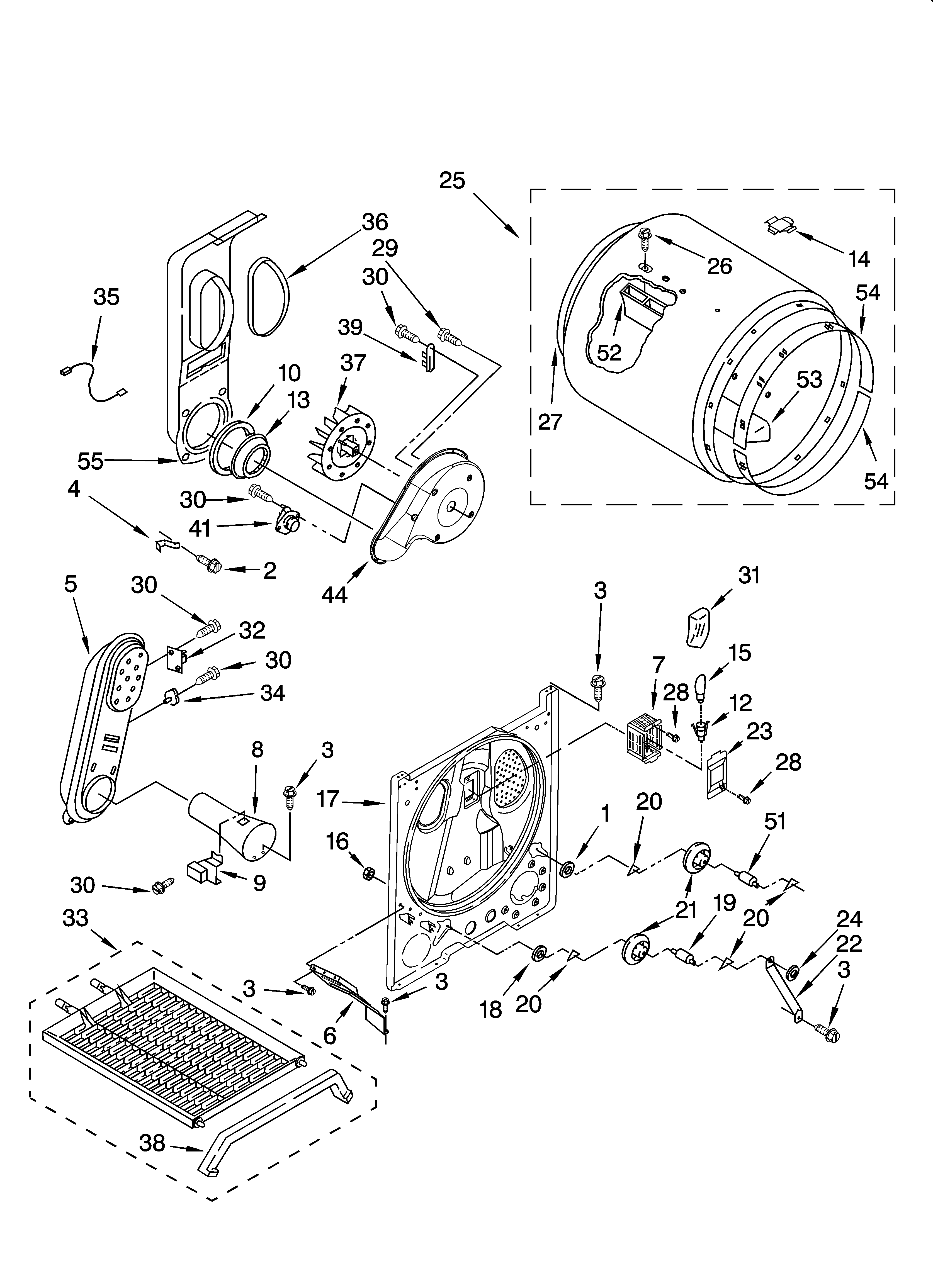

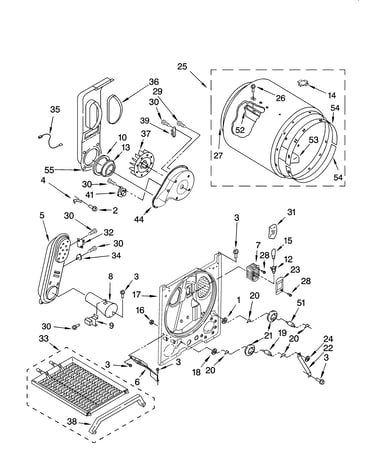

Bulkhead parts diagram

Dryer thermal fuse

Part #3392519

Replaced by #WP3392519

?
Manufacturer substitution
This part replaces 3392519. Substitute parts can look different from the original.
BEST SELLER
$19.75
21% OFF MSRP : $25.00
In Stock
Dryer Door Switch (replaces 3406107)
#41

Cabinet parts diagram

Dryer door switch

Part #3406107

Replaced by #WP3406107

?
Manufacturer substitution
This part replaces 3406107. Substitute parts can look different from the original.
BEST SELLER
$29.40
15% OFF Phone Price : $34.40
In Stock
Dryer Door Latch Kit (replaces 2003, 3392538, 3398175, 8208)
#52

Cabinet parts diagram

Strike

Part #696144

Replaced by #279570

?
Manufacturer substitution
This part replaces 696144. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.98
69% OFF MSRP : $13.00
In Stock
Dryer Drum Support Roller Kit (replaces 26000349241, 3397590, 8170)
#21

Bulkhead parts diagram

Support

Part #3397590

Replaced by #349241T

?
Manufacturer substitution
This part replaces 3397590. Substitute parts can look different from the original.
BEST SELLER
$19.79
29% OFF MSRP : $28.00
In Stock
Dryer Idler Pulley (replaces 691366, W10612905)
#36

Cabinet parts diagram

Dryer idler pulley

Part #691366

Replaced by #WP691366

?
Manufacturer substitution
This part replaces 691366. Substitute parts can look different from the original.
BEST SELLER
$15.18
39% OFF MSRP : $25.00
In Stock
Dryer Operating Thermostat (replaces 3387134)
#41

Bulkhead parts diagram

Dryer operating thermostat

Part #3387134

Replaced by #WP3387134

?
Manufacturer substitution
This part replaces 3387134. Substitute parts can look different from the original.
BEST SELLER
$21.14
34% OFF MSRP : $32.00
In Stock
Dryer Burner Igniter Kit (replaces 685211, 8113)
#4

8318272 burner assembly, optional parts (not included) diagram

Igniter

Part #686590

Replaced by #279311

?
Manufacturer substitution
This part replaces 686590. Substitute parts can look different from the original.
BEST SELLER
$26.45
24% OFF MSRP : $35.00
In Stock
Dryer Drum Light Bulb (replaces 22002263, 8206780)
#15

Bulkhead parts diagram

Light bulb

Part #3406124

Replaced by #WP22002263

?
Manufacturer substitution
This part replaces 3406124. Substitute parts can look different from the original.
BEST SELLER
$19.04
13% OFF MSRP : $22.00
In Stock
