Kenmore Elite 11028081700 washer Parts

The exact tub capacity (cubic feet) for Kenmore Elite washer model 11028081700 is listed in the product specifications section of the 11028081700 owner's manual. If you do not see it there, use the measurement method below to estimate capacity accurately.

How to estimate washer capacity (cubic feet)

We use the tub’s inside dimensions to estimate volume. Measure the empty tub (not the basket rim) in inches:

• Diameter (D): straight across the tub
• Depth (H): from the tub bottom to the top of the tub wall
• Measure in inches, then calculate

Formula (cylinder):

• Cubic inches = 3.14 × (D/2)² × H
• Cubic feet = cubic inches ÷ 1,728

Quick example

If the tub measures 20 in diameter and 14 in deep:

Measurement	Value
Diameter (D)	20 in
Depth (H)	14 in
Estimated capacity	~2.5 cu ft

Typical capacity range for this style of Kenmore Elite washer

Most Kenmore Elite top-load washers of this design fall in a roughly 3.2 to 4.0 cu ft range, depending on basket size and wash system.

• Smaller baskets: better for tight spaces, smaller loads
• Larger baskets: better for bulky items (comforters, towels)
• Capacity affects cycle time, water level behavior, and load sizing

Why it matters

Knowing cubic feet helps us match the right load size and cycle settings, which reduces out-of-balance spinning, improves cleaning, and can help prevent wear on suspension and drive components.

Last updated: January 2026

Yes. The Kenmore Elite washer model 11028081700 uses an internal Force Filter Wash/Rinse System that filters 100% of the wash and rinse water and then recirculates it; it is designed to trap sand and dirt and flush them down the drain rather than redepositing them on clothes.

What “filter” means on this model

This washer’s filtration is built into the wash system, so you typically will not service a removable lint screen like you might on some other washer designs.

What you can do instead (routine care):

• Run the washer’s Clean Washer cycle as part of regular maintenance.
• Use the correct type and amount of detergent to reduce residue buildup.
• Check pockets and remove debris (coins, sand, pet hair clumps) before washing.
• Keep the tub and lid area wiped dry to help prevent odors.
• Inspect inlet hoses periodically for wear or bulging.

For the exact cleaning and care steps for model 11028081700, follow the maintenance section in the 11028081700 owner's manual.

When a “filter problem” is really a drain issue

If you are seeing slow draining, standing water, or debris left behind, the most common cause is a restriction in the drain path (hose, pump, or internal sump), not a user-cleanable filter.

Quick checks

• Make sure the drain hose is not kinked, crushed, or pushed too far down the standpipe.
• Confirm the standpipe is not clogged and the washer can pump into it.
• Listen for the drain pump during the drain portion of the cycle.

If the washer will not drain or you hear a humming pump with little or no water movement, the drain pump may be the next part to inspect or replace.

Symptom	Most likely area	Common next step
Slow drain	Drain hose or standpipe	Clear kink or blockage
Hums but won’t drain	Drain pump	Inspect/replace pump
Drains but leaves grit	Normal filtration flushing debris	Run Clean Washer cycle and reduce debris in loads

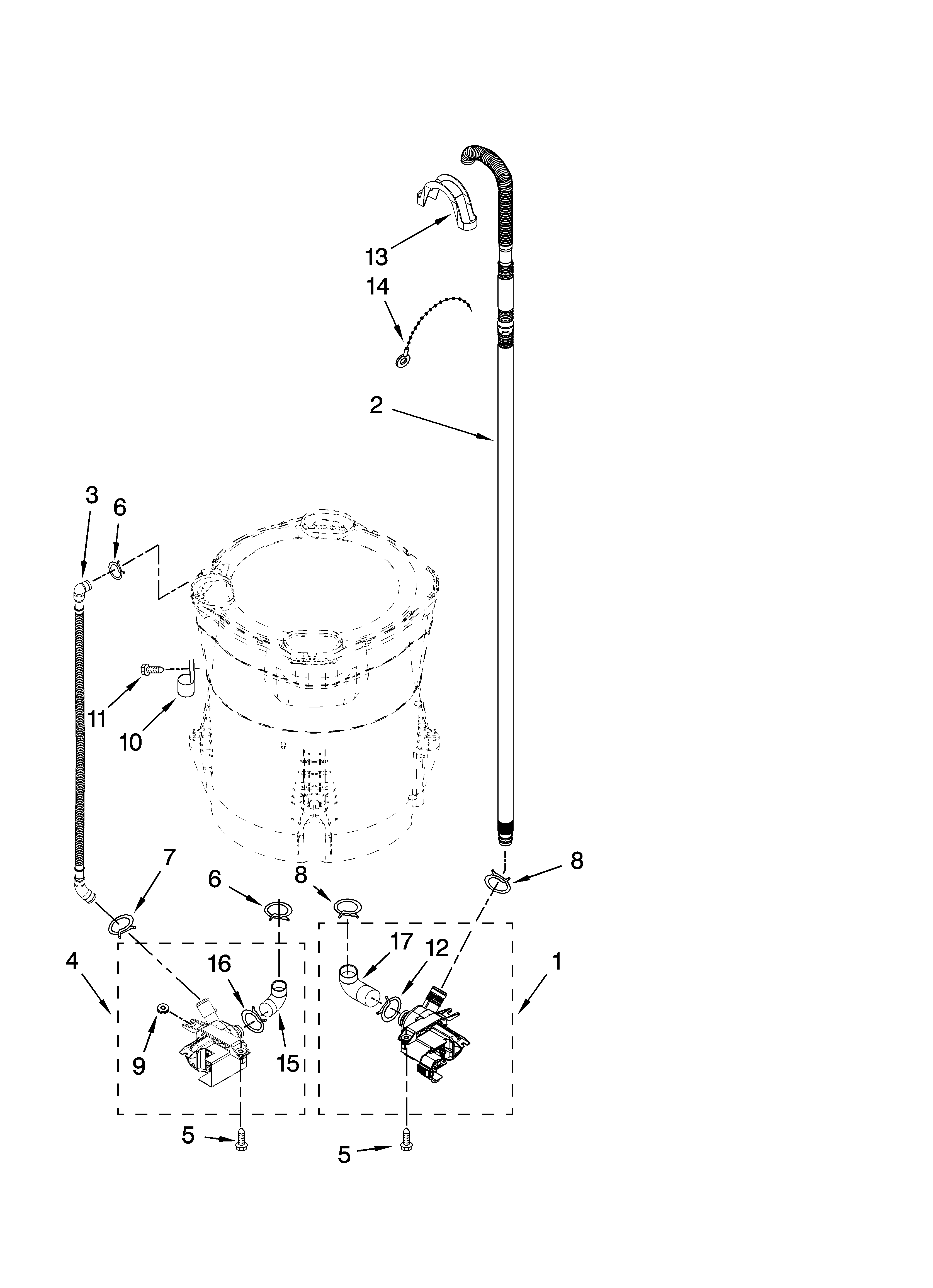

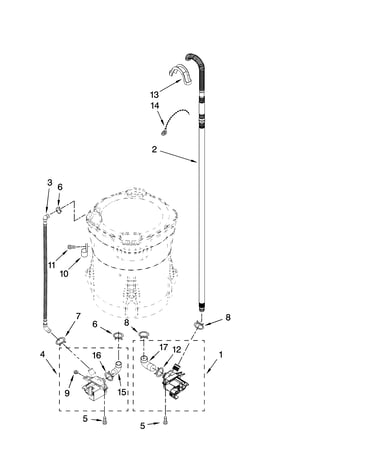

Relevant part for this model: Water pump W10536347.

Why it matters

Knowing this washer uses a built-in filtration system helps you focus on the right maintenance: keeping the tub clean and keeping the drain path clear, instead of searching for a removable filter that is not part of normal user service on this design.

Last updated: January 2026

To hard reset your Kenmore Elite washer model 11028081700, unplug it (or switch off the breaker) for 2 minutes, then restore power and press POWER. If the control is still acting up, cancel the cycle with STOP and restart a fresh cycle per the 11028081700 owner's manual.

Hard reset steps (power reset)

• Press STOP to end the current cycle.
• Press POWER to turn the washer off.
• Unplug the washer (or turn the breaker off).
• Wait 2 minutes (this lets the control fully discharge).
• Restore power.
• Press POWER, select a cycle, then press START.

If the washer is “stuck” mid-cycle

The 11028081700 can be stopped and drained using the control buttons.

• Press STOP twice to cancel the cycle and drain the tub.
• Press POWER.
• Re-select your cycle and options.
• Press START (the lid will lock during operation).

What you see	What to do	What it does
Washer won’t advance or you want to start over	STOP twice	Cancels cycle and drains
Need to pause and add an item	STOP once, wait for lid to unlock	Pauses so you can open the lid
Want to restart after pausing	Close lid, press START	Resumes the cycle

When a “reset” is really a lid lock or drain issue

If the lid stays locked or the washer will not drain, the problem is often mechanical, not the control.

• If the lid will not lock or unlock correctly, check the washer lid lock WPW10619844.
• If the tub will not drain, check for a clog and inspect the water pump W10536347.
• If the washer bangs or goes off-balance, inspect the washer suspension W10820048.

Why it matters

A true hard reset clears temporary control glitches and lets you restart safely. If the same symptom returns right away, focusing on the lid lock, drain pump, or suspension saves time because those parts directly affect stopping, draining, and spinning.

Last updated: January 2026

Yes. Kenmore Elite is Kenmore’s premium appliance line, and the Kenmore Elite washer model 11028081700 is positioned as a higher-end washer with upgraded features and durability compared with standard Kenmore models; its warranty coverage also reflects that premium tier (including extended coverage on the drum and tub).

What “high end” means for Kenmore Elite washers

Kenmore Elite typically sits above standard Kenmore in features, materials, and performance. For model 11028081700, the 11028081700 owner's manual highlights a feature-focused design and a warranty structure that goes beyond basic coverage.

Common “high end” traits you can expect:

• More cycle options and modifiers for fabric care
• Higher-efficiency washing and water use compared with older traditional designs
• More robust internal components (drive system, tub, suspension)
• Quieter operation when the washer is properly leveled
• Better long-term value when maintained (hoses, cleaning routine, correct detergent)

Warranty snapshot (a practical way to judge “premium”)

Warranty terms are one of the clearest signals of product tier.

Coverage area	What it generally indicates	What you should do
1-year limited warranty	Standard full-coverage period	Keep proof of purchase and follow care instructions
Extended coverage on key tub components	Premium focus on core wash system durability	Maintain the washer and avoid overloading

Why it matters

A “high-end” washer is worth it when you want better cleaning performance, better fabric care, and fewer vibration issues over time. If your washer starts shaking, leaking, or not draining, addressing the root cause early helps protect premium components like the tub system and drive parts.

Parts that often come up in real-world repairs

If performance drops, these model-compatible parts are commonly involved:

• Washer suspension W10820048 for excessive vibration or off-balance movement
• Water pump W10536347 for draining problems
• Washer lid lock WPW10619844 for won’t-start or lid/lock related symptoms

Last updated: January 2026
