Craftsman 13953975SRT1 garage door opener Parts

A Craftsman garage door opener typically lasts 10 to 15 years. For the Craftsman 13953975SRT1, lifespan depends most on door balance, correct force and travel-limit settings, and routine care; a well-maintained opener lasts longer because it is not fighting a binding or heavy door.

What shortens (or extends) opener life

• An unbalanced or poorly lubricated garage door that overloads the motor and drive
• Force set too high (extra strain on gears and motor)
• Travel limits set incorrectly (opener keeps pushing after the door hits the floor or stop)
• Misaligned safety reversing sensors causing repeated failed close cycles
• Lack of periodic inspection and tightening of mounting hardware

Quick maintenance checklist (high impact)

We recommend doing these basics a few times per year:

• Test the safety reversal system and test the safety reversing sensor
• Check chain tension (if your unit is chain drive) and adjust if needed
• Confirm the door moves smoothly by hand (with the opener disconnected)
• Verify travel limits and force are set correctly
• Keep photo-eye lenses clean and aligned

For model-specific procedures, use the owner's manual.

Typical lifespan by what wears out first

Component area	What you notice	What it usually means
Drive gear / internal gearing	Motor runs but door barely moves, grinding noises	Gear wear from load or age
Safety sensors	Door starts down then reverses, lights blink	Alignment/obstruction or sensor issue
Travel/force settings	Door stops short, slams, or reverses unexpectedly	Needs limit/force adjustment
Wall control / remotes	Intermittent response	Control wiring, logic board, or programming issue

Why it matters

Most “opener failures” start with the door system (springs, rollers, track, binding). Keeping the door properly balanced and the opener correctly adjusted reduces strain, improves safety reversal performance, and helps your 13953975SRT1 reach the full 10 to 15 year service life.

If you need to identify replacement parts by model number, start with the parts list for 13953975SRT1, or search by model on Sears PartsDirect.

Last updated: February 2026

Common problems on the Craftsman 13953975SRT1 garage door opener are power or control issues (won’t run from the wall control or remote), safety reversing sensor problems (door won’t close, lights blink), and door-mechanics issues (door out of balance, broken springs) that make the opener strain, hum, or stop.

Most common symptoms and what they usually mean

• Opener does nothing (wall control and remote): power issue, tripped breaker, locked door, or motor overload protector tripped.
• Remote works but wall control doesn’t: wall control wiring or wall control problem.
• Door won’t close and lights blink: safety reversing sensor beam is blocked or sensors are misaligned.
• Opener strains or needs maximum force: door is out of balance or springs are failing.
• Motor hums briefly then won’t run: door lock engaged, spring issue, or drive system timing/phase issue after chain work.

Quick checks we recommend (in order)

1. Confirm power: plug a lamp into the opener outlet; check breaker/fuse and any wall switch that controls the outlet.
2. Disable locks and remove obstructions: make sure no door lock is engaged; clear ice/snow or anything binding the door.
3. Check safety sensors: verify both sensor lenses are clean and aligned; confirm nothing interrupts the beam.
4. Test door balance: pull the emergency release and move the door by hand; a properly balanced door should stay at various points of travel.
5. Let the motor cool: repeated cycles can trip the overload protector; wait about 15 minutes and retry.

What to do when the door won’t close (sensor-related)

What you see	Most likely cause	What to do
Door reverses while closing	Obstruction in door path	Clear the path and retest
Lights blink for a few seconds	Sensor beam interrupted	Remove obstruction, realign sensors
Door won’t close from remote	Sensors missing/misaligned	Align/install sensors; close using wall control only as needed

Why it matters

Most “opener problems” are actually door or sensor problems. A door that is out of balance or has broken springs can make the opener strain and fail to reverse correctly. Sensor alignment issues can prevent closing by design, which protects people and property.

For model-specific operating and troubleshooting steps (including sensor behavior, emergency release use, and basic problem checks), use the owner's manual. For broader troubleshooting and diagnostic light patterns, use Craftsman error codes. If you need to look up replacement parts by model number, search on Sears PartsDirect.

Last updated: February 2026

You can buy replacement parts for your Craftsman garage door opener model 13953975SRT1 by using the model-specific parts diagrams and parts lists for this opener, then ordering the exact parts you need. For broader Craftsman parts searching by model, use Sears PartsDirect.

What to check before you order parts

We recommend confirming the exact part name and where it installs on your opener so you get the right match the first time.

• Confirm the opener model number is 13953975SRT1 (from the motor unit label)
• Identify the assembly you need (rail assembly, motor unit assembly, installation parts, accessories)
• Compare your part to the diagram location and description
• If you are replacing safety sensors, verify you have a sending eye and a receiving eye
• If you are ordering remote or keypad-related items, confirm whether you need a remote, visor clip, or keyless entry keypad

Use the manual to identify the correct part group

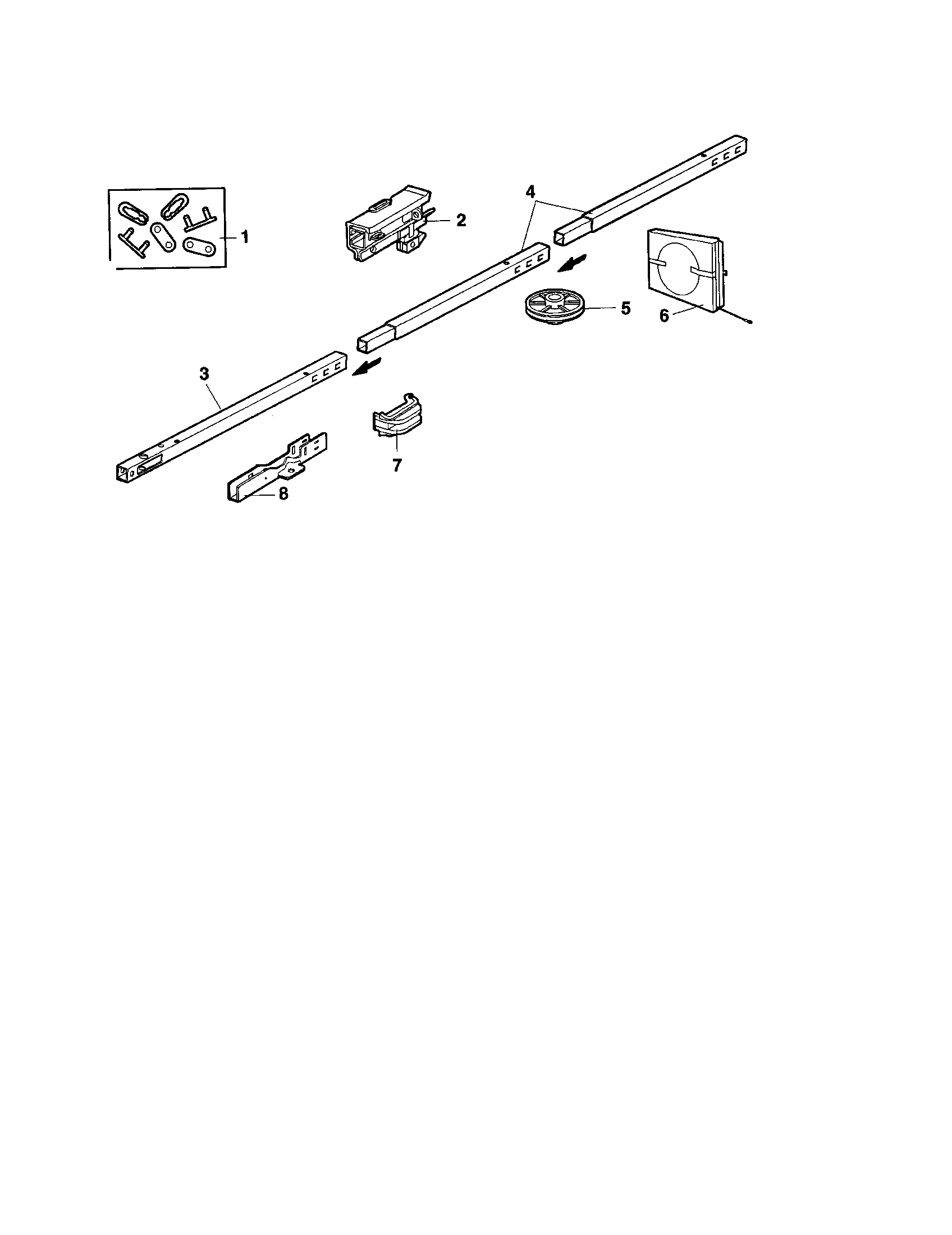

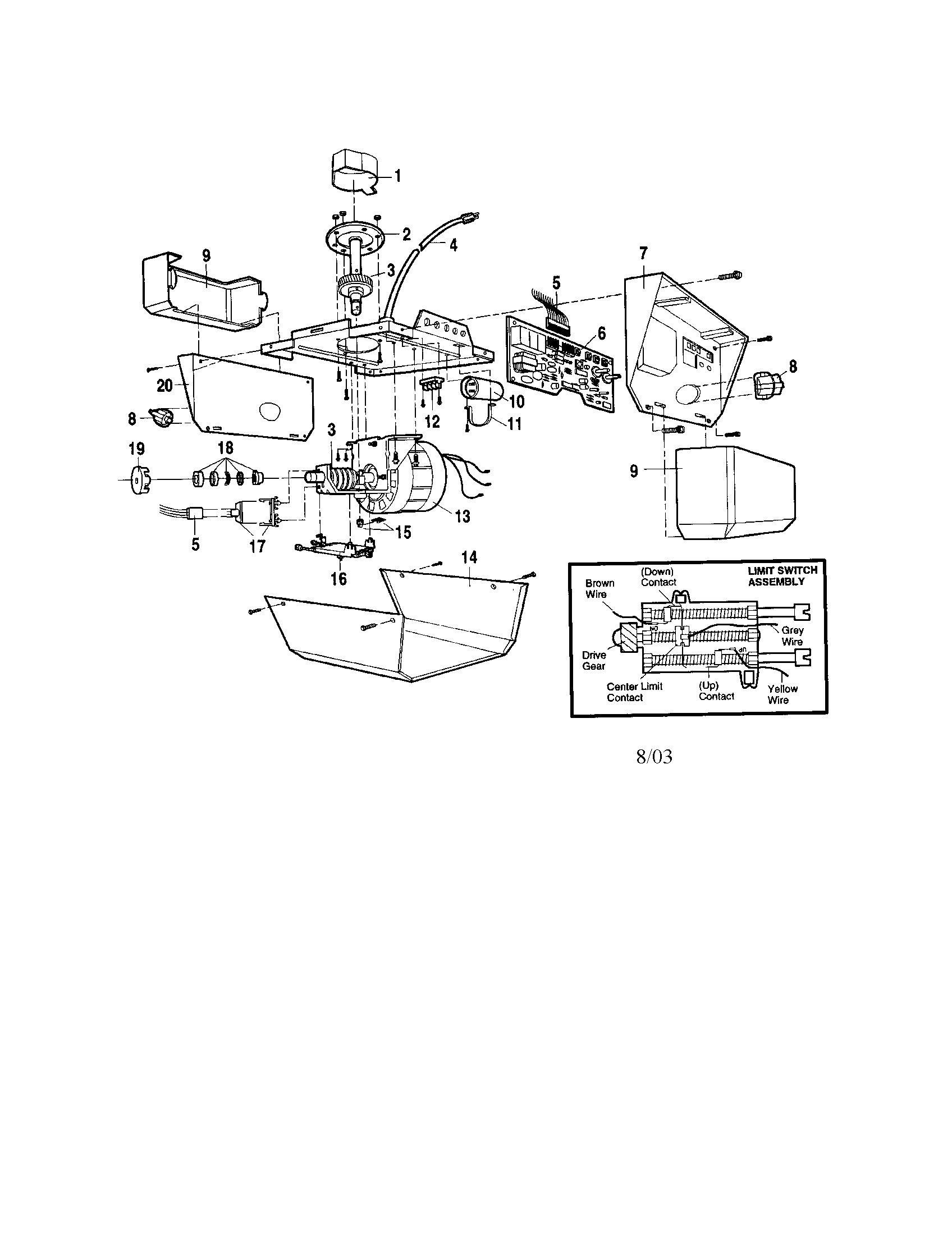

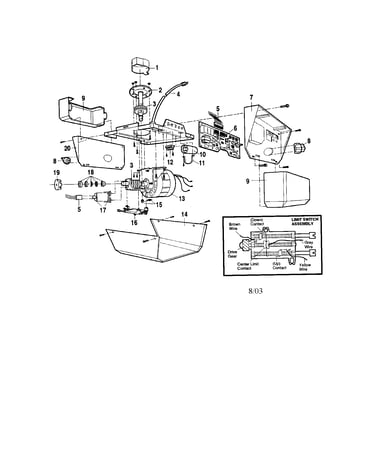

Your owner's manual includes a dedicated repair parts section that breaks parts out by major assemblies (for example, rail assembly parts and motor unit assembly parts). This is the fastest way to confirm what you are shopping for before you place an order.

Common part groups customers shop for

Part group	What it affects	Typical symptoms
Safety reversing sensors	Door closing safety	Door will not close, lights blink, sensor beam blocked/misaligned
Rail and trolley parts	Door travel	Door moves unevenly, trolley binds, noisy travel
Remote/keyless entry accessories	Controls	Remote will not operate opener, keypad issues
Header bracket and mounting hardware	Mounting and alignment	Opener shifts, rail alignment problems

Helpful DIY resources for choosing the right fix

If you are seeing blinking lights or diagnostic patterns, use Craftsman error codes to narrow the problem to sensors, travel, force settings, or control issues before ordering parts.

Why it matters

Garage door opener parts are model- and series-specific; matching parts to Craftsman 13953975SRT1 helps ensure proper fit, safe operation, and correct programming behavior for remotes and accessories.

Last updated: February 2026

For a Craftsman garage door opener like model 13953975SRT1, it’s cheaper to repair when the problem is isolated (safety sensors, wall control, remote programming, minor adjustments). Replacement is the better value when the opener is older (typically 12+ years), has repeated failures, or the repair total approaches the cost of a new unit. Use the owner's manual to confirm the correct adjustment and safety checks before deciding.

Quick decision guide (repair vs replace)

• Repair when the door is properly balanced and the opener just needs sensor alignment, force/limit adjustment, or a control/remote fix.
• Replace when the motor/drive system is failing repeatedly, parts are worn across multiple areas, or you want newer features (quieter operation, smart controls, battery backup).
• Replace if the opener struggles even after correct adjustments and the door hardware is confirmed in good condition.
• Repair if the issue is clearly caused by setup (limits/force) and the unit otherwise runs smoothly.

What we check first on 13953975SRT1

The manual emphasizes safety and adjustment steps that often solve “won’t open/close” complaints without major parts replacement.

• Confirm the garage door is properly balanced and lubricated.
• Test the safety reversal using a 1-inch object (or a 2x4 laid flat) on the floor; the door must reverse.
• Recheck travel limits and force controls after any adjustment.
• Inspect and align the safety reversing sensors (misalignment is a common cause of no-close symptoms).
• If the opener uses a chain, verify chain tension and readjust if needed.

Typical cost comparison

Costs vary by region and labor rates, but these ranges help you decide.

Option	Typical cost range	Best when
Minor repair/adjustment	$100 to $300	Sensors, limits/force settings, wall control issues
Moderate repair	$200 to $500	Intermittent operation, worn drive components, troubleshooting time
Replace opener (unit + install)	$400 to $1,000+	Older unit, repeated breakdowns, feature upgrade

Why it matters

A garage door opener is a safety device, not just a convenience. The manual calls out that an improperly balanced door may not reverse when required, and the safety reversal system must be tested regularly. If you cannot get consistent, correct reversing behavior after proper adjustments, replacement is often the safest long-term choice.

For repair how-tos and symptom-based guidance, use Craftsman error codes. For parts and model-based lookup beyond what’s listed for 13953975SRT1, search by model on Sears PartsDirect.

Last updated: February 2026
