Craftsman 917272021 lawn tractor Parts

On Craftsman lawn tractor model 917272021, the model and serial number label is typically on the tractor frame under the seat (or on the underside of the seat itself). Lift the seat and look for a sticker or metal tag with the numbers.

Where to look on model 917272021

Check these common label locations first:

• Top of the frame under the seat (most common)
• Underside of the seat pan
• Rear fender area near the seat hinge
• Frame rail near the battery or rear wheels
• Inside the hood area on the chassis (less common)

For the exact label location and what the tag looks like, use the 917272021 owner's manual.

What numbers you need (and how they’re used)

Most Craftsman riding mowers have more than one identifier. Here is what to capture before ordering parts:

Item on tag	What it’s for	Example format
Model number	Matches the correct parts diagrams	917.272021 or 917272021
Serial number	Identifies your specific production run	Letters and numbers
Engine model/type/code	Used for engine-specific parts	Varies by engine brand

Tips for reading a worn or dirty tag

If the label is hard to read, these steps usually make it legible:

• Wipe the area with a damp rag and mild cleaner
• Use a flashlight at a low angle to highlight stamped text
• Take a close-up photo and zoom in
• Copy the full string exactly (including dashes and dots)
• Write down the engine numbers separately from the tractor numbers

Why it matters

The serial number and full model number help us match the right Craftsman lawn tractor parts (belts, tires, steering parts, and deck hardware) to your exact build. That prevents ordering a part that looks similar but mounts differently.

Last updated: February 2026

For Craftsman lawn tractors, we look up the model number by finding the model and serial tag on the tractor, then entering that exact model number (for example, 917272021) when searching for parts and diagrams. On this model, the tag is typically on the frame under the seat or on the underside of the seat.

Where to find the model and serial tag

Check these common locations on Craftsman riding mowers and tractors:

• On the frame directly under the seat (lift the seat to view)
• On the underside of the seat pan
• Near the rear fender area close to the seat mounting points
• Occasionally on the frame rail near the engine compartment

If the label is dirty or faded, wipe it with a damp rag and use a flashlight to read the stamped or printed characters.

How to use the model number for parts lookup

Once you have the tag:

• Copy the model number exactly as shown (numbers and punctuation)
• Use the full model number, not just “Craftsman” or the engine brand
• Match the model number to the parts diagrams and parts list
• Use the serial number only when a parts list asks for a serial range

Model number format tips

Many Craftsman tractors show the model with a dot format on the label (example: 917.272021). For parts lookup, we use the same digits without the dot: 917272021.

What you see on the tag	What to enter for lookup	Why
917.272021	917272021	Matches the model format used in parts catalogs
Serial number	Serial number	Helps confirm production range when needed

Why it matters

Using the exact model number ensures you get the right diagrams and the correct replacement parts (belts, tires, electrical switches, and hardware). Small model differences can change deck size, transaxle type, and part fit.

For model-specific identification details and safety information, use the 917272021 owner's manual.

Last updated: February 2026

For a Craftsman riding mower like model 917272021, we identify the build year by reading the serial number on the product ID tag and decoding the date portion of that serial. On many Craftsman tractors, the date is embedded as MMDDYY (month, day, year).

Where to find the serial number on a riding mower

On most Craftsman lawn tractors, the product ID tag is easy to spot once you know where to look.

• Look under the seat on the fender pan or seat deck area
• Check the frame rail near the engine compartment
• Look near the rear hitch plate or rear frame crossmember
• Wipe dirt and grass off the tag so every digit is readable

For model-specific label locations and identification details, use the 917272021 owner's manual.

How to decode the date (common Craftsman format)

A very common Craftsman tractor serial date format uses the first six digits as a date code:

• Digits 1-2: month (MM)
• Digits 3-4: day (DD)
• Digits 5-6: year (YY)

Example

If the serial begins with 071294, that decodes to July 12, 1994.

Serial starts with	Decodes as	What it tells you
071294	07/12/94	Built July 12, 1994
031503	03/15/03	Built March 15, 2003

If your serial number does not match MMDDYY

Some Craftsman walk-behind mowers and a few tractor variations use different coding. When the first six digits do not form a valid date, we use these checks:

• Confirm you are reading the serial number, not the model number
• Recheck for letters mixed with numbers (alternate formats)
• Look for a separate “MFG DATE” line on the tag
• Use the manual’s identification section to match the correct tag fields

Why it matters

Knowing the manufacture year helps us match the correct parts and diagrams for your Craftsman mower, especially for wear items like belts, steering parts, and electrical switches.

Last updated: February 2026

Replacing the engine on your Craftsman lawn tractor model 917272021 is worth it when the tractor is otherwise in solid shape (good deck, steering, and transmission) and the total repair cost stays well below the price of a comparable replacement tractor. If multiple major systems are worn out, replacement usually makes more sense.

Quick decision checklist

• The mower deck is structurally sound (no major rust-through or cracks)
• The transmission and drive system still pull strongly (no slipping or loss of drive)
• Steering and front axle components are tight (no severe play)
• You can confirm the correct engine spec and mounting details in the 917272021 owner's manual
• The engine swap cost (engine + labor + incidentals) is comfortably under the value of the tractor

Cost and condition guide

Use this as a practical way to decide.

What you find	Typical meaning	Best next step
Engine failed but tractor drives and cuts well	Engine-only problem	Engine replacement is usually worth it
Engine failed and tractor also has drive issues	Multiple major repairs	Consider replacing the tractor
Engine runs but starts poorly or stalls	Often tune-up or fuel/ignition issue	Diagnose before replacing the engine
Heavy vibration while mowing	Blade/mandrel/deck issue, not engine	Repair deck components first

Before you replace the engine, rule out common “engine” problems

Many no-start and poor-running complaints are caused by basic service items listed in the troubleshooting chart.

• Replace the spark plug and verify spark
• Check battery condition and cable connections (clean corrosion)
• Replace the fuel filter and drain stale fuel
• Clean or replace the air filter
• Inspect wiring and safety interlock switches

If the tractor clicks but will not crank, follow riding lawn mower engine clicks but doesnt turn over video to narrow it down before committing to an engine.

Why it matters

An engine swap is a big investment. Confirming the problem first prevents spending engine-level money on an issue caused by fuel, battery, wiring, or safety interlocks. It also helps you avoid replacing an engine when the deck or drive belt system is the real reason performance is poor.

Last updated: February 2026

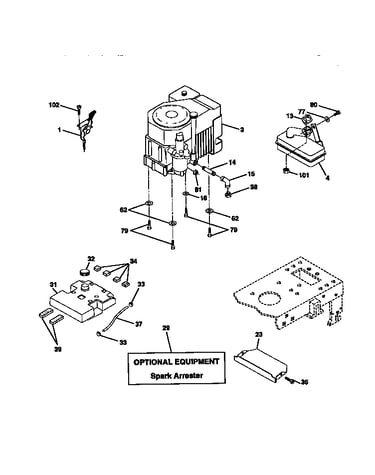

For Craftsman lawn tractor model 917272021, the owner’s manual identifies it as a 16.5 HP electric-start lawn tractor. For the exact engine make and model (such as Briggs & Stratton or Kohler), use the engine identification section in the 917272021 owner's manual.

What we can confirm for model 917272021

From the manual, this tractor is set up with these engine-related basics:

• 16.5 HP rating
• Electric start
• Unleaded regular gasoline
• SAE 10W-30 oil above 32°F; SAE 5W-30 below 32°F
• Spark plug type listed as Champion RC12YC (0.040 in gap)

How to identify the exact engine brand and model on your tractor

Many Craftsman riding mowers use engines from common manufacturers; the sure method is reading the engine tag.

• Lift the hood and look for an engine data label on the blower housing or valve cover
• Write down the model, type, and code (or spec) numbers
• Match those numbers to the engine section in the 917272021 owner's manual
• If the label is missing, check for a decal on the dash or hood that references the engine family

Quick ID checklist

What you need	Where to find it	Why it matters
Engine model/type/code	Engine label under hood	Ensures correct tune-up and repair parts
HP rating	Manual and decals	Confirms baseline performance
Spark plug spec	Manual	Prevents hard-start and misfire issues

Why it matters

The engine brand and exact model determine the correct maintenance parts (air filter, fuel filter, starter, carburetor parts) and service specs. Using the wrong tune-up parts is a common cause of no-start, rough running, and poor mowing power.

Last updated: February 2026
