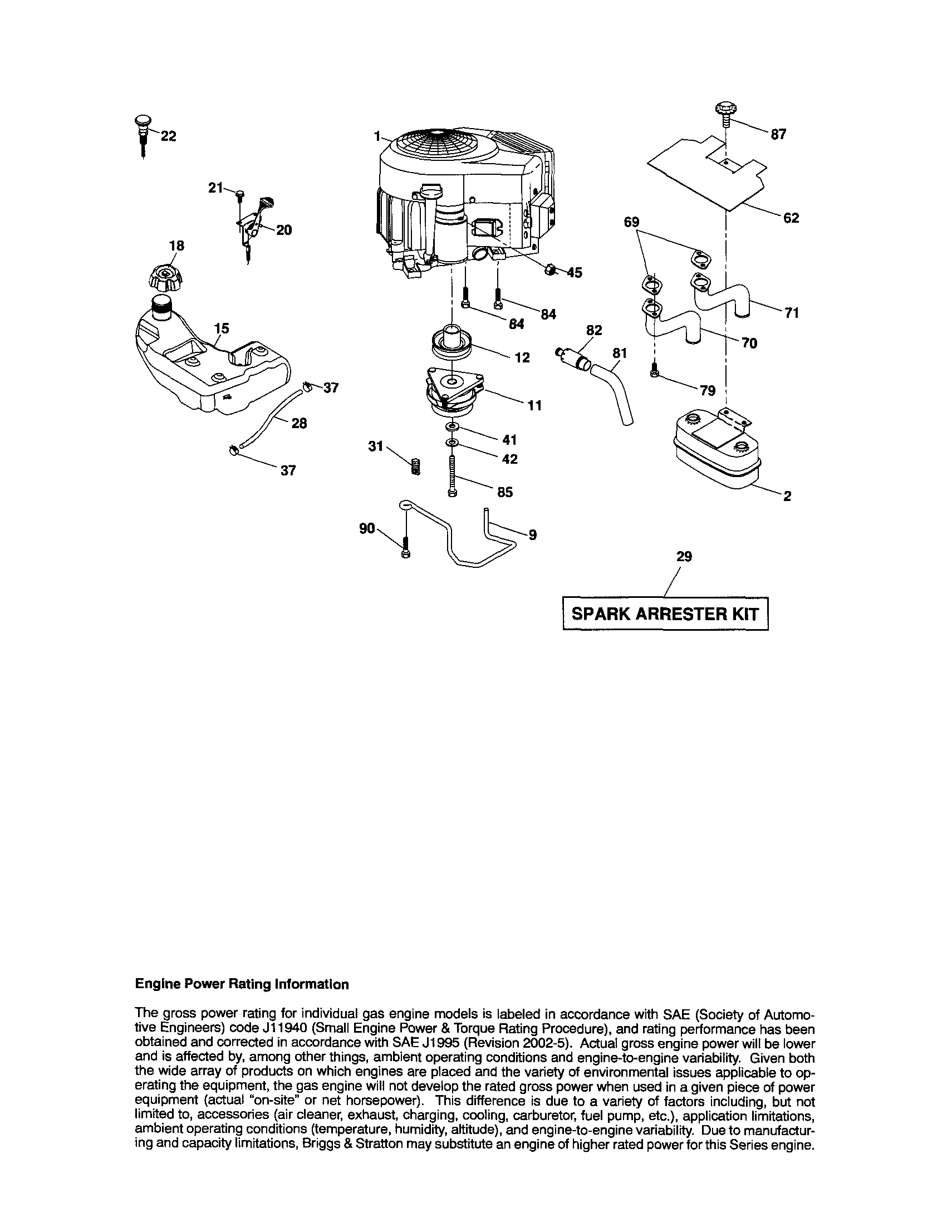

Do Craftsman mowers use Briggs and Stratton engines?
Yes, many Craftsman mowers and lawn tractors use Briggs and Stratton engines, but it depends on the exact model and production run. For Craftsman model 917288320, the operator documentation confirms it has a low-emission engine, but it does not explicitly identify the engine brand in the sections we have available; use the 917288320 owner's manual to match your engine model and service parts correctly.

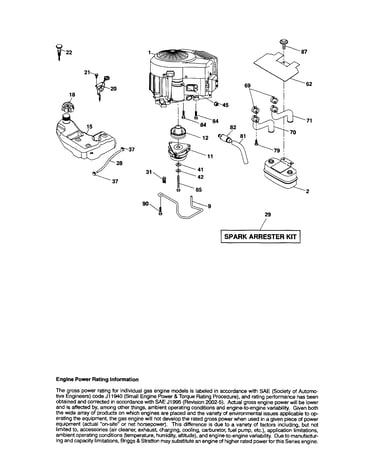

How to confirm the engine brand on model 917288320
The most reliable way is to check the engine identification label on the tractor itself, then compare it to the engine information referenced in the manual.
- Look for an engine label on the blower housing, valve cover, or near the starter
- Record the engine model, type, and code (or serial)
- Compare those numbers to the engine section and maintenance specs in the manual
- Use the engine numbers when ordering tune-up items (spark plug, air filter, fuel filter)
- If the label is missing, use the tractor’s product identification label plus the manual to narrow it down
What we can confirm from the model-specific manual
The 917288320 owner's manual lists tractor-level specifications and maintenance guidance (fuel type, oil viscosity, spark plug spec, etc.), but it does not state “Briggs and Stratton” by name in the excerpted pages.
| What you’re checking | Where to look | What it tells you |
|---|---|---|
| Engine brand | Engine ID label | Briggs and Stratton, Kohler, etc. |
| Engine model/type/code | Engine ID label | Exact engine family and build |
| Tractor model | Tractor ID label | Confirms you have 917288320 |
Why it matters
Engine brand and engine model numbers determine the correct maintenance parts and settings. Even tractors with the same deck size can use different engines, so confirming the engine ID helps prevent ordering the wrong spark plug, filter, or fuel system parts.
Last updated: January 2026
What are the most common issues with 917288320?
The most common issues we see on the Craftsman 917288320 front-engine lawn tractor involve drive and mowing performance (belt slip, PTO engagement problems), starting or no-crank complaints, and steering or deck wear. Many of these problems trace back to normal wear parts and simple adjustments in the owner's manual.
Common problems and what they usually point to

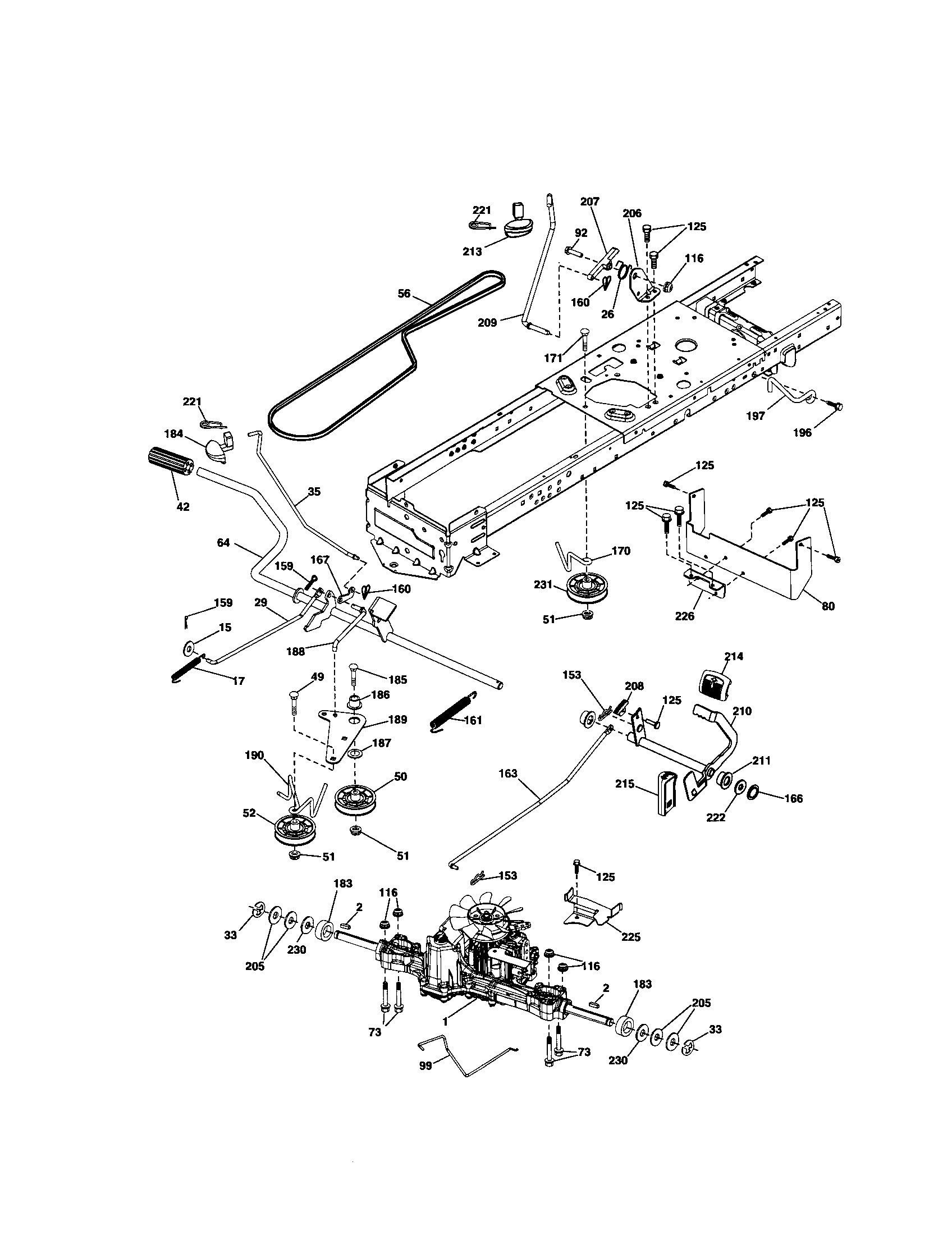

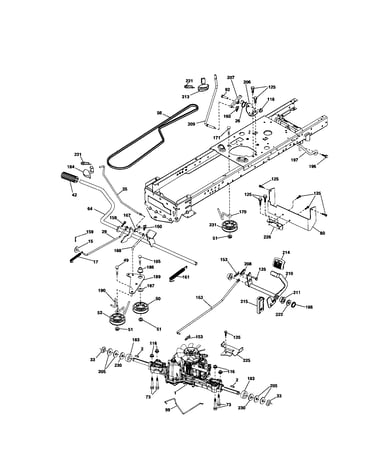

- Tractor will not move or moves weakly: worn or stretched ground drive belt, idler pulley wear, or transaxle issues.
- Mower deck will not engage or cuts inconsistently: PTO switch or electric clutch problems, belt routing/tension issues, or mandrel wear.

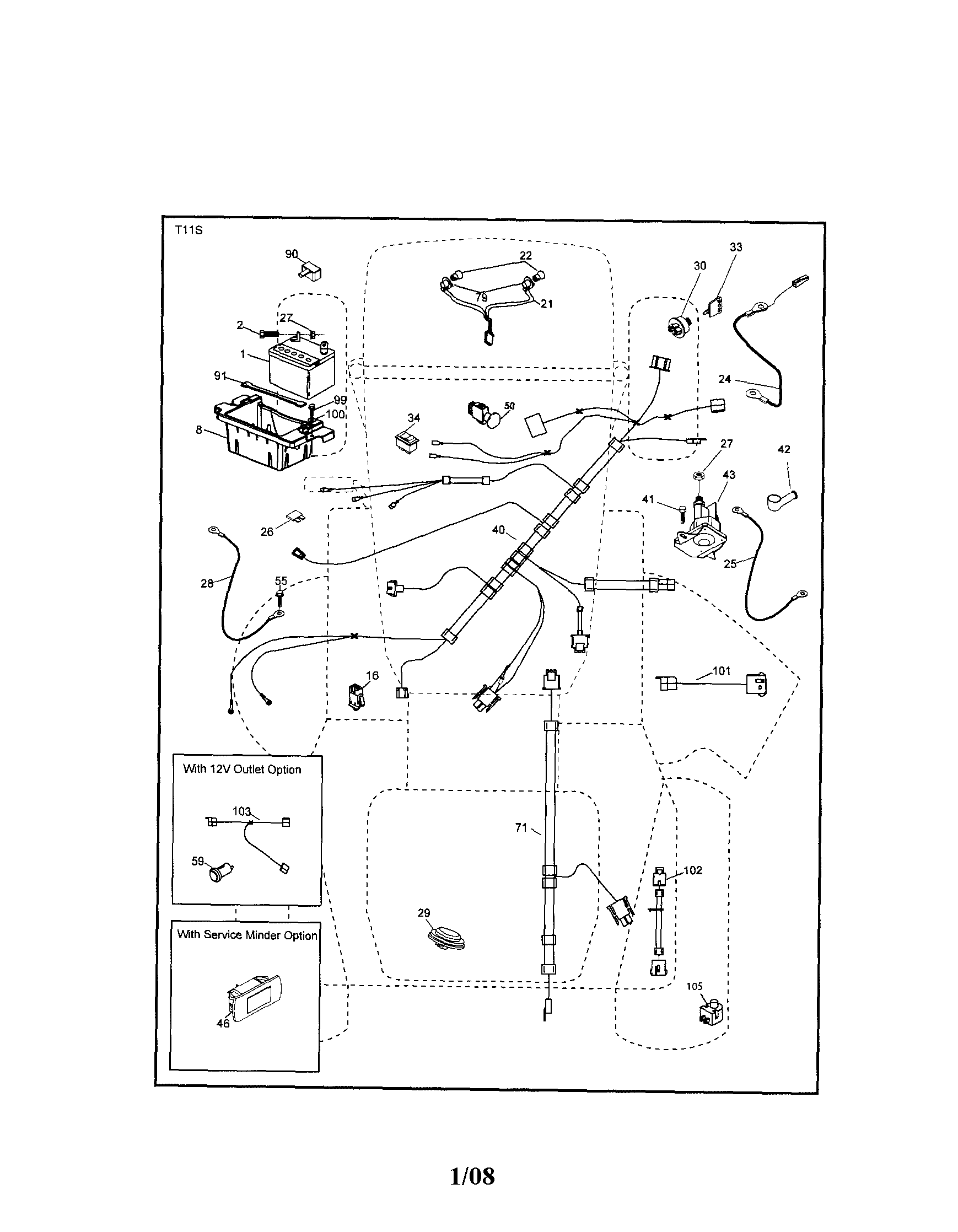

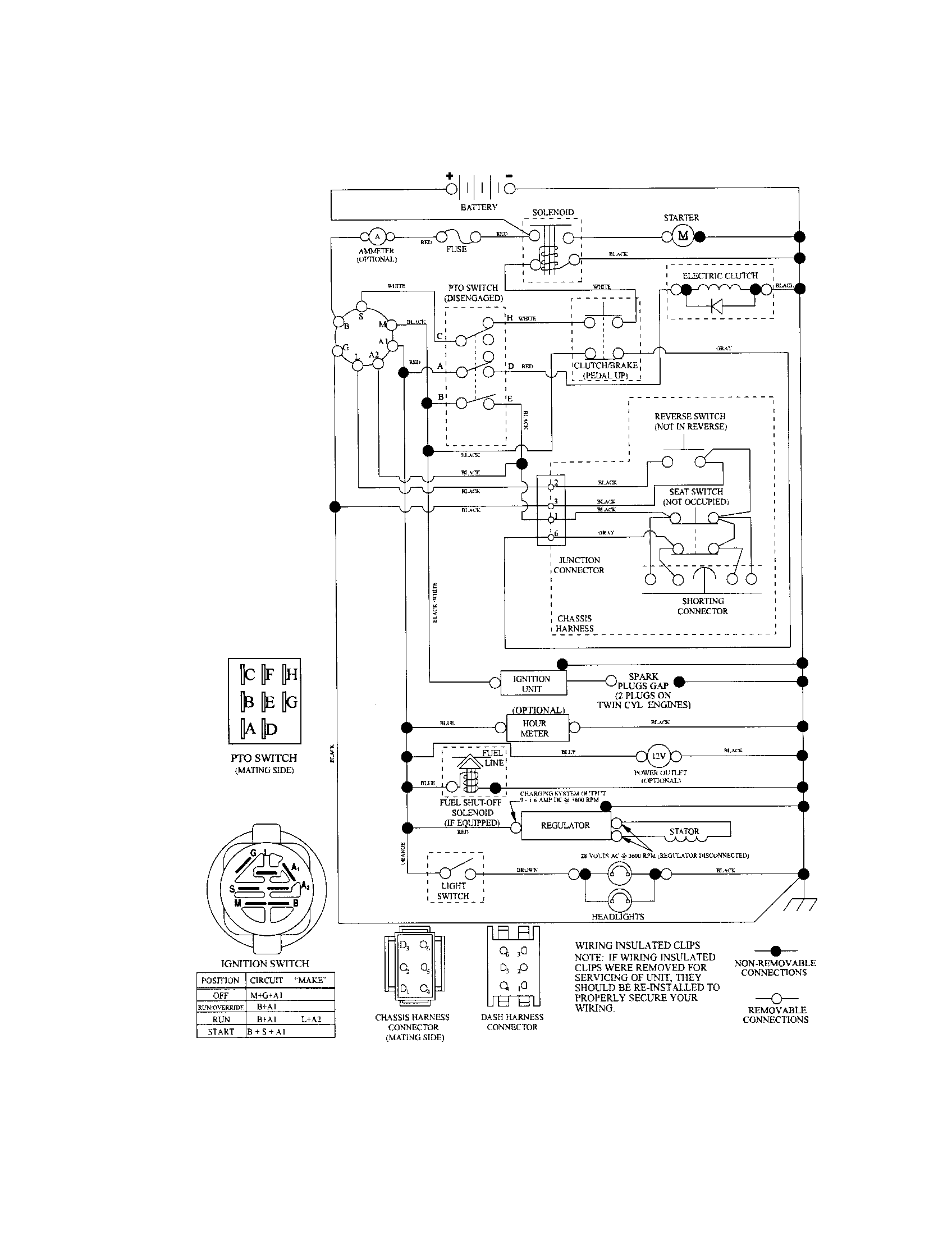

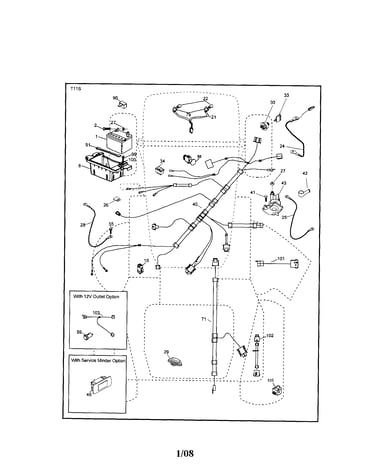

- No-crank or intermittent starting: weak battery connections, failed solenoid, or wiring/ignition harness faults.

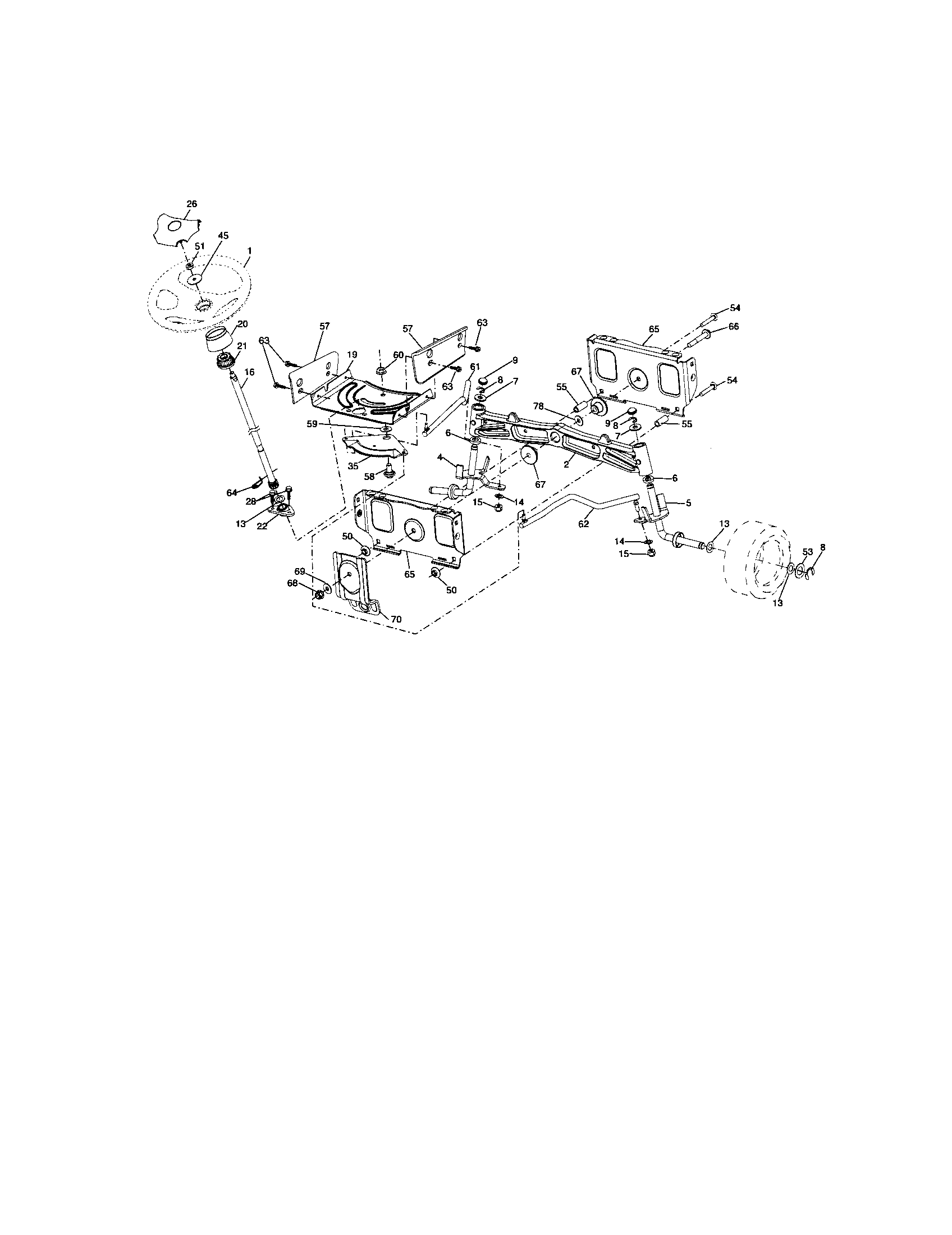

- Steering feels loose or wanders: drag link wear, front axle wear points, or loose fasteners.

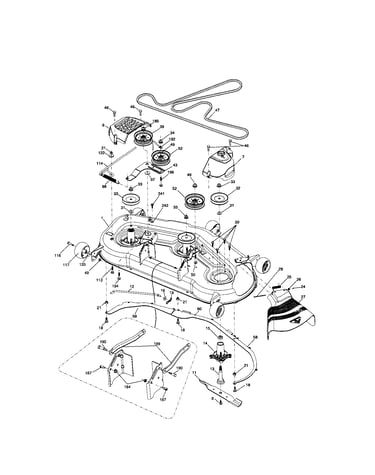

- Excess vibration or deck noise: worn mandrel housing or pulley, damaged blades (not shown in parts list), or loose hardware.
Quick checks we recommend first
- Park on level ground, set the parking brake, remove the key, and disconnect the spark plug wire.
- Inspect belts for glazing, cracking, or slack; confirm correct routing.
- Check idler pulleys for wobble, rough bearings, or seized rotation.
- Verify PTO switch operation and look for heat damage at connectors.
- Confirm battery terminals are clean and tight; check for corroded grounds.
Parts that commonly solve these symptoms (when worn)
| Symptom | Likely wear item | Example part on this model |
|---|---|---|
| Won’t drive well | Drive belt or idler pulley | Lawn tractor ground drive or blade drive belt, 1/2 x 92-2/5-in 592855201, husqvarna lawn tractor ground drive idler pulley 532194327 |
| PTO won’t engage | PTO switch or electric clutch | Switch.pto 582107601, electric clutch 532414336 |
| No-crank | Starter solenoid | Lawn tractor starter solenoid 582042802 |

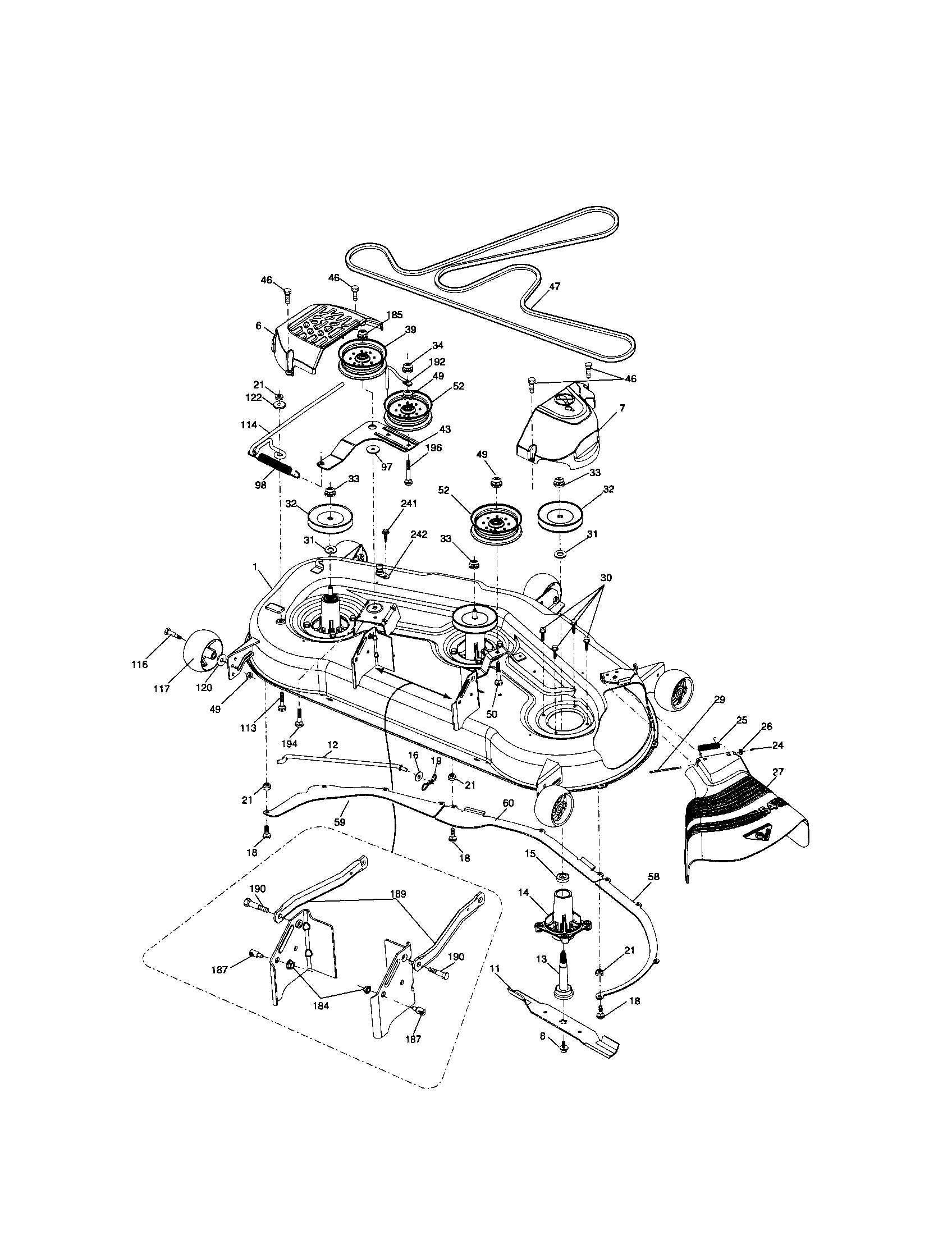

| Deck noise/vibration | Mandrel components | Lawn tractor mandrel housing 587819701, lawn tractor mandrel pulley 532173436 |
Why it matters
Catching belt, pulley, PTO, and steering wear early prevents bigger failures like damaged spindles, thrown belts, or premature transaxle strain. It also improves cut quality and reduces downtime during mowing season.
Last updated: March 2026
How do I find the model number on my 917288320?
Your Craftsman riding mower model number is printed on a product identification label (model and serial tag) attached to the tractor frame. On model 917288320, check the areas around the seat and rear fender, then match the full number on the tag to the parts list and diagrams in the 917288320 owner's manual.
Where to look on a Craftsman front-engine lawn tractor
We see the model/serial tag most often in one of these spots:

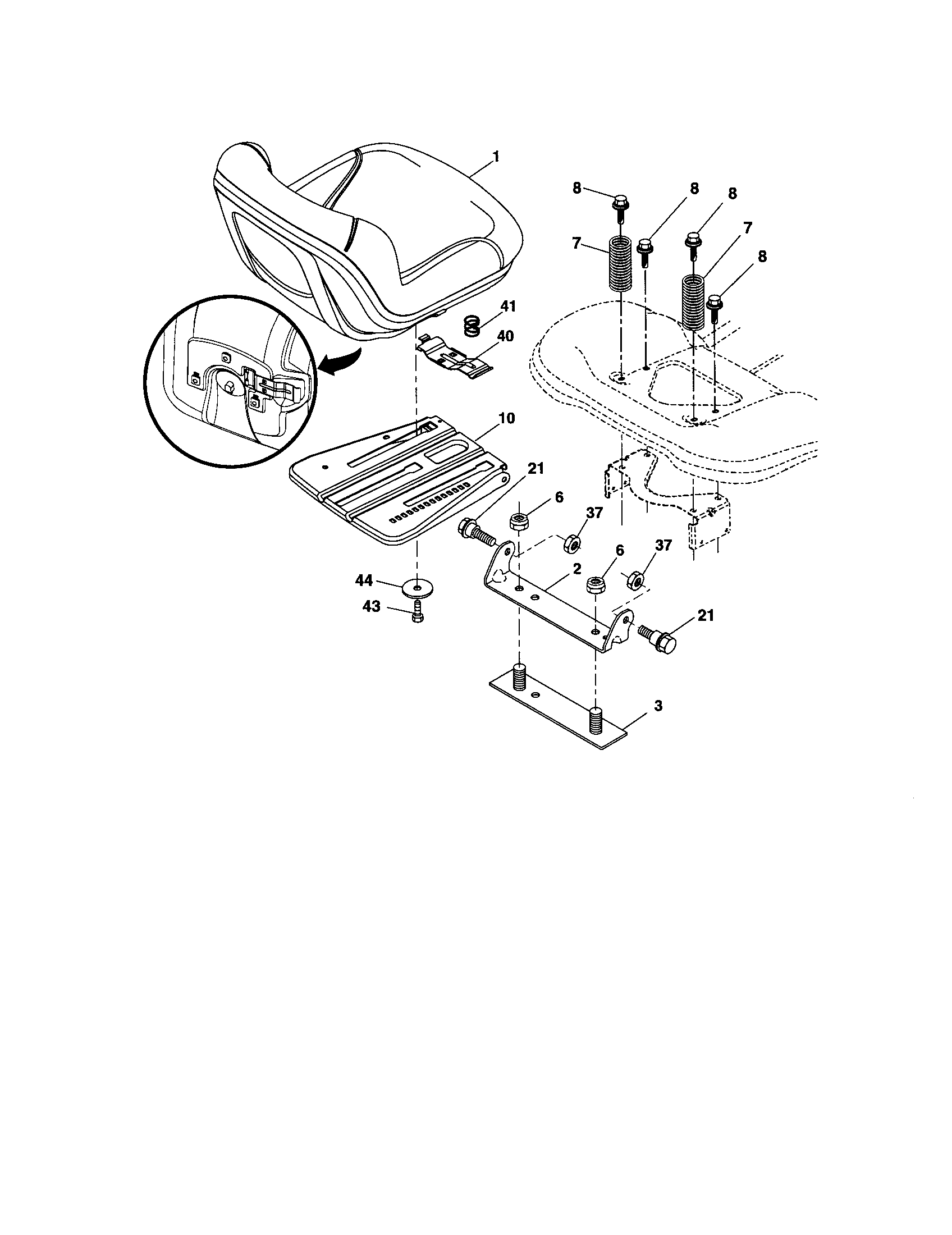

- Under the seat (lift the seat pan and look on the frame or seat support)
- On the rear fender or fender pan near the seat
- On the frame rail near the engine compartment (left or right side)
- Near the rear hitch plate or drawbar area
- Under the hood along the chassis rail (less common)
What to write down (so parts match correctly)
Record the information exactly as shown on the label:
- Full model number (all digits, for example 917288320)
- Serial number
- Any product number or manufacturing code listed
- Engine model and type (helpful for engine-specific parts)
Quick check: model number vs. part number
Use this as a simple guide when you are comparing numbers.
| Item | What it identifies | Example format |
|---|---|---|
| Model number | The tractor configuration | 917288320 |
| Part number | The replacement part itself | 187281 |
| Part ID | Sears PartsDirect catalog identifier | 587819701 |
Why it matters
Craftsman tractors can look identical but use different belts, pulleys, or electrical parts by production run. Using the exact model number helps ensure the correct fit for items like a ground drive belt, PTO switch, or starter solenoid.
Last updated: March 2026
