Craftsman 917289031 tractor Parts

For Craftsman model 917289031, the tractor’s serial number can indicate the build date, but the exact decoding format isn’t standardized across all 917-series tractors. We recommend using the identification label on your tractor and cross-checking the date-code guidance in the 917289031 operator's manual.

Where to find the serial number on this model

On most Craftsman front-engine lawn tractors like 917289031, the model/serial label is typically in one of these spots:

• Under the seat (lift the seat pan)
• On the frame rail near the engine compartment
• Under the hood near the dash/firewall area
• Near the rear fender pan or transaxle area

How to estimate the age using what you have

Because serial formats vary, the most reliable approach is to use the label details you can see (not just the serial digits).

• Look for a month/year printed on the label (some labels include this directly)
• Check for a date code printed separately from the serial number
• If your tractor has the original engine, check the engine data plate; many small engines include a manufacture date or date code
• If the tractor has had an engine swap, the engine date will not match the tractor’s build date

Quick guide: tractor vs. engine date

What you check	What it tells you	When it helps most
Tractor serial/ID label	Approximate tractor build timeframe	Parts compatibility, tractor age
Engine date code	Engine manufacture date	Engine service history, tune-up intervals
Purchase receipt	In-service date	Warranty and maintenance tracking

Why it matters

Knowing the approximate build date helps us match the correct parts and diagrams for your Craftsman 917289031, especially for wear items like belts, blades, and switches that can change across production runs.

Last updated: January 2026

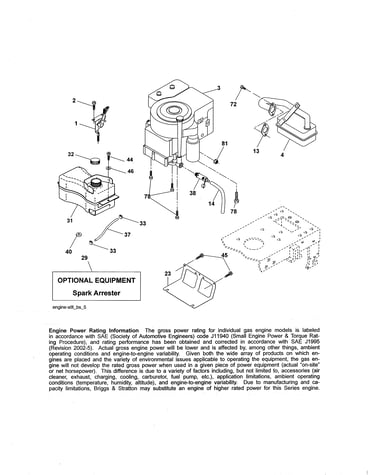

On the Craftsman tractor model 917289031, the engine model/type code is typically stamped into the metal on the engine itself (often on or near the top of a cylinder head, valve cover area, or blower housing). For the exact label locations used on this tractor, use the diagrams and identification guidance in the 917289031 operator's manual.

Where to look on the engine (most common spots)

With the engine cool and the key removed, check these areas first:

• Top of the cylinder head area (stamped into metal; may be on the right or left side)
• Valve cover area (near the top of the engine)
• Blower housing / recoil shroud (a label or stamped code on the engine cover)
• Near the spark plug (sometimes close to the plug wire boot)
• Engine block near the muffler or carburetor (stamped pad or label)

What numbers you should record

For parts lookup, we recommend writing down all engine ID fields you find.

What you find on the engine	What it’s used for	Example format
Engine model / type	Identifies the engine family	Letters and numbers
Code / date	Helps match the exact build	Longer numeric code
Spec number	Narrows down exact configuration	Shorter add-on code

Why it matters

Craftsman tractor model numbers (like 917289031) identify the tractor, but the engine model/type/spec identifies the engine manufacturer’s exact build. Having both prevents ordering the wrong ignition, fuel, or tune-up parts.

Quick tips to make the stamp easier to read

• Wipe the area with a rag and mild degreaser
• Use a flashlight at a low angle to highlight stamped characters
• Take a phone photo and zoom in
• Copy the code exactly (including dashes and letters)

Last updated: January 2026

For the Craftsman lawn tractor model 917289031, the engine oil capacity is 56 oz with an oil filter or 48 oz without an oil filter. We recommend filling slowly and confirming the final level on the dipstick as described in the 917289031 operator's manual.

Oil capacity details for model 917289031

• With oil filter: 56 oz (1.75 qt)
• Without oil filter: 48 oz (1.5 qt)
• Oil type is temperature-dependent (commonly SAE 30 above 32°F, SAE 5W-30 below 32°F)
• Always check oil with the tractor on level ground
• Do not overfill; stop at the “FULL” mark on the dipstick

Quick conversion table

Condition	Capacity (oz)	Capacity (qt)
With oil filter	56	1.75
Without oil filter	48	1.5

How we recommend filling after an oil change

• Park on a level surface and let the engine cool slightly
• Add about 80–90% of the listed capacity first
• Wait a minute, then check the dipstick and top off to “FULL”
• If you’re draining oil through the valve, use the correct drain tube such as the oil drain tube 532148456 to reduce spills

Why it matters

Using the correct oil capacity on model 917289031 helps prevent low-oil engine damage and avoids overfilling, which can cause smoking, leaks, or poor running.

Last updated: January 2026
