Model # GCG1700P0II Official GE compactor

Here are the diagrams and repair parts for Official GE GCG1700P0II compactor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Trash Bag 12 WC60X10002
#225

Accessory parts diagram

Trash bag 12

Part #WC60X10002

Replaced by #WC60X5017

?
Manufacturer substitution
This part replaces WC60X10002. Substitute parts can look different from the original.
$64.22
In Stock
Trash Compactor Cycle Switch WC21X10010
#117

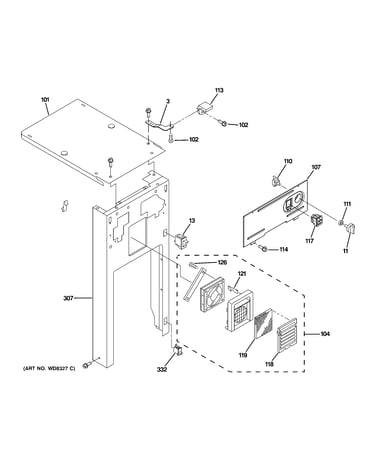

Cabinet & control parts diagram

Trash compactor cycle switch

Part #WC21X10010

Replaced by #WC21X24981

?
Manufacturer substitution
This part replaces WC21X10010. Substitute parts can look different from the original.
$100.60
In Stock
Screw WC36X5038
#221

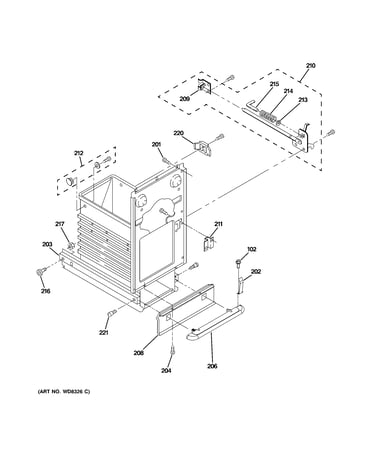

Container parts diagram

Screw

Part #WC36X5038

Replaced by #WC36X5038

?
Manufacturer substitution
This part replaces WC36X5038. Substitute parts can look different from the original.
This item is not returnable
$7.49
In Stock
Trash Compactor Top Limit And Directional Switch WC36X5054
#318

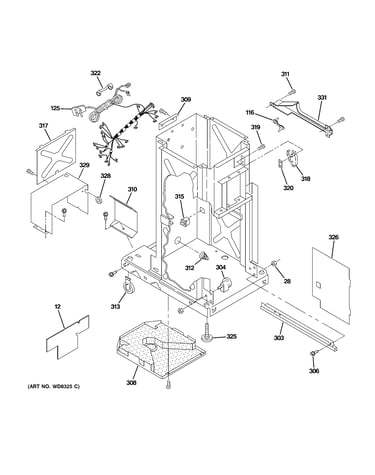

Frame parts diagram

Trash compactor top limit and directional switch

Part #WC36X5054

The manufacturer no longer makes this part, and there's no substitute part

Drive Gear WC36X5071
#410

Motor & drive parts diagram

Drive gear

Part #WC36X5071

The manufacturer no longer makes this part, and there's no substitute part

Motor Switch WC36X5063
#402

Motor & drive parts diagram

Motor switch

Part #WC36X5063

The manufacturer no longer makes this part, and there's no substitute part

Adhesive Insert WC01X10007
#229

Accessory parts diagram

Adhesive insert

Part #WC01X10007

The manufacturer no longer makes this part, and there's no substitute part

Hub Screw WC36X5077
#505

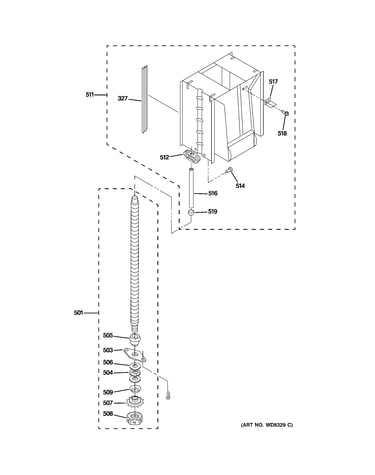

Powerscrew & ram parts diagram

Hub screw

Part #WC36X5077

The manufacturer no longer makes this part, and there's no substitute part

Plate Nut WC36X5056
#320

Frame parts diagram

Plate nut

Part #WC36X5056

The manufacturer no longer makes this part, and there's no substitute part

Wave Washer WC36X5069
#408

Motor & drive parts diagram

Wave washer

Part #WC36X5069

The manufacturer no longer makes this part, and there's no substitute part

Most common symptoms to help you fix your trash compactors

Choose a symptom to see related trash compactor repairs.

View all

Why is the trash compactor's ram stuck in the down position?

Main causes: broken drive gear and sprocket chain, stripped power nuts, faulty top limit and directional switch…

Read more

Why won't my trash compactor stop running?

Main causes: stuck foot pedal, bad momentary start switch, power switch failure…

Read more

Why does my trash compactor run constantly with its ram in the up position?

Main cause: broken top limit and directional switch…

Read more

Why wont my trash compactor's ram go down?

Main cause: faulty drawer tilt switch …

Read more

Why does the trash compactor ram not move even though the motor runs?

Main causes: stripped or broken power nuts, broken or disconnected drive gear and sprocket chain, damaged drive parts…

Read more

Why is it hard to open the trash compactor drawer?

Main causes: bent drawer support rollers, damaged trash container…

Read more

Why won't my trash compactor start?

Main causes: lack of power, faulty drawer safety switch, bad power switch, momentary start switch failure, bad drive mot…

Read more

Most common repair guides to help fix your trash compactors

These step-by-step repair guides will help you safely fix what’s broken on your trash compactor.

View all
How to replace a trash compactor motor centrifugal switch

How to replace a trash compactor motor centrifugal switch

If the trash compactor ram won’t return to the top position, replace the motor centrifugal switch by following the instr…

Read more
Repair difficulty
Time required
 45 minutes or less
How to replace a trash compactor power switch
