Maytag MGD5620TQ0 dryer Parts

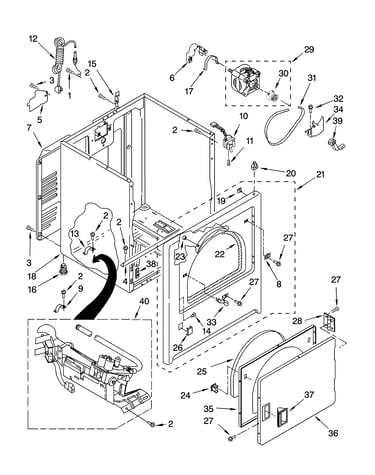

On the Maytag MGD5620TQ0 dryer, we remove the front panel by disconnecting power, releasing the lower panel fasteners and top retaining clips, then unplugging the door switch wiring and lifting the panel off the mounting tabs so you can access the drum and drive components.

• Unplug the dryer from the wall outlet.
• If it is a gas dryer, shut off the gas supply valve.
• Let the dryer cool completely.
• Protect the floor with cardboard or a towel to prevent scratches.
• Keep a small container for screws so nothing gets lost.

1. Remove the lint screen.
2. Remove the screws that secure the lower front access area (often along the bottom edge).
3. Pull the lower portion of the front panel outward to release the spring clips (a putty knife helps if clips are tight).
4. Locate the door switch connector and disconnect it (do not pull on the wires).
5. Tilt the front panel forward, then lift it up and off the mounting tabs.
6. Set the panel aside carefully to avoid bending it.

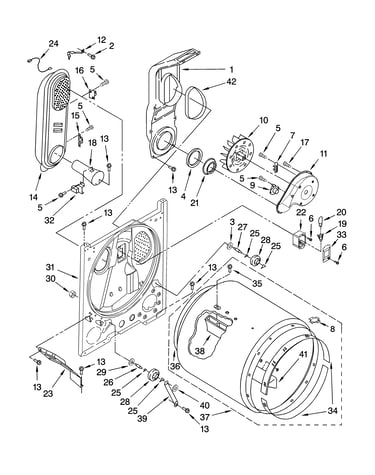

• Drum belt condition and tracking (cracks, glazing, slack)
• Idler pulley spin and alignment
• Blower wheel lint buildup and wobble
• Front drum support wear and rubbing marks

Removing the front panel the right way prevents broken clips and damaged door switch wiring, and it gives you direct access to high-wear items like the belt and idler pulley that commonly cause noise or no-tumble problems.

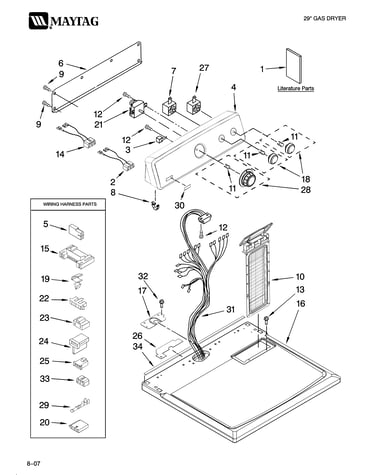

For model-specific panel fastener locations and any console-top screw access, follow the MGD5620TQ0 owner's manual.

Last updated: February 2026

On a Maytag dryer like model MGD5620TQ0, the model number is printed on the rating label. We most often find that label on the door opening (door jamb) on the cabinet frame; some units also place it on the back near the top.

• Open the dryer door and check the cabinet frame around the opening
• Look along the door jamb area where the door closes
• Check the inside edge of the front panel near the lint screen housing
• If you do not see it inside the door area, inspect the back panel near the top
• Wipe dust off the label; the print can be faint on older dryers

The rating label is usually a small sticker or metal tag that lists key identifiers.

We use the model number to match the correct Maytag dryer parts and diagrams for your exact build. That prevents ordering look-alike parts that do not fit, such as a drum belt, door switch, or thermostat.

Once you find the model number, compare it character-for-character before ordering. For common repairs on this model, examples include the belt 341241 and the dryer door switch WP3406107.

For more model-specific identification and general use information, check the MGD5620TQ0 owner's manual.

Last updated: February 2026

If your Maytag MGD5620TQ0 runs but never produces heat, takes much longer to dry, or heats inconsistently, the heater circuit has failed. The most reliable way to confirm is a continuity test of the heating element and safety devices using the wiring and test points in the MGD5620TQ0 owner’s manual.

• Dryer tumbles normally but blows room-temperature air on heated cycles
• Clothes stay damp after a full Auto Dry cycle
• Heat starts, then stops partway through the cycle (intermittent heating)
• Burning smell or unusually hot cabinet (stop using and check airflow)
• Dryer shuts off early because the load never reaches target temperature

1. Unplug the dryer (and shut off gas if you are accessing internal components).
2. Access the heater circuit components per the MGD5620TQ0 owner’s manual.
3. Use a multimeter to check continuity on:

• Heating element
• Thermal cut-off and high-limit thermostat
• Operating thermostat

These are frequent fixes on MGD5620TQ0 when the drum turns but heat is missing:

• Cut-off kit 279769 (thermal cut-off and related safety)
• Dryer operating thermostat WP3387134
• Dryer high-limit thermostat W11050897

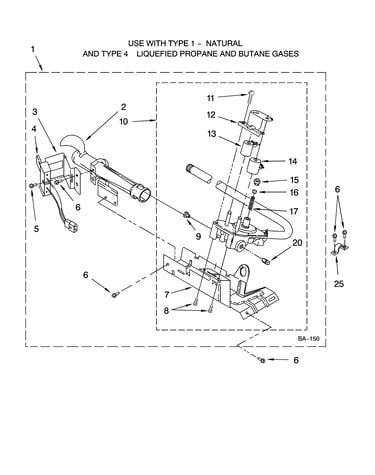

• Dryer gas valve coil kit 279834 (gas models can tumble with no flame)

A dryer that runs without heat is often a safety-device trip caused by poor airflow. Fixing the failed part without clearing lint buildup or a crushed vent can cause repeat failures, longer dry times, and overheating.

Last updated: February 2026

A Maytag dryer typically lasts 13 years. With consistent lint and vent maintenance and timely replacement of wear parts, many Maytag gas dryers like model MGD5620TQ0 run 15 to 20 years in normal household use; heavy use shortens that.

• Airflow and venting: restricted venting overheats components and increases run time.
• Lint control: cleaning the lint screen every load reduces strain on the blower and heat system.
• Load habits: chronic overloading stresses the drum support, belt, and motor.
• Heat system health (gas models): weak ignition or cycling heat can increase wear.
• Wear parts replaced on time: a slipping belt or noisy idler pulley accelerates other failures.

• Clean the lint screen every load.
• Inspect and clean the full vent path (dryer outlet to exterior hood) regularly.
• Avoid overloading; dry similar fabrics together to reduce cycle time.
• Use automatic cycles when available; they shut off when the load reaches the selected dryness, reducing over-drying and wear.
• Follow cycle and feature guidance in the MGD5620TQ0 owner’s manual.

A dryer that runs longer than normal to dry clothes is not just inconvenient; it increases heat exposure and operating time, which shortens the life of thermostats, the motor, and gas ignition components.

Last updated: February 2026
