GE GDT605PMM0ES dishwasher Parts

Here are the diagrams and repair parts for GE GDT605PMM0ES dishwasher, as well as links to manuals and error code tables, if available.

GE GDT605PMM0ES dishwasher
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for GDT605PMM0ES Dishwasher

  • Spray Arm for GE GDT605PMM0ES - Part WD22X33499

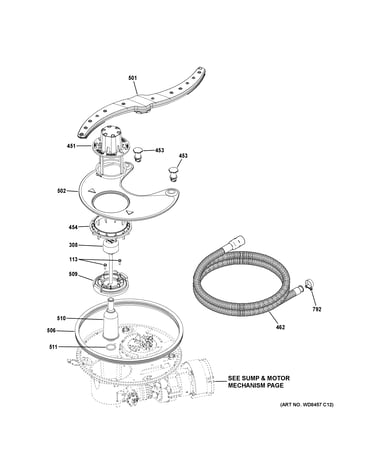

    Sump & filter assembly diagram

    Dishwasher Spray Arm, Lower

    Part #WD22X10091

    Replaced by #WD22X33499

    Info Icon
    Manufacturer substitution
    This part replaces WD22X10091. Substitute parts can look different from the original.
    In Stock
    $20.88
    22% OFF Phone Price : $26.88Info Icon
    Minus Item
    Qty
    Plus Item
  • G.e. Dishwasher Door Latch Lock for GE GDT605PMM0ES - Part WD21X10490

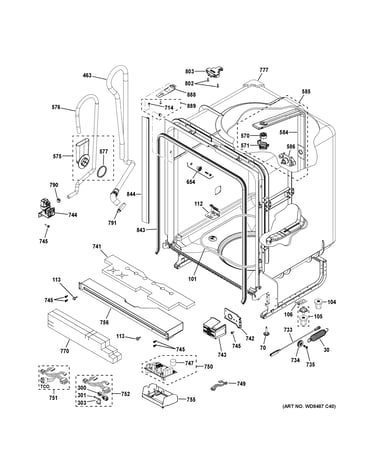

    Body parts diagram

    G.e. Dishwasher Door Latch Lock

    In Stock
    $36.13
    14% OFF Phone Price : $42.13Info Icon
    Minus Item
    Qty
    Plus Item
  • Heating Element for GE GDT605PMM0ES - Part WD05X35098

    Body parts diagram

    Dishwasher Heating Element

    Part #WD05X24385

    Replaced by #WD05X35098

    Info Icon
    Manufacturer substitution
    This part replaces WD05X24385. Substitute parts can look different from the original.
    In Stock
    $105.45
    10% OFF Phone Price : $117.45Info Icon
    Minus Item
    Qty
    Plus Item
  • Mid Spray Arm for GE GDT605PMM0ES - Part WD22X33498

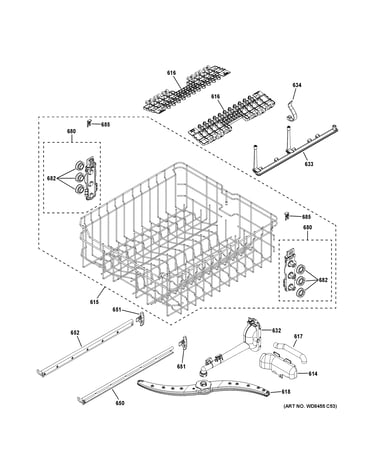

    Upper rack assembly diagram

    Dishwasher Spray Arm, Middle

    Part #WD22X10089

    Replaced by #WD22X33498

    Info Icon
    Manufacturer substitution
    This part replaces WD22X10089. Substitute parts can look different from the original.
    In Stock
    $31.69
    16% OFF Phone Price : $37.69Info Icon
    Minus Item
    Qty
    Plus Item
  • Dishwasher Electronic Control Board for GE GDT605PMM0ES - Part WD21X32165

    Body parts diagram

    Configured Machine Control

    Part #WD21X24498

    Replaced by #WD21X32165

    Info Icon
    Manufacturer substitution
    This part replaces WD21X24498. Substitute parts can look different from the original.
    In Stock
    $116.53
    9% OFF Phone Price : $128.53Info Icon
    Minus Item
    Qty
    Plus Item
  • Dishwasher Detergent Dispenser for GE GDT605PMM0ES - Part WD12X32798

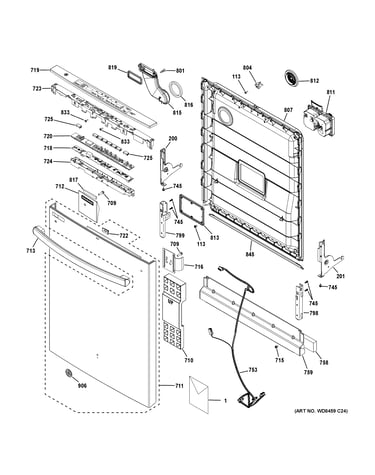

    Escutcheon & door assembly diagram

    Dishwasher Detergent Dispenser

    Part #WD12X24058

    Replaced by #WD12X32798

    Info Icon
    Manufacturer substitution
    This part replaces WD12X24058. Substitute parts can look different from the original.
    In Stock
    $33.32
    15% OFF Phone Price : $39.32Info Icon
    Minus Item
    Qty
    Plus Item
  • Dishwasher Tub Corner Baffle for GE GDT605PMM0ES - Part WD08X21894

    Escutcheon & door assembly diagram

    Dishwasher Tub Corner Baffle

    In Stock
    $33.34
    15% OFF Phone Price : $39.34Info Icon
    Minus Item
    Qty
    Plus Item
  • Dishwasher Water Inlet Valve for GE GDT605PMM0ES - Part WD15X26140

    Body parts diagram

    Dishwasher Water Inlet Valve

    Part #WD15X22999

    Replaced by #WD15X26140

    Info Icon
    Manufacturer substitution
    This part replaces WD15X22999. Substitute parts can look different from the original.
    In Stock
    $34.20
    15% OFF Phone Price : $40.20Info Icon
    Minus Item
    Qty
    Plus Item
  • Dishwasher Drain Pump Kit for GE GDT605PMM0ES - Part WD19X24829

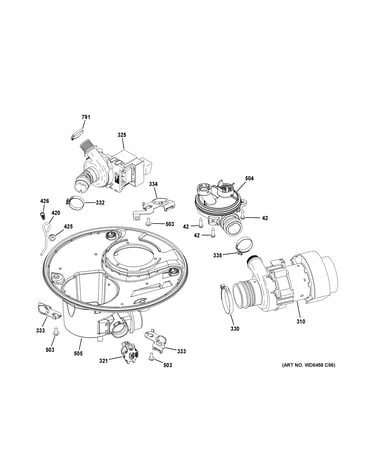

    Sump & motor mechanism diagram

    Drain Pump Asm

    Part #WD19X24394

    Replaced by #WD19X24829

    Info Icon
    Manufacturer substitution
    This part replaces WD19X24394. Substitute parts can look different from the original.
    In Stock
    $58.04
    9% OFF Phone Price : $64.04Info Icon
    Minus Item
    Qty
    Plus Item
  • Dishwasher Turbidity Sensor for GE GDT605PMM0ES - Part WD21X22830

    Sump & motor mechanism diagram

    Dishwasher Turbidity Sensor

    Part #WD21X22830
    This item is not returnable
    In Stock
    $30.45
    16% OFF Phone Price : $36.45Info Icon
    Minus Item
    Qty
    Plus Item

GE Dishwasher GDT605PMM0ES FAQs

A GE dishwasher typically lasts 10 to 12 years. For your GE GDT605PMM0ES, regular care (cleaning, reducing hard-water buildup, and using the right detergent and rinse aid) helps you reach that range and avoid early failures.

Typical lifespan range (what to expect)

Most GE dishwashers fall into these real-world ranges:

  • 8 to 10 years: heavy daily use, hard water, limited cleaning
  • 10 to 12 years: average household use with routine maintenance
  • 12 to 15 years: lighter use plus consistent cleaning and good water quality
Usage and care level Common outcome What usually drives it
Heavy use, minimal maintenance Shorter lifespan Mineral buildup, pump strain, leaks
Average use, basic maintenance Average lifespan Normal wear on motor, seals, racks
Light use, strong maintenance Longer lifespan Cleaner wash system, fewer clogs
Maintenance that extends dishwasher life

We recommend these habits for the GDT605PMM0ES:

  • Clean the interior periodically to reduce odors and mineral film
  • Use a dishwasher cleaner or citric acid when hard-water film appears
  • Use a quality detergent and a rinse aid to reduce spotting and buildup
  • Keep the control panel clean and dry (lightly damp cloth, then dry)
  • Avoid overloading; good water flow reduces strain on the wash system

For GE’s care and cleaning guidance, follow the steps in the GDT605PMM0ES owner’s manual.

Why it matters

A dishwasher usually fails early from preventable issues like mineral deposits, restricted water flow, or leaks. Routine cleaning and correct detergent and rinse aid use reduce wear on the pump, seals, and heating system, which helps the dishwasher reach its normal service life.

Last updated: January 2026

GE’s “best” dishwasher depends on what you value most (quietness, drying, cleaning power, or price). For most households, GE Profile is the best overall pick because it typically combines very quiet operation, strong wash performance, and upgraded drying features; use your GDT605PMM0ES owner's manual to compare cycles and options to what you use every day.

How we recommend choosing the best GE dishwasher
  • Quietness: Look for lower dBA ratings if your kitchen is open to living space.
  • Drying performance: Prioritize models with enhanced drying and rinse aid support.
  • Cleaning power: Choose strong filtration and spray coverage features for heavy soil.
  • Rack flexibility: Adjustable upper rack and fold-down tines matter for tall items.
  • Reliability and serviceability: Common platforms and widely available parts simplify repairs.
GE lineup comparison (quick guide)
GE line Best for Typical strengths Tradeoffs
GE (standard) Value and everyday use Solid cleaning, practical cycles Fewer premium features
GE Profile Best overall for most homes Quieter, more features, stronger drying options Higher price
GE Café Premium look and features Design-forward, very quiet options Highest cost
What to check on your current GE GDT605PMM0ES

Even if you are shopping, it helps to benchmark what you already have so you only “upgrade” features you will actually use.

  • Confirm your most-used cycles and options in the GDT605PMM0ES owner's manual
  • If you are comparing by performance, keep water temperature in mind; water entering the dishwasher should not exceed 150°F (66°C)
  • If you see error codes while evaluating performance, use GE electronic dishwasher error codes to interpret what the control is reporting
Why it matters

The “best” GE dishwasher is the one that matches your kitchen and habits: a quieter model improves comfort, better drying reduces towel-drying plastics, and the right rack layout prevents blocked spray arms and detergent cup issues.

Last updated: January 2026

For the GE GDT605PMM0ES dishwasher, the most reliable “hard reset” is a power reset: turn the dishwasher’s power off at the breaker (or unplug it, if equipped) for a few minutes, then restore power and use the Start/Reset pad to clear the current cycle.

Hard reset steps (power reset)
  • Turn the dishwasher OFF at the circuit breaker (preferred) or unplug it (if your installation uses a cord).
  • Wait 1 to 5 minutes.
  • Restore power.
  • Close the door firmly and make sure it is fully latched.
  • Press Start/Reset to start a cycle.
Cancel and drain (control reset)

If the dishwasher is stuck mid-cycle or you want to clear the current cycle, use the built-in cancel/drain function:

  • Press and hold Start/Reset for 3 seconds.
  • Close the door; the unit should begin to drain.
  • After draining, press Start/Reset again to run a new cycle.
Quick checks if it still will not run
  • Confirm the breaker is on and the dishwasher has power.
  • Check for a wall switch that controls dishwasher power (common near the disposer switch).
  • Make sure the control panel is not locked.
  • Touch pads within about 30 seconds of each other (some models time out and the lights go off).
What each reset does
Reset type What it helps with What to expect
Power reset (breaker/unplug) Glitches, unresponsive controls, odd behavior Control board reboots after power returns
Start/Reset hold (3 seconds) Canceling a cycle, draining the tub Unit drains, then you can restart
Why it matters

A power reset clears temporary control-board errors, while the Start/Reset hold cancels the active cycle and drains water. Using the right reset saves time and helps you avoid repeated “won’t start” situations.

For model-specific button behavior and cycle cancel details, follow the steps in the GDT605PMM0ES owner’s manual. If you are troubleshooting a flashing light or error condition, use our GE electronic dishwasher error codes guide.

Last updated: January 2026

The most common issues we see on a GE dishwasher like model GDT605PMM0ES are drain and wash-performance problems caused by buildup (food debris in the filter area, drain path restrictions, or spray-arm flow issues), followed closely by “won’t start” symptoms tied to power, a tripped breaker, or a door that is not fully latched. See the GDT605PMM0ES owner’s manual for model-specific troubleshooting steps.

Most common problems (and what they look like)
  • Not draining: standing water in the bottom after the cycle
  • Not starting: lights on but no run, or nothing happens when you press Start
  • Not cleaning well: grit on dishes, detergent left in the cup, cloudy glassware
  • Suds/foaming: caused by using the wrong detergent type
  • Hard-water film: white film or mineral deposits inside the tub
Quick checks we recommend first
  1. Confirm power: check the breaker and any wall switch that feeds the dishwasher.
  2. Check for control lock: unlock the control panel if it is locked.
  3. Use the right detergent: only automatic dishwasher detergent (never hand dish soap).
  4. Load to avoid blocking the dispenser: tall items can prevent the detergent cup from opening.
  5. Address hard water: use rinse aid and periodic cleaning if you see mineral film.
Symptom-to-cause cheat sheet
Symptom Most likely cause Best first step
Water left in tub Drain restriction or clog Follow dishwasher not draining video checks
Won’t run Breaker, wall switch, control lock, door not shut Follow dishwasher wont start video steps
Suds in tub Wrong detergent or rinse aid spill Switch to automatic detergent; clear suds per manual
Detergent still in cup Dishes blocking dispenser Reload so the cup can open and spray can reach it
Why it matters

Drain and detergent-dispensing issues usually get worse over time; they can lead to odors, poor cleaning, and repeated cycle failures. Catching the simple causes (loading, detergent choice, power, and basic maintenance) prevents unnecessary part replacement.

Last updated: January 2026

Most common symptoms to help you fix your dishwashers

Choose a symptom to see related dishwasher repairs.

Main causes: light switch beside the sink turned off, lack of power, bad dishwasher door switch, control system failure,…

Main causes: damaged or stuck spray arm, leaking door seal, damaged door hinge, leaky heating element water seal, cracke…

Main causes: improper loading, low water temperature, improper detergent dosage, detergent dispenser failure, spray arm …

Main causes: glass or popcorn kernel stuck in the chopper blade, drain line vibrating against the cabinet, debris in was…

Main causes: broken door latch, tripped circuit breaker, broken heating element, faulty vent fan, sensor failure, contro…

Main causes: not using rinse aid, rinse aid dispenser failure, broken heating element, malfunctioning vent, drying fan f…

Main cause: damaged rack height adjuster…

Main causes: clogged kitchen sink drain, clogged drain hose, drain check valve damaged, drain pump failure, control syst…

Main causes: water supply problem, stuck overfill float, clogged water inlet valve screen, water inlet valve failure…
