Model # BRT7820 Official Body Flex Sports 3-in-1 trio trainer

Here are the diagrams and repair parts for Official Body Flex Sports BRT7820 3-in-1 trio trainer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

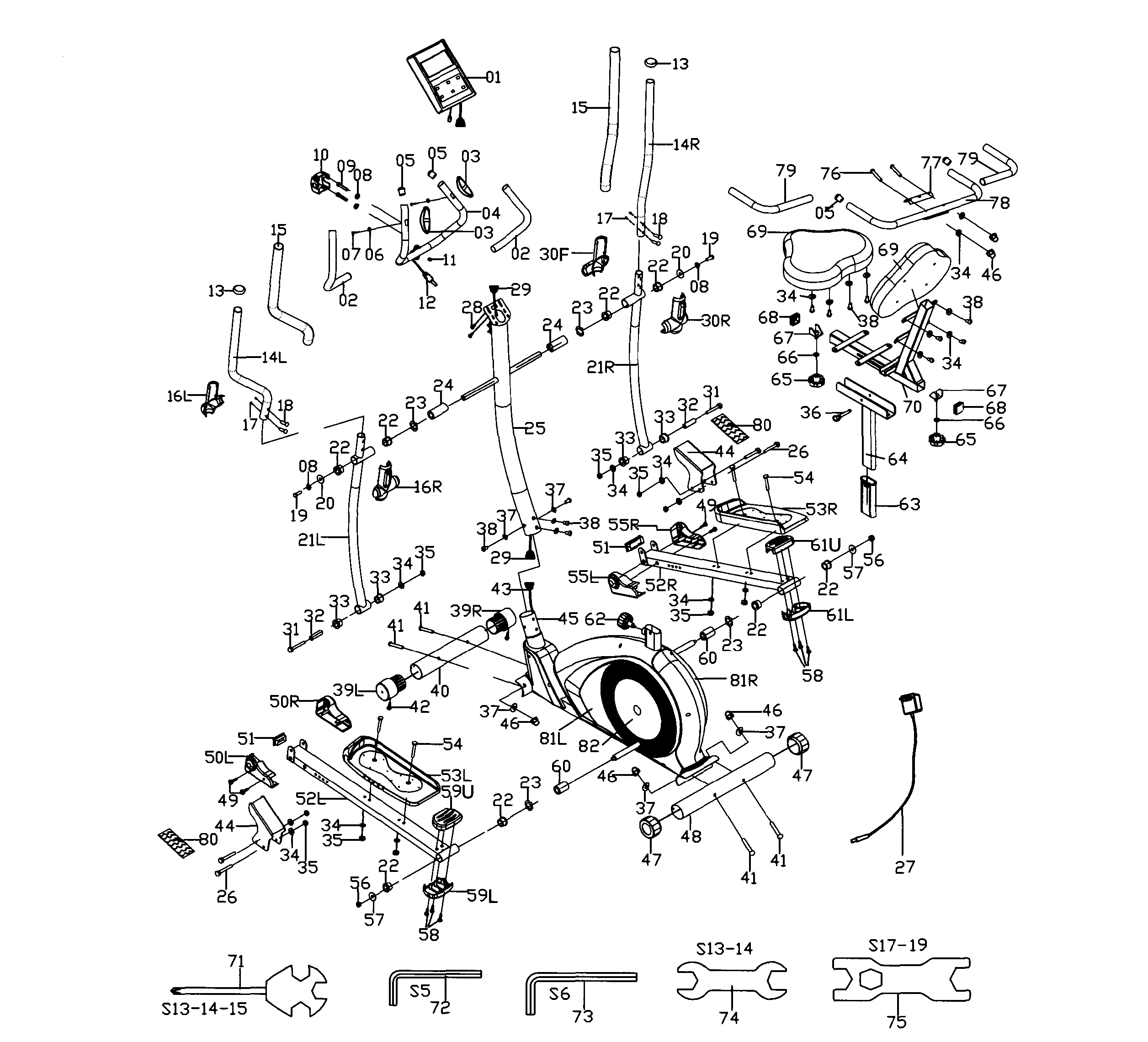

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |

Elliptical Handle Bar Foam Grip 7820-15
#15

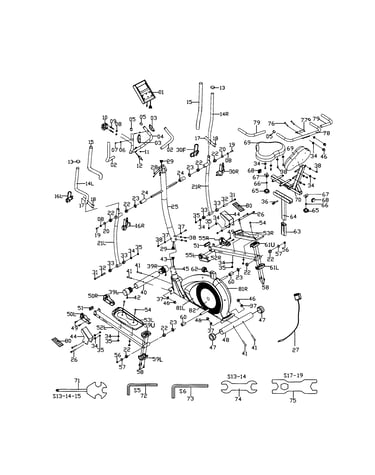

Trio trainer diagram

Elliptical handle bar foam grip

Part #7820-15

The manufacturer no longer makes this part, and there's no substitute part

Spring Loaded Knob 7820-62
#62

Trio trainer diagram

Spring loaded knob

Part #7820-62

The manufacturer no longer makes this part, and there's no substitute part

Elliptical Power Connector 7820-IW
#NI

Trio trainer diagram

Elliptical power connector

Part #7820-IW

The manufacturer no longer makes this part, and there's no substitute part

Elliptical Screw 7820-42
#42

Trio trainer diagram

Elliptical screw

Part #7820-42

The manufacturer no longer makes this part, and there's no substitute part

Bearing 7820-BE
#NI

Trio trainer diagram

Bearing

Part #7820-BE

The manufacturer no longer makes this part, and there's no substitute part

Elliptical Pivot Tube Cover, Lower 7820-59L
#59L

Trio trainer diagram

Elliptical pivot tube cover, lower

Part #7820-59L

The manufacturer no longer makes this part, and there's no substitute part

Elliptical Nut 7820-46
#46

Trio trainer diagram

Elliptical nut

Part #7820-46

The manufacturer no longer makes this part, and there's no substitute part

Coupler Bar Cover 7820-16R
#16R

Trio trainer diagram

Coupler bar cover

Part #7820-16R

The manufacturer no longer makes this part, and there's no substitute part

Foam 7820-02
#2

Trio trainer diagram

Foam

Part #7820-02

The manufacturer no longer makes this part, and there's no substitute part

Rear Handlebar Assembly 7820-78
#78

Trio trainer diagram

Rear handlebar assembly

Part #7820-78

The manufacturer no longer makes this part, and there's no substitute part
