Samsung DV393ETPAWR/A1-00 dryer Parts

For your Samsung dryer model DV393ETPAWR, we find the correct part number by matching the dryer’s model number (and sometimes the serial number) from the rating label to the parts list for that exact model. On most Samsung dryers, the label is on the front frame behind the door; a secondary label is often on the back.

Where to look for the model and serial label

Check these common locations first:

• Front frame behind the dryer door opening (most common)
• Back panel of the dryer cabinet (backup label)
• Inside the door area near the lint screen housing (less common)
• Your paperwork: purchase receipt, installation notes, or service invoice

How we match the right part number

Once you have the model number, use it to select the exact part in the diagram and parts list.

• Confirm the model is DV393ETPAWR (letters and numbers must match exactly)
• Use the parts list for that model to identify the part name and reference number
• Match by part name and manufacturer part number (example: DC47-00019A)
• If multiple similar parts appear, compare where it installs (heater housing, drum, blower, control panel)

Quick examples of part numbers you may see for DV393ETPAWR

Common repair need	Example part name	Example part number
No heat or weak heat	Samsung dryer heating element	DC47-00019A
Overheating or shuts off	Dryer high-limit thermostat	DC47-00018A
Squealing or thumping	Samsung dryer drum support roller	DC97-16782A
Drum not turning	Samsung dryer drum belt	6602-001655

Why it matters

Samsung often uses similar-looking parts across different dryer versions. Using the exact model number (DV393ETPAWR) prevents ordering a heating element, belt, or thermostat that fits a different revision and will not install correctly.

Helpful next steps

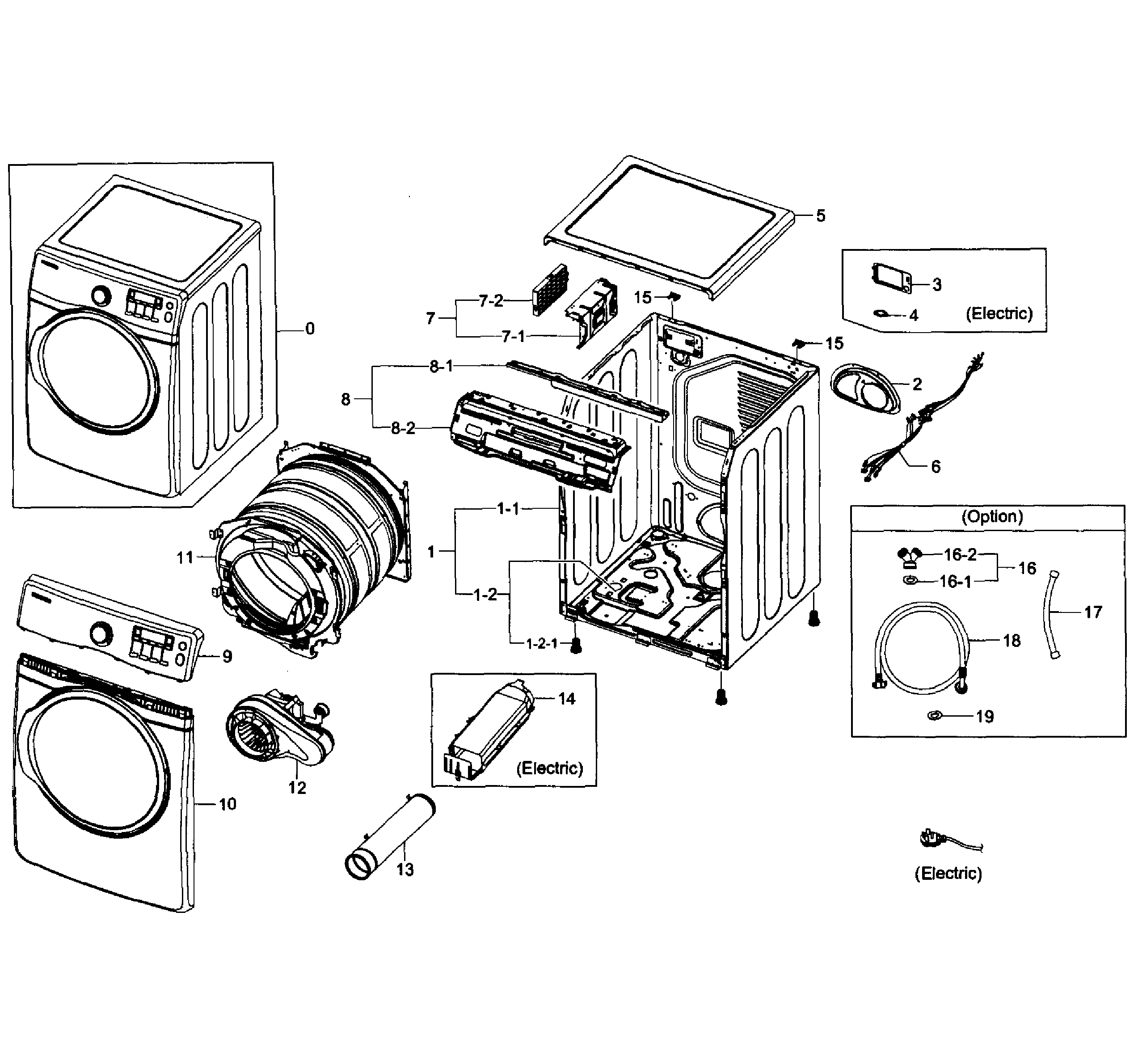

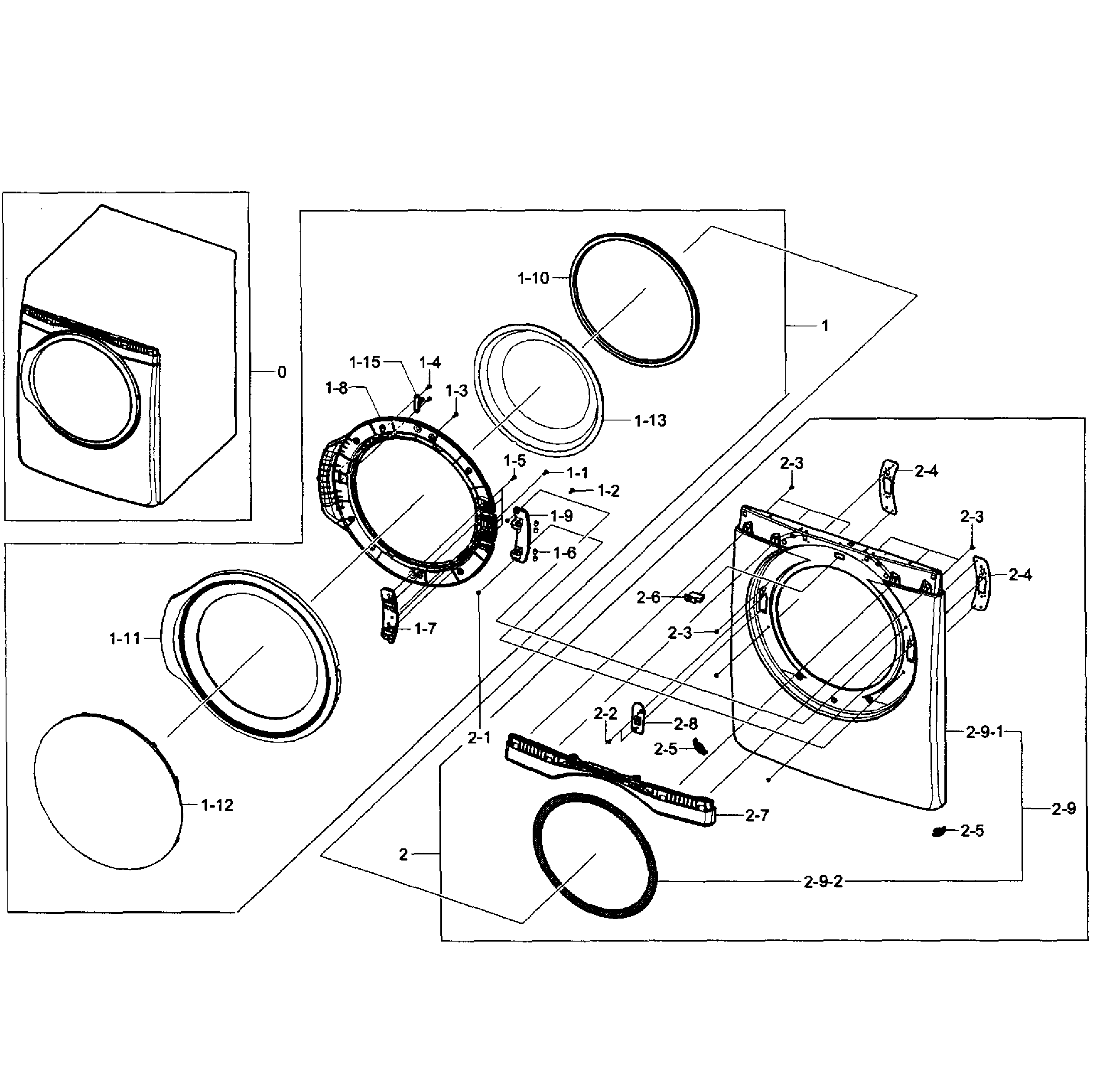

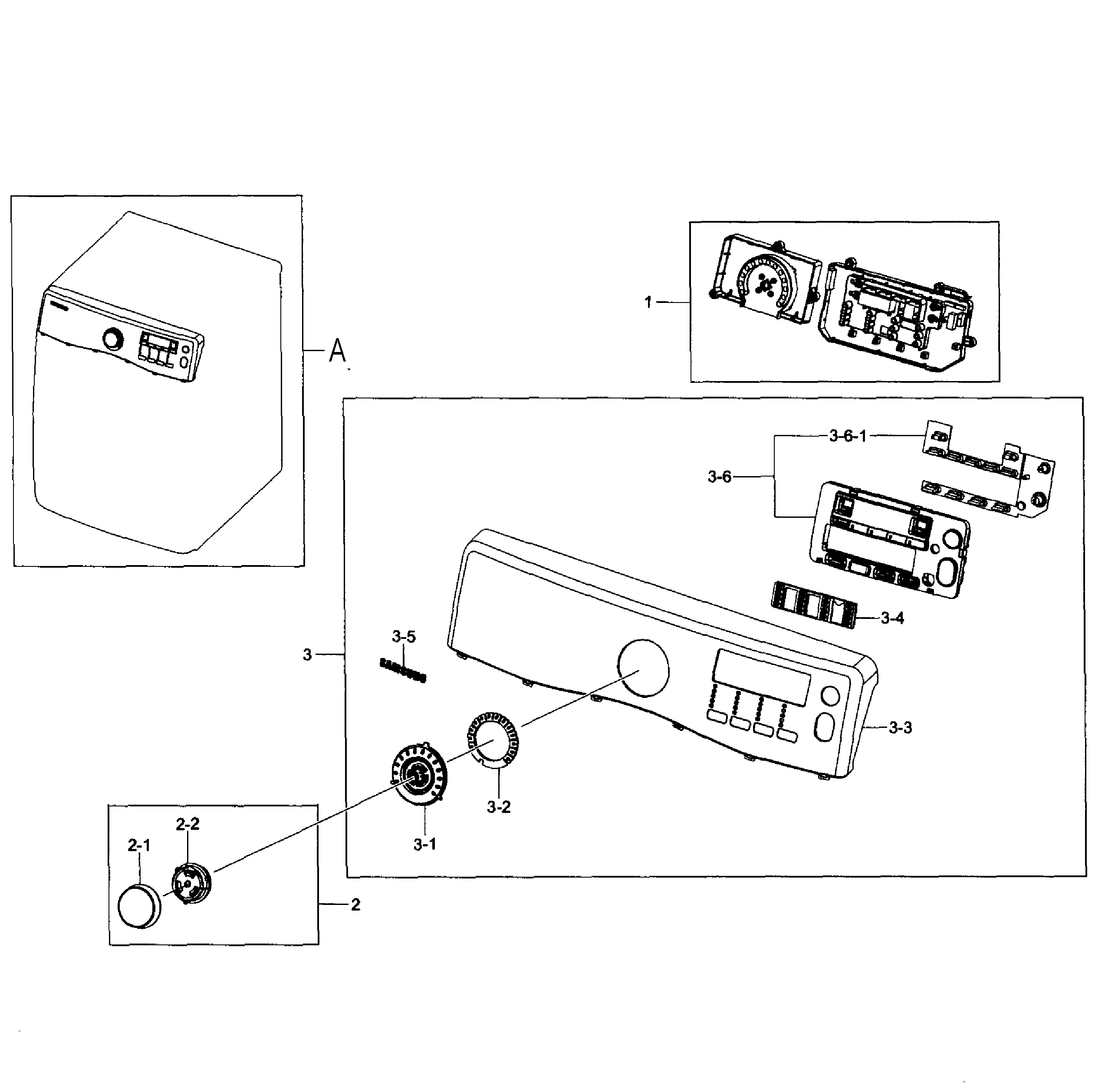

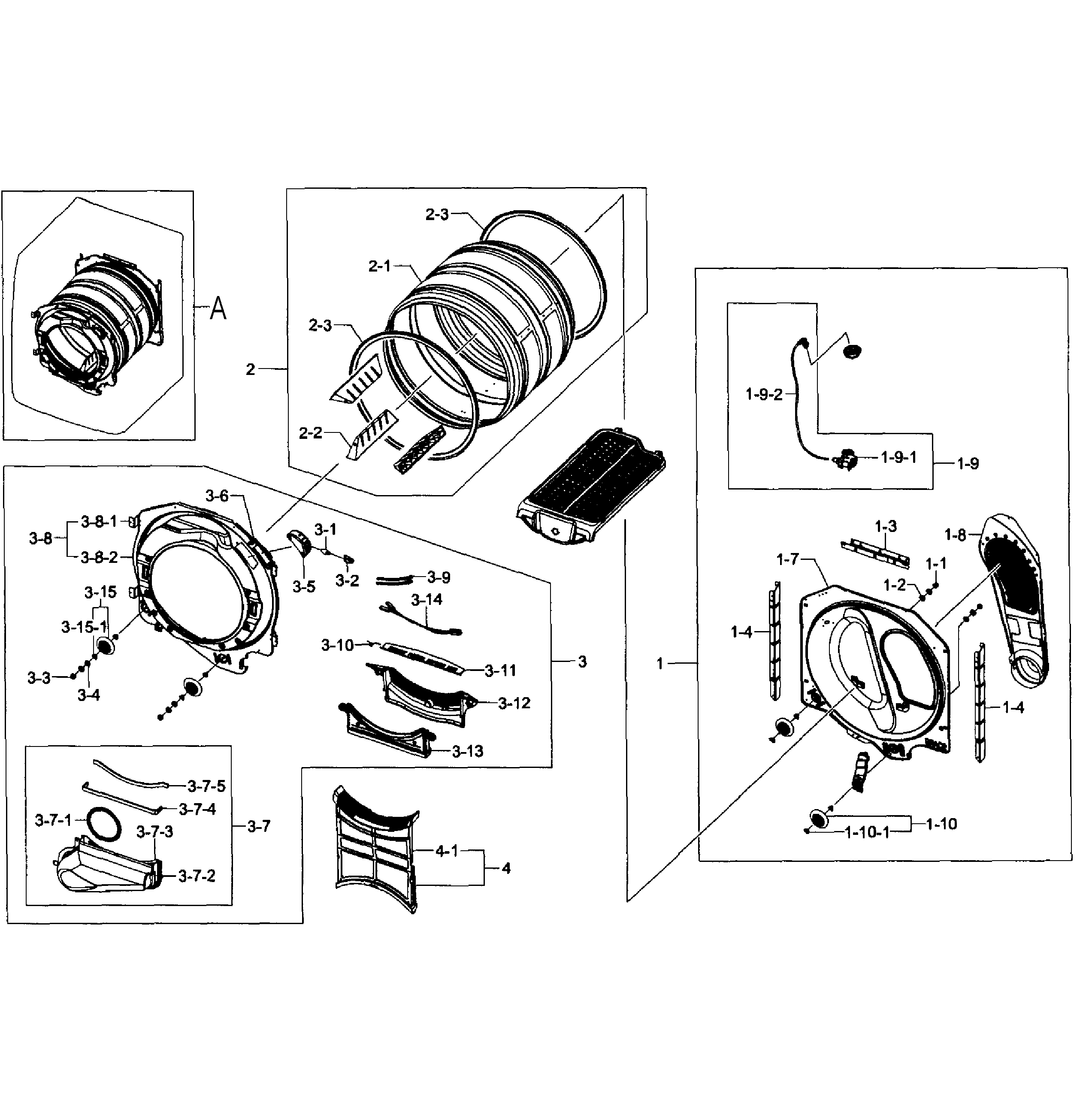

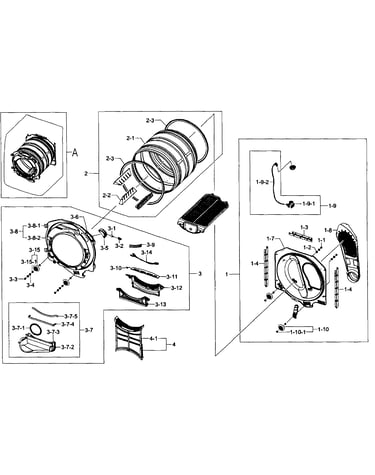

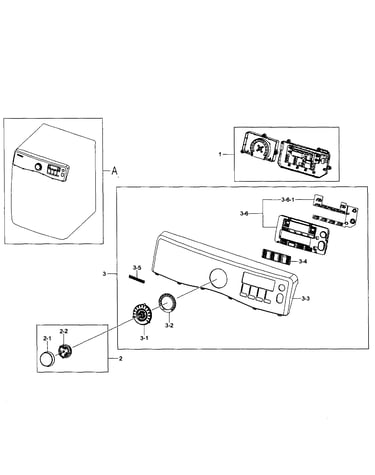

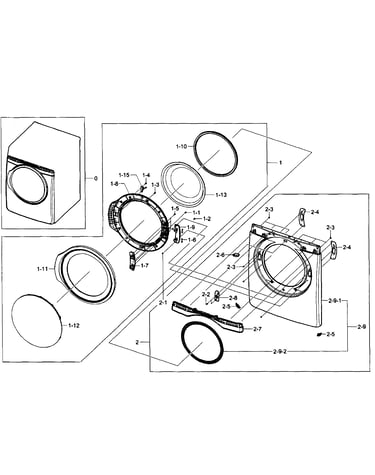

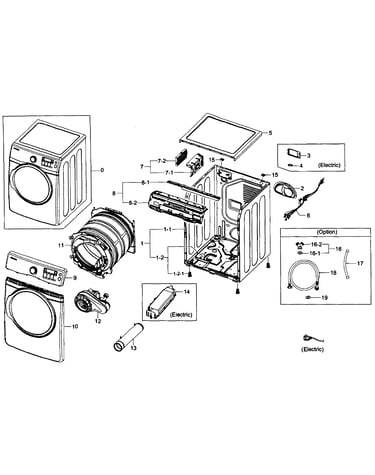

• Use the exploded-view diagrams in the DV393ETPAWR manual to confirm where the part sits

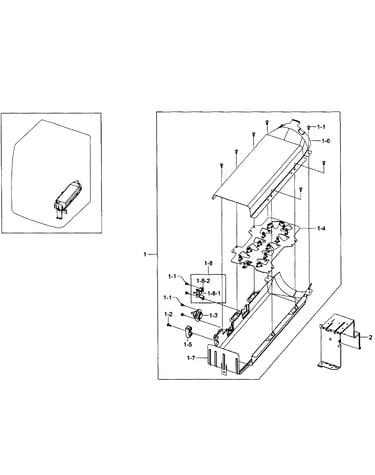

• If the dryer is not heating, check the heater circuit parts commonly replaced together (heating element, high-limit thermostat, thermal cut-off)
• Order the exact replacement from the model’s parts list, or search by model on Sears PartsDirect

Last updated: February 2026

Most Samsung dryers, including the Samsung DV393ETPAWR, typically last 10 to 15 years with normal household use and basic maintenance. Keeping airflow strong (lint and venting) and fixing wear parts early is what most often determines whether you land closer to 10 years or closer to 15.

Typical lifespan and what changes it

A dryer’s life is usually limited by heat stress, airflow restrictions, and normal wear on moving parts.

• Usage frequency: multiple loads per day shortens life faster than a few loads per week
• Airflow and lint control: clogged lint paths overheat components and strain the motor
• Timely repairs: replacing wear parts early prevents secondary damage
• Load size: chronic overloading accelerates belt, roller, and motor wear
• Environment: garages and humid spaces can increase corrosion and electrical issues

Maintenance that helps you reach the high end (15 years)

We recommend these habits for the DV393ETPAWR:

• Clean the lint screen every load
• Check and clean the exhaust vent path regularly (especially if dry times increase)
• Avoid overloading; keep loads loose enough to tumble freely
• Listen for new squeaks, thumps, or scraping and address them early
• Follow the care and cleaning schedule in the DV393ETPAWR owner's manual

Common wear parts that affect longevity

When these parts wear, the dryer often gets noisy, stops tumbling, or dries poorly. Replacing them early can prevent bigger failures.

Symptom	Common cause	Example part for this model
Squealing or rumbling	Worn drum support rollers	Samsung dryer drum support roller DC97-16782A
Drum not turning	Worn or broken belt	Samsung dryer drum belt 6602-001655
No heat or overheating shutdown	Failed heater or safety thermostat/fuse	Samsung dryer heating element DC47-00019A

Why it matters

A dryer that is running hot because of restricted airflow can repeatedly trip safety devices and overwork the heating circuit and motor. Good airflow and quick attention to noise or long dry times are the simplest ways to extend service life.

If you need to order replacement parts for the DV393ETPAWR, we list model-matched parts on this page, and you can also search by model on Sears PartsDirect.

Last updated: February 2026

Yes. For a Samsung dryer like model DV393ETPAWR, replacing the heating element is usually worth it when the dryer is otherwise in good shape because the repair restores heat for far less than the cost of a new dryer; confirm the diagnosis first using the DV393ETPAWR owner's manual.

When replacement makes sense

We typically recommend replacing the heating element when the dryer tumbles normally but has little or no heat, and the rest of the machine is in solid condition.

• The drum turns and airflow is strong, but clothes stay damp
• The dryer runs a full cycle but never gets hot
• You have no burning smell or obvious wiring damage
• The cabinet, drum, and door seal are in good condition
• You want to extend the life of the dryer with a targeted repair

A common replacement option for this model is the Samsung dryer heating element DC47-00019A.

Check these parts before you buy

A “no heat” symptom is not always the element. On DV393ETPAWR, we see these parts fail often enough that it is smart to test them during diagnosis.

• Dryer high-limit thermostat DC47-00018A (can open if the dryer overheats)
• Dryer thermal cut-off fuse, 320-degree f DC47-00015A (opens to protect the heater circuit)
• Dryer thermistor DC32-00007A (feeds temperature information to the control)

Quick symptom-to-part guide

Symptom	Most likely area	What to check first
Runs but no heat	Heater circuit	Thermal cut-off, high-limit thermostat, heating element
Heats then stops mid-cycle	Overheat condition	Venting, high-limit thermostat, thermal cut-off
Long dry times but some heat	Airflow restriction	Lint screen, vent duct, blower wheel

Why it matters

A failed heating element can be the result of restricted airflow. If you replace the element but do not fix the airflow problem, the new element and safety thermostats can fail again.

• Clean the lint screen every load
• Inspect and clean the vent duct to the outside
• Make sure the outside vent hood opens fully
• Check for crushed or excessively long vent runs

For more troubleshooting steps, we use the same process outlined in our electric dryer wont heat troubleshooting video. If you decide to order parts, you can use the parts list for DV393ETPAWR on this page or search by model at Sears PartsDirect.

Last updated: February 2026

On our Samsung DV393ETPAWR dryer, a bad thermal fuse is almost always open (no continuity). With the dryer unplugged, remove the fuse and test it with a multimeter; a good fuse reads near 0 ohms (or beeps), and a blown fuse reads OL/infinite.

Quick symptoms that point to a blown thermal fuse

A thermal fuse is a one-time safety device; when it opens, the dryer may stop running or stop heating.

• Dryer will not start (motor will not run)
• Dryer runs but has no heat (on some designs)
• Cycle stops early or acts “dead” after overheating
• You recently had poor airflow (lint buildup, crushed vent, blocked hood)
• You find the fuse physically discolored or heat-damaged

How we test the thermal fuse (safe, reliable method)

1. Unplug the dryer (or switch off the breaker).

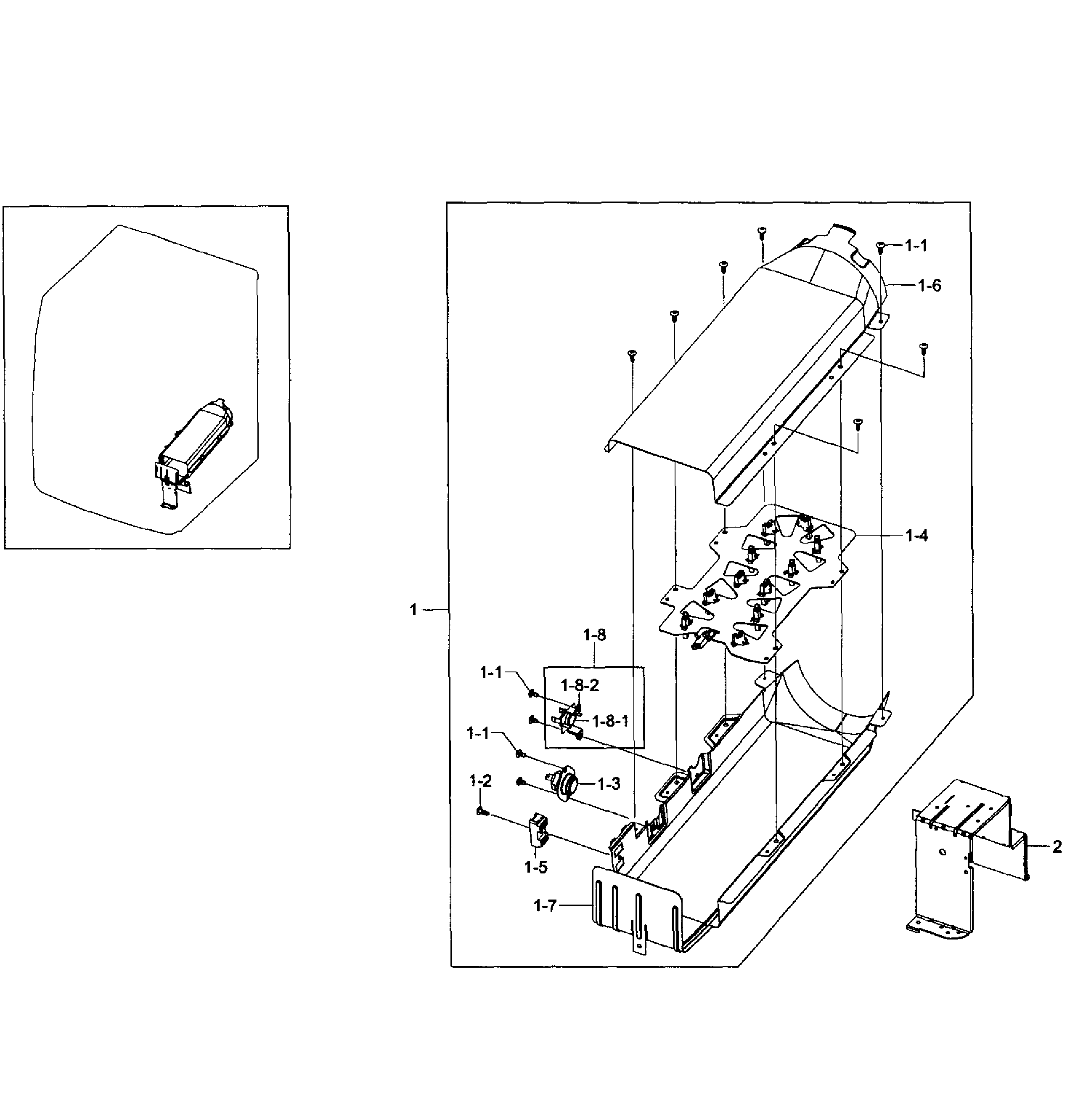

2. Access the fuse location (commonly on the blower housing or heater housing; use the DV393ETPAWR owner's manual for access guidance).
3. Pull the wire connectors off the fuse terminals (grab the connector, not the wire).
4. Set your multimeter to continuity or the lowest ohms range.
5. Touch one probe to each terminal.

Interpreting the meter reading

Meter result	What it means	What to do next
Beep or ~0 to 1 Ω	Fuse is good	Keep troubleshooting heat/airflow issues
OL / no beep / very high Ω	Fuse is blown	Replace the fuse and correct the overheating cause

Replace the fuse and fix the cause (or it will blow again)

A thermal fuse usually opens because the dryer overheated from restricted airflow.

• Clean the lint screen and lint chute
• Inspect and clean the vent duct to the outside
• Confirm the outside vent hood opens freely
• Avoid long, crushed, or kinked flexible venting

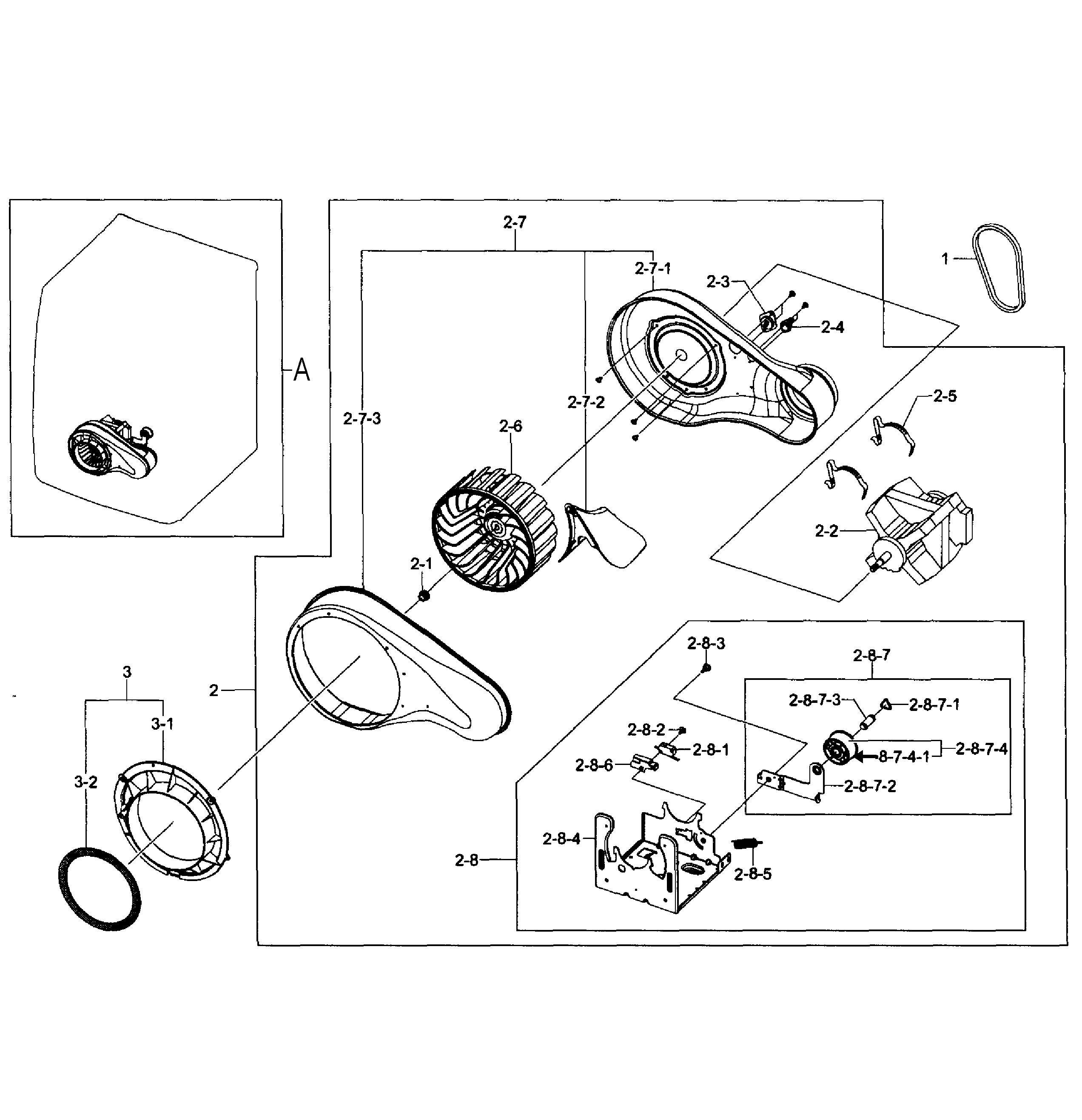

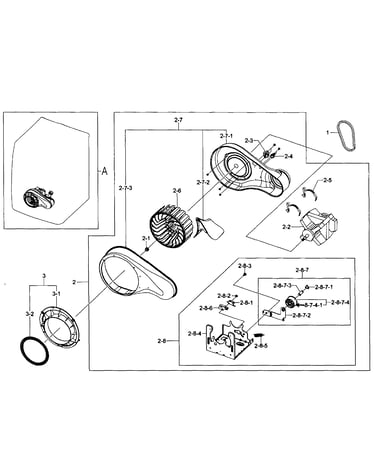

• Check the blower area for lint buildup; a damaged blower can reduce airflow (see dryer blower wheel DC67-00180B)

Why it matters

A blown thermal fuse is a safety shutdown. Replacing it without fixing airflow can cause repeat failures and can also overheat components like the heating element and thermostats.

Getting the right replacement part

Order the correct fuse for DV393ETPAWR from the parts list for this model, or search by model number on Sears PartsDirect. If your dryer is overheating, also consider checking related safety parts such as the high-limit thermostat and heating circuit components.

Last updated: February 2026
