To hard reset a Kenmore Elite dishwasher model 66512774K310, we recommend first doing a simple power reset (breaker or unplug) and then using the control-panel reset sequence listed in the 66512774K310 owner's manual. This clears many stuck cycles and control glitches.

Reset options that work most often

• Power reset (most universal): Turn the dishwasher breaker OFF for 1 minute, then turn it ON.
• Control-panel reset sequence: Many Kenmore Elite (665-series) models reset by pressing a specific pair of keys in a pattern (often Heated Dry and High Temp, or similar). Use the exact sequence for your console in the 66512774K310 owner's manual.
• Cancel/Drain reset: Press Cancel/Drain (or Cancel) and let the unit pump out; then restart a cycle.

Step-by-step: breaker reset (recommended first)

1. Turn the dishwasher breaker OFF.
2. Wait 60 seconds.
3. Turn the breaker ON.
4. Close the door fully, then select a normal cycle and press Start/Resume.

If the dishwasher still will not respond

These checks fix the most common “won’t start” symptoms after a reset:

• Confirm the door is fully latched (a weak latch can mimic a control failure).
• Make sure Control Lock is not enabled (if your model has it).
• Try a different cycle option combination (some cycles will not start with certain selections).
• If the unit is stuck mid-cycle, run Cancel/Drain and wait for the drain to finish.
• If the dishwasher fills but does not wash, a failed diverter or pump can look like an “electronics” issue.

Symptom after reset	Most likely cause	What to do next
No lights, no response	No power to dishwasher	Check breaker, outlet, wiring
Lights on, won’t start	Door not latched, control lock	Relatch door, disable lock
Starts then stops	Drain issue or control glitch	Cancel/Drain, then retry
Fills but no wash action	Wash system problem	Check wash components

Why it matters

A true hard reset restores the control to a known state, which helps you separate a one-time software glitch from a repeatable problem caused by the door latch, drain system, or wash components.

Last updated: January 2026

Yes. Many Kenmore dishwashers are designed to run quietly, and the exact sound rating depends on the specific model and cycle options. For Kenmore Elite model 66512774K310, use the 66512774K310 owner's manual to confirm the listed dBA rating and which cycles or options are quietest.

What “quiet” means for a dishwasher

Dishwasher noise is typically measured in dBA (decibels). Lower numbers are quieter.

• 55+ dBA: noticeable in the kitchen
• 50 to 54 dBA: generally moderate
• 45 to 49 dBA: quiet (often blends into background)
• 44 dBA and below: very quiet

What affects noise on model 66512774K310

Even with the same dishwasher, noise can change based on installation, loading, and wash choices.

• Installation and leveling: an unlevel unit can vibrate against cabinets
• Securing the dishwasher: mounting brackets help prevent shifting when the door opens
• Drain hose routing: kinks or contact with the motor/legs can transmit vibration
• Loading: dishes or the spray arm hitting items can cause clicking or knocking
• Cycle selection: heavier cycles can sound louder due to stronger wash action

Quick checks if your dishwasher seems louder than normal

Use these steps before replacing parts:

• Confirm the dishwasher is secured to the countertop or cabinet and not shifting
• Check that the unit is level and not rocking on the floor
• Re-load so nothing hangs into the spray path (especially large utensils)

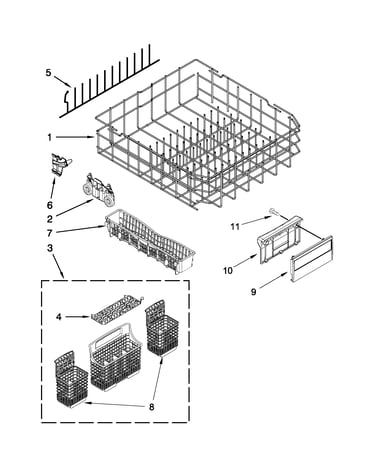

• Inspect racks for worn rollers that can cause rattling (lower rack: dishwasher dishrack roller assembly, lower WPW10195417)
• Run a short cycle and listen for when the noise starts (fill, wash, drain)

Common noise sources and what they sound like

Sound	Most likely source	Typical fix
Rattle/clatter	Loose dishes, rack wheels	Re-load, replace worn rollers
Clicking	Spray arm hitting item	Reposition tall items
Humming during drain	Drain pump working	Check for blockage, verify drain hose routing
Buzzing/vibration	Not level or not secured	Level legs, secure mounting brackets

Why it matters

A quiet dishwasher is not just about comfort. Excess vibration can loosen mounting screws, wear rack components faster, and contribute to leaks over time. Following the installation and leveling guidance in the installation guide helps keep operation smooth and quiet.

Last updated: January 2026

On Kenmore Elite model 66512774K310, the F4E1 service code points to a wash motor (circulation pump motor) problem, meaning the dishwasher is not circulating water correctly for washing. After the repair, we clear the stored code using the keypad sequence described in the 66512774K310 owner's manual.

What you’ll usually notice with F4E1

• Dishes come out dirty because spray pressure is weak or missing
• You hear unusual humming or grinding during the wash portion
• The unit may fill and drain, but washing action seems minimal
• The cycle may stop and display the code again

What to check first (before replacing parts)

1. Power reset: Turn off the breaker for 1 minute, then restore power.
2. Water supply: Confirm the shutoff valve is fully open and the fill is normal.
3. Loading and spray arms: Make sure items are not blocking spray arm rotation.
4. Filters and sump area: Clean debris that can restrict circulation.

Clearing the code after the repair

Many Kenmore 665-series dishwashers use a keypad “service entry” pattern to clear stored faults after the wash motor issue is corrected.

• Press any 3 keys in a 1-2-3 pattern
• Repeat the same pattern 3 times: 1-2-3, 1-2-3, 1-2-3
• Let the dishwasher run the short service routine (if it starts)

Parts that are commonly involved

If the code returns after basic checks, the failure is typically in the circulation system or its controls.

Symptom	Most likely area	What we do next

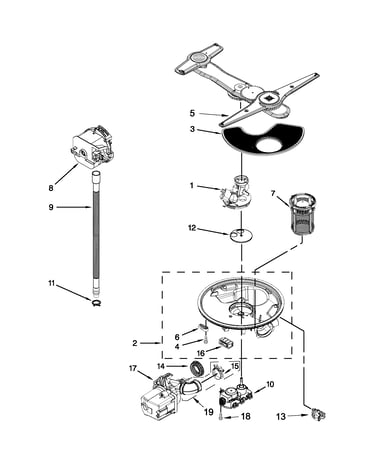

Fills but no strong spraying	Wash motor / circulation system	Inspect motor operation and wiring
Intermittent wash action	Control or diverter issues	Check connections and diagnostics
Drains fine but won’t wash	Motor circuit fault	Test motor circuit, then repair

If you’re also seeing poor draining, that is a separate issue and may involve the dishwasher drain pump WPW10531320.

Why it matters

The wash motor is what creates spray pressure through the spray arms. When it fails, the dishwasher can still fill and drain, but it cannot clean effectively, and the control may stop the cycle to prevent overheating or repeated poor performance.

Last updated: January 2026

On Kenmore Elite dishwasher model 66512774K310, the quickest way to manually drain is to start a wash cycle and then cancel it; the dishwasher typically runs a short drain sequence to pump water out. For exact button steps for your control panel, follow the 66512774K310 owner's manual.

Fast ways to force a drain

• Cancel/Drain method: Start a cycle, then press Cancel/Drain (or Start/Cancel, depending on the console) to trigger the drain-out.
• Power reset method: If the keys are unresponsive, turn power off at the breaker for 1 minute, restore power, then try Cancel/Drain again.
• Wet removal method: If the unit will not run the drain pump, remove standing water with a cup or wet/dry vacuum so you can safely check the filter area.

If it still will not drain

A “manual drain” problem is usually a drain path restriction or a failed drain component.

• Check the sink/disposer connection for a clog.
• Make sure the drain hose is not kinked or crushed behind the dishwasher.
• Confirm the drain connection is made before the drain trap and is routed high enough (a high loop or air gap setup, depending on your installation).
• If you hear humming but no water movement, the drain pump may be jammed.
• If the dishwasher shows an error, use Kenmore 665 model dishwasher error codes to match the symptom to the most likely cause.

Drain hose routing checklist (quick reference)

What to check	What “good” looks like	What it prevents
Hose routing	No kinks; smooth path to sink	Slow drain, backflow
Connection height	Routed high under the counter (or through an air gap if used)	Dirty water returning
Connection point	Tied into disposer or waste tee before the trap	Standing water

Parts that commonly fix draining issues

If the drain path is clear but the dishwasher will not pump out, these model-compatible parts are common suspects:

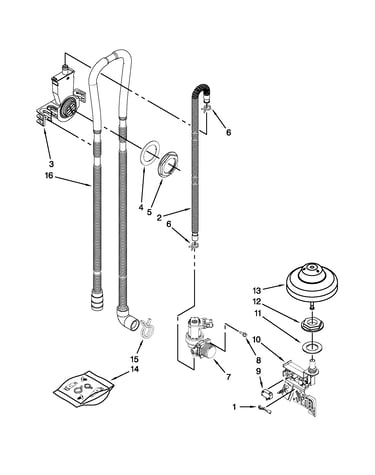

• Dishwasher drain pump WPW10531320 (pump runs during drain)
• Dishwasher drain hose 8269144A (cracks, internal blockage, or poor fit)

Why it matters

Standing water can cause odors, poor wash performance, and can lead to leaks if the dishwasher overfills on the next cycle. A proper cancel-drain and correct drain hose routing usually resolves the issue quickly.
