How do I know if my Kenmore dryer thermal fuse is blown?
If your Kenmore Elite dryer model 11097087601 will not run (or runs but has no heat), a blown thermal fuse is a common cause. We confirm it by unplugging the dryer, accessing the fuse, and testing it with a multimeter for continuity as outlined in the 11097087601 owner's manual.
Quick symptoms that point to a blown thermal fuse
A thermal fuse is a one-time safety device; when it opens, it stops the dryer to prevent overheating.
- Dryer will not start even though the control panel lights up
- Motor hums briefly but drum does not turn
- Dryer runs but produces no heat (some designs)
- Problem started after long dry times or restricted venting
- Lint buildup found in the exhaust duct or blower housing
How we test the thermal fuse (continuity check)
- Disconnect power (unplug the cord; for gas models, also close the gas shutoff valve).
- Remove the access panel needed to reach the fuse (commonly on the blower housing or exhaust duct).
- Pull one wire off the fuse terminal.
- Set your multimeter to continuity or the lowest ohms setting.
- Touch a probe to each terminal.
Interpreting the meter reading
| Meter result | What it means | What to do next |
|---|---|---|
| Beep or near 0 Ω | Fuse is good | Check door switch, belt switch, motor, or timer/control |
| No beep or OL/infinite | Fuse is blown | Replace the thermal fuse and correct the overheating cause |
Why it matters (and what to fix so it does not blow again)
A thermal fuse usually blows because the dryer overheated. The most common reason is restricted airflow.
- Clean the lint screen and housing (use the correct lint screen for your model, such as screen W10120998)
- Inspect and clear the vent line and outside hood
- Check for a damaged or clogged internal duct (a restriction can involve parts like duct lint WPW10128606)
- Make sure the blower wheel is intact and moving air
Helpful related troubleshooting
If your dryer is gas and will not start or will not heat, we also use the steps in gas dryer wont start troubleshooting video to narrow down ignition and airflow issues.
Last updated: February 2026
What are common problems with Kenmore dryers?
Common problems we see with Kenmore dryers (including Kenmore Elite model 11097087601) are no heat, long dry times, won’t start, loud squealing or thumping, and the door not latching. Many issues trace back to airflow restrictions, worn drum support parts, or gas-heat ignition components; use the 11097087601 owner's manual to match symptoms to cycles and settings.
Most common symptoms and what they usually mean
- No heat or heat cuts out: gas ignition parts (igniter, radiant sensor, valve coils) or restricted venting
- Long dry times: clogged lint screen, crushed/long vent run, blocked exhaust duct, weak airflow
- Won’t start: door not fully latched, failed motor, or a control/thermal safety issue
- Loud squeal, rumble, or thump: worn rollers, idler pulley, or blower wheel
- Door won’t close/latch: worn strike or latch alignment problem
Quick checks we recommend first (fast, no parts)
- Clean the lint screen every load; confirm strong airflow at the outside vent hood.
- Run a timed cycle on high heat and verify the exhaust gets hot (gas models should ignite smoothly).
- Listen for mechanical noise changes (squeal often points to idler/rollers).
- Check the door closes firmly; a weak latch can prevent starting.
- If you smell burning, stop the cycle and inspect for lint buildup and vent restrictions.
Parts that commonly fix these problems on model 11097087601
| Symptom | Common part involved | Example part for this model |
|---|---|---|
| Squealing/rumbling | Drum support rollers, idler pulley | Support WPW10314173, dryer idler pulley 279640 |
| Thumping or poor airflow noise | Blower wheel | Dryer blower wheel WP697772 |

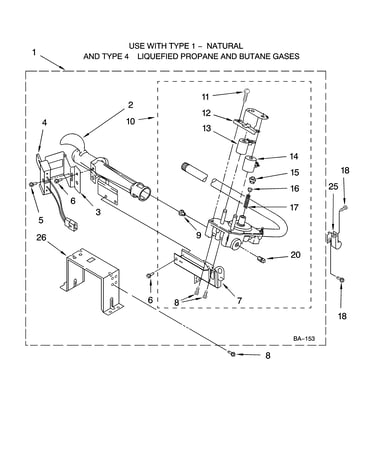

| No heat (gas) | Igniter, radiant sensor, valve coils | Igniter 279311, dryer radiant sensor WP338906, dryer valve coil kit 279834 |
| Door won’t latch | Door strike | Strike 279570 |
Why it matters
Airflow and heat problems can overheat the dryer and damage clothing. The manual also warns to keep flammables away and avoid drying items that have had oils or solvents on them; correct cycle selection and safe loading help prevent fires and poor drying results.
Last updated: February 2026
What model number is the Kenmore 11097087601 dryer?
The model number for this Kenmore Elite dryer is 11097087601. You’ll find the model number on the dryer’s model and serial tag; matching that number is the key step for getting the right parts, diagrams, and Use and Care information in the 11097087601 owner's manual.
Where to find the model number on the dryer
On most Kenmore Elite dryers like model 11097087601, the model and serial tag is typically located in one of these spots:
- Inside the door opening on the front panel
- On the door frame (around the opening)
- Behind the door, along the cabinet edge
- On the rear panel (less common)
Why the exact model number matters
Kenmore 110-series dryers can look similar but use different components (especially for drum support, belt routing, and gas-heat parts). Using 11097087601 helps us match the correct part ID and fit.
Examples of parts that can vary by model
- Drum support roller style and shaft size
- Idler pulley and bracket geometry
- Moisture sensor bar length and harness connection
- Gas ignition components (for gas versions)
Quick check: model number vs. part numbers
| What you’re checking | Example | What it’s used for |
|---|---|---|
| Model number | 11097087601 | Identifies the exact dryer design |
| Part ID | WPW10314173 | Used to order the correct replacement part |
| Part number | 8536973 | Manufacturer number tied to the part |
Related tip when ordering parts
If you’re ordering common wear items for this dryer, we often see customers replace multiple drum-support components at once to reduce repeat tear-downs. A common example is the support WPW10314173 (drum support roller) when the dryer is squealing or thumping.
Why it matters
Using the exact model number 11097087601 prevents wrong-part returns and helps ensure the dryer runs safely and efficiently after a repair.
Last updated: February 2026
Where is the model number on a Kenmore Elite dryer?
On Kenmore Elite dryer model 11097087601, the model number is typically printed on the rating label inside the dryer door opening on the cabinet frame. If it is not there, check the back of the dryer near the top; this is the next most common location.
Common places to look first
- Inside the door opening on the cabinet frame (most common)
- On the back panel near the top edge
- Along the door opening lip near the lint screen housing
- Behind the lower access panel (less common on this style)
What the label looks like (so you do not miss it)
The rating label is usually a white or silver sticker or metal tag that includes the model number, serial number, and electrical or gas information.
| Location | What you will see | Best time to check |
|---|---|---|
| Door opening (cabinet frame) | Model and serial label | Door open, drum stopped |
| Back of dryer (upper area) | Model/serial label | Dryer pulled out safely |
| Lower front access area | Service or wiring info tag | During service/inspection |
Why it matters
We use the exact model number to match the correct Kenmore Elite dryer parts and diagrams, especially for fit-critical items like a drum support roller, idler pulley, or blower wheel.
Helpful tip for repairs and parts matching
Before ordering parts, write down the full model number and serial number from the label and keep it with your paperwork; the 11097087601 owner’s manual also references model-specific operation and safety information.
Last updated: February 2026
Why is my Kenmore Elite dryer not tumbling?
If our Kenmore Elite dryer model 11097087601 powers on but the drum will not tumble, the most common causes are a broken or slipped drive belt, a seized drum support roller, a failed idler pulley, or a motor issue. Start with a quick, safe mechanical check before replacing parts.
Quick checks (fastest to confirm)
- Unplug the dryer; try turning the drum by hand. If it is hard to turn, suspect a jammed roller, blower wheel, or drum seal drag.
- Close the door firmly and start a cycle; if the dryer runs only with the door held shut, the door switch or latch alignment is likely.
- Listen for symptoms:
- Hums but no movement: belt off drum, stuck drum, or weak motor.
- Clicks then stops: motor overload, tight drum, or failed start circuit.
- Runs but drum does not move: broken belt or idler problem.
- Check the lint screen and airflow; severe restriction can overheat the motor and stop tumbling.
Parts that commonly stop tumbling on this model
For model 11097087601, these are frequent wear items tied directly to drum rotation:
| Symptom | Most likely area | Example part to inspect/replace |
|---|---|---|
| Drum will not move; motor runs | Belt/idler system | Dryer idler pulley 279640 |
| Loud thumping or squeal; drum stiff | Drum support rollers | Support WPW10314173 |
| Dryer stops; burning smell or repeated shutoff | Motor or drag from drum system | Drive motor (inspect wiring and drum drag first) |
| Rattling; poor airflow; drum slow to start | Blower wheel obstruction/loose hub | Dryer blower wheel WP697772 |
Recommended fix path (best order)
- Confirm the drum turns freely by hand (power disconnected).
- Inspect the belt path and idler pulley for wear, wobble, or a seized pulley.
- Check drum rollers for flat spots or binding.
- If the drum system spins freely, then focus on the motor and its start components.
Why it matters
A dryer that will not tumble usually has a mechanical load problem (belt, idler, rollers). Fixing the drag first prevents repeat motor overheating and helps the dryer dry evenly.
For model-specific disassembly guidance and safety steps, follow the 11097087601 owner’s manual.
Last updated: February 2026
