Craftsman
Gas Walk-Behind Mower

Model # 917377061 Official Craftsman rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 917377061 rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 260 parts  |

Lawn Mower Drive Wheel 194231X427
#32

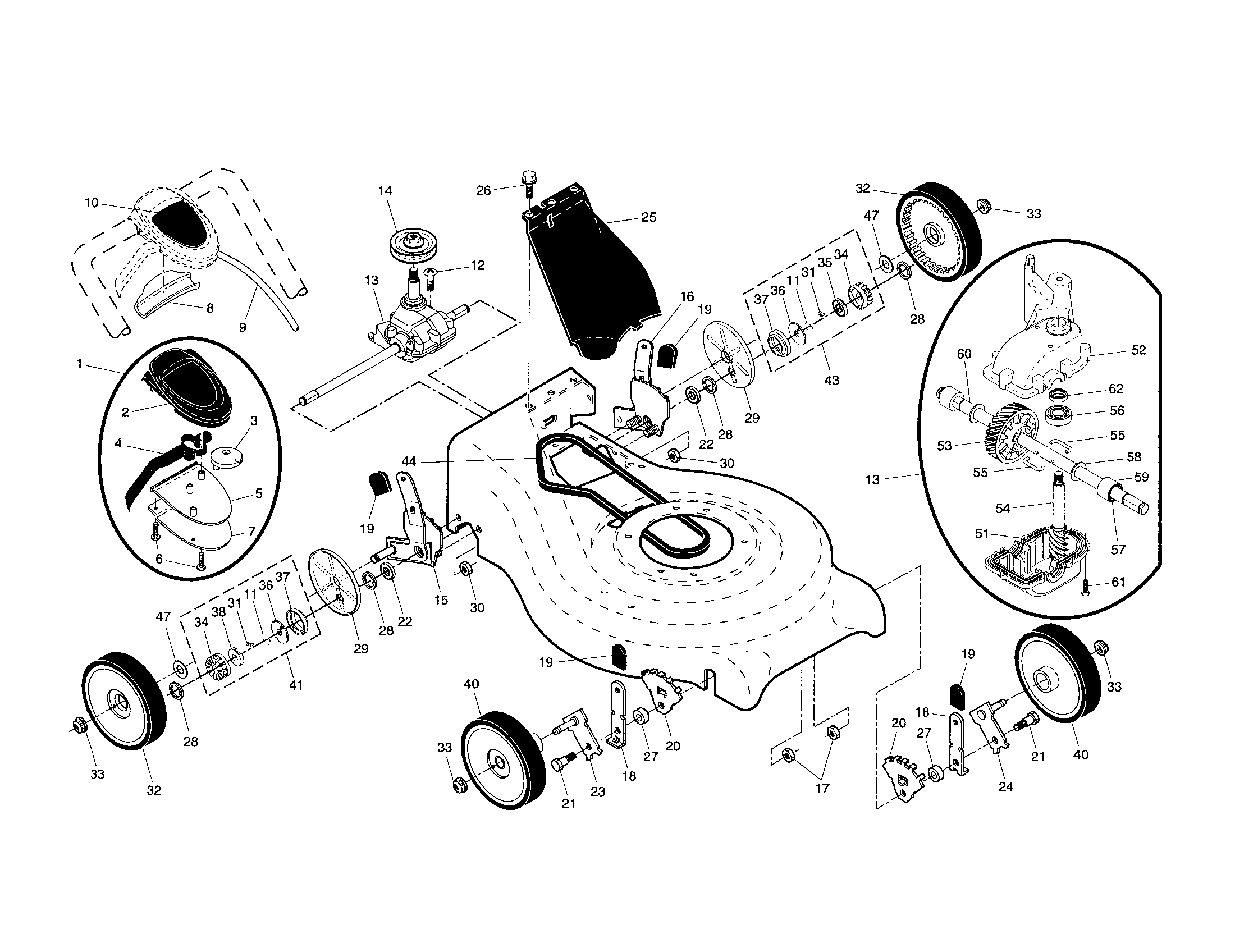

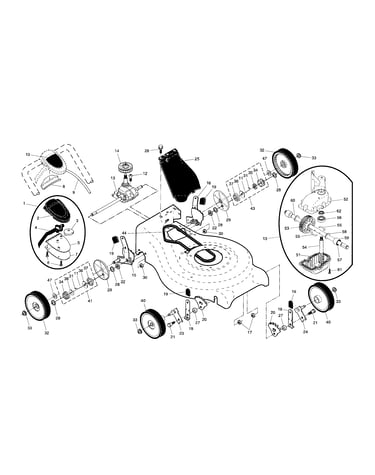

Gearcase/wheels/tires diagram

Lawn mower drive wheel

Part #194231X427

Replaced by #532403111

?
Manufacturer substitution
This part replaces 194231X427. Substitute parts can look different from the original.
BEST SELLER
$12.11
14% OFF Phone Price : $14.11
In Stock
Lawn Mower 21-in Deck 3-in-1 Blade (replaces 532189028, 5321890-28) 189028
#31

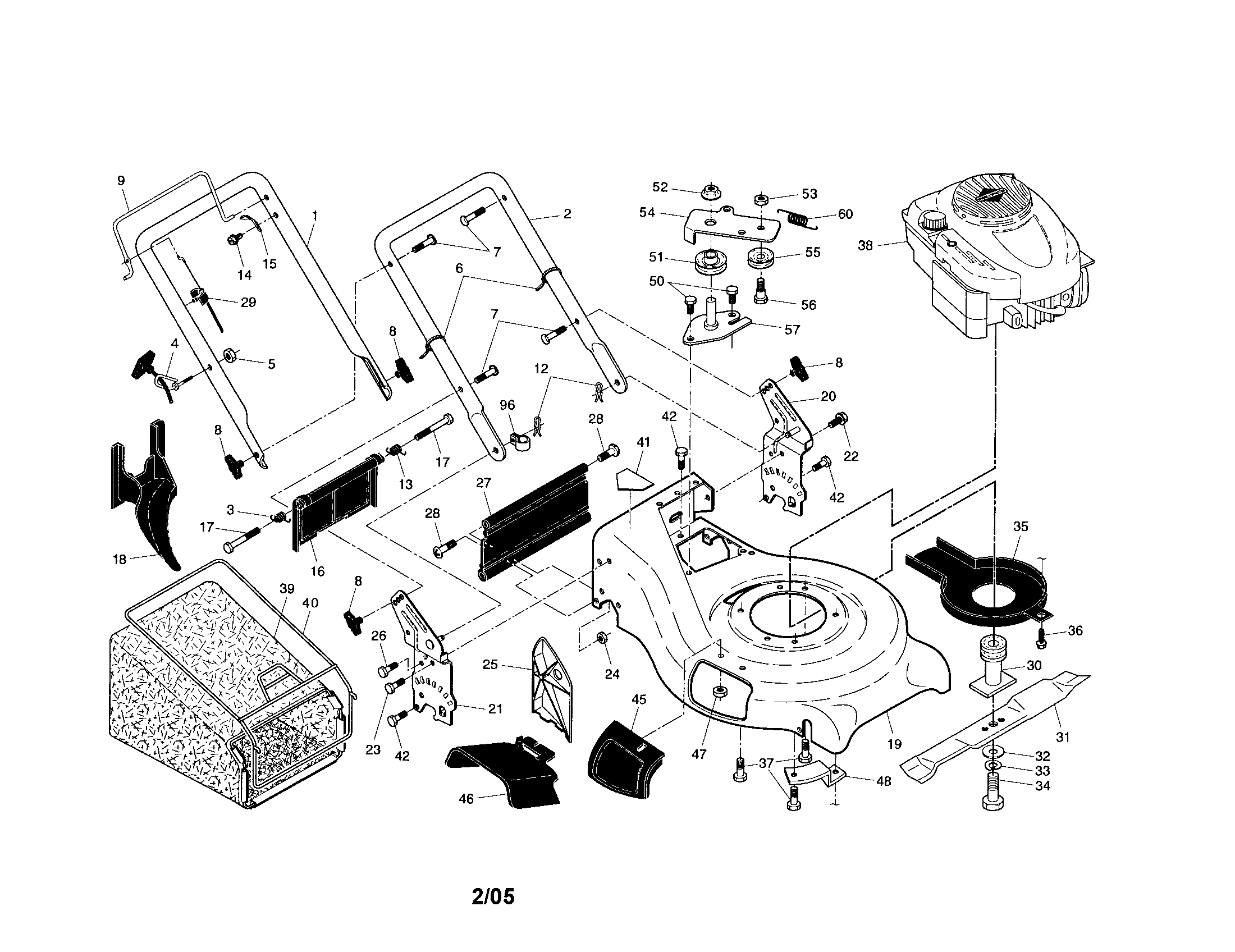

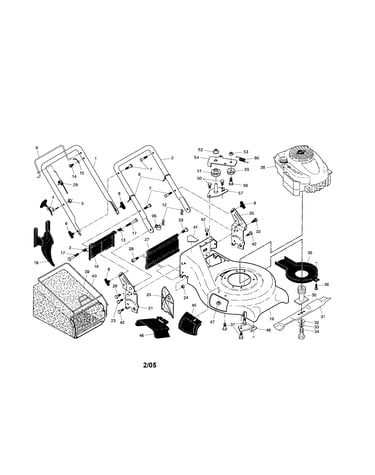

Handle/engine/housing/grassbag diagram

Lawn mower 21-in deck 3-in-1 blade (replaces 532189028, 5321890-28)

Part #189028

BEST SELLER

Get free shipping with Automatic Reorder

$12.12
39% OFF MSRP : $20.00
In Stock
Lock Nut 83923
#33

Gearcase/wheels/tires diagram

Lock nut

Part #83923

Replaced by #532409149

?
Manufacturer substitution
This part replaces 83923. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.88
17% OFF Phone Price : $5.88
In Stock
Hex Flange Lock Nut 145212
#52

Handle/engine/housing/grassbag diagram

Hex flange lock nut

Part #145212

Replaced by #532409149

?
Manufacturer substitution
This part replaces 145212. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.88
17% OFF Phone Price : $5.88
In Stock
Lawn Mower Wheel Dust Cover 189403
#29

Gearcase/wheels/tires diagram

Lawn mower wheel dust cover

Part #189403

Replaced by #581840401

?
Manufacturer substitution
This part replaces 189403. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.78
17% OFF Phone Price : $5.78
In Stock
Lawn & Garden Equipment Screw 851084
#34

Handle/engine/housing/grassbag diagram

Lawn & garden equipment screw

Part #851084

Replaced by #532435345

?
Manufacturer substitution
This part replaces 851084. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.49
22% OFF Phone Price : $4.49
In Stock
Handle Bolt 191574
#7

Handle/engine/housing/grassbag diagram

Handle bolt

Part #191574

Replaced by #532191574

?
Manufacturer substitution
This part replaces 191574. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.89
26% OFF Phone Price : $3.89
Back Order
Lawn & Garden Equipment Washer (replaces 532851074, 5328510-74) 851074
#32

Handle/engine/housing/grassbag diagram

Lawn & garden equipment washer (replaces 532851074, 5328510-74)

Part #851074

BEST SELLER
This item is not returnable
$2.79
26% OFF Phone Price : $3.79
In Stock
Lawn Mower E-ring (replaces 12000057) 12000058
#28

Gearcase/wheels/tires diagram

Lawn mower e-ring (replaces 12000057)

Part #12000058

BEST SELLER
This item is not returnable
$2.79
26% OFF Phone Price : $3.79
In Stock
Lawn Mower Zone Control Cable (replaces 532191221) 191221
#29

Handle/engine/housing/grassbag diagram

Lawn mower zone control cable (replaces 532191221)

Part #191221

BEST SELLER
$13.38
13% OFF Phone Price : $15.38
In Stock
