Kenmore 11096566200 electric dryer Parts

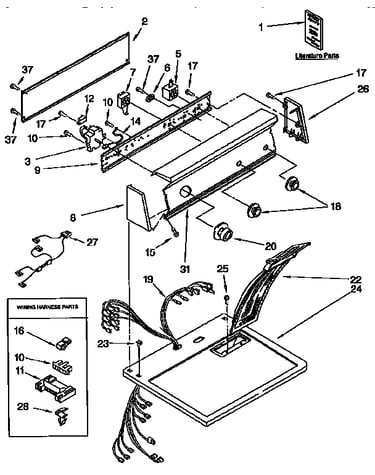

On a Kenmore dryer like model 11096566200, an F1 error code points to a control problem, most often the electronic control board (or its wiring) detecting a fault. The fastest fix is to reset power, then inspect wiring connections; if F1 returns, the control typically needs service or replacement.

• Unplug the dryer (or switch off the breaker) for 5 minutes, then restore power and try a cycle.
• If the code returns immediately, stop the cycle and unplug again.
• Check for a stuck key on the console (press each button once to confirm it moves normally).
• Verify the dryer is on a dedicated 240V circuit and the breaker is fully reset.
• If you recently moved the dryer, recheck the terminal block cord connections for looseness or heat damage.

In most cases, F1 is triggered by one of these issues:

• Failed electronic control board (internal relay or logic fault)
• Loose or oxidized wire harness connection at the control
• Console/user interface issue (less common on many 110-series designs)
• Power interruption or surge that corrupted the control state

An F1 code is not a “keep running” warning. A failing control can cause no-start, random stopping, or overheating protection trips. Fixing the root cause helps protect key components like the heating circuit and motor.

• If you find heat-damaged wiring at the power cord connection, replacing the harness is often the right repair: dryer terminal block wire set 279318
• For model-family troubleshooting references, use: Kenmore 110 series electronic control model dryer error codes

Last updated: February 2026

If you’re on the Kenmore 11096566200 dryer parts page, your dryer model is 11096566200. To confirm on the appliance itself, match the full model number from the ID tag (usually inside the door opening) to the number you use when ordering parts.

On most Kenmore electric dryers like model 11096566200, we typically see the model/serial tag in one of these spots:

• Inside the dryer door opening on the cabinet frame
• On the back panel of the dryer
• Near the lint screen housing (depending on the design)
• Occasionally on the inside of the front panel (visible when the door is open)

Kenmore model numbers are usually a long string of digits. For parts lookup, the most important rule is: use the entire model number exactly as printed.

• Write it down exactly (all digits, no spaces)
• Use the full model number when searching parts and diagrams
• Keep the serial number too; it helps identify production variations

If the sticker is worn off, you can still narrow it down by matching common service parts used on this model and comparing what’s installed.

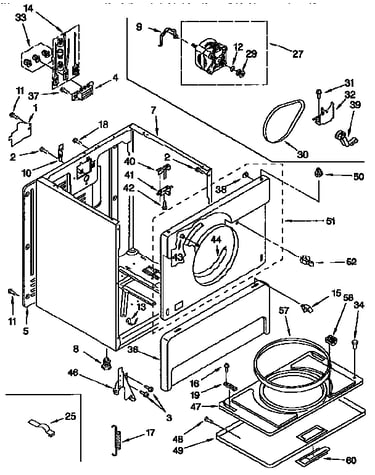

• If the drum won’t tumble, check the belt style; this model uses a drum belt 341241
• If it runs but won’t heat, common suspects include the element 279838 and the cut-off kit 279816
• If it won’t start, a failed door switch is common; this model uses the door switch W10820036

Kenmore dryers often look similar across many series, but parts like the heating element, thermal cut-off, and door switch can vary by model. Using 11096566200 prevents ordering the wrong part and speeds up troubleshooting.

Last updated: February 2026

If your Kenmore electric dryer model 11096566200 won’t start at all, or it runs but won’t heat, a blown thermal fuse is a top suspect. The sure way to know is a continuity test with a multimeter after unplugging the dryer; a blown fuse reads open (no continuity).

• Dryer will not start (no motor run) even though the outlet has power
• Dryer tumbles but produces no heat (some designs stop heat only)
• Cycle stops early and the dryer seems “dead” afterward
• You recently had poor airflow (clogged vent, heavy lint buildup)
• Burning smell or unusually hot cabinet before the failure

1. Unplug the dryer (or switch off the breaker) before opening any panels.

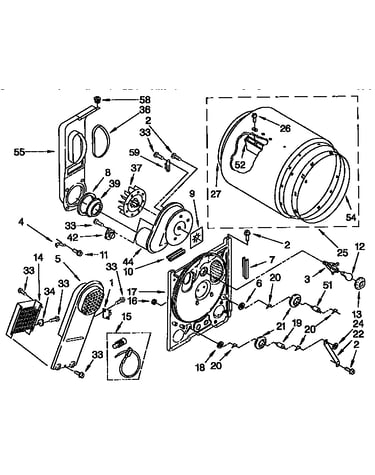

2. Access the fuse area (commonly on the blower housing or exhaust duct on many Kenmore 110-style dryers).
3. Remove at least one wire from the fuse terminal so you are not reading the rest of the circuit.
4. Set your multimeter to continuity or the lowest ohms setting.
5. Touch probes to the fuse terminals:

• Good fuse: continuity (beep) or near 0 ohms
• Blown fuse: no beep, OL, or very high resistance

A thermal fuse usually blows because the dryer overheated from restricted airflow. Replacing the fuse without fixing airflow often leads to repeat failure.

The thermal fuse is a one-time safety device; when it opens, it prevents unsafe overheating. Restoring safe airflow (lint screen, lint chute, vent duct, outside hood) helps the dryer heat correctly and protects the heater and motor.

Helpful related parts for this model include the cut-off kit 279816 (overheat protection components) and the dryer operating thermostat WP3387134 (helps regulate drum temperature).

Last updated: February 2026

The model number for this Kenmore electric dryer is 11096566200. You will see this exact number on the dryer’s model and serial tag, and it is the number we use to match the correct Kenmore parts and diagrams for your appliance.

On most Kenmore 110-series electric dryers, the model and serial tag is located in one of these spots:

• On the door opening (around the frame) when you open the dryer door
• Behind the door on the front panel area
• On the back panel of the cabinet (less common)
• On the side of the door opening near the lint screen housing (varies by design)

Kenmore model numbers that look similar can still use different parts (belt length, heating element style, thermostat ratings, door switch style). Using 11096566200 helps us match the right replacement parts the first time.

Use these tips so you do not accidentally grab the serial number or a partial number:

• Look for the word MODEL next to the number
• The model number is typically 11 digits for this Kenmore format
• Write it down exactly, including any leading zeros (if present)
• If the tag is worn, take a clear photo and zoom in to confirm characters

If you are troubleshooting and think the dryer is showing a code or acting like an electronic-control model, use our Kenmore 110 series electronic control model dryer error codes guide to narrow down the failure.

Correct identification prevents ordering the wrong Kenmore dryer parts and speeds up repairs like replacing a drum belt, heating element, thermal cut-off, or door switch.
