Model #6651677993 Official Kenmore dishwasher
Here are the diagrams and repair parts for Kenmore 6651677993 dishwasher, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.

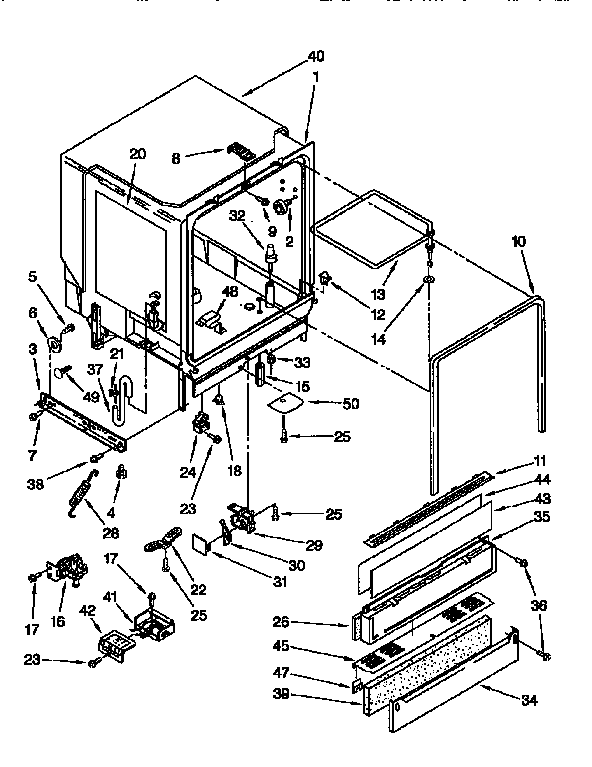

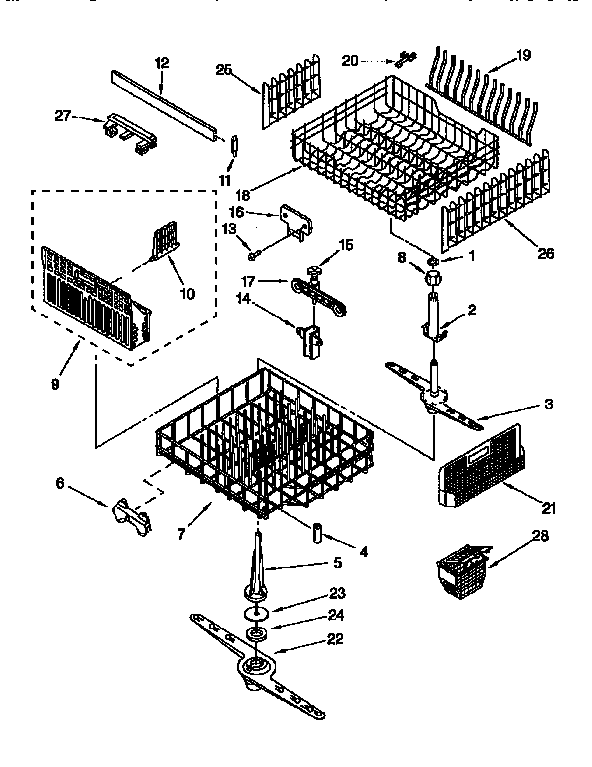

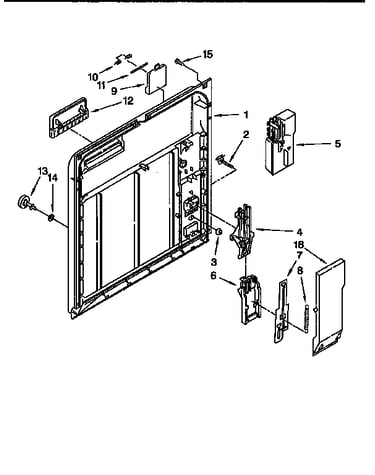

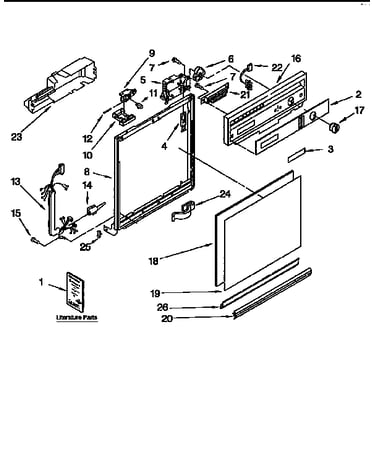

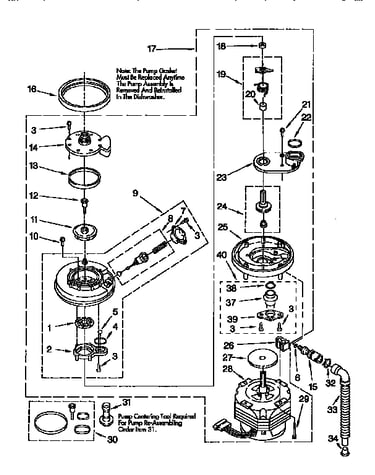

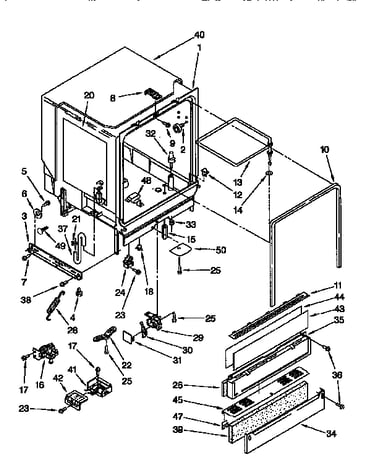

Model Diagram and Schematics
Search within this model
?
This is the number corresponding to the part on the diagram / schematic

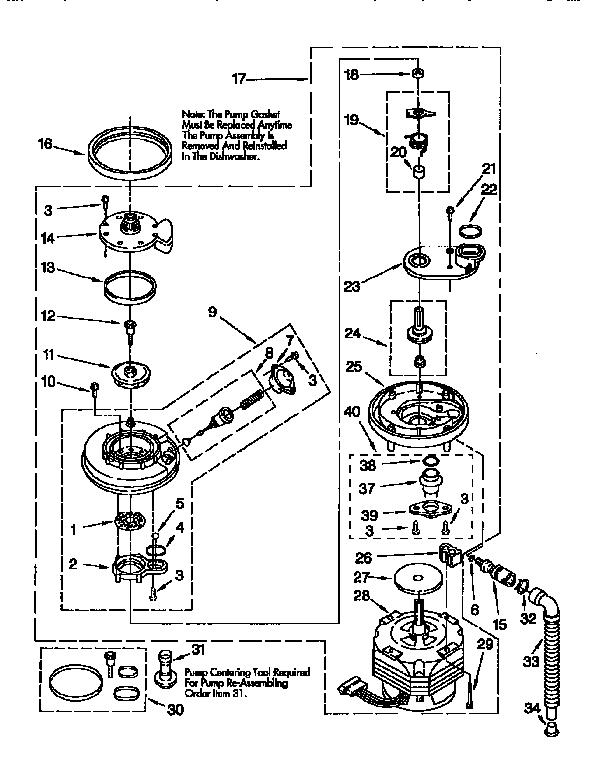

Parts List
Showing 10 of 182 parts
Thermostat
Part #3369777
Replaced by #WP661566
?
Manufacturer substitution
This part replaces 3369777. Substitute parts can look different from the original.
