GE GTX18ESSJ0WW electric dryer Parts

For the GE GTX18ESSJ0WW electric dryer, we use a 240-volt (220 to 240V) circuit, not a standard 120-volt (110V) outlet. This model uses a 30-amp dryer power cord (3-prong or 4-prong) and must be installed on a dedicated dryer circuit as shown in the installation guide.

What to use for power (and what not to do)

A typical laundry outlet setup differs depending on whether you have a standalone electric dryer or a combo unit.

• Use a dedicated 240V, 30A dryer circuit for this GE electric dryer
• Use the correct 3-prong or 4-prong dryer cord for your home outlet type
• Do not use a standard 120V household outlet for an electric dryer
• Do not use extension cords or plug adapters for a dryer connection
• If you are unsure which outlet you have, check the receptacle shape and your breaker size before installing

Quick comparison: 120V vs 240V laundry appliances

Appliance type	Typical voltage	Typical plug	Typical breaker
Electric dryer (like GTX18ESSJ0WW)	240V	3-prong or 4-prong	30A
Gas dryer	120V	Standard 3-prong	15A to 20A
Washer	120V	Standard 3-prong	15A to 20A
Washer/dryer combo (varies by model)	120V or 240V	Varies	Varies

Why it matters

Using the correct voltage protects the dryer motor and heating system, helps the heating element reach proper temperature, and prevents nuisance tripping or no-heat symptoms.

Parts that commonly come up during electrical installs

If you are replacing a cord or repairing a burned connection, the terminal connection parts matter.

• Dryer terminal block and grounding strap WE4M325 (common fix for loose or overheated cord connections)
• Verify the cord strain relief is installed and the cord is clamped securely
• After installation, run a timed dry cycle and confirm strong heat and normal drum rotation

For replacement parts for GE GTX18ESSJ0WW, order from the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

No. The GE GTX18ESSJ0WW is a vented electric dryer; it must exhaust air to the outdoors through a 4-inch dryer vent duct. For safe operation and normal drying performance, install and route the exhaust exactly as shown in the installation guide.

How to confirm it is vented

A vented dryer will always have an exhaust outlet and requires a vent hood outside.

• Look for a 4-inch exhaust outlet on the back (or configured for side or bottom venting)
• Verify there is a metal duct connected from the dryer to the home vent
• Confirm the duct terminates outdoors with a vent hood (not into an attic, wall, or crawlspace)
• Avoid any screen in or over the exhaust duct
• Keep the transition duct as short and straight as possible

Venting basics that matter for GTX18ESSJ0WW

For this model, the installation instructions call out metal ducting and outdoor termination. Rigid metal duct is recommended; UL-listed flexible metal duct is used only when rigid cannot be.

Item	Recommended	Avoid
Duct material	Rigid metal duct	Plastic or vinyl duct
Transition duct length	Short, straight run	Long runs and multiple tight turns
Termination	Outdoor vent hood	Terminating indoors or under a home

Why it matters

A vented setup moves moist air and lint out of the drum. If the vent is missing, crushed, too long, or restricted, drying times increase and the dryer can overheat, which can trip safety thermostats.

Parts that often relate to venting and airflow issues

If you are troubleshooting long dry times or overheating, these model-compatible parts are commonly involved:

• Dryer lint screen WE18X25100 (restricted airflow starts here)
• Dryer high-limit thermostat WE4M137 (can open if the dryer overheats)

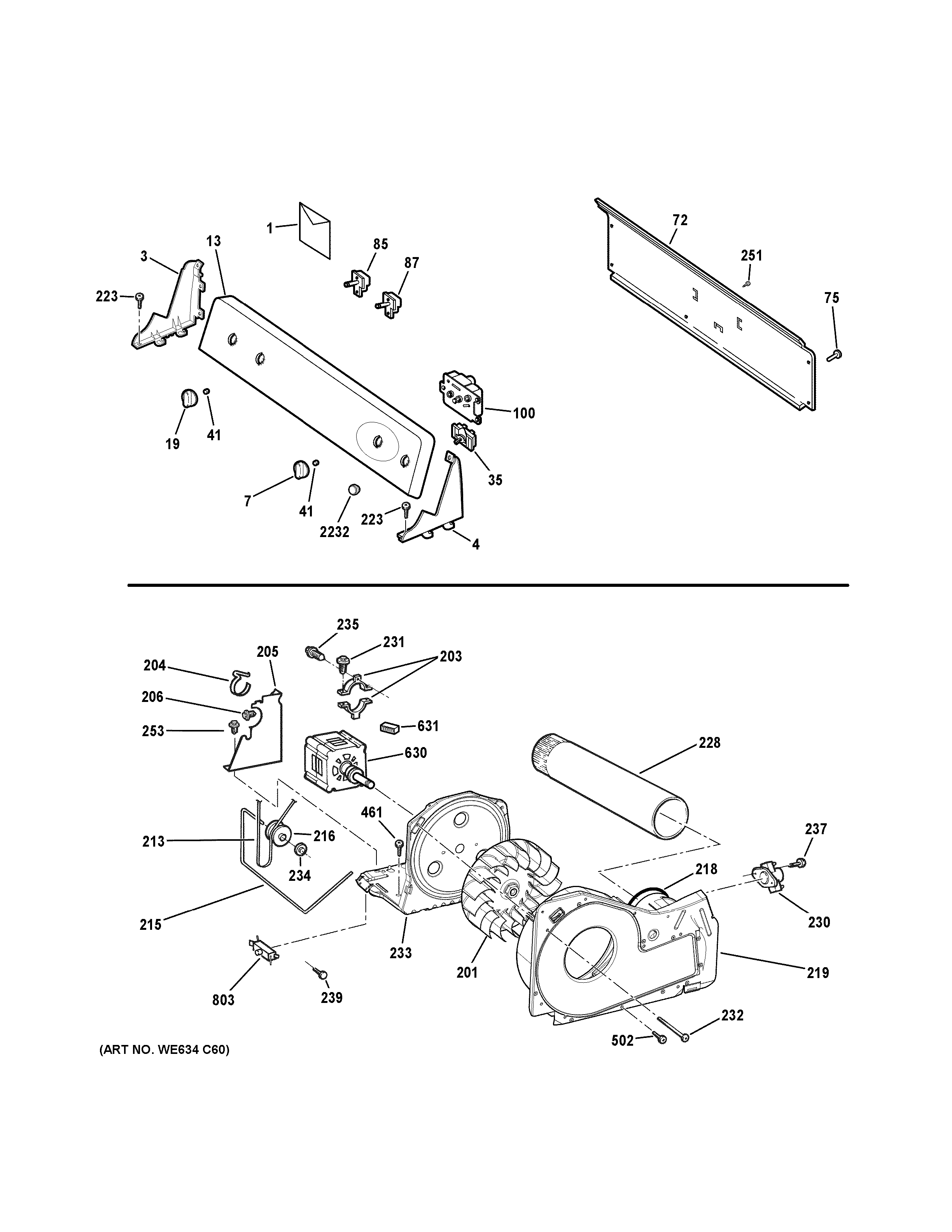

• Laundry center dryer blower wheel WE16X20393 (moves air through the drum and vent)

For additional parts and diagrams for GE GTX18ESSJ0WW, you can order from the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

For the GE GTX18ESSJ0WW electric dryer, the most common problems we see are no heat or long dry times, and the #1 root cause is often restricted airflow from a clogged lint screen or vent duct. Electrical supply issues (one tripped breaker) can also let the drum tumble but prevent heating; check the GTX18ESSJ0WW owner's manual for the exact troubleshooting steps.

Most common symptoms and what they usually mean

• Dryer tumbles but no heat: one house breaker/fuse tripped, heating circuit issue, or a heat safety device opened
• Clothes take too long to dry: lint screen clogged, vent duct kinked or blocked, outside damper stuck
• Dryer will not start: unplugged cord, tripped breaker/fuse, door not fully closed
• Stops mid-cycle or feels very hot: airflow restriction causing overheating protection to trip
• Squealing or scraping noise: drum support wear (glides, bearings, idler)

Quick checks we recommend first (fast, high-impact)

1. Clean the lint screen before every load.
2. Confirm full power: most electric dryers use two breakers/fuses; if only one trips, the dryer can run but not heat.
3. Inspect venting: use rigid 4-inch metal duct where possible, keep the run short, and avoid crushing or collapsing the duct.
4. Check the outside exhaust hood: make sure the flapper moves freely and the hood is not blocked.
5. Match cycle and load: heavy fabrics and large loads dry slower; sort loads and adjust settings.

Common causes at a glance

Symptom	Most likely cause	What to do next
Tumbles, no heat	One breaker/fuse tripped	Reset/replace both; then retest heat
Long dry time	Vent restriction	Clean duct and verify outside damper operation
Overheating smell/hot cabinet	Poor airflow	Stop use, clean venting, recheck duct routing
Noise while tumbling	Worn drum supports	Inspect glides, bearings, idler pulley

Parts that often solve common GE dryer issues

If airflow is good and power is correct, these model-compatible parts are commonly involved in heat and performance repairs:

• Dryer heating element WE11M10001
• Dryer high-limit thermostat WE4M137
• Dryer lint screen WE18X25100

Why it matters

Airflow problems do more than slow drying; they can overheat the dryer and trigger safety thermostats, leading to repeated no-heat complaints. Keeping the vent system clear improves drying performance and helps protect key components.

For ordering model-specific replacement parts, use the parts list for GTX18ESSJ0WW or search by model on Sears PartsDirect.

Last updated: February 2026

For the GE GTX18ESSJ0WW electric dryer, the exact weight depends on the specific configuration and drum size; we use the installation specs to confirm fit and handling. Use the GTX18ESSJ0WW installation guide for the most accurate model-specific details, and plan for a 2-person move.

What we can confirm for GTX18ESSJ0WW

The installation guide content for this model family focuses on rough-in dimensions (not shipping weight). Those dimensions help you plan space, venting, and moving clearance.

• Typical dryer width in this platform: about 27 inches
• Typical height range shown: about 43 3/8 to 43 3/4 inches
• Typical depth range shown: about 26 3/4 to 30 1/2 inches
• Plan for extra room behind the dryer for a 4-inch metal vent connection

Typical weight range (helpful planning)

Most full-size GE electric dryers of this general style weigh about 100 to 130 lb. Use that range for:

• Choosing a dolly and straps
• Deciding if you need 2 people (recommended)
• Protecting flooring and stairs
• Planning vehicle space and tie-down points

What you need	Good planning assumption	Why
People to move it	2 adults	Safer control on stairs and doorways
Dolly rating	150 lb or higher	Covers typical dryer weight plus margin
Doorway clearance	27 in unit plus padding	Prevents cabinet and trim damage

Why it matters

Dryer weight affects safe handling and installation. It also matters when you are replacing internal parts like a drum, motor, or idler pulley because the cabinet may need to be opened and the drum supported.

Parts that often come up during a move or reinstall

If the dryer is being moved and then reinstalled, these parts are commonly inspected for wear or damage:

• Dryer terminal block and grounding strap WE4M325 (power cord connection point)
• Dryer lint screen WE18X25100 (airflow and drying performance)

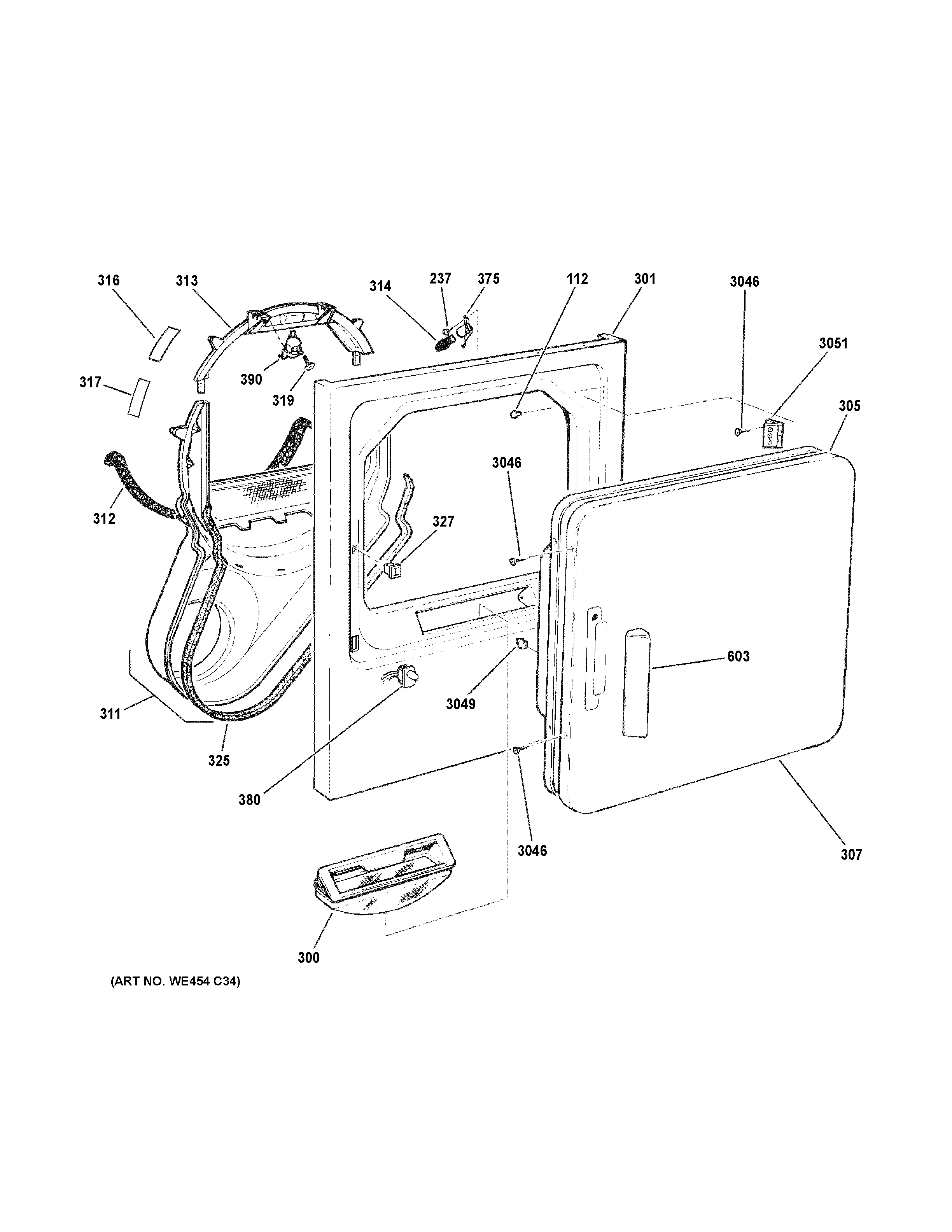

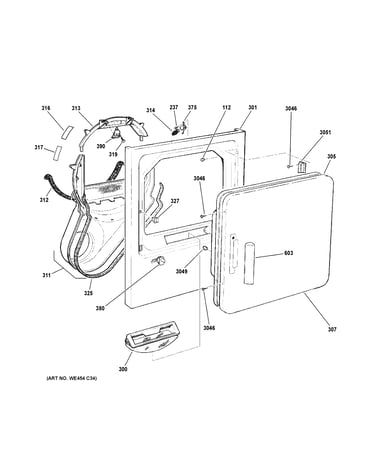

• Dryer door seal WE1M825 (prevents air leaks and lint escape)

For ordering, we list model-correct parts for GTX18ESSJ0WW on this page, and you can also search by model number on Sears PartsDirect.

Last updated: February 2026
