Samsung DV328AEW/XAA-01 dryer Parts

The Samsung DV328AEW dryer is special for its extra-large capacity (about 7.3 cu. ft.) and its wide selection of automatic drying cycles that use a moisture-sensing control (often described as a “fuzzy logic” algorithm) to help prevent over-drying and reduce wrinkles. For cycle details and features, use the owner's manual.

• Extra-large capacity drum designed for bigger loads
• Multiple automatic cycles (including everyday cycles like Normal, Heavy Duty, and Towels)
• Moisture-sensing control that adjusts drying time based on dampness
• “My Cycle” memory that saves your last custom cycle settings
• Rack Dry support for items that should not tumble (when using an optional rack)

Capacity and sensor-based cycles are the two biggest day-to-day differences you feel as an owner. They help you dry more laundry per load and reduce re-drying, which saves time and wear on fabrics.

If the dryer runs but dries slowly or unevenly, these checks fix most issues:

• Clean the lint screen before every load
• Confirm strong airflow at the outside vent hood
• Avoid overloading; leave room for tumbling
• Use the correct cycle and temperature for the fabric
• If heat is inconsistent, test heating and safety components (for example, the Samsung dryer heating element DC47-00019A or the dryer high-limit thermostat DC47-00018A)

Last updated: February 2026

DV328AEW is the Samsung model number that identifies your specific dryer. We use it to match the correct parts list, wiring and installation details, and troubleshooting information for your exact dryer configuration; it is not a code with a separate symbolic meaning.

For Samsung dryers like DV328AEW, the model number is the key identifier used for:

• Looking up the correct replacement parts (heating, drum, door, controls)
• Confirming electrical and gas connection requirements during installation
• Finding the right operating and safety instructions
• Checking troubleshooting steps and information codes
• Avoiding ordering the wrong part for a similar-looking dryer

For model-specific details, use the owner's manual.

You may see the model written with a suffix such as “/XAA-01”. That suffix is a version identifier (often tied to production run or region) that helps narrow down exact part compatibility.

Even small version differences can change which part fits. Common examples on this Samsung dryer include:

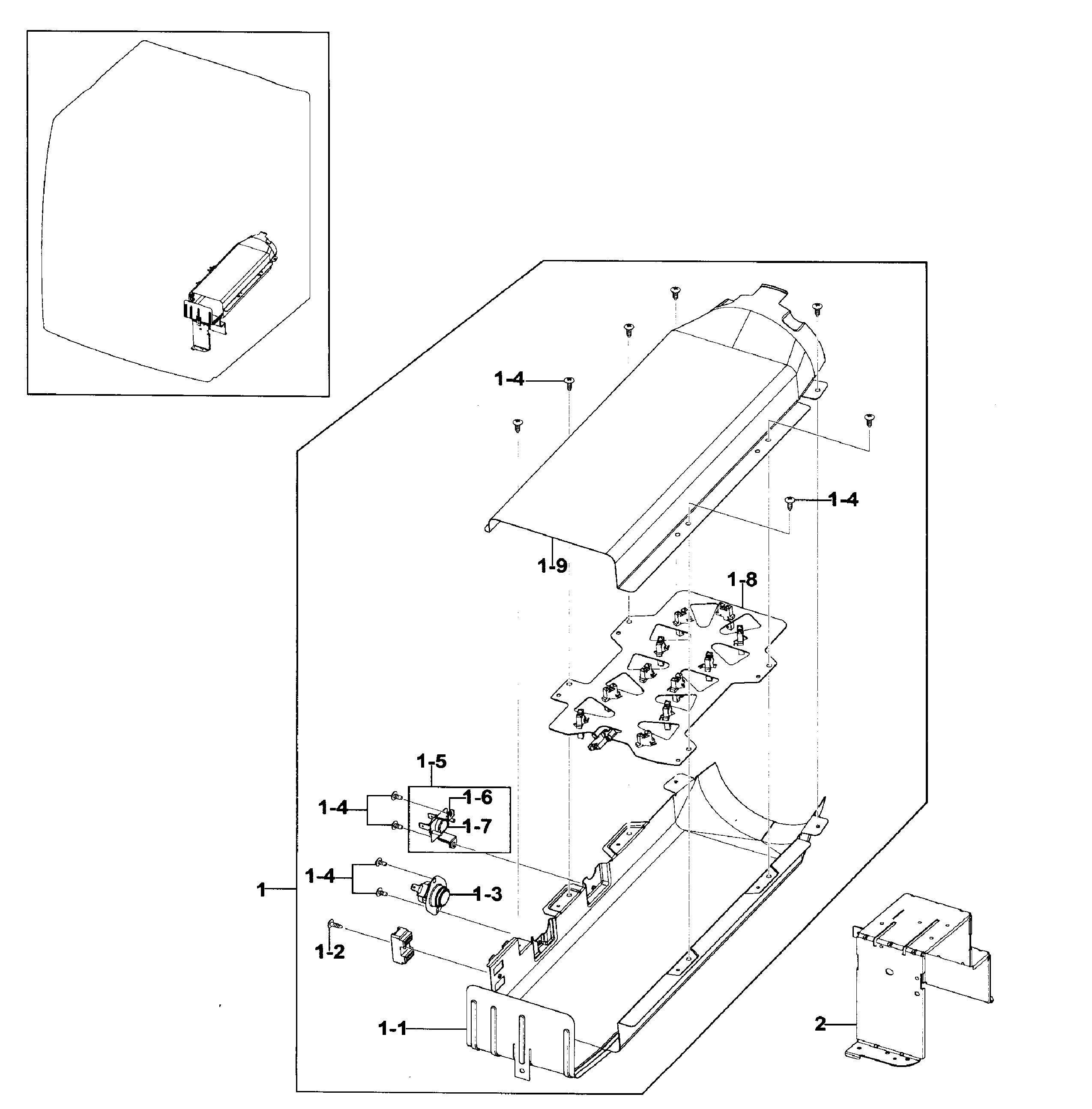

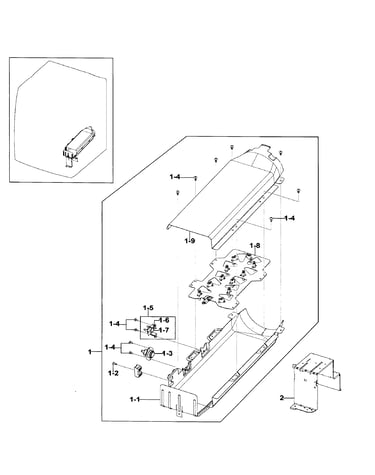

• Heating parts such as the Samsung dryer heating element DC47-00019A
• Temperature sensing parts such as the dryer thermistor DC32-00007A

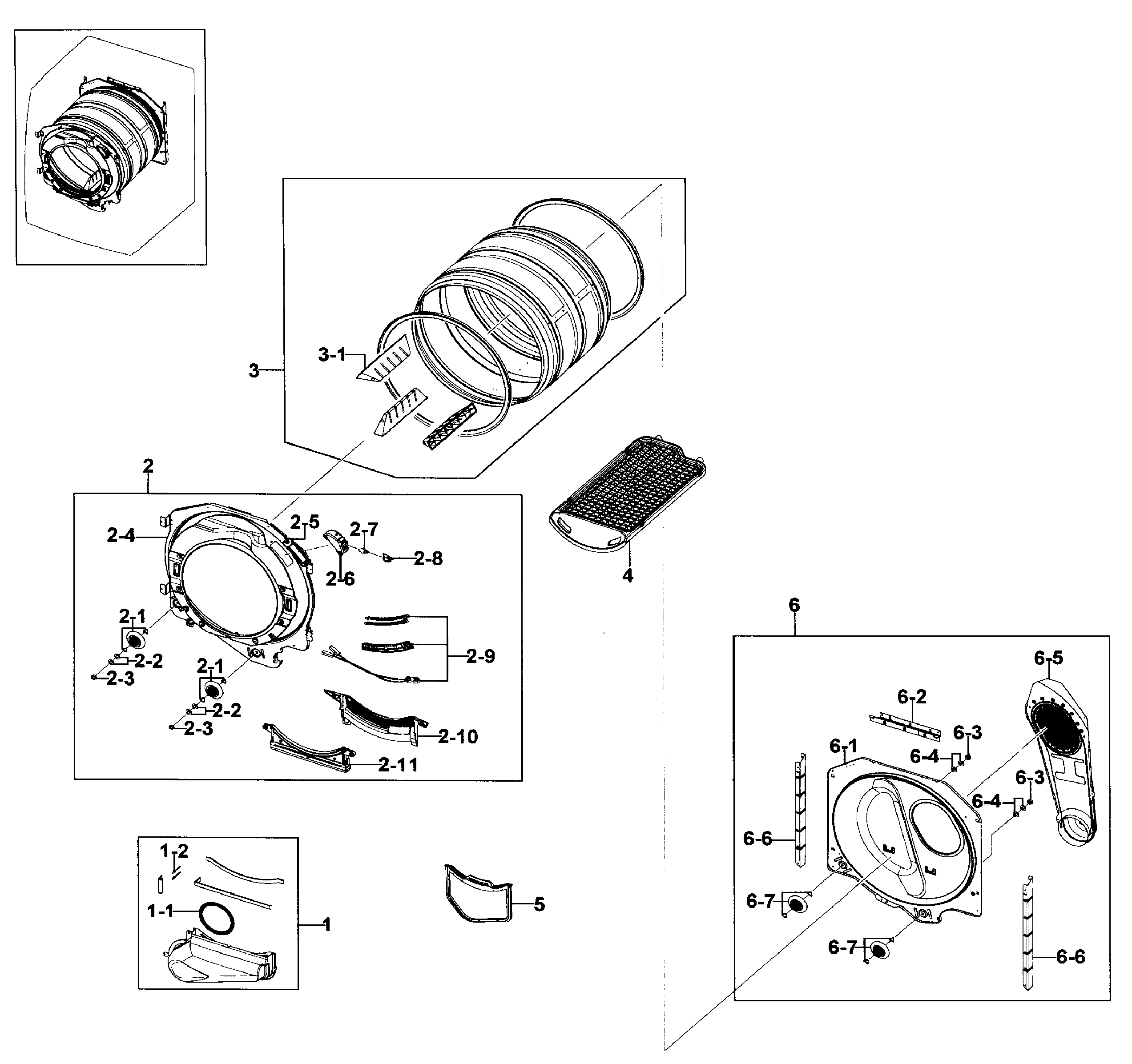

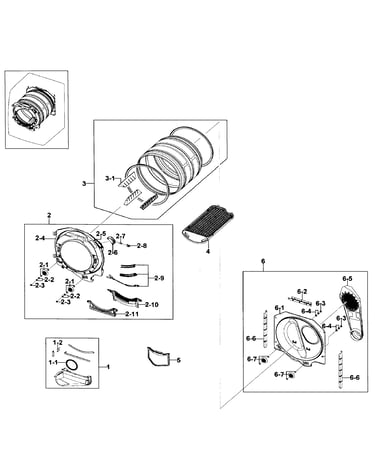

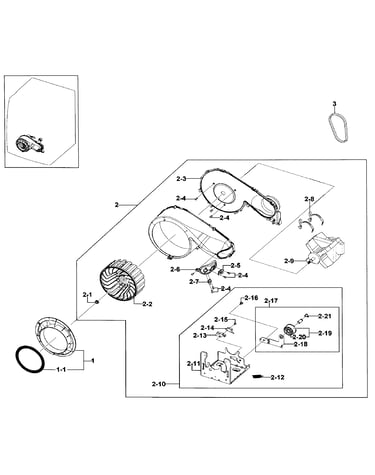

• Drum drive parts such as the Samsung dryer drum belt 6602-001655

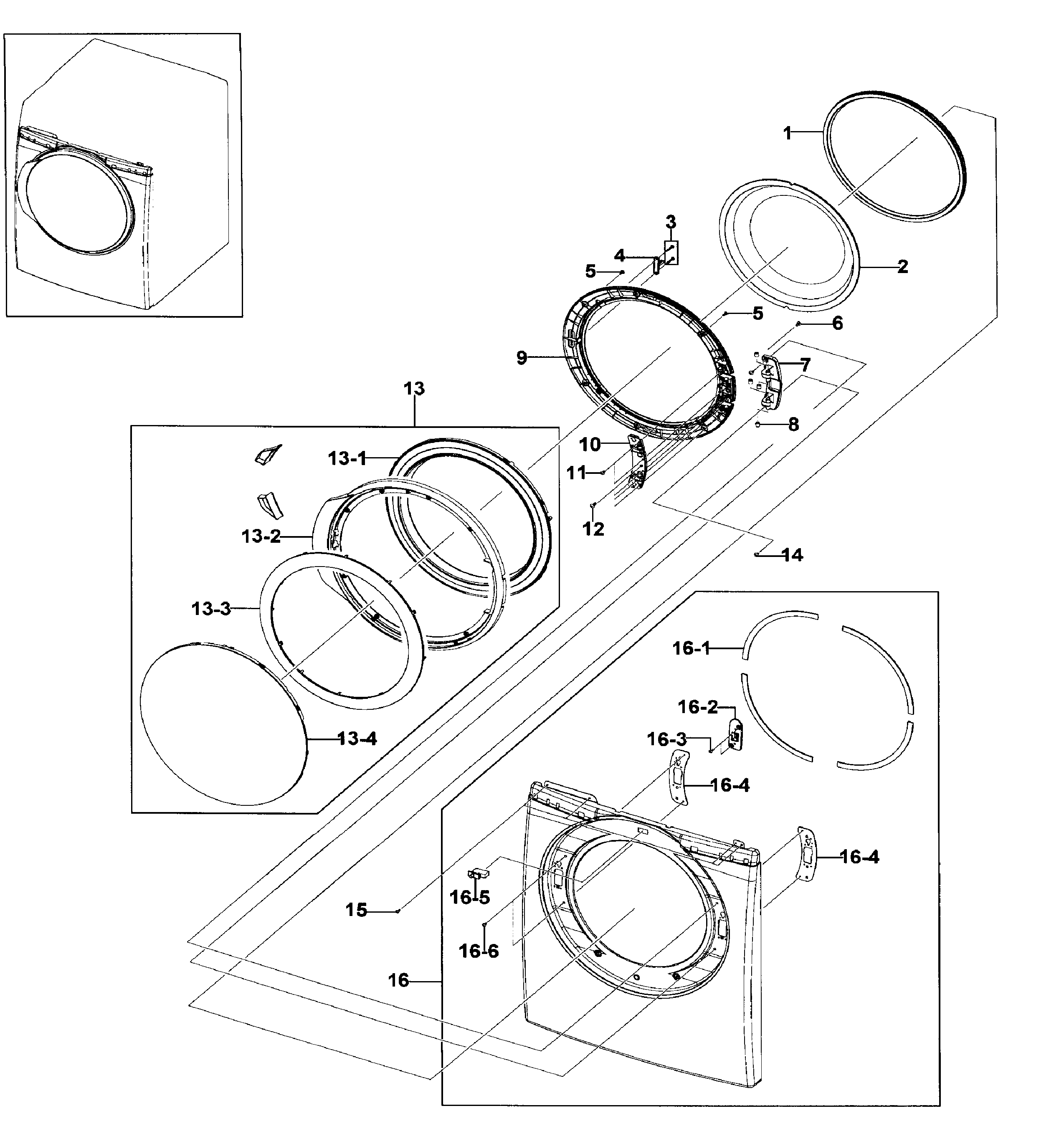

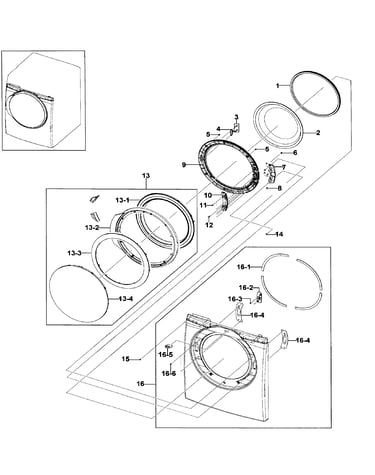

• Door closing parts such as the dryer door strike DC66-00395A

Most dryers list the model on a label inside the door opening or on the cabinet opening near the door.

Using the exact DV328AEW model identification helps us keep your repair safe and accurate, especially for electrical terminal block connections and (if applicable) gas hookup and leak-check steps.

Last updated: February 2026

Used Samsung DV328AEW dryers often sell cheaply because they are an older model, buyers factor in the cost of common wear repairs (belt, rollers, heat components), and many listings include venting or maintenance issues that make drying slow. Checking the unit’s condition and airflow usually explains the price.

• Age and depreciation: older dryers drop in value quickly, even if they still run.
• Wear-and-tear parts: drum support rollers and the drum belt are normal maintenance items.
• Heating complaints: “no heat” or “takes too long to dry” listings often trace back to heat or airflow problems.
• Venting problems: crushed, long, or clogged ducts reduce performance and raise operating temperatures.
• Unknown history: heavy use, poor cleaning, or repeated overheating lowers buyer confidence.

Use these checks to decide whether it is a bargain or a project:

• Confirm the drum turns smoothly; squealing or thumping points to roller wear.
• Run a timed dry cycle and verify strong airflow at the outside vent.
• Inspect the exhaust duct; use metal duct only (plastic or non-metal flex is a fire hazard).
• Check door closure; a weak latch or seal can leak air and extend dry times.
• If it runs but does not heat, inspect common heat-limit safety parts and the heating circuit.

A DV328AEW that is “cheap” because of vent restriction can become a reliable dryer after proper ducting and cleaning. A DV328AEW that is “cheap” because it overheated repeatedly may need multiple heat and drum-drive parts to restore safe, consistent drying.
