Is it worth replacing a lawn mower engine?
Yes, replacing the engine on your Craftsman lawn tractor model 917203810 is worth it when the tractor’s deck, steering, and drive system are still solid and the total engine-swap cost stays well below the cost of a comparable new rider; it is usually not worth it when the deck is rusted through, the drivetrain is failing, or multiple major repairs are stacking up.
Quick decision checklist
- Worth it if the mower deck is straight (no cracks), spindles are tight, and the frame is solid.
- Worth it if the tractor starts, drives, and steers well aside from the engine issue.
- Worth it if you can do the work yourself and already maintain belts, blades, and tune-ups.
- Not worth it if the deck is rotted, the transaxle slips, or steering has excessive play.
- Not worth it if you also need a deck rebuild (spindles, pulleys, belt, blades) plus an engine.
For model-specific maintenance specs and safety steps (fuel shutoff, battery disconnect, belt routing), use the 917203810 owner’s manual.
Cost and condition: how we weigh it
A simple way to decide is to compare the engine replacement cost to the tractor’s overall condition and the cost of a new rider.
| What you’re seeing on the tractor | What it usually means | Engine swap value |
|---|---|---|
| Deck is solid; cut quality was good before engine failed | Chassis and deck are worth keeping | High |
| Deck vibration or rumble at the blades | Possible spindle/mandrel wear | Medium (budget for deck parts) |
| Drives poorly, noisy transaxle, or weak uphill pull | Drivetrain wear | Low |
| Steering wander or uneven front tire wear | Steering linkage wear | Medium to low |
Parts that often matter during an engine swap
Even with a new engine, worn deck and drive components can make the tractor feel “tired.” These model-matched parts are common add-ons when you’re already doing major service:

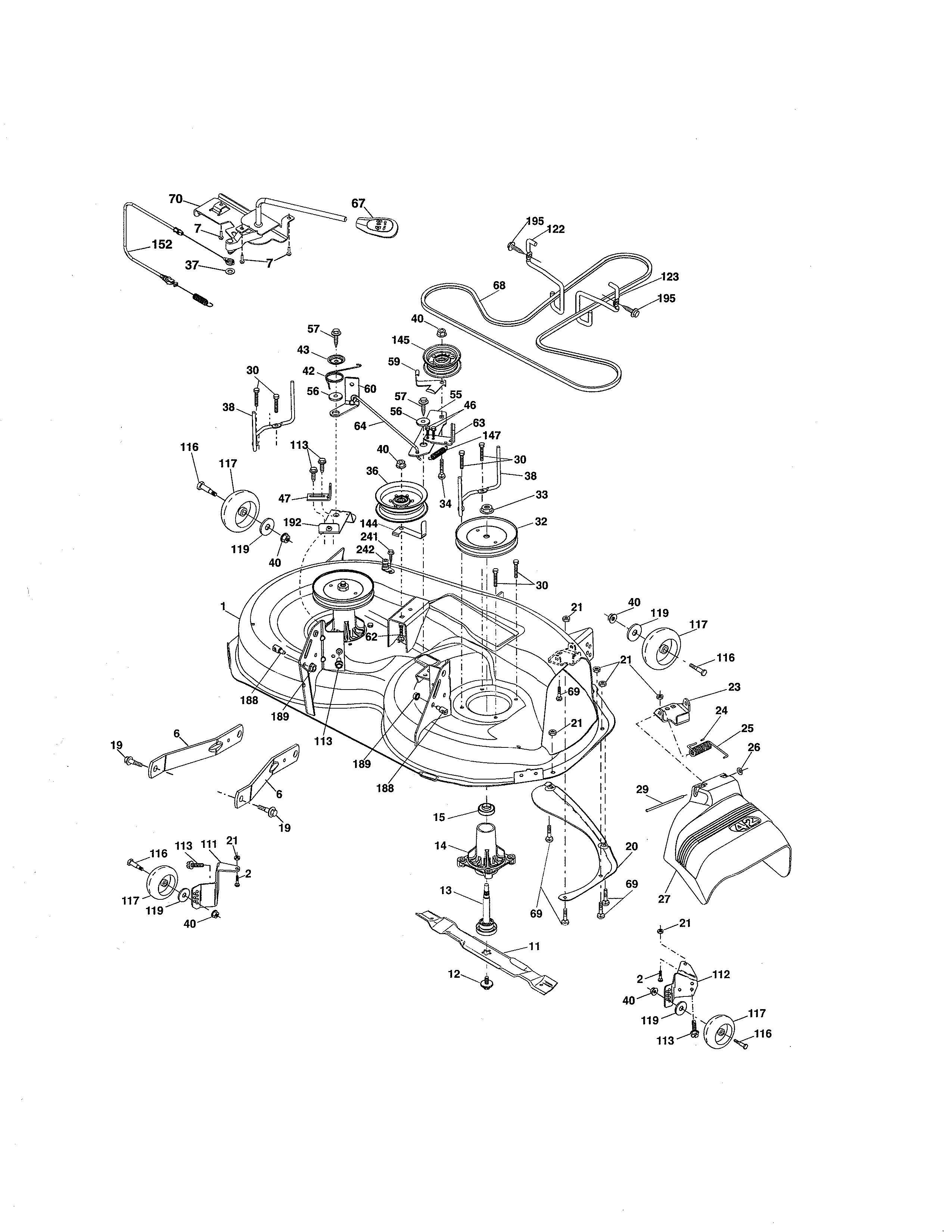

- Lawn mower mandrel assembly 587819701 (deck spindle/mandrel support)
- Lawn tractor drive belt 532125907 (ground drive belt)
- 3-in-1 blade, 42-in 532422719 (cut quality and load on the engine)
Why it matters
An engine swap can restore reliability and extend the life of a good Craftsman rider, but it only pays off when the rest of the machine (deck, transaxle, steering, wiring) is not near end-of-life. Fixing multiple major systems at once usually costs more than it returns.
Last updated: February 2026
What brand engine does Craftsman use?

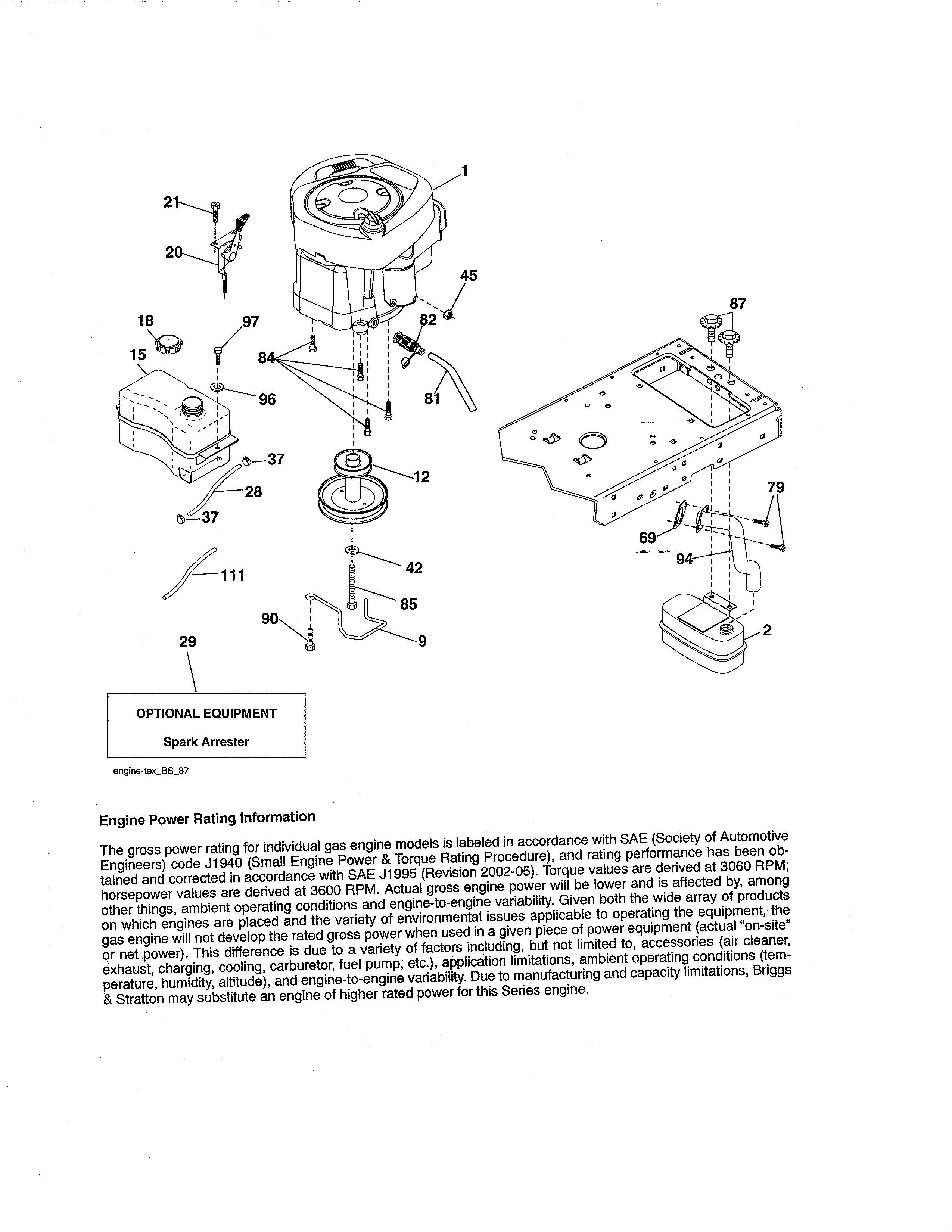

Craftsman uses engines from multiple manufacturers across different mower and tractor lines; on Craftsman model 917203810, the engine is a Briggs & Stratton. To confirm the exact engine model and type on your tractor (especially if an engine was swapped), match the ID label on the engine to the specs listed in the 917203810 owner's manual.
How to confirm the engine brand and exact engine model
Use these quick checks on your 917203810:
- Find the engine ID label on the blower housing, valve cover, or near the starter
- Write down the engine model, type/spec, and code/serial
- Confirm the brand name printed on the shroud (Briggs & Stratton, Kohler, Kawasaki)
- Compare the recorded numbers to the maintenance and tune-up information in the manual
- If the label is missing, use the tractor product label (frame or under-seat area) to verify the tractor model and serial
Common engine brands Craftsman has used
Craftsman has sourced engines from several OEMs; which one you have depends on the specific model.
| Engine brand | Common Craftsman applications | What to look for on the ID tag |
|---|---|---|
| Briggs & Stratton | Many front-engine lawn tractors (including 917203810) | Model and type numbers plus a code/serial |
| Kohler | Some mid to premium tractors | Model and spec numbers |
| Kawasaki | Some premium tractors | Model code and serial format |
Why it matters
The engine brand and engine model determine the correct tune-up parts (spark plug, air filter, fuel filter), oil recommendations, and some electrical test procedures. Accurate identification also helps when diagnosing no-crank or click-no-start problems.
Related DIY help
If the starter clicks but the engine does not turn, follow the troubleshooting steps in riding lawn mower engine clicks but doesnt turn over video.
Last updated: February 2026
What model number is a Craftsman 917203810?
The model number for this Craftsman front-engine lawn tractor is 917203810. You’ll typically find that same number on the tractor’s ID label (often under the seat, on the frame rail, or near the engine compartment) and it’s the number we use to match the correct parts and diagrams for your machine.
Where to find the model number on the tractor
Check these common locations on Craftsman riding mowers and tractors:
- Under the seat on the seat pan or fender area
- On the frame near the rear wheels
- Near the engine compartment or hood area
- On a label near the footrest or running board
- In the documentation for the tractor
For label location and identification tips specific to this unit, use the 917203810 owner's manual.
Why the exact model number matters
Craftsman tractors can look similar across multiple series, but parts can vary by deck setup, steering linkage, and drive system. Using 917203810 helps ensure the right fit for items like belts, blades, and deck hardware.
Examples of parts that depend on the model number
| Part type | What it affects | Example for model 917203810 |
|---|---|---|
| Mower blade | Cut quality, deck compatibility | 3-in-1 blade, 42-in 532422719 |
| Ground drive belt | Forward/reverse drive performance | Lawn tractor drive belt 532125907 |
| Starter solenoid | Starting and cranking reliability | Lawn tractor starter solenoid 582042802 |
Quick checks if you’re comparing numbers
Use these rules to avoid ordering the wrong parts:
- Match all digits exactly: 917203810 (no missing or swapped numbers)
- Use the tractor’s ID label, not the engine label (engine numbers are different)
- If a part list asks for a deck size, confirm whether you have a 42-in deck setup
- When in doubt, cross-check diagrams and part descriptions in the manual
Why it matters
A single digit off can route you to a different Craftsman tractor family, which can change deck components (mandrels and pulleys), steering parts (drag links and pivot links), and drivetrain parts (belts and idlers).
Last updated: February 2026
What year is Craftsman Model 917203810?
The model number 917203810 identifies the Craftsman tractor series, but it does not reliably tell the build year by itself. To get the exact year for your Craftsman 917203810 front-engine lawn tractor, we use the product ID/serial number from the tractor’s ID tag and confirm it using the date-code guidance in the 917203810 owner's manual.
Where to find the date information
On most Craftsman riding mowers and tractors, the build date is tied to the product ID/serial tag, not the model number printed on parts diagrams.
Check these common locations:
- Under the seat pan (lift the seat and look on the frame)
- On the rear fender well near the seat
- On the frame rail near the engine
- Under the hood near the dash tower
How to decode the date once you have the ID tag
Many Craftsman-built-by-AYP/Husqvarna units use a date code format on the tag that can be read as MMDDYY (month, day, year). If your tag shows a 6-digit date code in that format, the last two digits are the year.
Quick example
| Code format | Example code | Reads as | Year |
|---|---|---|---|
| MMDDYY | 072811 | July 28, 2011 | 2011 |
If your tag does not show a clear date code
Use this checklist to still pin down the year accurately:
- Record the full product number (often starts with 917.) and the serial
- Compare the engine model/type code on the engine label (often includes a build date)
- Match the tractor’s deck size and steering style to the diagrams in the 917203810 owner's manual
Why it matters
The correct year helps us match the right parts and diagrams for your tractor, especially for deck and drive components like the lawn tractor drive belt 532125907 and steering links.
Last updated: February 2026
Where can I find my lawn mower engine model number?
On your Craftsman 917203810 front-engine lawn tractor, the engine model number is stamped on the engine itself (not on the mower deck or frame). On many V-twin engines, it’s stamped into the metal near the top of a cylinder head or on the blower housing area; clean the surface and read the first characters exactly as stamped. Refer to the 917203810 owner's manual for the engine identification locations used on your tractor.
Where to look on the engine
Check these common spots first (use a flashlight and wipe off dirt and oil):
- Top of the cylinder head area (often near the valve cover on a V-twin)
- Blower housing or engine shroud (near the recoil or cooling air intake area)
- Near the spark plug side of the engine (right or left cylinder)
- On a metal tag or sticker near the flywheel screen or starter area
- Along the engine block above the oil fill or dipstick tube
Quick steps to find it fast
- Park on a flat surface, set the parking brake, and let the engine cool.
- Lift the hood and locate the engine.
- Wipe likely stamp areas with a rag; use a mild degreaser if needed.
- Look for a stamped code or a label that includes model, type, and code (wording varies by engine maker).
- Write the number down exactly; take a photo for clarity.
What number you need (and why)
Different numbers are used for different tasks. Use this guide to avoid ordering the wrong parts.
| Number you find | Where it’s used | Why it matters |
|---|---|---|
| Engine model number | Engine parts lookup | Matches carburetor, starter, ignition, filters |
| Tractor model number (917203810) | Tractor parts lookup | Matches deck, belts, steering, chassis |
| Engine code/date | Service reference | Helps identify production changes |
Why it matters
The tractor model number (917203810) identifies Craftsman chassis and mower deck parts, but the engine model number identifies engine-specific parts like the starter solenoid, air filter, and ignition components. Using the correct number prevents fit issues and repeat repairs.
