KitchenAid
Dishwasher

Model # KUDE40FXPA2 Official KitchenAid undercounter dishwasher

Here are the diagrams and repair parts for Official KitchenAid KUDE40FXPA2 undercounter dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

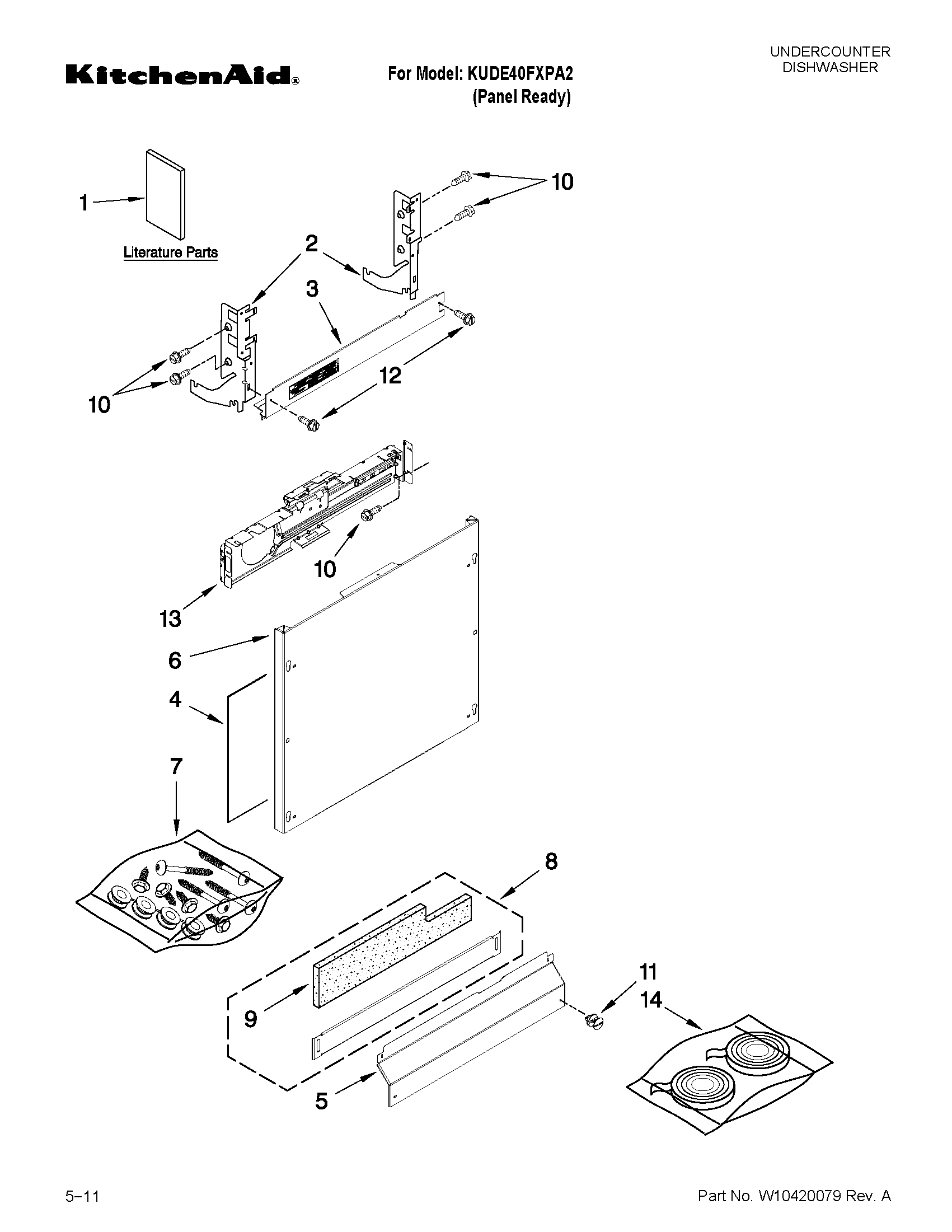

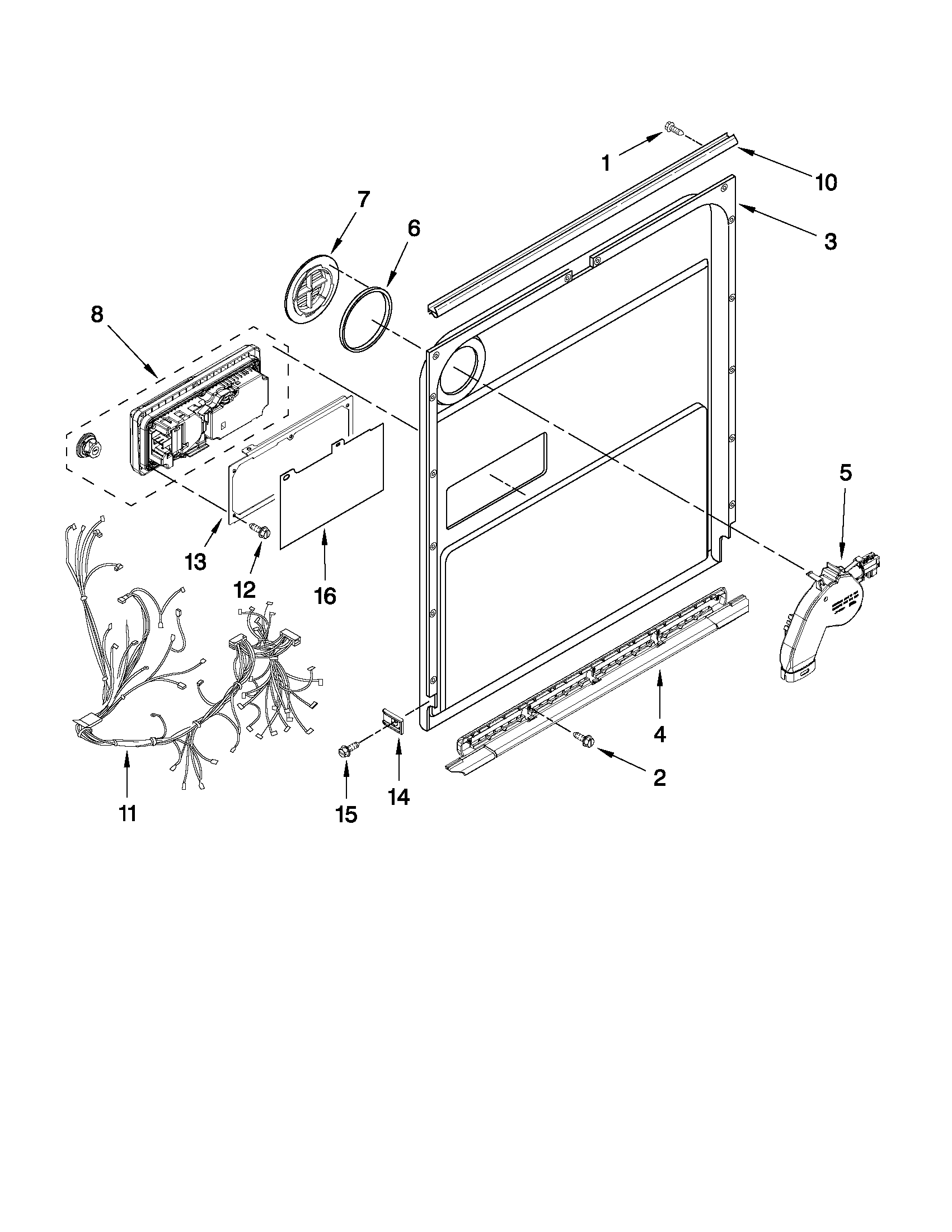

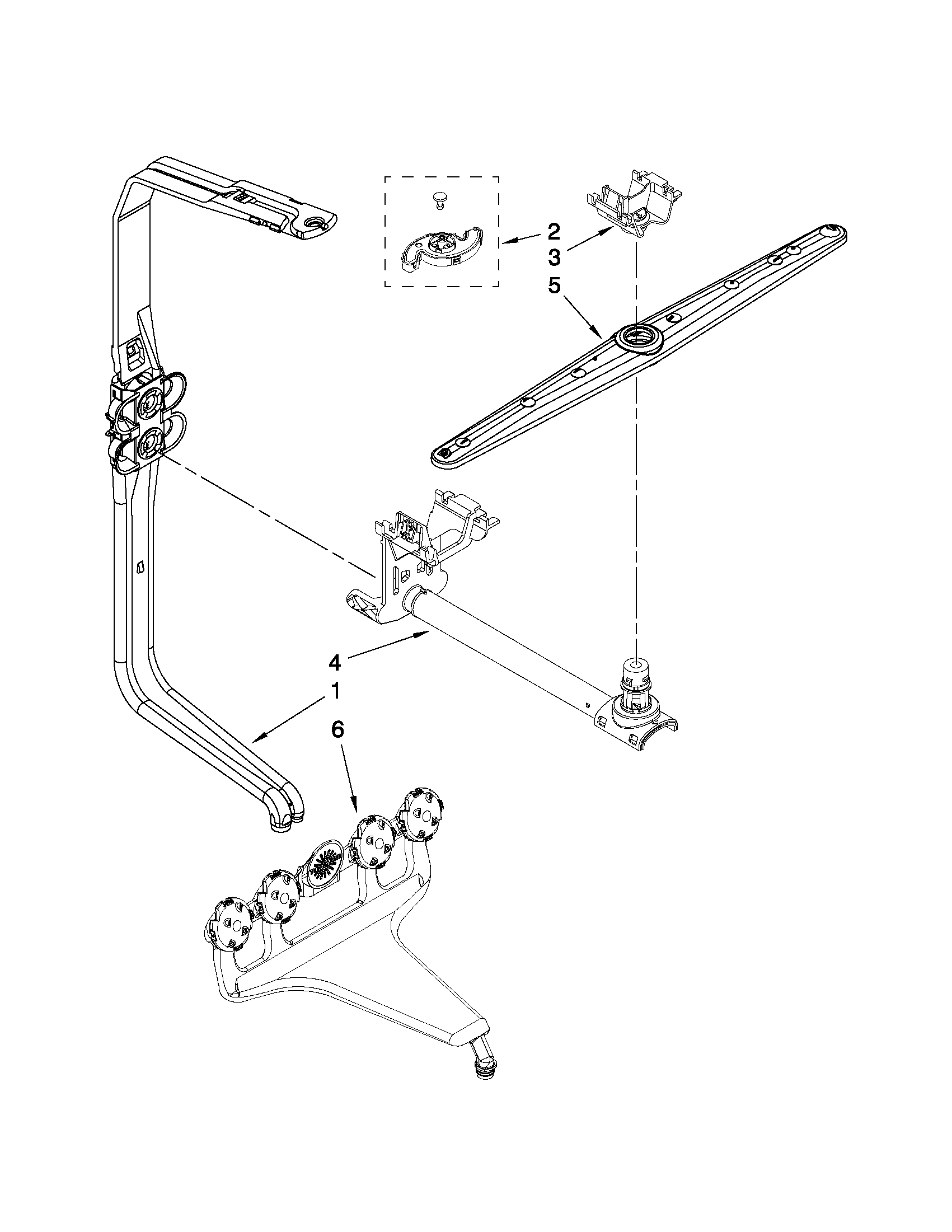

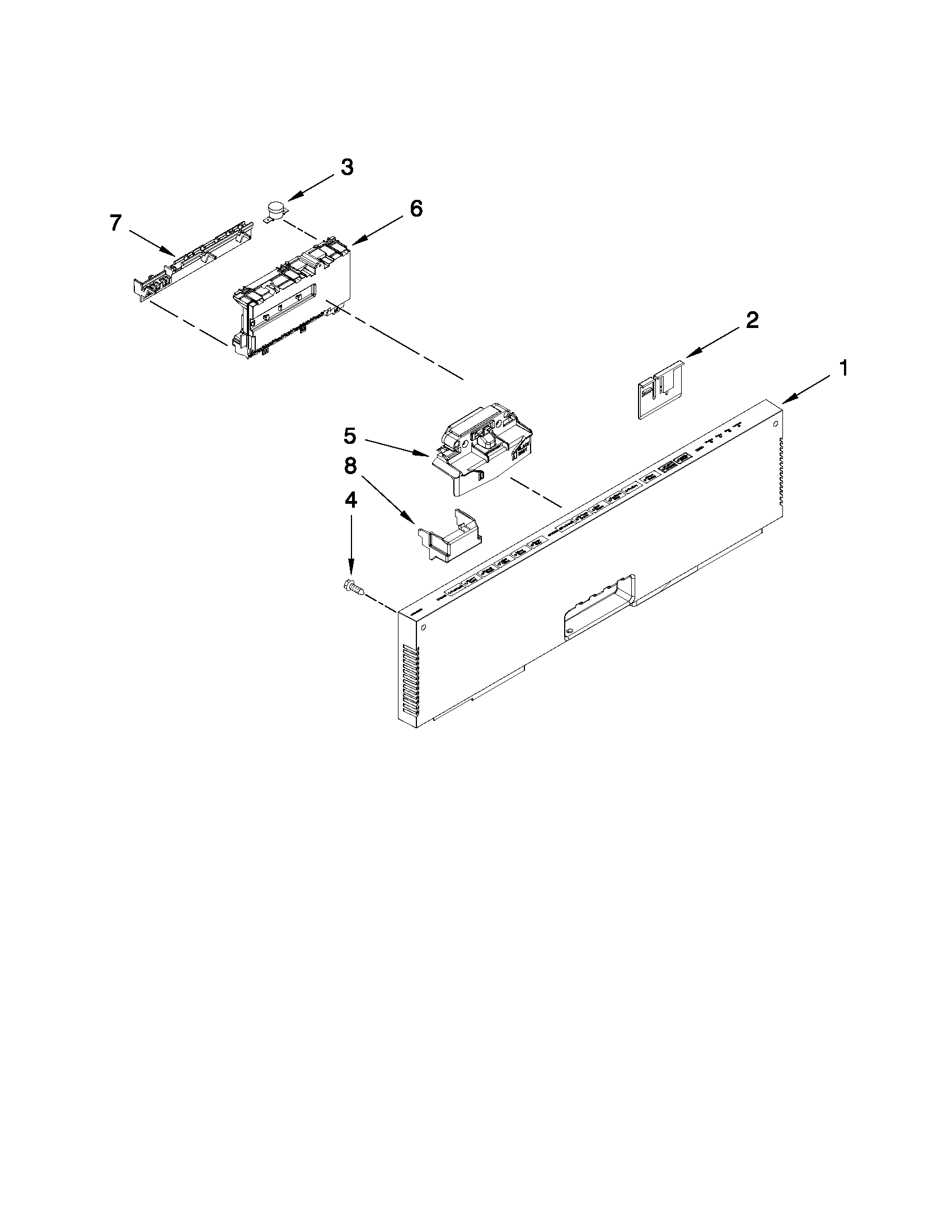

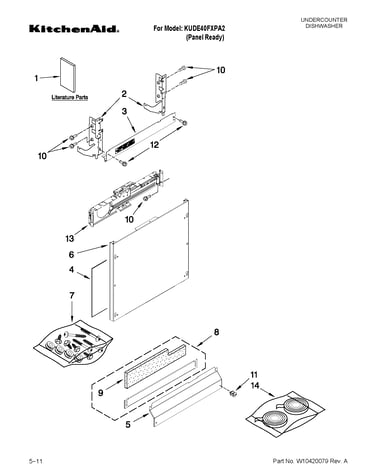

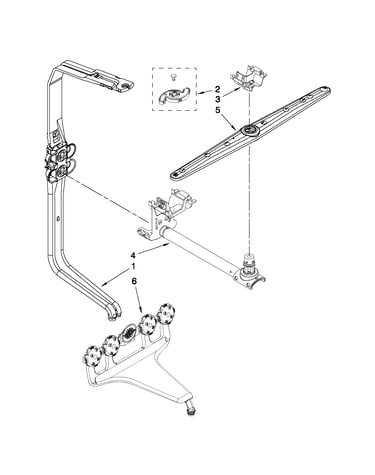

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 171 parts  |

Adjuster W10253546
#4

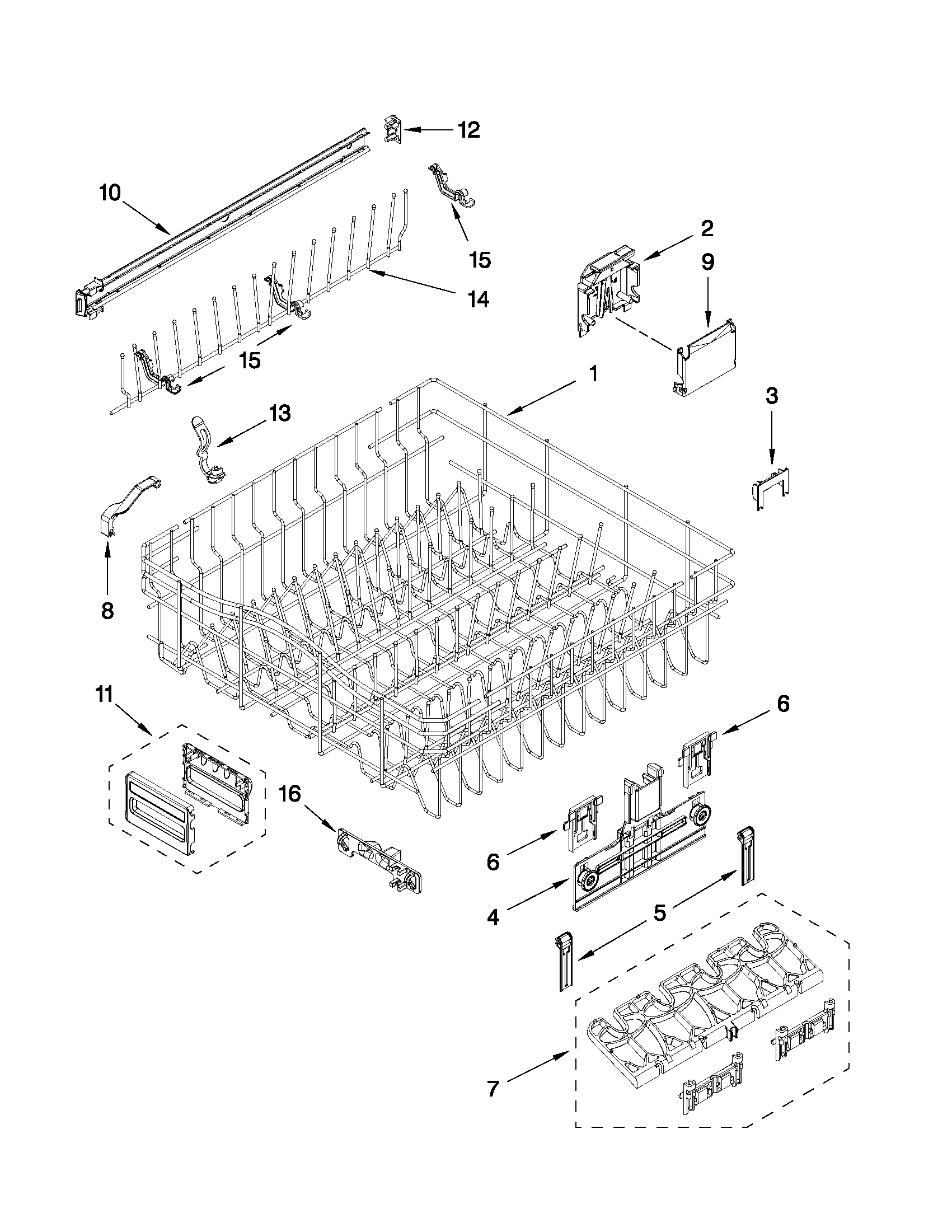

Upper rack and track parts diagram

Adjuster

Part #W10253546

Replaced by #W10712394

?
Manufacturer substitution
This part replaces W10253546. Substitute parts can look different from the original.
BEST SELLER
$37.51
29% OFF MSRP : $53.00
In Stock
Dishwasher Dishrack Wheel W10195416
#2

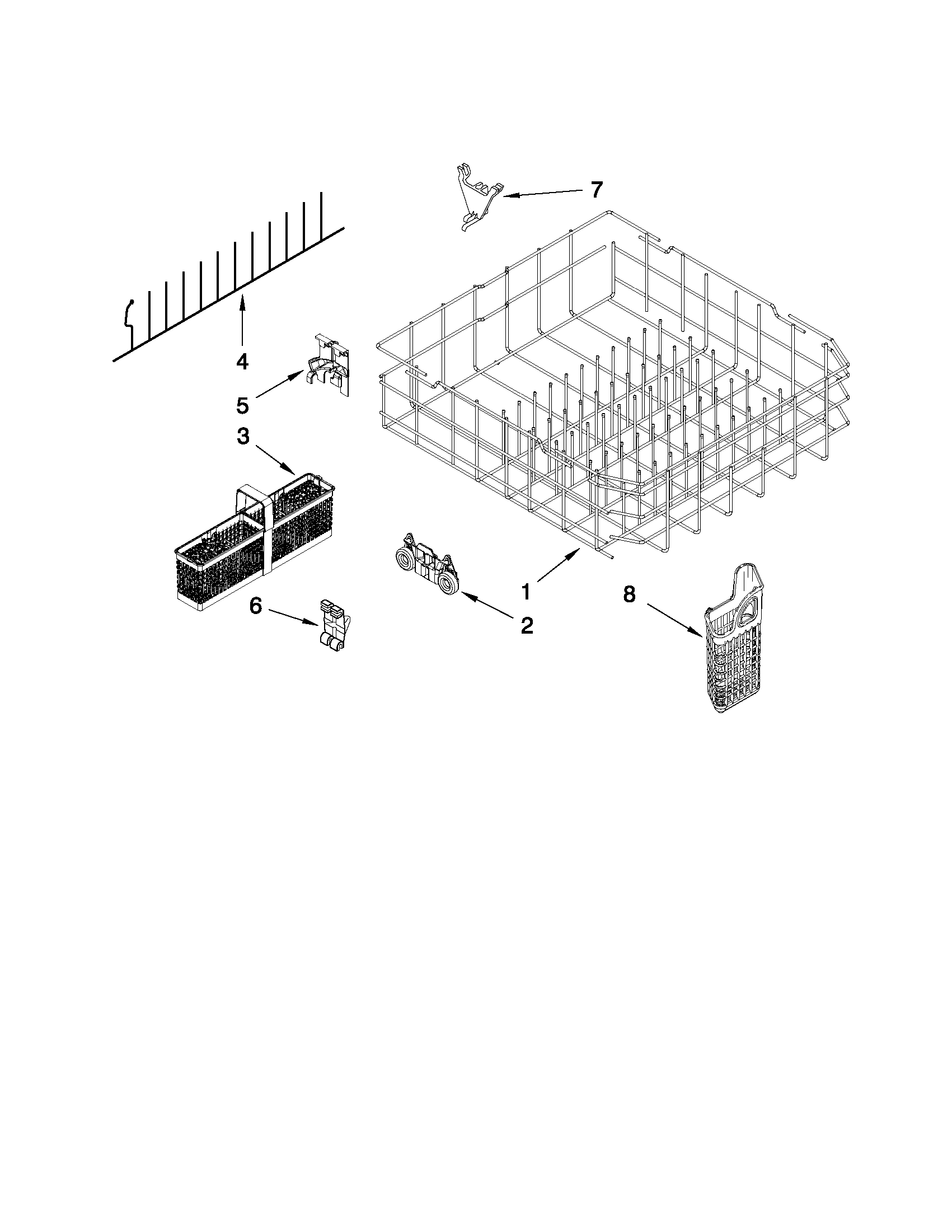

Lower rack parts diagram

Dishwasher dishrack wheel

Part #W10195416

Replaced by #W10195416V

?
Manufacturer substitution
This part replaces W10195416. Substitute parts can look different from the original.
BEST SELLER
$25.06
32% OFF MSRP : $37.00
In Stock
Dishwasher Drain Pump W10158351
#14

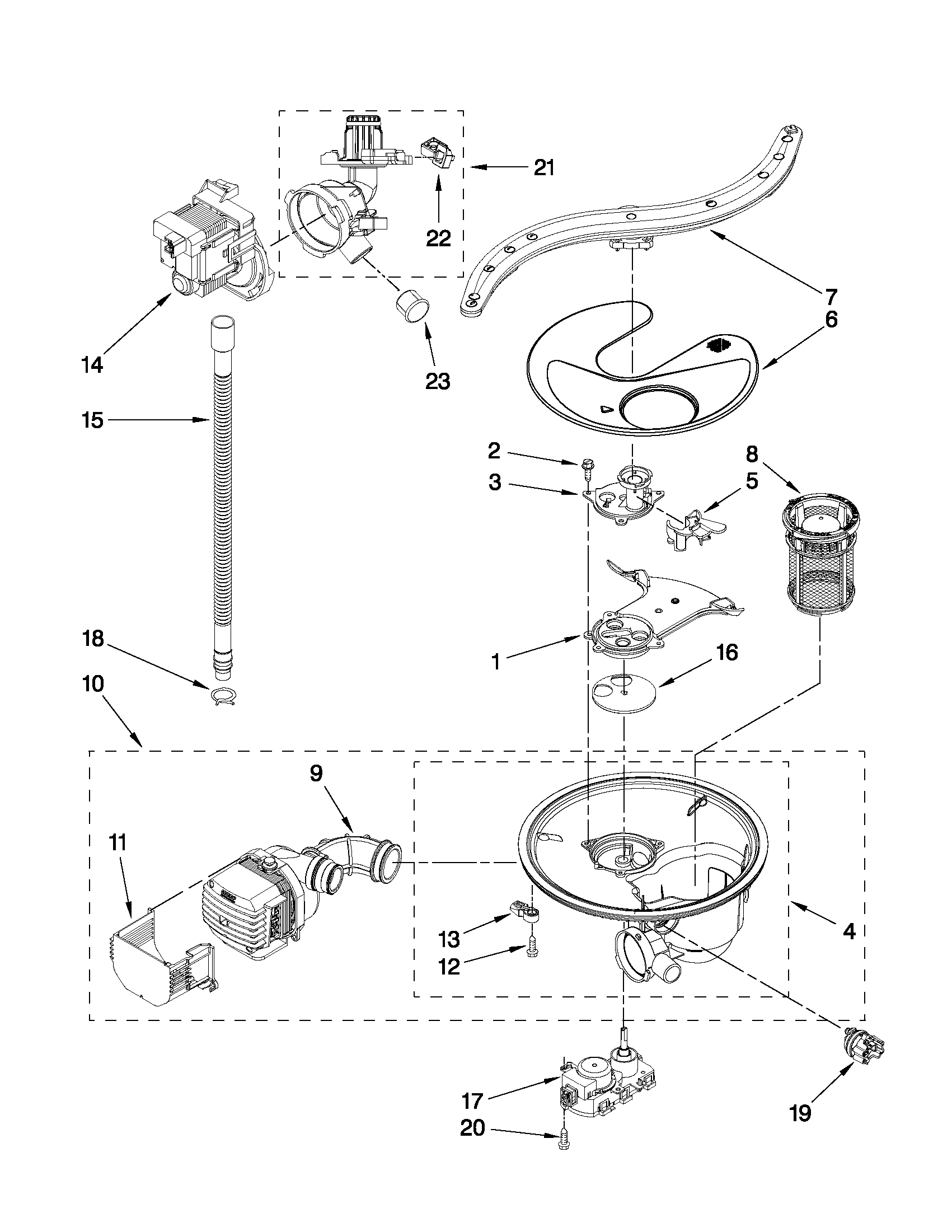

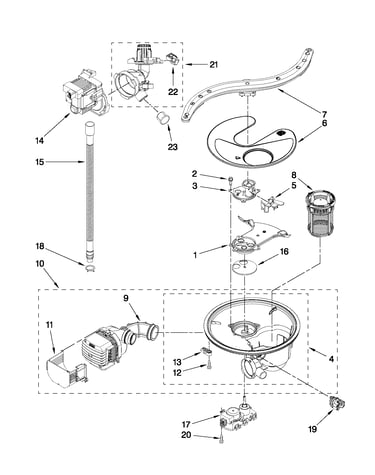

Pump, washarm and motor parts diagram

Dishwasher drain pump

Part #W10158351

Replaced by #WPW10348269

?
Manufacturer substitution
This part replaces W10158351. Substitute parts can look different from the original.
BEST SELLER
$68.37
12% OFF MSRP : $78.00
In Stock
Dishwasher Door Seal W10300924
#3

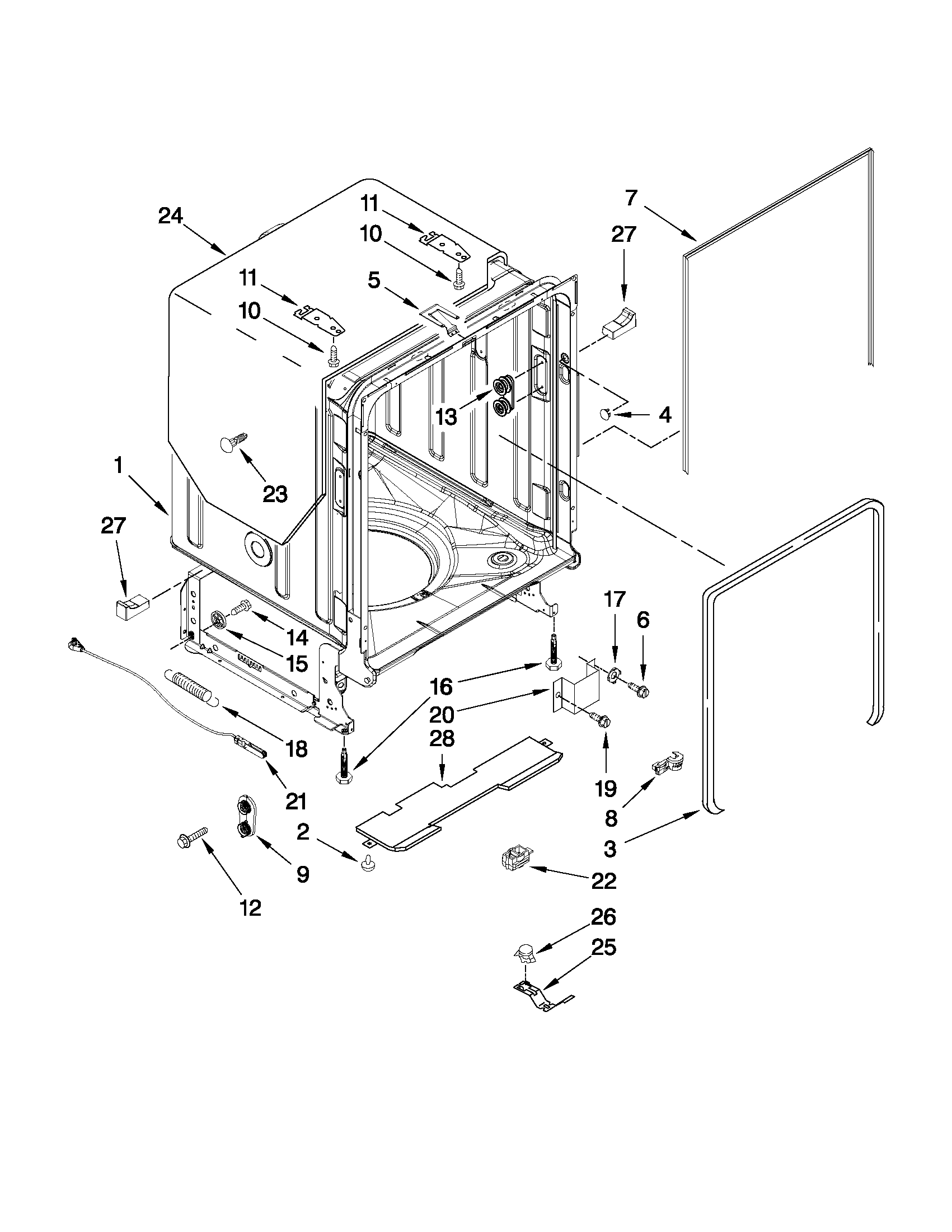

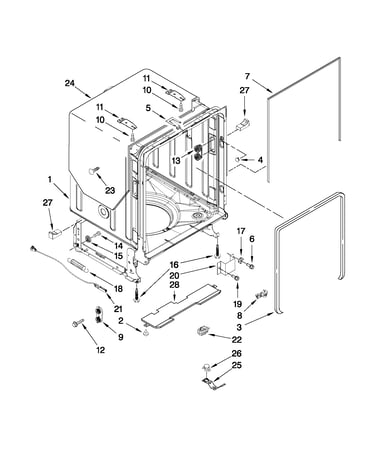

Tub and frame parts diagram

Dishwasher door seal

Part #W10300924

Replaced by #W11177741

?
Manufacturer substitution
This part replaces W10300924. Substitute parts can look different from the original.
BEST SELLER
$47.94
32% OFF MSRP : $70.00
In Stock
Dishwasher Door Balance Link W10158291
#21

Tub and frame parts diagram

Dishwasher door balance link

Part #W10158291

Replaced by #8194001

?
Manufacturer substitution
This part replaces W10158291. Substitute parts can look different from the original.
BEST SELLER
$23.05
18% OFF Phone Price : $28.05
In Stock
Dishwasher Heater W10195052
#1

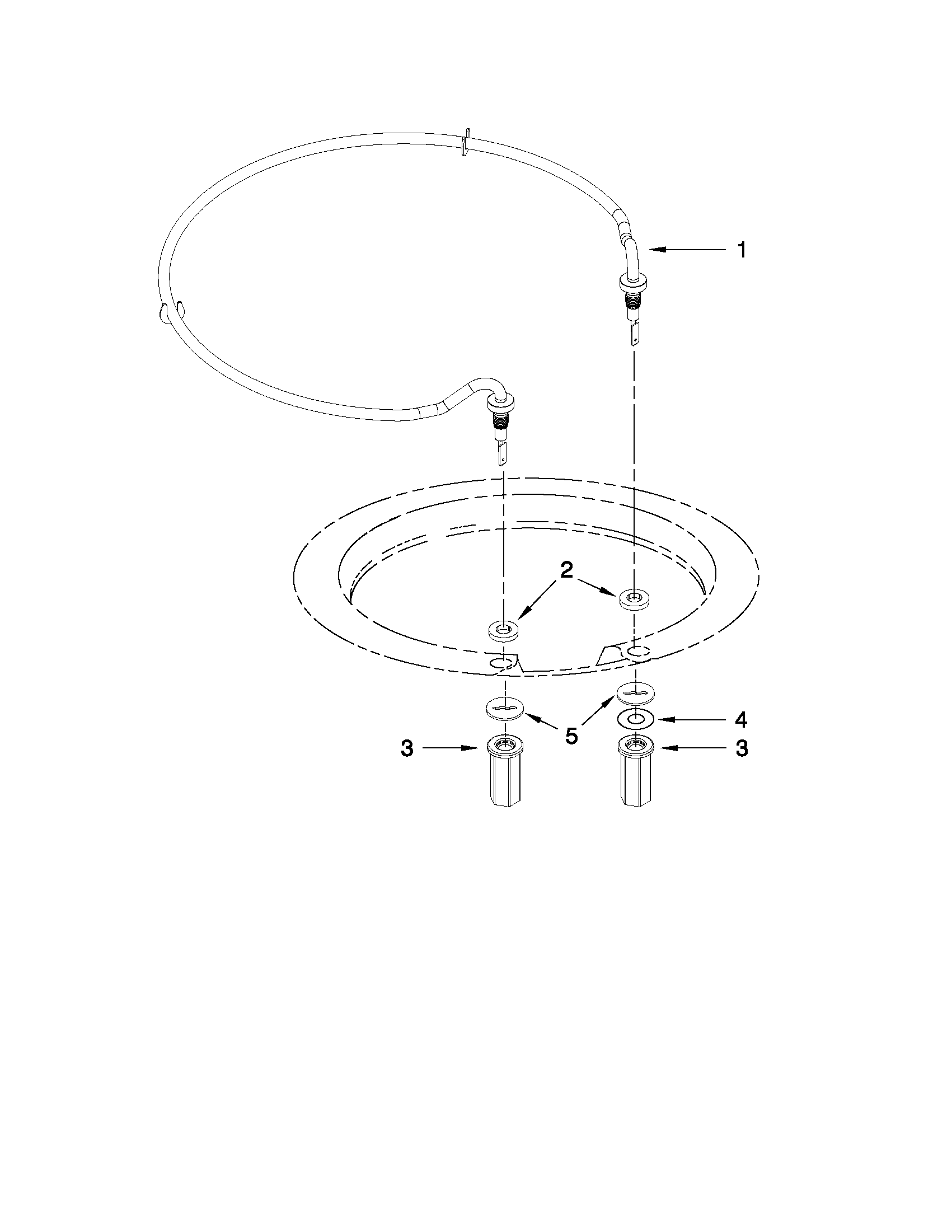

Heater parts diagram

Dishwasher heater

Part #W10195052

Replaced by #W10703867

?
Manufacturer substitution
This part replaces W10195052. Substitute parts can look different from the original.
BEST SELLER
$70.96
23% OFF MSRP : $92.00
In Stock
Dishwasher Tine Pivot Clip W10082853
#15

Upper rack and track parts diagram

Dishwasher tine pivot clip

Part #W10082853

Replaced by #WPW10082853

?
Manufacturer substitution
This part replaces W10082853. Substitute parts can look different from the original.
BEST SELLER
$9.28
38% OFF MSRP : $15.00
In Stock
Dishwasher Water Inlet Valve W10195047
#7

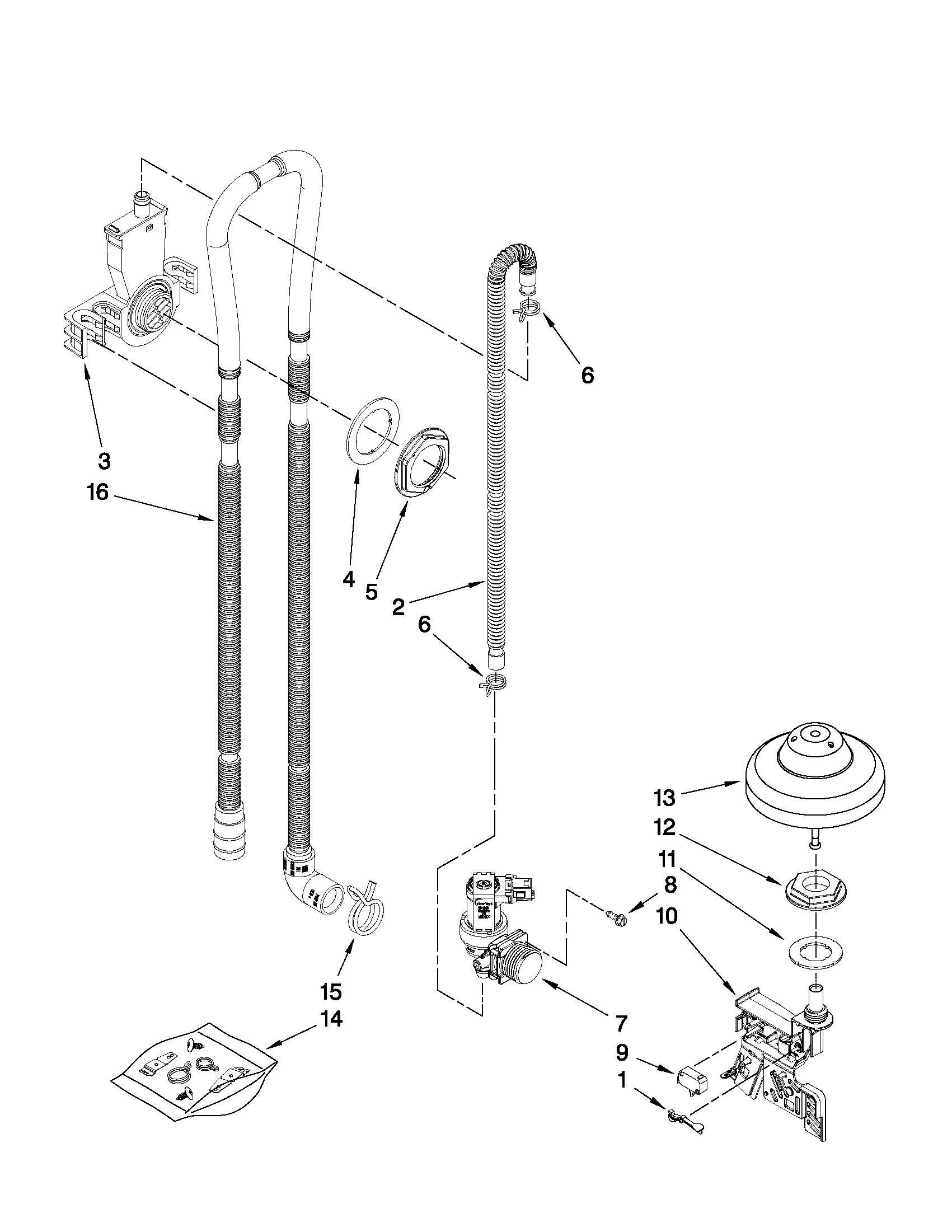

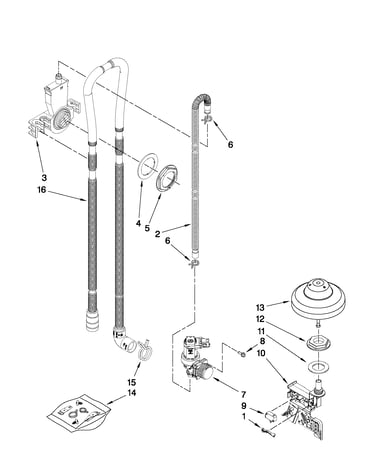

Fill, drain and overfill parts diagram

Dishwasher water inlet valve

Part #W10195047

Replaced by #W11175771

?
Manufacturer substitution
This part replaces W10195047. Substitute parts can look different from the original.
BEST SELLER
$50.12
26% OFF MSRP : $68.00
In Stock
Dishwasher Adjuster Positioner Clip W10195840
#6

Upper rack and track parts diagram

Dishwasher adjuster positioner clip

Part #W10195840

Replaced by #WPW10195840

?
Manufacturer substitution
This part replaces W10195840. Substitute parts can look different from the original.
BEST SELLER
$35.09
25% OFF MSRP : $47.00
In Stock
Dishwasher Filter W10056426
#8

Pump, washarm and motor parts diagram

Dishwasher filter

Part #W10056426

Replaced by #W10872845

?
Manufacturer substitution
This part replaces W10056426. Substitute parts can look different from the original.
BEST SELLER
$40.26
23% OFF MSRP : $52.00
In Stock
