KitchenAid KSBP25INSS03 side-by-side refrigerator Parts

Yes. KitchenAid makes side-by-side refrigerators, and the KitchenAid KSBP25INSS03 is one example of a side-by-side model. For model-specific features, operating details, and care instructions, we recommend using the owner's manual.

What “side-by-side” means on KitchenAid refrigerators

A side-by-side refrigerator has two full-height doors:

• The refrigerator compartment is on one side
• The freezer compartment is on the other side
• Many models include an in-door ice and water dispenser
• Airflow and defrost components help keep both sections at safe temperatures

Helpful model-specific parts you can expect on KSBP25INSS03

Because KSBP25INSS03 is a side-by-side refrigerator, it commonly uses parts that support water filtration, ice production, and cooling airflow. Examples available for this model include:

• Refrigerator water filter EDR3RXD1 for filtered dispenser water and ice

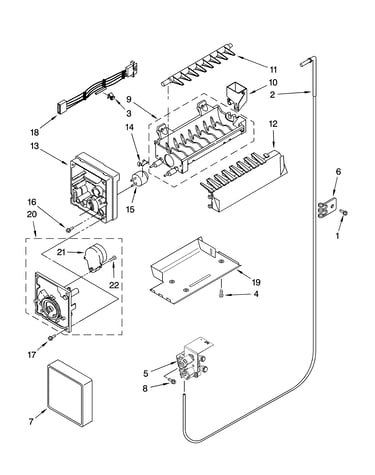

• Whirlpool refrigerator ice maker assembly 2198597 for ice production

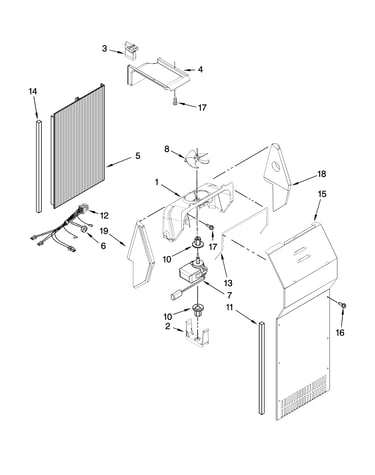

• Refrigerator evaporator fan blade WP2169142 to move cold air through the compartments
• Refrigerator defrost bi-metal thermostat WPW10225581 to help manage defrost cycling

Quick part-to-symptom guide

If you notice	Common area to check	Example part for KSBP25INSS03
Bad-tasting water or slow dispensing	Water filter and housing	Refrigerator water filter (EDR3RXD1)
No ice or small/irregular cubes	Ice maker system	Ice maker assembly (2198597)
Warm fridge section but freezer seems cold	Evaporator airflow	Evaporator fan blade (WP2169142)
Frost buildup and warming over time	Defrost system	Defrost bi-metal thermostat (WPW10225581)

Why it matters

Knowing KitchenAid makes side-by-side refrigerators helps you match the right parts, maintenance steps, and troubleshooting approach to your design. Side-by-side models often rely heavily on the ice and water system and evaporator airflow, so routine filter changes and airflow checks prevent many common problems.

Last updated: February 2026

The KitchenAid KSBP25INSS03 is a full-size side-by-side refrigerator; most models in this class are about 25 cu. ft. total capacity and measure roughly 35 to 36 inches wide, 69 to 71 inches tall, and 33 to 35 inches deep (not counting handles). For the exact specs for your unit, use the KSBP25INSS03 owner's manual.

Typical size and what to measure at home

To confirm fit for your kitchen opening, we recommend measuring these points:

• Width: cabinet opening and refrigerator case width
• Height: floor to the lowest overhead cabinet or soffit
• Depth: wall to the front edge of counters (then add handle clearance)
• Door swing clearance: space needed to fully open both doors
• Water line clearance: room behind the unit for the supply line

Quick reference: common side-by-side dimensions

These are typical ranges for a KitchenAid side-by-side like KSBP25INSS03; your exact numbers can vary by trim and handle style.

Measurement	Typical range	Why you care
Width	35 to 36 in.	Fits between cabinets and trim
Height	69 to 71 in.	Clears upper cabinets
Depth (case)	33 to 35 in.	Determines how far it sticks out
Capacity	~24 to 26 cu. ft.	Storage planning

Why it matters

Getting the correct size prevents installation headaches (tight cabinet openings, doors that cannot open fully, or a refrigerator that protrudes too far). It also helps you plan for airflow space and water line routing.

Related installation detail to keep in mind

If your model is connected to a water supply for the dispenser or ice maker, the manual lists typical supply requirements such as 30 to 120 psi water pressure and a 0.5 gpm service flow rate at 60 psi; confirm your home setup before moving the refrigerator back into place.

Last updated: February 2026

On the KitchenAid KSBP25INSS03 side-by-side refrigerator, the most common issues we see are ice maker and water dispensing problems, warm temperature complaints caused by restricted airflow, and water leaks. These typically trace back to the water filter and supply system, evaporator fan airflow, or defrost drainage.

Most common symptoms (and what they usually point to)

• Ice maker not making ice: water supply restriction, ice maker failure, or dispenser/auger issues
• Water dispenser slow or not dispensing: clogged filter, air in the line, or tubing restriction
• Fridge warm but freezer cold: airflow problem (often evaporator fan related) or air diffuser/damper issue
• Water under the refrigerator or inside the fresh food section: defrost drain issue or water line seepage
• Unusual noises: fan blade interference, fan motor wear, or ice buildup contacting a fan

Quick checks we recommend first

1. Confirm temperatures: set refrigerator to about 37°F and freezer to about 0°F.
2. Check the water filter status: replace the filter if it is older than 6 months or flow is reduced.
3. Listen for the evaporator fan: with the freezer door switch held closed, you should typically hear the fan running.
4. Inspect for ice buildup on the freezer back wall (a common clue of a defrost problem).
5. Look for leaks at the filter housing and water tubing connections.

Common parts involved on this model

Problem area	What fails most often	Example part for KSBP25INSS03
Water/ice system	Clogged filter	Refrigerator water filter EDR3RXD1
Water/ice system	Cracked/loose tubing	Refrigerator water tube 8201597
Cooling airflow	Fan blade damage or rubbing	Refrigerator evaporator fan blade WP2169142
Ice production	Ice maker assembly failure	Whirlpool refrigerator ice maker assembly 2198597
Defrost system	Defrost thermostat issues	Refrigerator defrost bi-metal thermostat WPW10225581

Why it matters

When airflow or water flow is restricted, the refrigerator can run longer, temperatures can drift, and you can get secondary problems like frost buildup, slow ice production, or leaks. Addressing the root cause early helps protect food temperatures and reduces strain on the sealed refrigeration system.

Model-specific notes from the documentation

Your documentation highlights that sealed-system components (such as the compressor, evaporator, condenser, dryer, and connecting tubing) are treated differently under warranty terms than items like water filters and light bulbs. For operating and maintenance details specific to KSBP25INSS03, use the KSBP25INSS03 owner's manual.

For step-by-step filter replacement guidance, we also recommend how to replace the water filter in a KitchenAid refrigerator.

Last updated: February 2026

A KitchenAid side-by-side refrigerator like model KSBP25INSS03 typically lasts 14 to 17 years with normal household use. Keeping airflow clear, maintaining door seals, and staying on top of water filter and coil care helps you reach the upper end of that range.

Typical lifespan at a glance

Item	Typical lifespan	What usually ends it first
KitchenAid refrigerator (overall)	14 to 17 years	Sealed system wear, control issues, airflow problems
Water filter (usage item)	About 6 months	Reduced flow, taste/odor, clogging

What most affects lifespan on KSBP25INSS03

• Condenser coil cleanliness: dust buildup makes the compressor run hotter and longer.
• Door gasket condition: air leaks cause long run times and frost issues.
• Evaporator airflow: a weak fan or blocked vents leads to warm temps and icing.
• Water system health: correct water pressure and a fresh filter protect the dispenser and ice maker.
• Leveling and door alignment: reduces gasket wear and prevents doors from popping open.

Maintenance that adds years (high impact, low effort)

• Vacuum the condenser area regularly (more often with pets).
• Keep freezer and fresh food vents unblocked.
• Replace the water filter on schedule; use the correct refrigerator water filter EDR3RXD1.
• Check the filter housing cap for cracks or a loose fit; replace the refrigerator water filter cap (black) WP2260518B if it will not seal.
• Confirm your home water supply stays in the normal range; the installation information for this model lists 30 to 120 psi as the acceptable water pressure.

Why it matters

A refrigerator can still “run” while slowly losing efficiency. Longer run times raise energy use, increase frost and temperature swings, and accelerate wear on expensive components like the compressor, evaporator, and condenser.

Helpful references for this model

• Use the care and maintenance schedule in the owner's manual.
• For step-by-step filter replacement, follow how to replace the water filter in a KitchenAid refrigerator.

Last updated: February 2026
